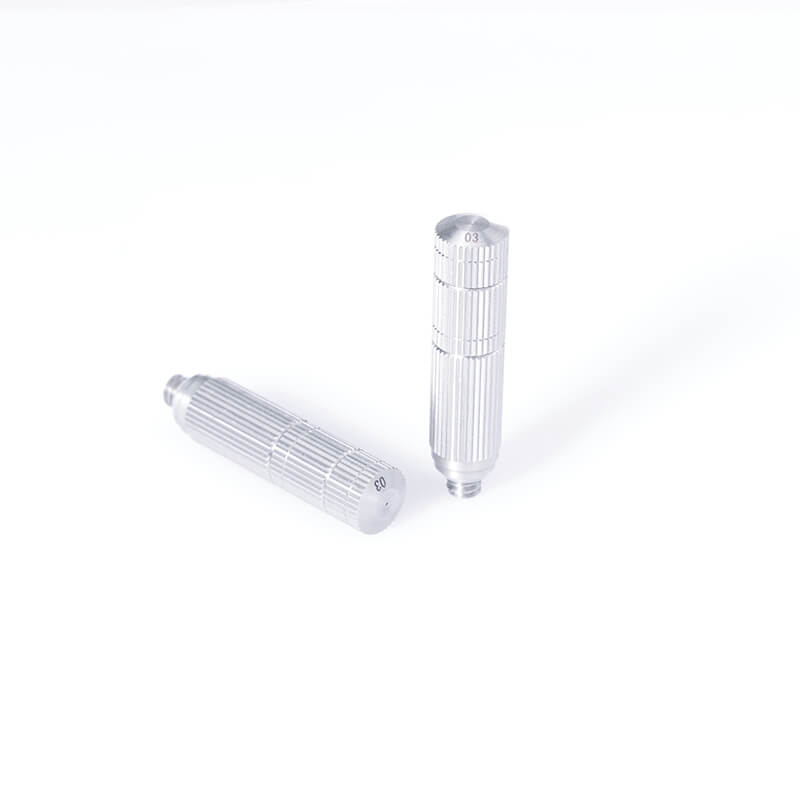

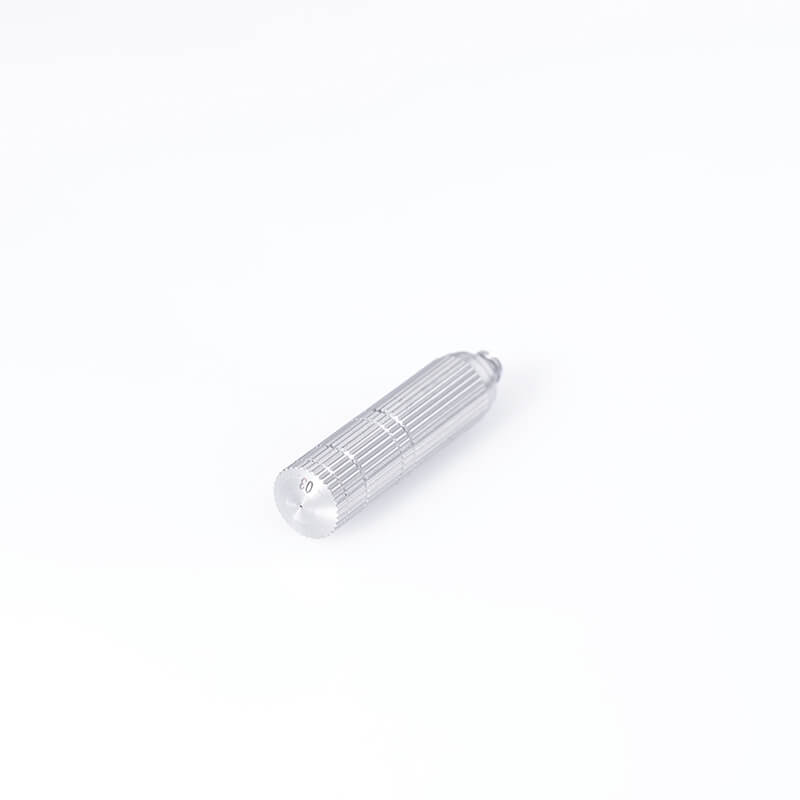

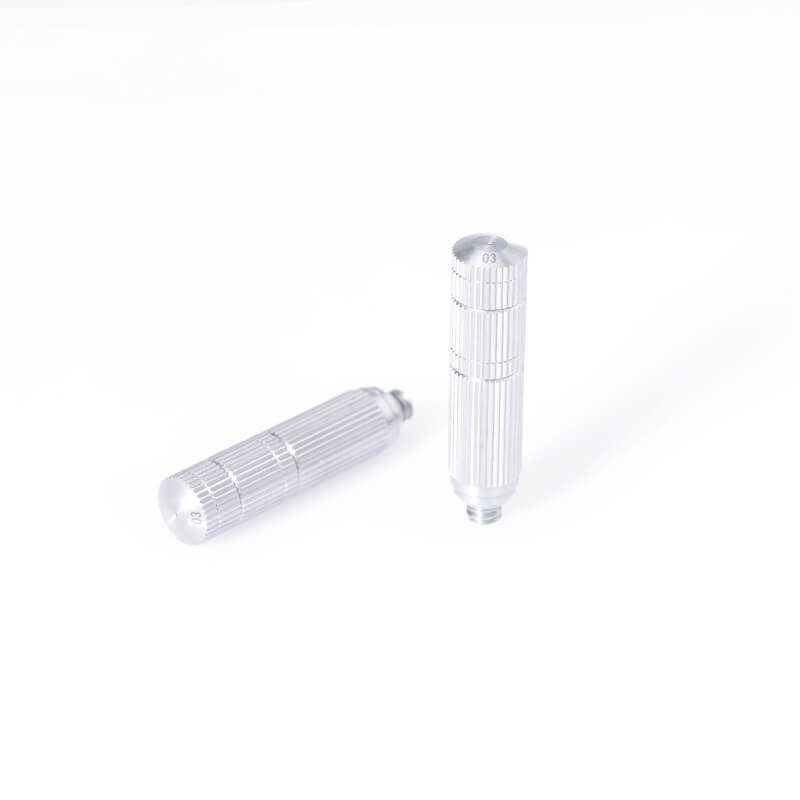

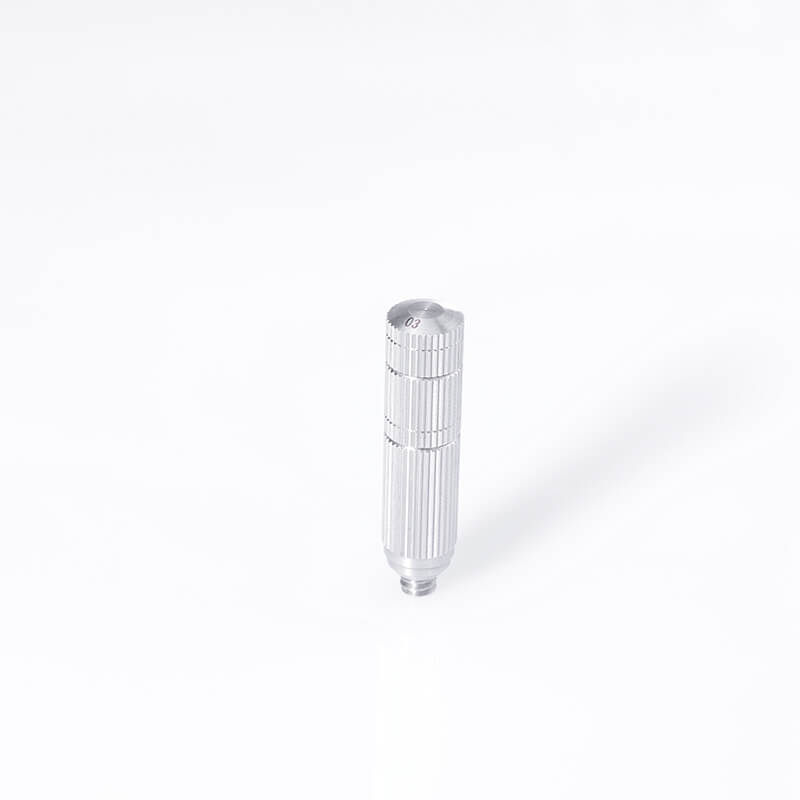

high pressure fog mist nozzle 0.012 (0.30mm) orifice 1/8 thread fogging system nozzles

The core component of the sprayer is the high pressure fogging system nozzle, which determines the effect and efficiency of the spray. The high pressure fogging system nozzle design is often very fine, with specific channels and structures inside so that the liquid can pass smoothly and form a mist at the exit with high pressure.

When the liquid is fed into the nozzle, it first passes through a contraction section, which gradually decreases in diameter. In this process, the flow rate of the liquid will gradually increase, and the pressure will increase accordingly. As the liquid continues to flow, it comes to a section that suddenly expands, which is called the diffusion section. Here, due to the sudden widening of the flow channel, the flow rate of the liquid will be rapidly reduced, and the pressure will be greatly reduced.

high pressure fog mist nozzle 0.012 (0.30mm) orifice 1/8 thread fogging system nozzles

Orifices（mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.30	40	87.5	55	1.0	1.6
	50	103.9	60	1.3	1.8
	60	117.3	70	1.6	2.2
	70	130.0	70	1.8	2.4

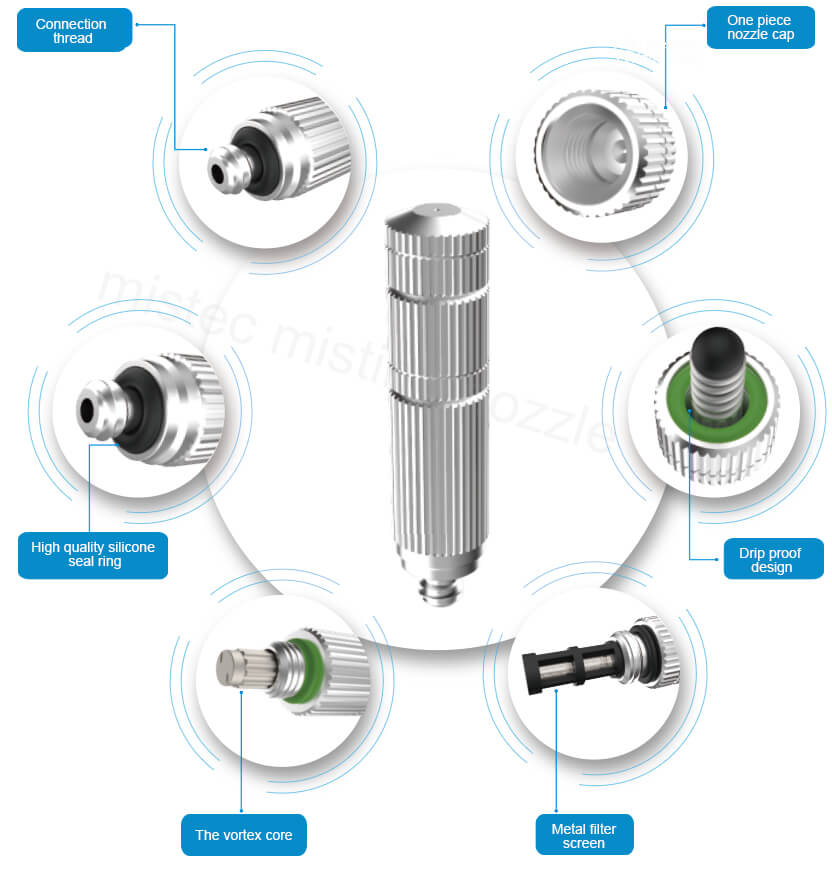

High pressure fogging system nozzle features:

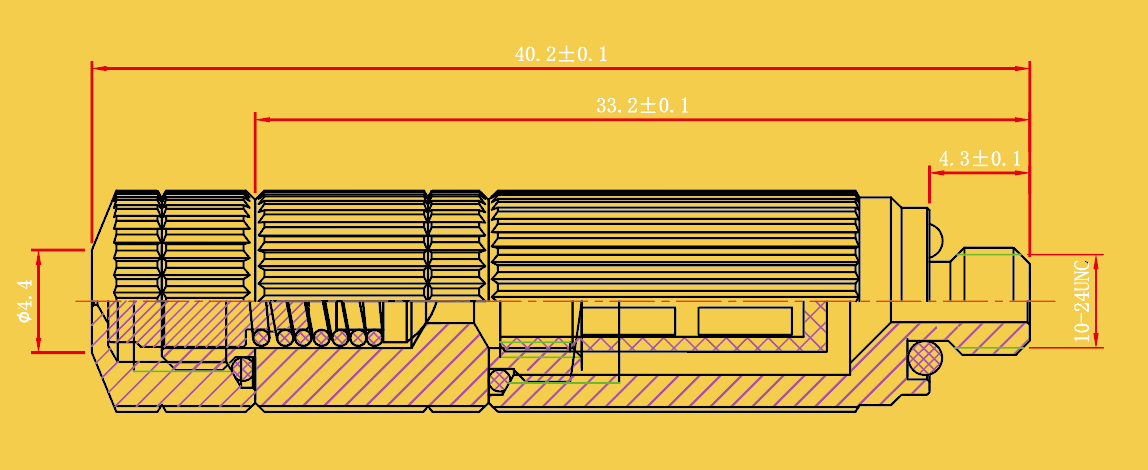

1.Thread Size:  3/16UNC,10/24UNC

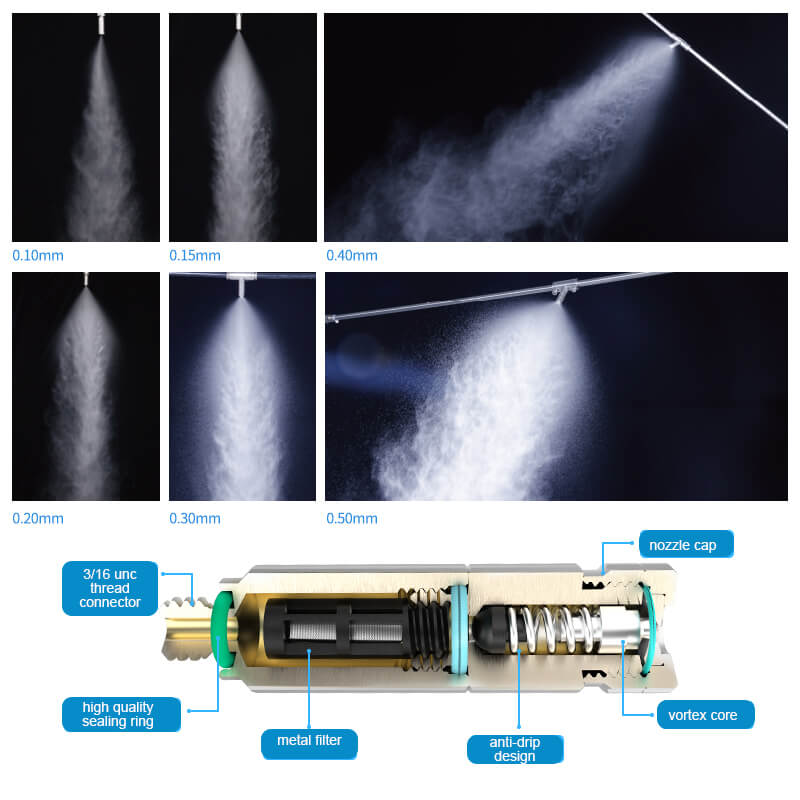

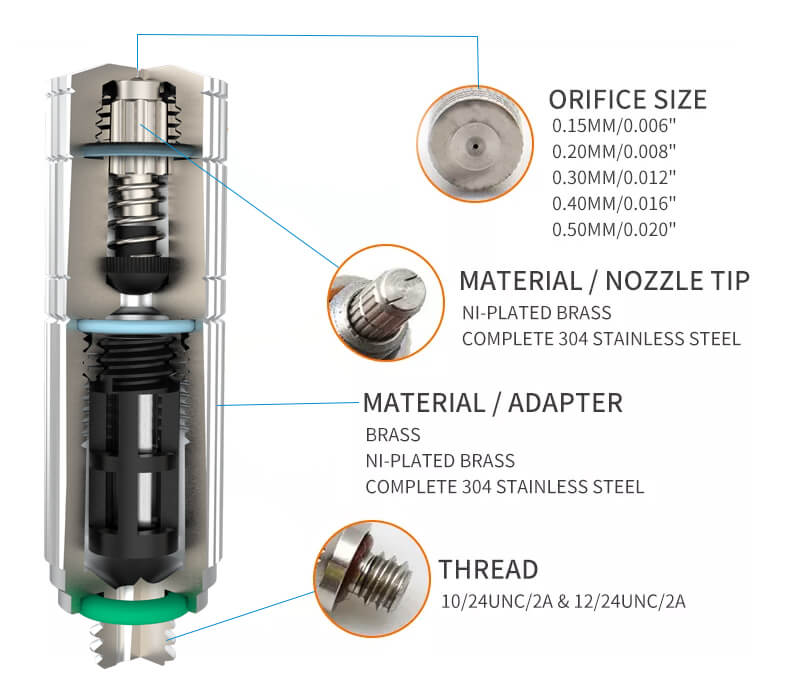

2.SS orifice Size: 0.1mm ,0.2m,0.3mm ,0.4mm ,0.5mm and larger. Ceramic Orifice size:0.08mm ,0.1mm,0.2mm,0.3mm ,0.4mm ,0.5mm and larger.
3.Water Drop Size:15 micron---70 micron.
4.With Anti-drop Device inside Nozzle.
5.High working pressure: up to 1300psi(80bar)
6. Without airs supplementary, system device is simple.
7. Energy and water saving, low cost and good effects.
8. Nozzle tip uses wear-resistant materials, and service life is 2.5 times of similar nozzle.
