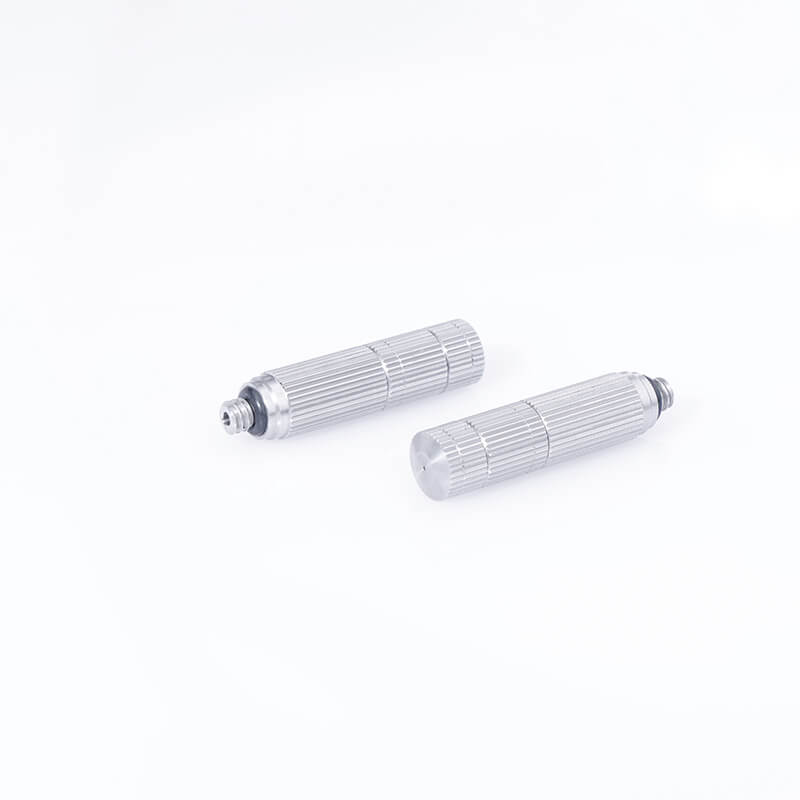

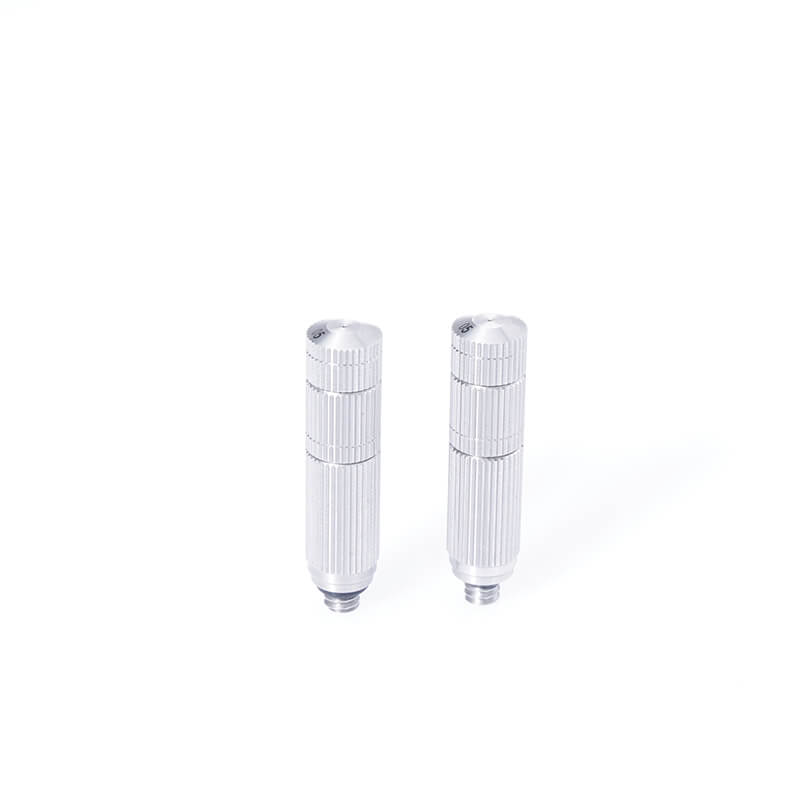

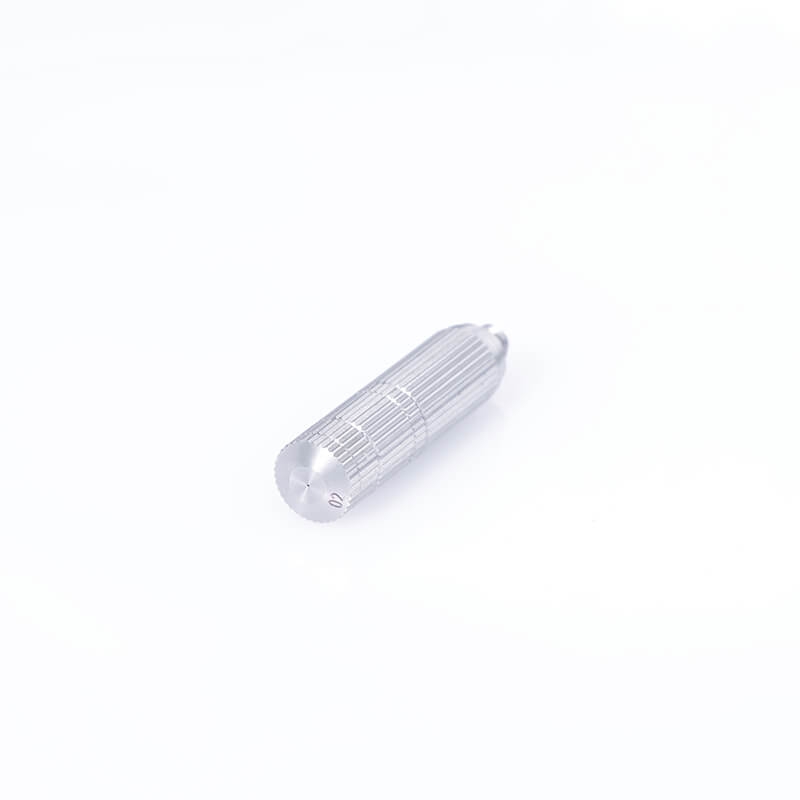

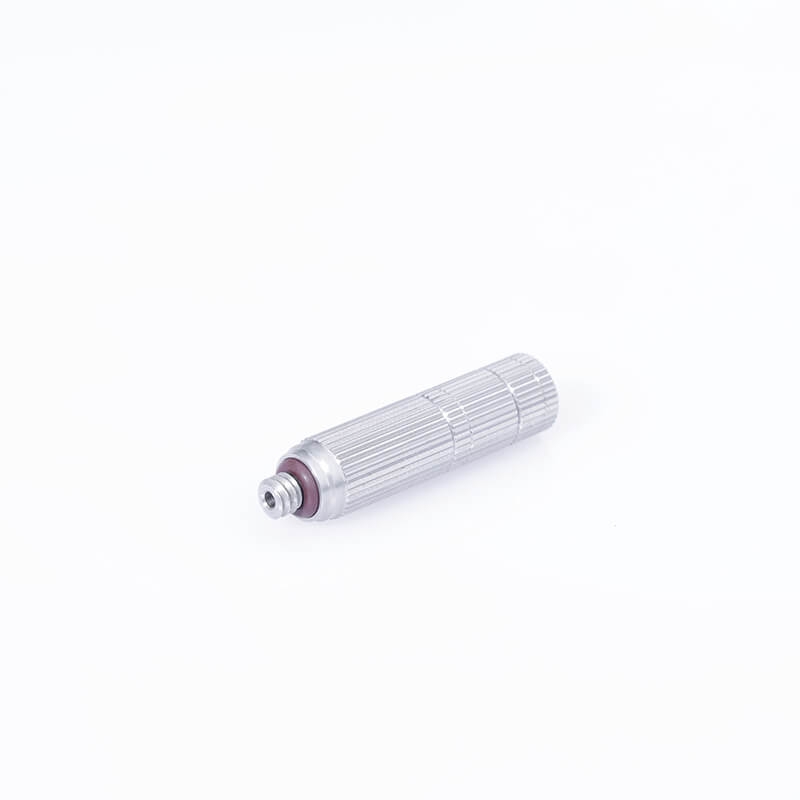

middle pressure mister head nozzle with 0.02inches (0.50mm) orifice 1/4 thread connector

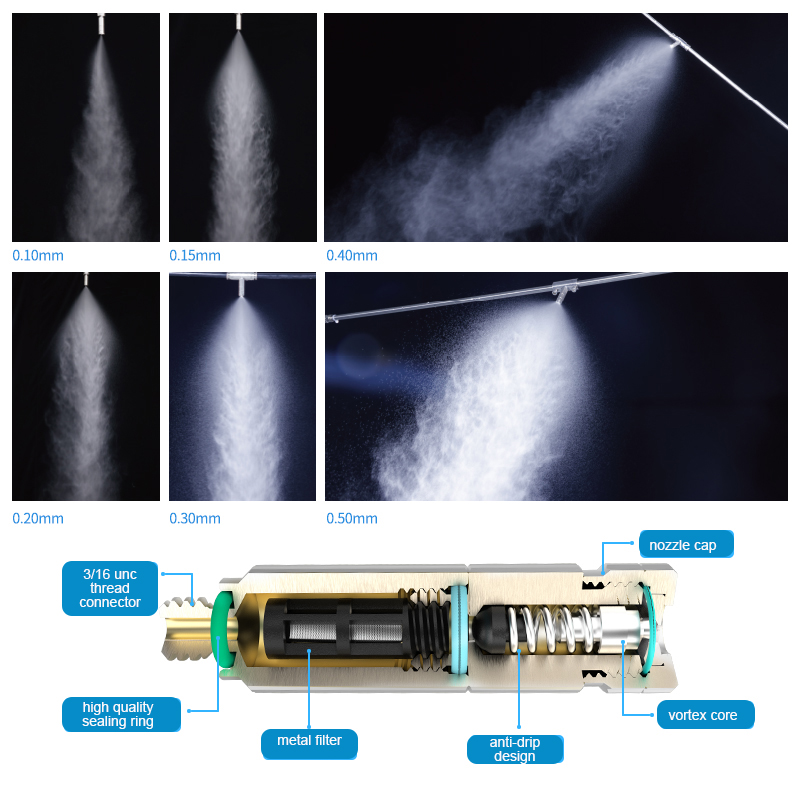

Design Features.
1. The middle pressure mister head nozzle is made of wear-resistant material, which makes its service life 2.5 times longer than similar nozzles.

2. The middle pressure mister head nozzle can produce fine mist under different pressure.

3. No clogging, no dropping, it is energy and water saving, low cost product.


Low pressure and high pressure for your choice
*The best choice for sterilization
*Super fine mist
*Easy to install, no need for air supply
*Easy to clean design
*Internal filter optional


middle pressure mister head nozzle anti-drip outdoor spray cooling system nozzle
Middle pressure mister head nozzle can effectively improve the quality and productivity. Effectively adjustable humidification volume and spray effect. This series of middle pressure mister head nozzle do not need pneumatic assistance, easy to install the system. The fog spot is fine, up to 3-7 microns, completely atomized, energy saving, low cost and good effect.

Applications.
1. Cooling - outdoor restaurants, entertainment venues, stadiums, arenas, airports, bus stations, large parties, cooling animals
Farm pigs, horses and sheep
2. Dust removal - removes dust particles from the air, mainly used for controlling agricultural and mining pollution
3. agriculture - for family farms, cultivation of field mushrooms, circus arenas, aviaries kennels and breeding farms, to make the environment suitable for the growth of various types of poultry
4. Industry - hardware workshop, machinery workshop, textile workshop, clothing workshop, printing and dyeing shoe industry, plastic injection molding, mold
Casting heat treatment, glass, spray plating, electronics and chemical industry, metallurgy, leather, toy manufacturing, electronics manufacturing, for cooling and dust removal.
5. Special use of space - gardens, zoos, shopping centers, exhibitions, flower growing, animal husbandry, etc., humidification
Cooling, it can also be used to irrigate plants.
6. Disinfection - for outdoor restaurants, entertainment venues, stadiums, arenas, airports, bus stops.

Aperture spacing The aperture spacing refers to the distance between the apertures on the middle pressure mister head nozzle. The choice of aperture spacing is related to the use of middle pressure mister head nozzle. If you need to cover a larger area, you can choose a larger aperture spacing to increase the coverage of the middle pressure mister head nozzle. Conversely, if a fine spray effect is required, a smaller aperture spacing can be selected.

middle pressure mister head nozzle with 0.02inches (0.50mm) orifice 1/4 thread connector

orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.5	12	55.5	90	0.8	1.0
	15	78.0	100	1.1	1.4
	18	94.4	100	1.2	1.6
