1/4 thread middle pressure misting nozzle 0.012in(0.30mm) orifice fogging head tips

The thread and aperture of 1/4 thread middle pressure misting nozzle is one of the key factors affecting the spray effect with 1/4 thread and 0.012in(0.30mm) orifice , and the correct choice can get the best misting spray effect. According to the actual thread requirements and liquid properties, different types of nozzles can be selected to achieve better misting effect.
The 1/4 thread middle pressure misting nozzle is an important equipment used in the spray system, and its parameters of thread and aperture have an important effect on the spray effect.

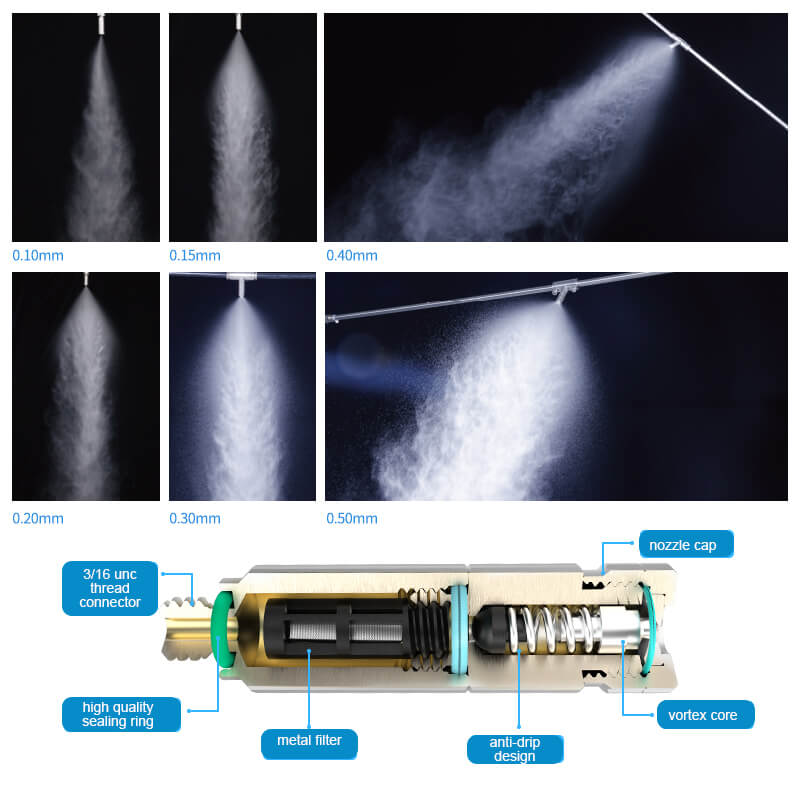

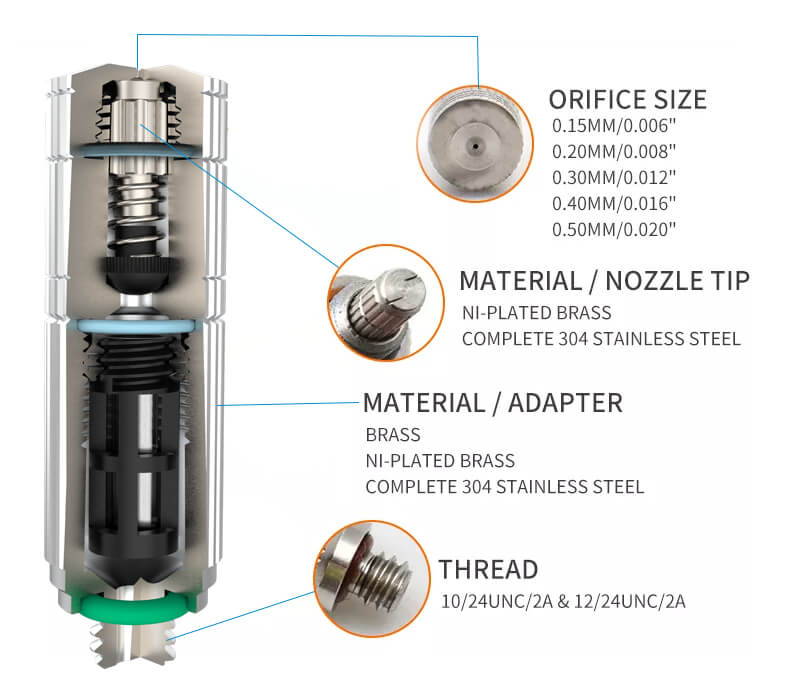

Product features: fine, small size, low cost; Only under the water pressure of 300 to 1000psi can it be used normally; It is inset with stainless steel nozzle core, flow guide, and contains anti-drip device, which is not easy to clog, good grinding property, uniform spray, which can improve the quality and production efficiency of the product. Through the free combination of the nozzle, the humidification amount and spray effect can be well adjusted.

Droplet size: The droplet size is very small, forming a mist spray effect, suitable for a wide range of pressure.

Product specification: 1/4

Scope of application: Widely used in Marine park, artificial lake fog, rockery fog, artificial fog landscape, garden landscape, etc

1/4 thread middle pressure misting nozzle 0.012in(0.30mm) orifice fogging head tips

orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.3	12	35.5	65	0.4	0.8
	15	44.5	70	0.8	1.3
	18	53.8	70	1.0	1.4
