0.2mm orifice 1/4 thread high pressure mist nozzle

high pressure misting nozzle 0.008 (0.20mm) orifice 1/4 thread fog atomizing nozzles

Availability: In Stock

Thread range:1/4 thread
Orifice: 0.008 '(0.20mm)
Flow range: 75 ml/min at 70 bar
Pressure range: max up to 1300 psi
Material of manufacture available: Stainless steel 303ss, 304ss,316ss etc
Functional applications: widely used in dust removal, landscaping, cool down, artificial fog, garden, patio, greenhouses, disinfectant and other humidification place.
Other Stock thread sizes:12/24 standard, 10/24, 1/8 , 1/4 available and others

Qty:

For More quantity price, customization, or other inquiries:

fast shipping

shipping by express,air,sea etc

quality guarantee

Advanced production technology

Online support

Engineer online consultations

0.2mm orifice 1/4 thread high pressure mist nozzle For Outdoor Cooling System, Greenhouse, Landscaping and Dust Control.This type of nozzle is applied in the high pressure.

This 0.2mm orifice 1/4 thread high pressure mist nozzle does not need to use air compressed, can use liquid pressure to form a very fine mist, excellent misting effect, energy and water saving, low cost, good effect, no leakage.

0.2mm orifice 1/4 thread high pressure mist nozzleis used a sturdy brass body with stainless steel orifice,Use of precision nozzle keypunch, sophisticated production,strong durability.

high pressure misting nozzle 0.008 (0.20mm) orifice 1/4 thread fog atomizing nozzles
orifices（mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.20	40	45.0	45	1.0	1.3
	50	58.5	55	1.1	1.5
	60	66.8	60	1.3	1.7
	70	75.3	60	1.5	2.2

Spray uniform spray effect is good, misting fine coverage wide, Angle flow can be adjusted

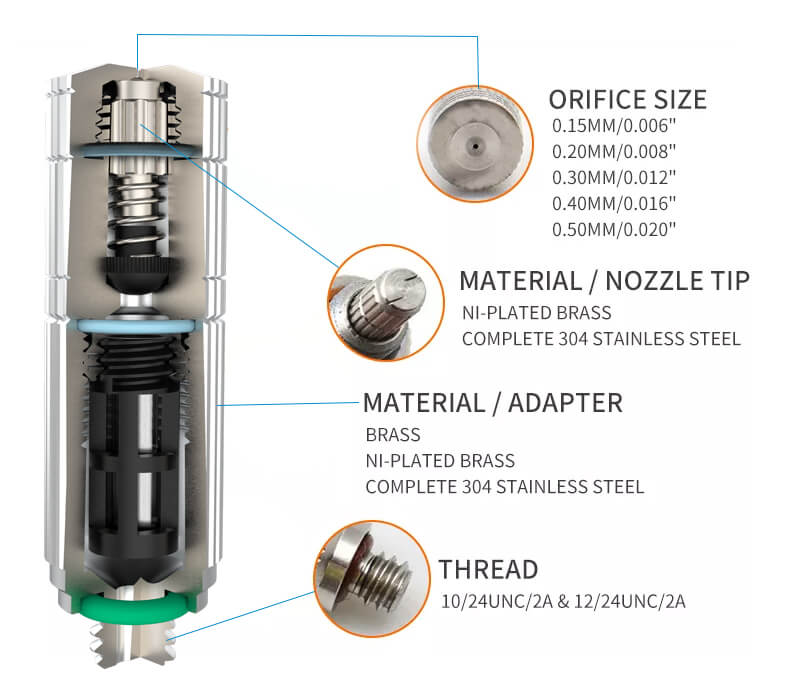

High-strength wear-resistant leak-proof ball precision stainless steel thimble, 304 stainless steel telescopic spring, precision stainless steel sheet, embedded structure Features:

Product features: 0.2mm orifice 1/4 thread high pressure mist nozzle should not be blocked, good wear resistance, uniform spray, can effectively improve product quality and production efficiency, through the free combination of nozzles. Can effectively adjust the humidification amount and spray effect.

This series of 0.2mm orifice 1/4 thread high pressure mist nozzle does not require air assistance, and the system is simple; Spray spray point is fine, up to 3-7 microns, full misting, energy saving and water saving, low cost, good effect; The nozzle is not blocked, no water leakage, internal rotary automatic cleaning, stainless steel spray sheet through advanced forging process, strong durability. 2.5 times longer than a comparable nozzle.

Scope of application:

1, wetting and rust removal 2, air humidification 3, chemical treatment 4, chemical spraying 5, liquid spraying 6, tobacco humidification 7, tablet coating 8, smoke evaporation cooling 10, component cooling 11, fruit spray wax 12, textile factory humidification and cooling 13, plant humidification 14, salt spray test 15, artificial fog 16, other places humidification and so on

Thread sizes	orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
10-24UNC	0.10	40	19.6	39	0.7	1.1
		50	22.6	39	0.9	1.3
		60	25.0	39	1.1	1.5
		70	27.3	39	1.3	1.7
	0.15	40	31.0	35	1.1	1.4
		50	40.0	45	1.2	1.6
		60	47.8	50	1.3	1.9
		70	53.0	55	1.5	2.1
	0.20	40	45.0	45	1.0	1.3
		50	58.5	55	1.1	1.5
		60	66.8	60	1.3	1.7
		70	75.3	60	1.5	2.2
	0.30	40	87.5	55	1.0	1.6
		50	103.9	60	1.3	1.8
		60	117.3	70	1.6	2.2
		70	130.0	70	1.8	2.4
	0.40	40	110.4	60	0.9	1.4
		50	133.8	70	1.3	1.7
		60	152.6	75	1.6	2.1
		70	170.0	75	1.8	2.4
	0.50	40	127.0	75	1.1	1.6
		50	150.0	85	1.3	1.8
		60	172.5	90	1.5	2.1
		70	190.3	90	1.7	2.3
