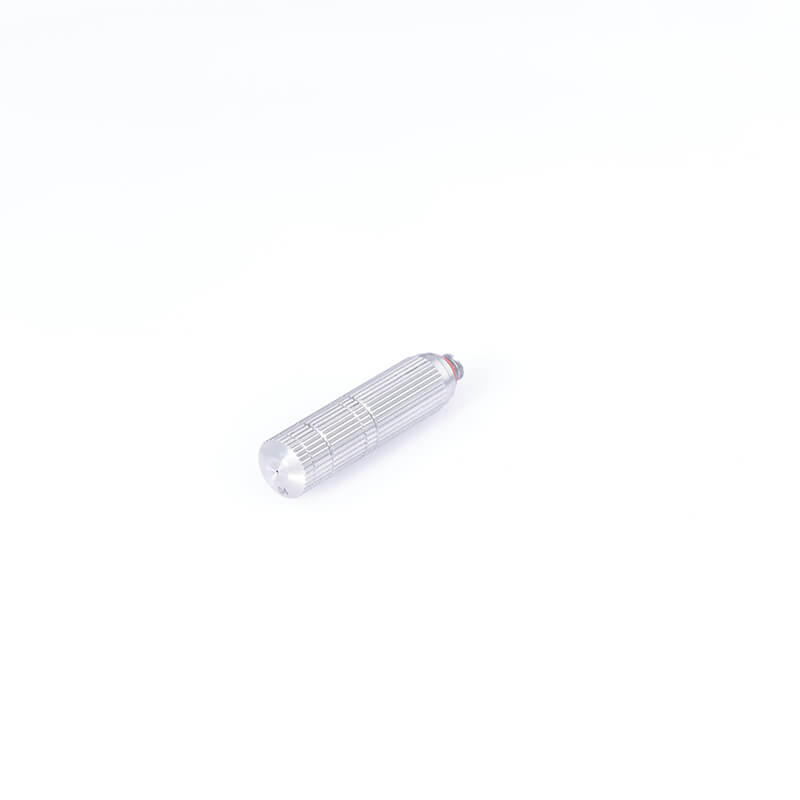

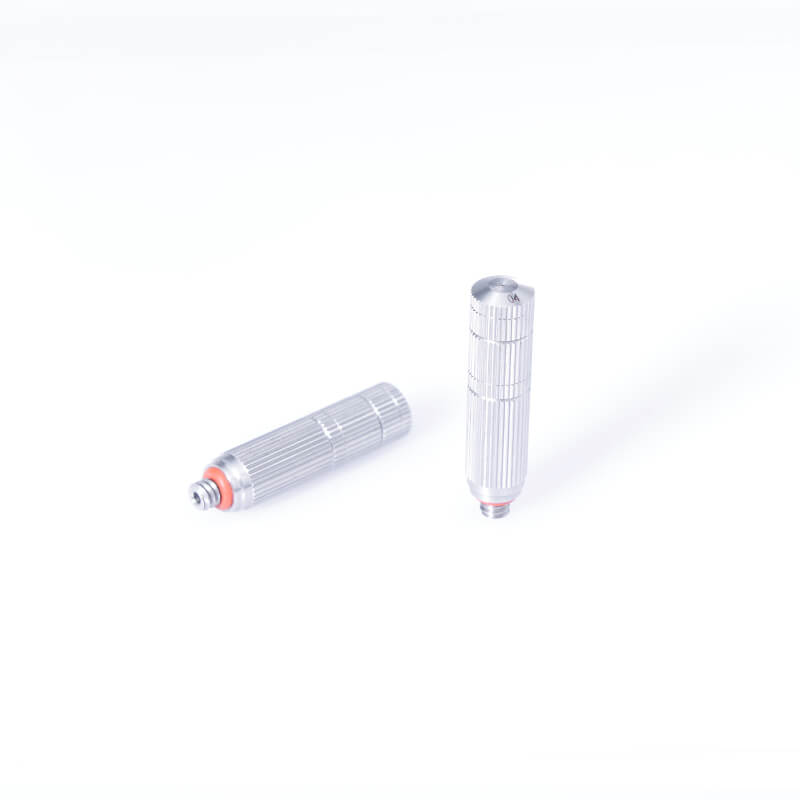

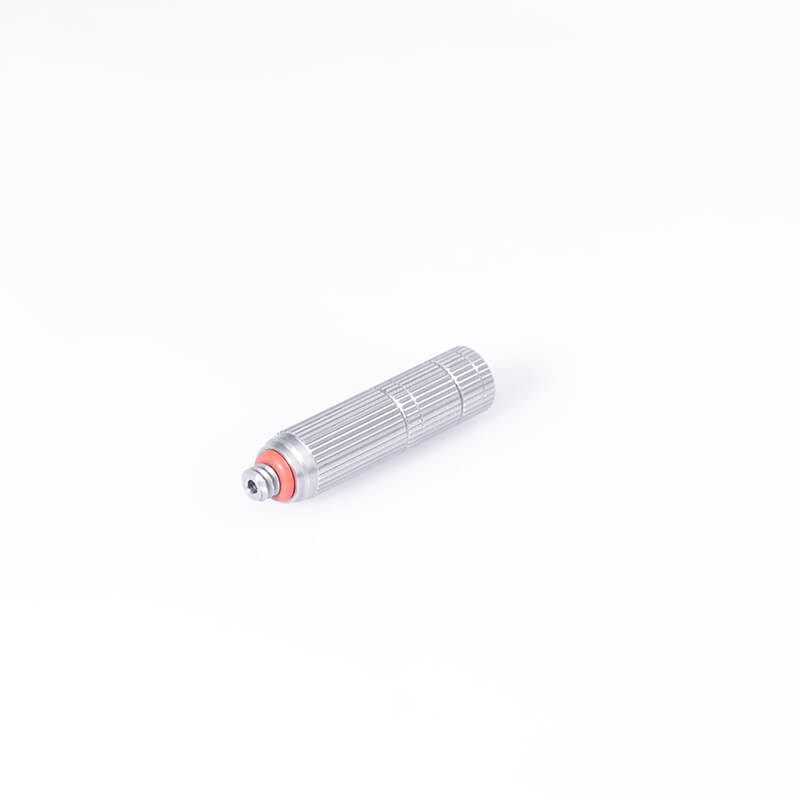

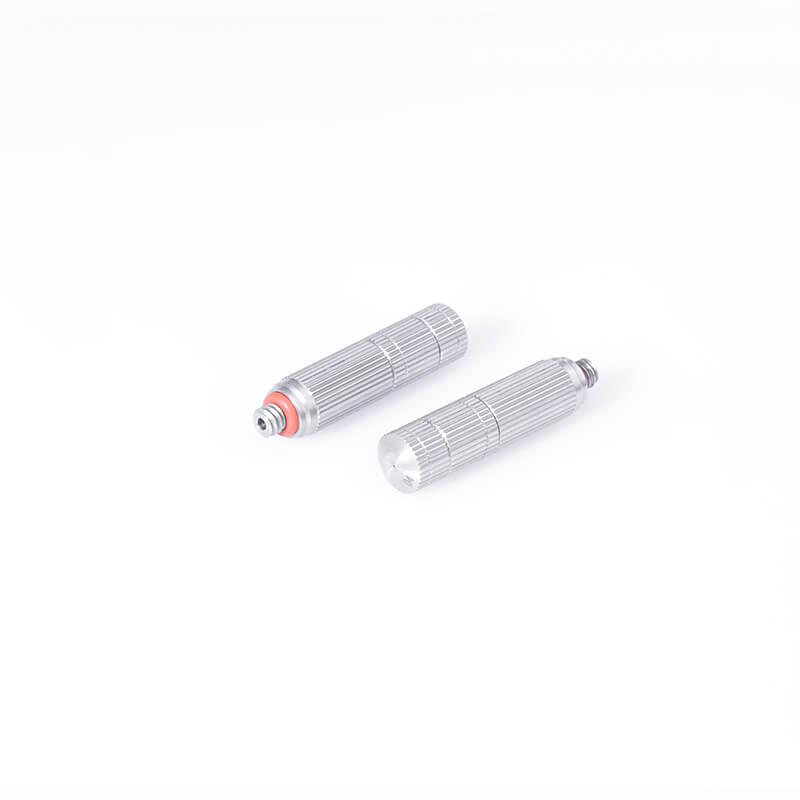

high pressure misting nozzle 0.016 (0.40mm) orifice 1/4 thread fog atomizing nozzles

Each thread can be connected by many kinds tube or fiiting which is 1/4 inch; The nozzle orifice diameter is 0.016″(0.40mm) orifice, the operation pressure is max up to 1400 psi, the sprayed water mist is uniform and fine, energy-saving and water-saving, without electricity.

high pressure misting nozzle 0.016 (0.40mm) orifice 1/4 thread fog atomizing nozzles

orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.10	40	19.6	39	0.7	1.1
	50	22.6	39	0.9	1.3
	60	25.0	39	1.1	1.5
	70	27.3	39	1.3	1.7

The mist nozzle is made of stainless steel material to prevent rust and corrosion

Wear and corrosion resistance 304 excellent stainless steel, impact resistance and wear resistance longer service life

Solid and stable detachable design, flexible application, strong applicability, careful processing materials

Spray uniform coverage wide Angle flow adjustable longer life fine mist

The mist nozzle widely used in humidification cooling, dust removal cooling, fog test, artificial fog, atomized fuel, evaporation, cleaning and disinfection and landscaping fog.

Product introduction
Coverage area: No wind or breeze state 1 nozzle 1-3 meters high spray cover about 1-2 square meters.
Filter device: The nozzle entrance is equipped with high-quality stainless steel filter. Liquid requirements: civil tap water, industrial water (sewage please add pre-filter device), pure water or pressurized effect is better.
Fog form: solid cone/conical.(More than 60 degrees will have a little hollow spray in the middle)
Spray Angle: the normal spray Angle is about 60 degrees.
Different oil spray nozzles according to different configurations of the corresponding type of oil filter, flow rate of 1.5L-1.7L/h is configured with 45 micron copper molten oil filter flow rate of 1.89-3.78L is configured with 75 micron copper molten oil filter flow rate of 4.76-5.10L/h is configured with 125 micron copper molten oil filter. When the flow rate is 5.68-41.64L/h, the 140 micron Molimol alloy net is configured, and the oil filter net is not configured when the flow rate is above 45.42L/h.

Product performance

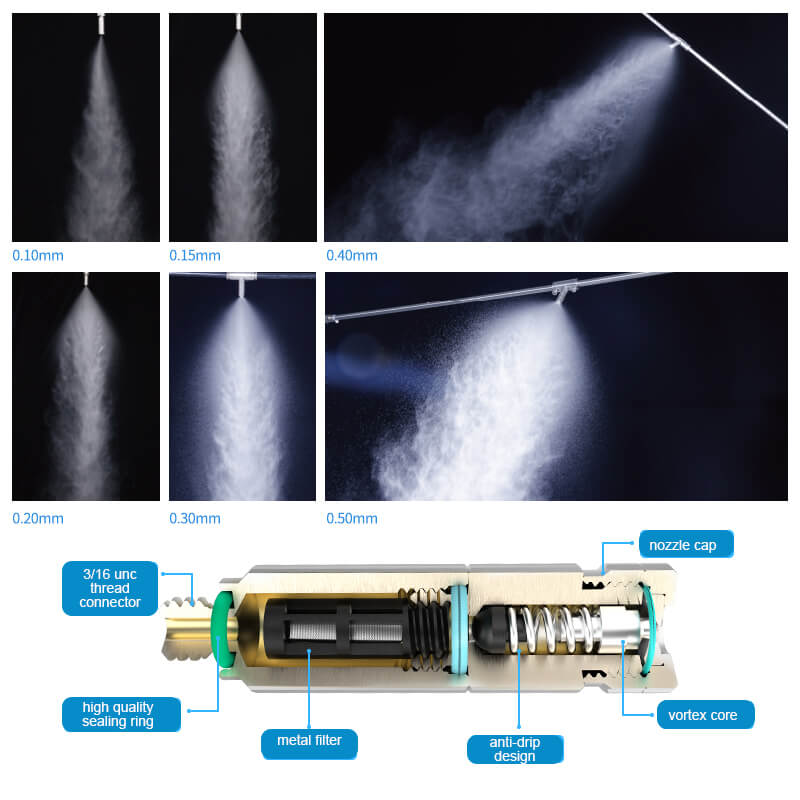

1. The misting nozzle is equipped with a stainless steel nozzle core and a flow guide groove, forming a centrifugal vortex in the flow guide groove, and the spray shape is a ring mist
2, when the liquid in the water pressure of 2-10bar spray particles is medium, the pressure reaches 10-20bar atomized particles about 50um, more than 20bar can achieve suspended fog
3, the injection hole is small, the introduction of American technology, the use of American precision punching machine drilling, the aperture is between 0.2mm-2mm, the main body is made of stainless steel finishing
4, when the ordinary civil water pressure 5-10kg//cm2 is also applicable, the greater the pressure, the more ideal the misting effect, the maximum pressure 50-70bar, the flow rate is calculated in L/min.
5, the use of low cost, the use of cost and gas double fluid misting cost savings of more than 10 times, the use of threaded connection, disassembly and installation is simple and convenient
