High flow three stage pre-filter for misting system liquid filter water quality

High flow three stage pre-filter for misting system


Function:
Three-stage pre-filter can intercept large impurity particles, filter sediment, rust, residual chlorine, different color, odor, organic chemicals, etc

Parameters of three-stage prefilter:
Material :PEL/PP material (transparent, blue bottle)
Working pressure: 0.2Mpa-0.4mpa
Filtration process: PP cotton + ultrafiltration + scale inhibition
(Different configurations can be used as required)
Filtration accuracy: 5 microns

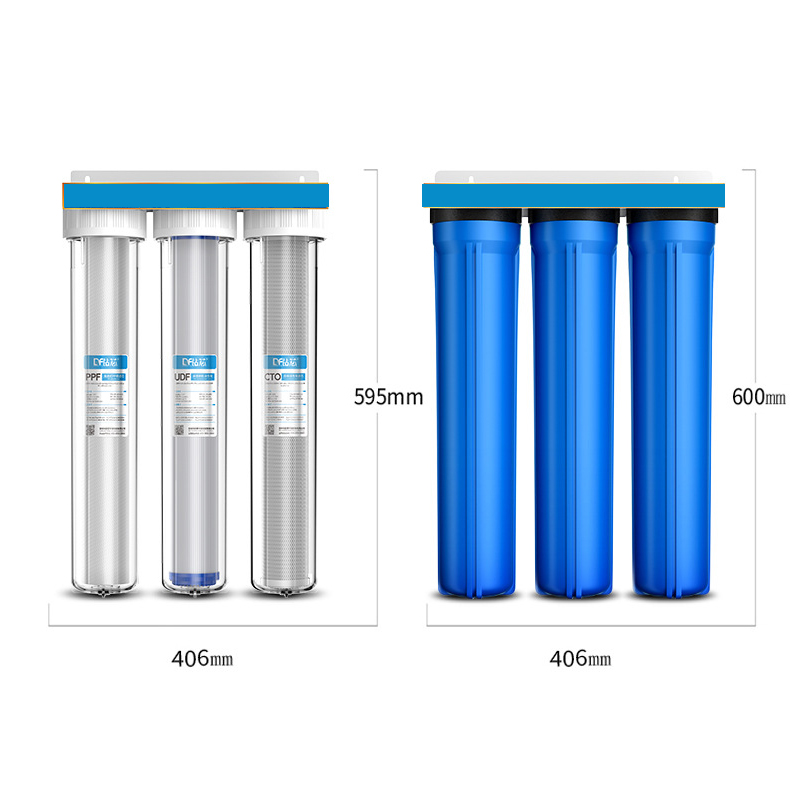

Product size: 595*406*155 600*406*155
Water source: tap water
Maximum pressure: 6.8bar

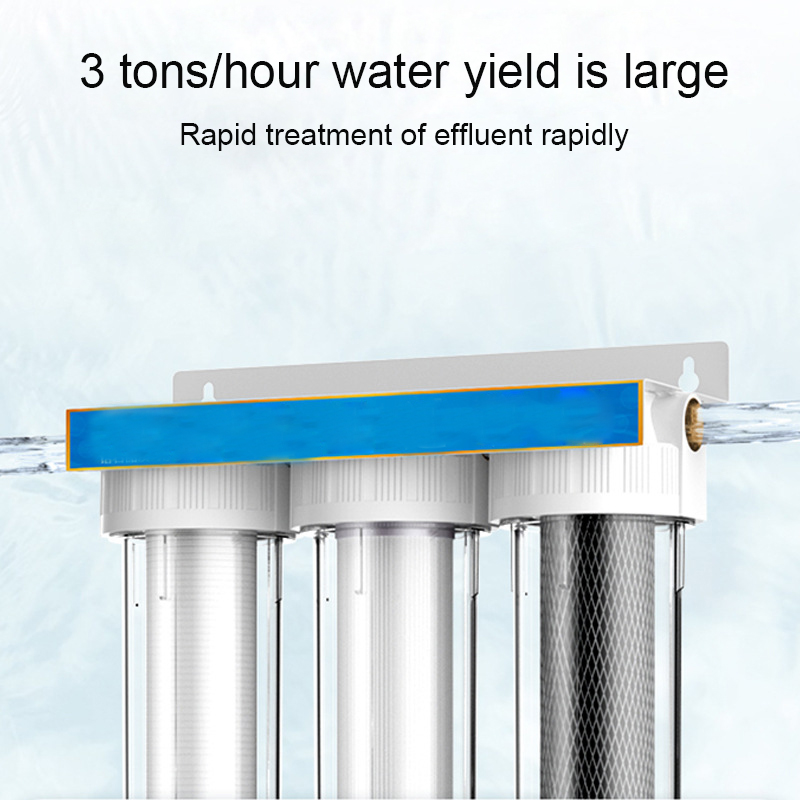

Capacity: 3000L/ hour (L)
Temperature range :0-45 (℃)


Replacement of filter element
1. Close inlet ball valve. Turn on the tap. Empty the excess water in the machine
2. Open the filter bottle, replace the filter element, and tighten the cap
3. Open inlet ball valve halfway and drain water for one minute
4. Open the inlet ball valve after the water flow is normal
