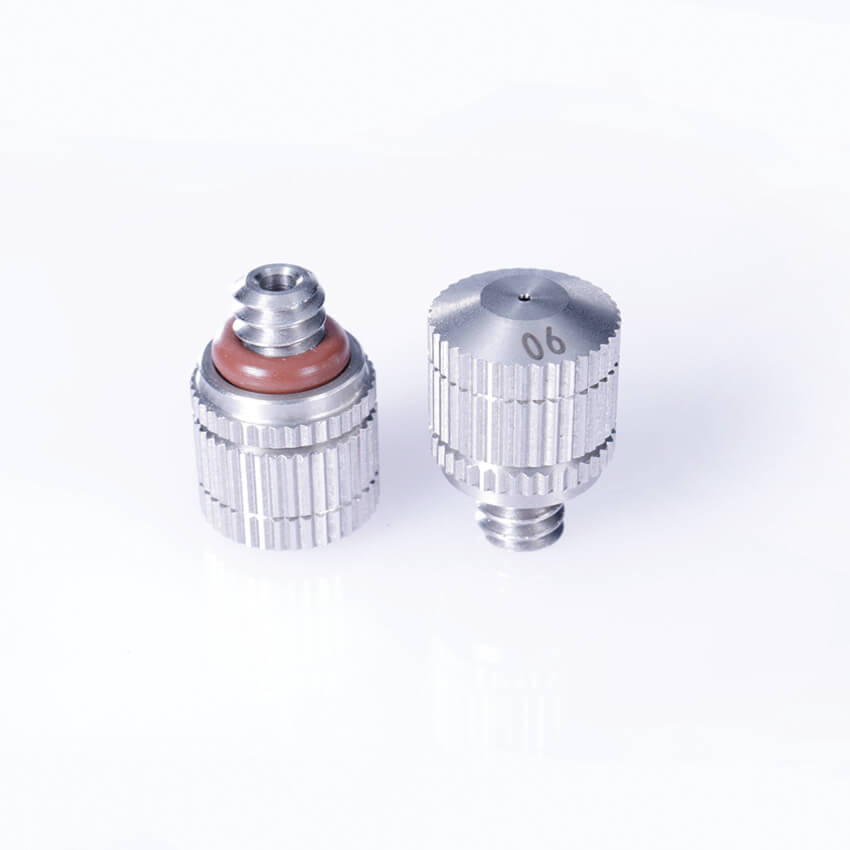

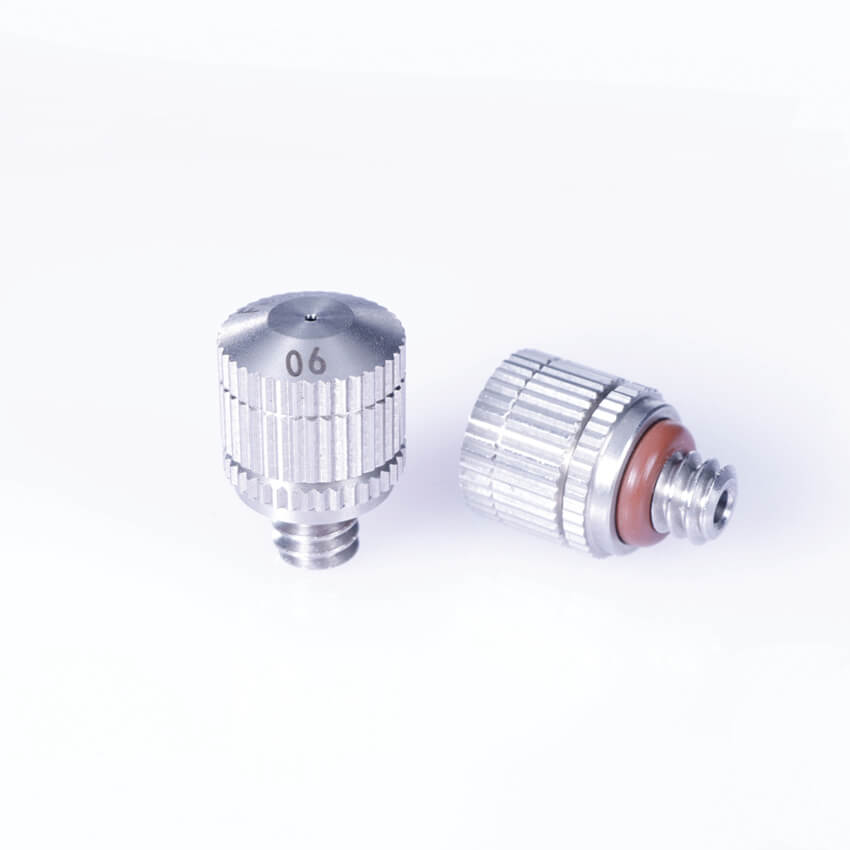

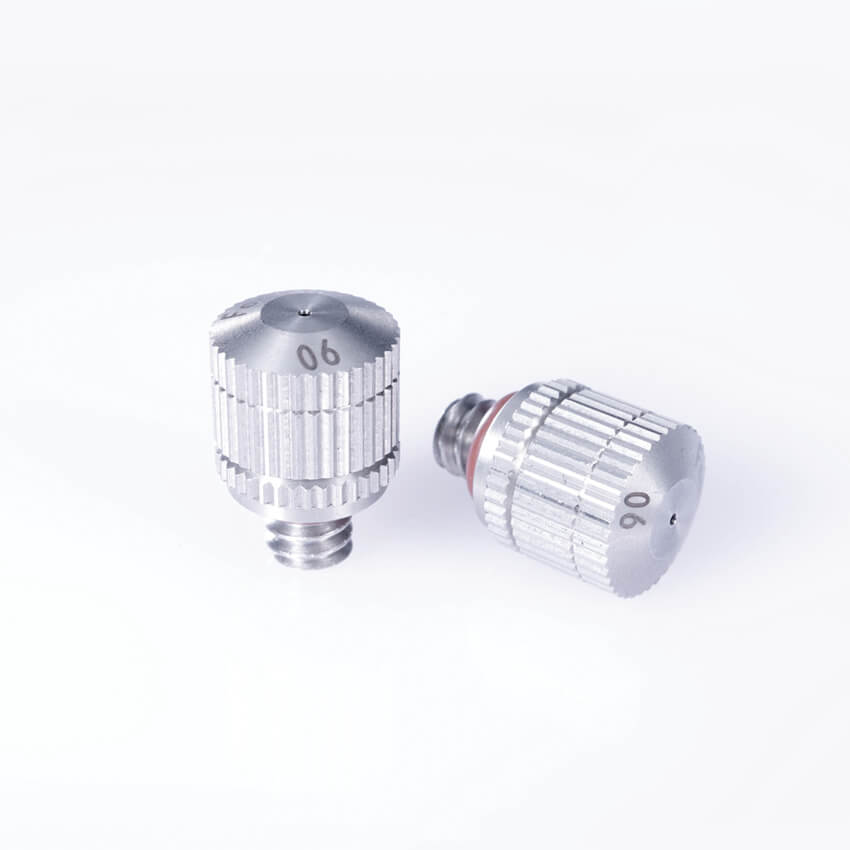

low pressure water mister nozzle head 0.024in (0.6mm) orifice fogging sprayer tip for cooling system

low pressure fogging sprayer nozzle is a device that converts liquid into fine particles suspended in the air to form a fog by low pressure. Its working principle is based on the rapid acceleration of the liquid through the nozzle and the process of breaking down into fine particles under shear or impact forces at the nozzle outlet.

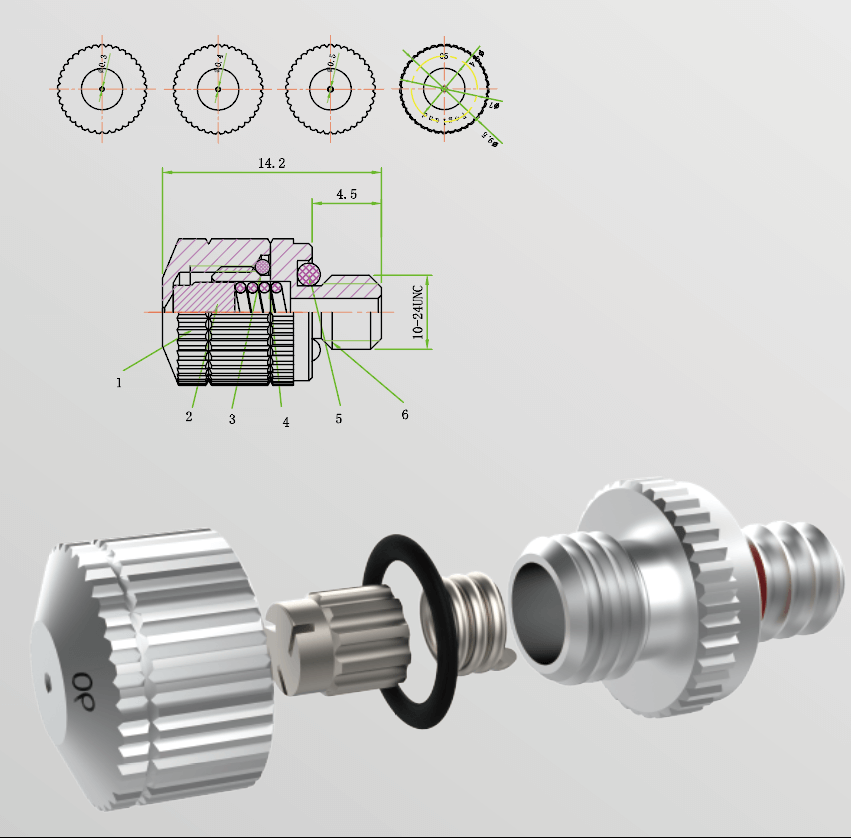

Specifically, the low pressure fogging sprayer nozzle usually consists of a straight tube and a small hole. The liquid is piped near the small hole and then ejected through it. When the liquid passes through the small hole, the sudden decrease in the inner diameter causes the liquid velocity to increase sharply, resulting in a very high jet velocity. In addition, the pressure around the hole is also reduced, creating an area of negative pressure.

During the injection process, the fast-moving liquid will be subjected to the resistance and friction of the air, which will form shear and impact forces as it passes through the low pressure fogging sprayer nozzle outlet. These forces break the continuity of the liquid, breaking it down into fine particles and carrying it into the air to form a fog.

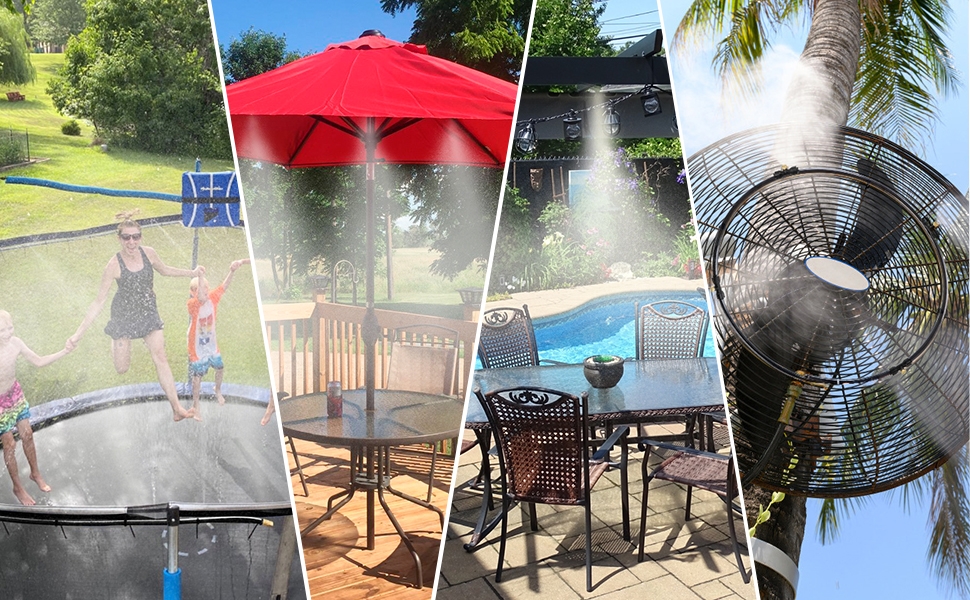

Wide Range of Applications: our low pressure fogging sprayer nozzle are the necessary accessories to make misting cooling system, plant watering system, helping you cool down the hot weather, widely suitable for patios, decks, porches, pool, agriculture, terraces, swimming pools, lawns, gardens, cooling and irrigation, flowers, grass, vegetable watering, humidification and so on

Energy Efficient: enjoy a refreshing cool down without worrying about the impact on your power bills or the environment; Using our outdoor misting nozzles for your outdoor cooling system means directly using tap water to spray and cool down, reducing electricity or energy consumption

low pressure water mister nozzle head 0.024in (0.6mm) orifice fogging sprayer tip for cooling system

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
10/24 unc	0.6	1	71.0	70
		2	93.0	80
		3	113.0	90
		4	128.5	90	0.7	1.1
		5	143.5	90
		6	155.0	90	0.9	1.4
