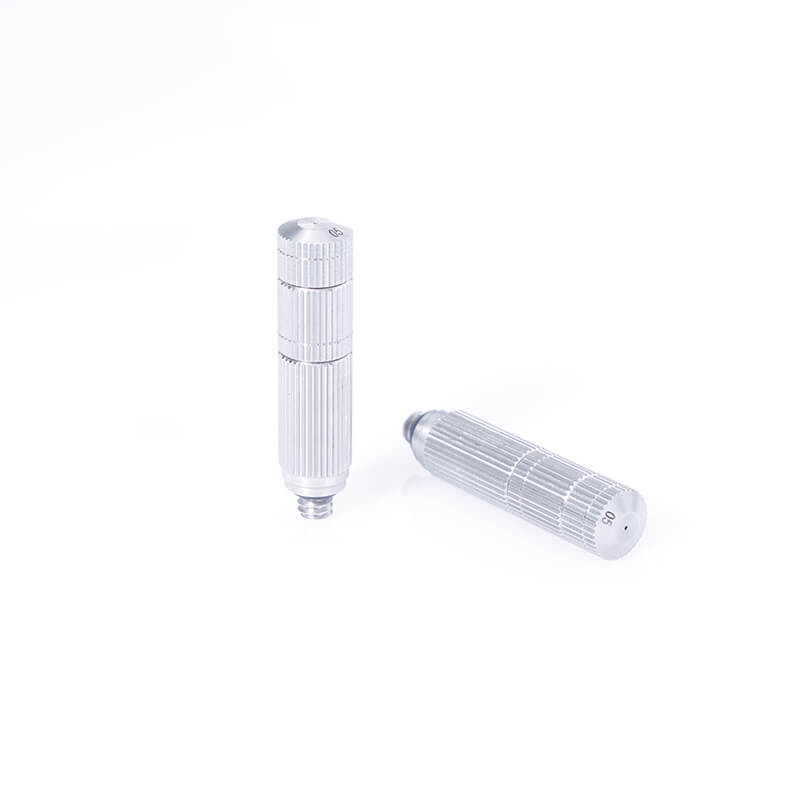

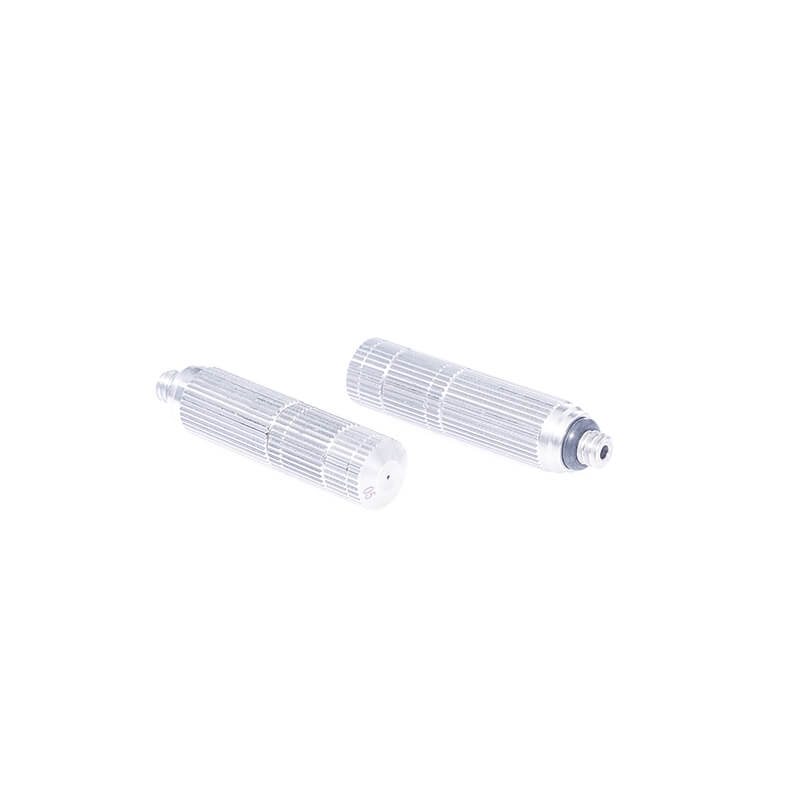

high pressure misting cooling system nozzle 0.020 (0.50mm) orifice 1/8 thread atomizing head

Not easy clogged, wear resistance, spray evenly can effectively improve the quality and production efficiency. Can effectively regulate the humidification amount and the spray effect.

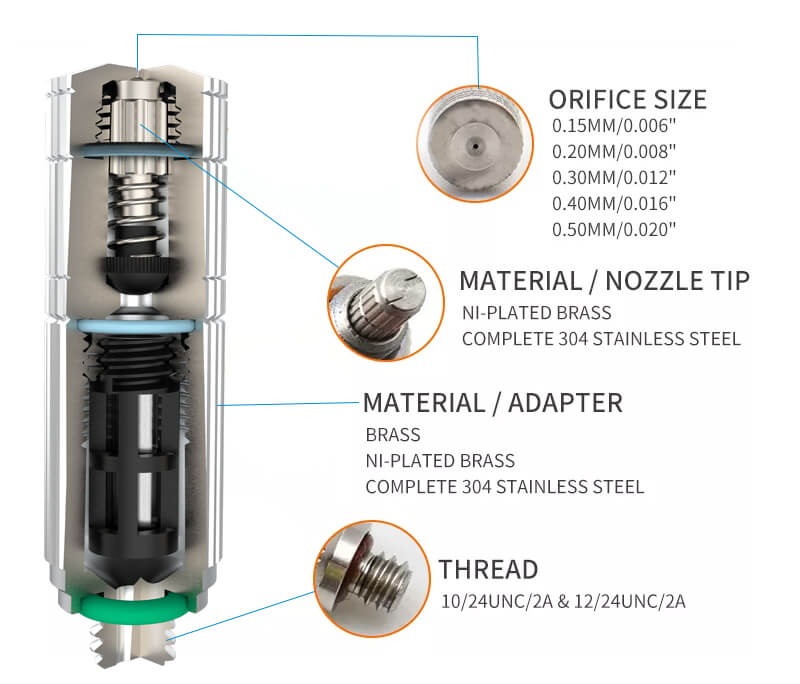

【Premium Material】Made of Stainless steel, anti-rust, durable and have a long lifetime. Stainless steel mesh in the nozzle with good filter efficiency, the water will be sprayed in network, good for filtering systems.

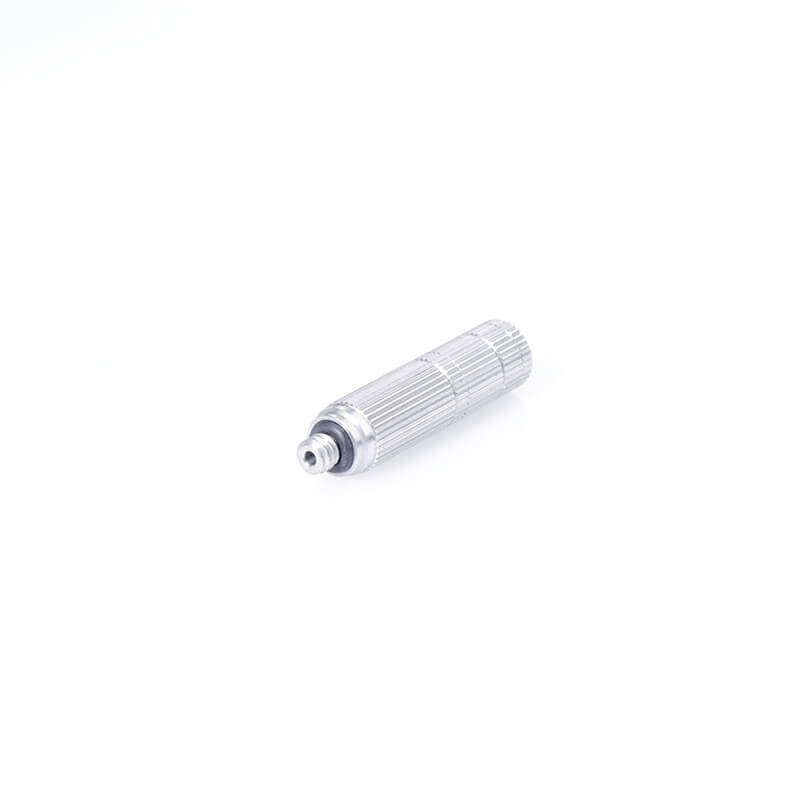

high pressure misting nozzle 0.020 (0.50mm) orifice 10 24 unc thread fog atomizing nozzles

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle （°）	Effective spray distance（M）	The spray distance（M）
1/8 thread	0.50	40	127.0	75	1.1	1.6
		50	150.0	85	1.3	1.8
		60	172.5	90	1.5	2.1
		70	190.3	90	1.7	2.3

The high pressure misting cooling system nozzle takes advantage of the basic principles of fluid dynamics, namely the centrifugal separation of liquids as they rotate. When the liquid passes through the high pressure misting cooling system nozzle, the singularity principle is used to make the liquid form a thin rotating layer under the action of the carrier air flow. Inside this thin layer, the liquid is dispersed into tiny droplets by centrifugal force as it rotates. These tiny droplets form a sheet state under the action of air flow, that is, the misting state.

In addition, the design of the high pressure misting cooling system nozzle will also affect the mist effect, such as changing the shape, size and position of the hole. By adjusting the parameters of the nozzle, the flow rate, shear force and impact force of the liquid can be controlled, so as to obtain atomized particles of different sizes and concentrations.
