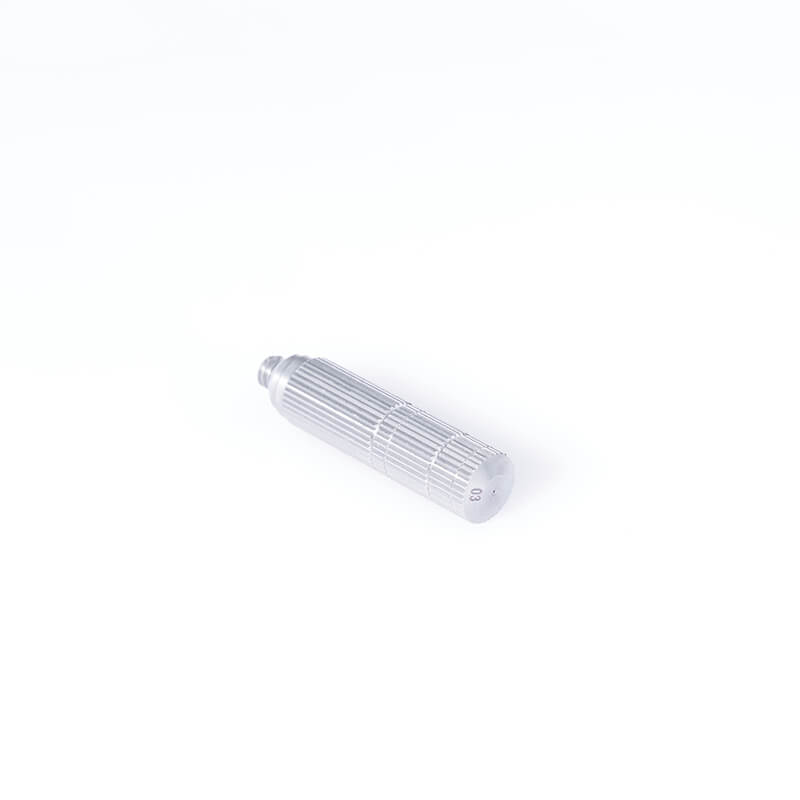

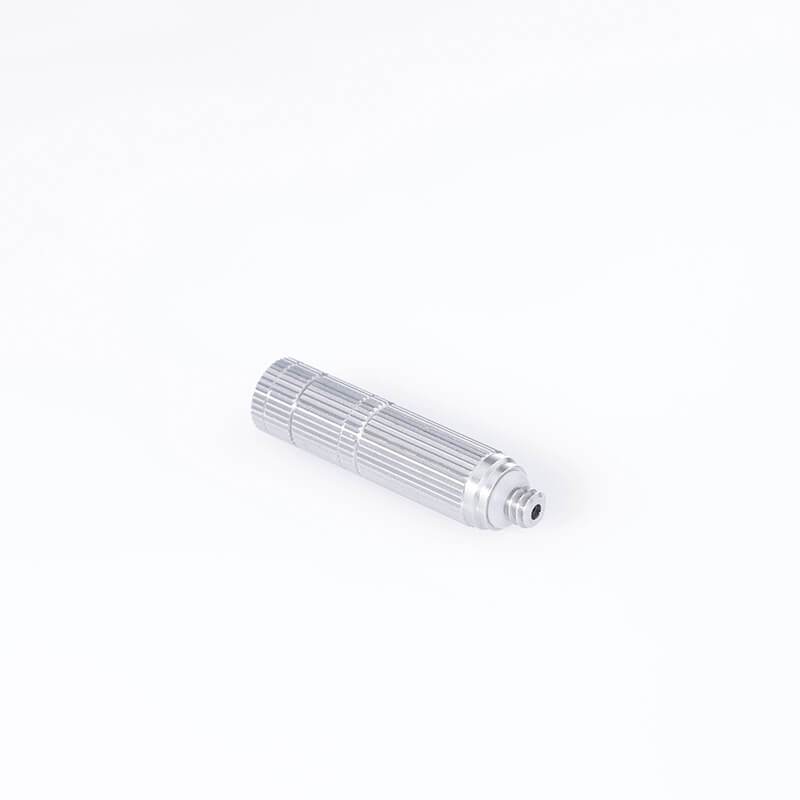

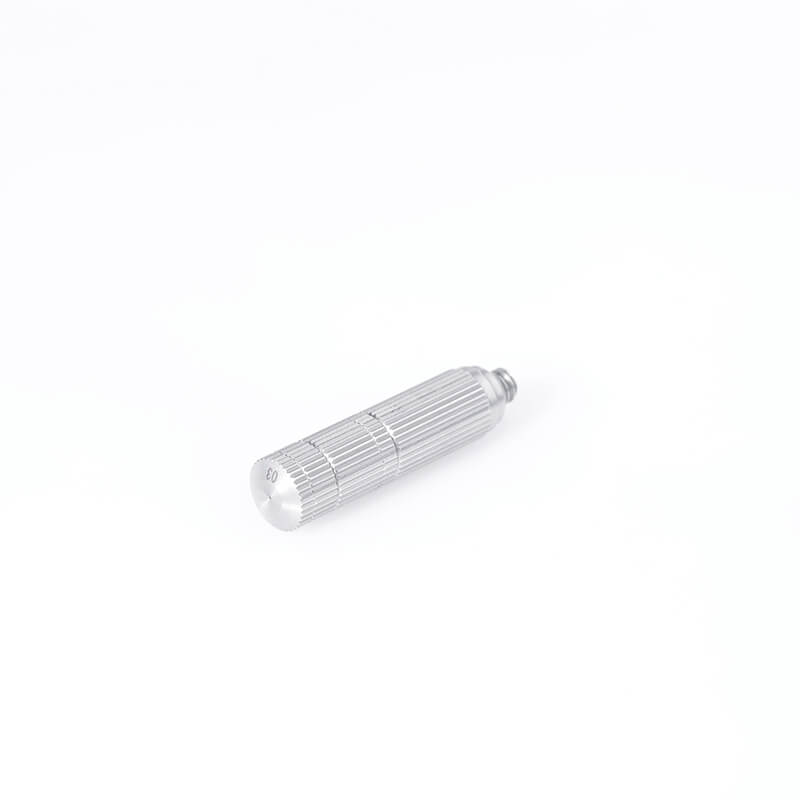

high pressure cooling nozzle tips 0.012 (0.30mm) orifice 10/24 unc thread misting nozzles

Availability: In Stock

Thread range:10/24 unc
Orifice: 0.012inches (0.3mm)
Flow range: 130 ml/min at 70 bar
Pressure range: max up to 1400 psi

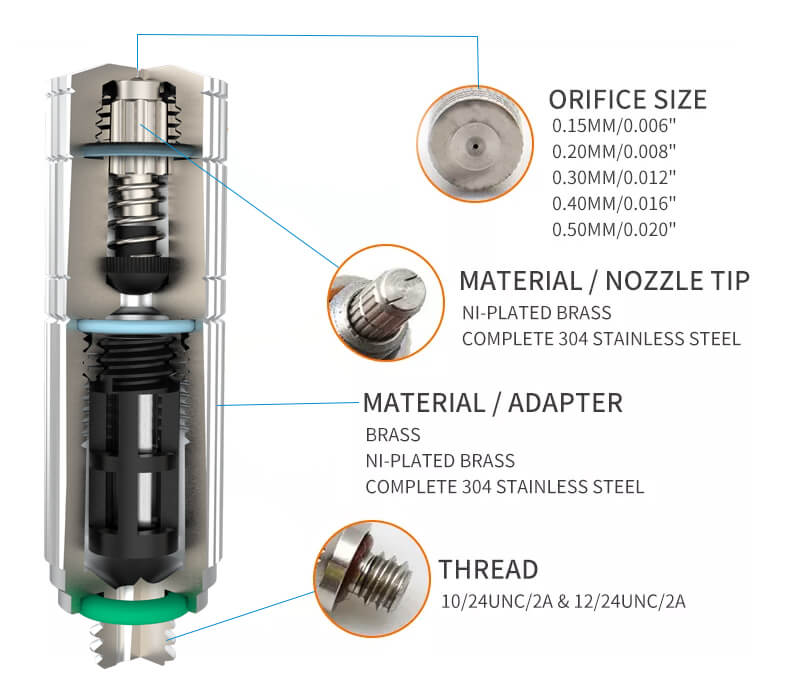

Material of manufacture available: Stainless steel 303ss, 304ss,316ss etc
Other Stock thread sizes:12/24 standard, 10/24, 1/8 , 1/4 available and others
Functional applications: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company.

Qty:

For More quantity price, customization, or other inquiries:

fast shipping

shipping by express,air,sea etc

quality guarantee

Advanced production technology

Online support

Engineer online consultations

The filter on the spray system has a sturdy stainless steel body and stainless steel holes for non-rust and durability.

high pressure cooling nozzle tips, aperture 0.012 "(0.3mm), working pressure 10-70kg, flow rate 60-110mL /min.
Easy to install stainless steel misting nozzles are easy to install and can be easily screwed into any (UNC 10/24) threaded atomizing nozzle opening.

high pressure cooling nozzle tips 0.012 (0.30mm) orifice 10/24 unc thread misting nozzles
Orifices（mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.30	40	87.5	55	1.0	1.6
	50	103.9	60	1.3	1.8
	60	117.3	70	1.6	2.2
	70	130.0	70	1.8	2.4

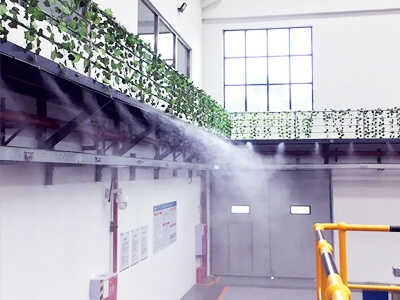

The true high-pressure misting system will emit a very fine mist that will cool an area when installed properly. This can reduce the temperatures by 35 to 40 degrees Fahrenheit.

The high pressure cooling nozzle tips mainly uses the principle of high-speed liquid fluid mechanics to shear and tear the liquid. The liquid is sprayed onto the deflector of the sprayer nozzle to form a relatively high-speed fluid environment. The role of the deflector is to disperse the high-speed air flow and spray liquid inside the nozzle, and shear and tear it into small droplets. The higher the velocity of the fluid, the smaller the droplets ejected and the finer the fog formed.

Pressure high pressure cooling nozzle tips When the liquid under the action of high pressure, at a very high speed out of the nozzle into the static or low speed air flow, due to the nozzle internal flow structure is different, its misting process is also different.

In the process of direct high pressure cooling nozzle tips misting, the liquid is pressurized to obtain a large kinetic energy, and the liquid will be sprayed out at a great speed after passing through the small hole. Under the interaction of liquid surface tension, viscosity and air resistance, the liquid gradually changes from dripping, smooth flow and wave flow to the spray flow.

high pressure cooling nozzle tips

Thread sizes	orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
10-24UNC	0.10	40	19.6	39	0.7	1.1
		50	22.6	39	0.9	1.3
		60	25.0	39	1.1	1.5
		70	27.3	39	1.3	1.7
	0.15	40	31.0	35	1.1	1.4
		50	40.0	45	1.2	1.6
		60	47.8	50	1.3	1.9
		70	53.0	55	1.5	2.1
	0.20	40	45.0	45	1.0	1.3
		50	58.5	55	1.1	1.5
		60	66.8	60	1.3	1.7
		70	75.3	60	1.5	2.2
	0.30	40	87.5	55	1.0	1.6
		50	103.9	60	1.3	1.8
		60	117.3	70	1.6	2.2
		70	130.0	70	1.8	2.4
	0.40	40	110.4	60	0.9	1.4
		50	133.8	70	1.3	1.7
		60	152.6	75	1.6	2.1
		70	170.0	75	1.8	2.4
	0.50	40	127.0	75	1.1	1.6
		50	150.0	85	1.3	1.8
		60	172.5	90	1.5	2.1
		70	190.3	90	1.7	2.3
