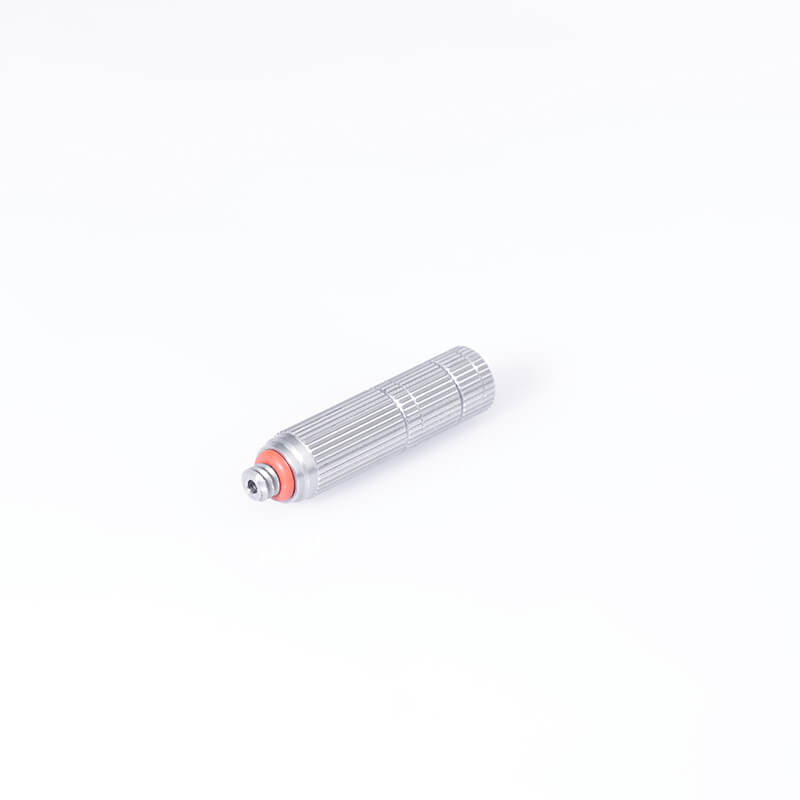

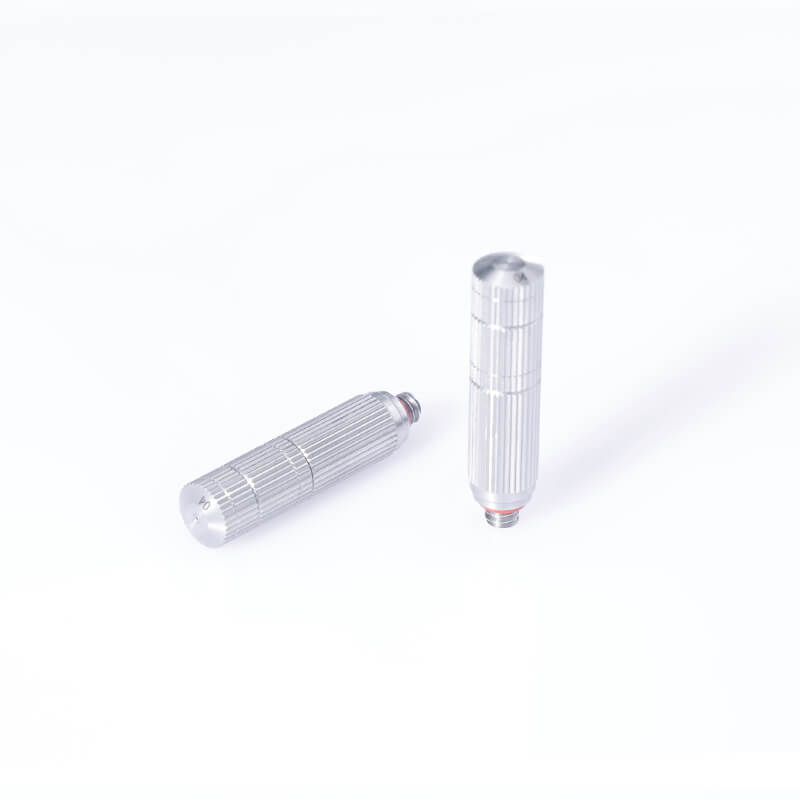

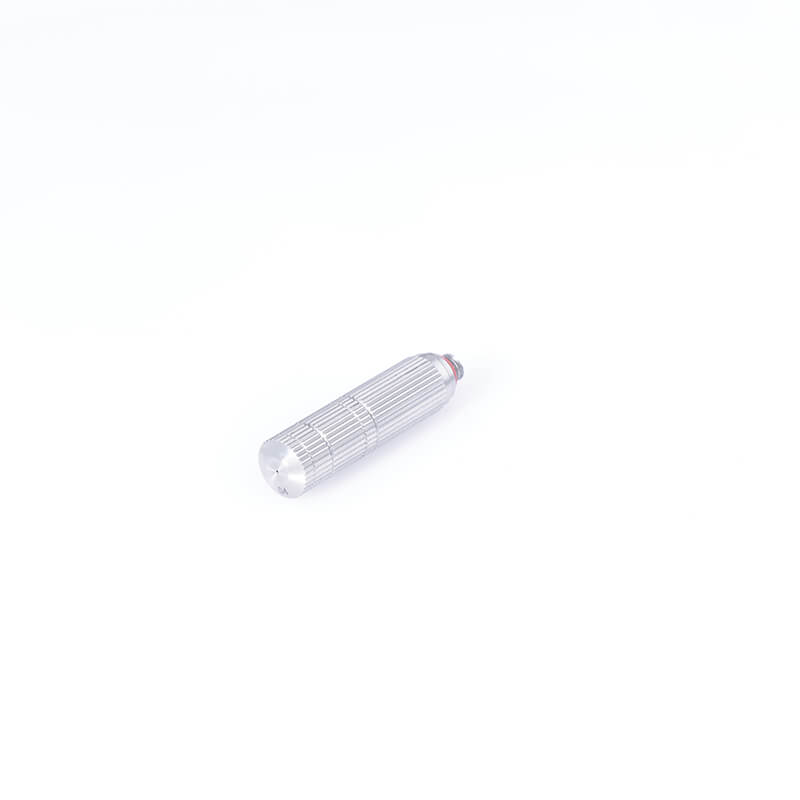

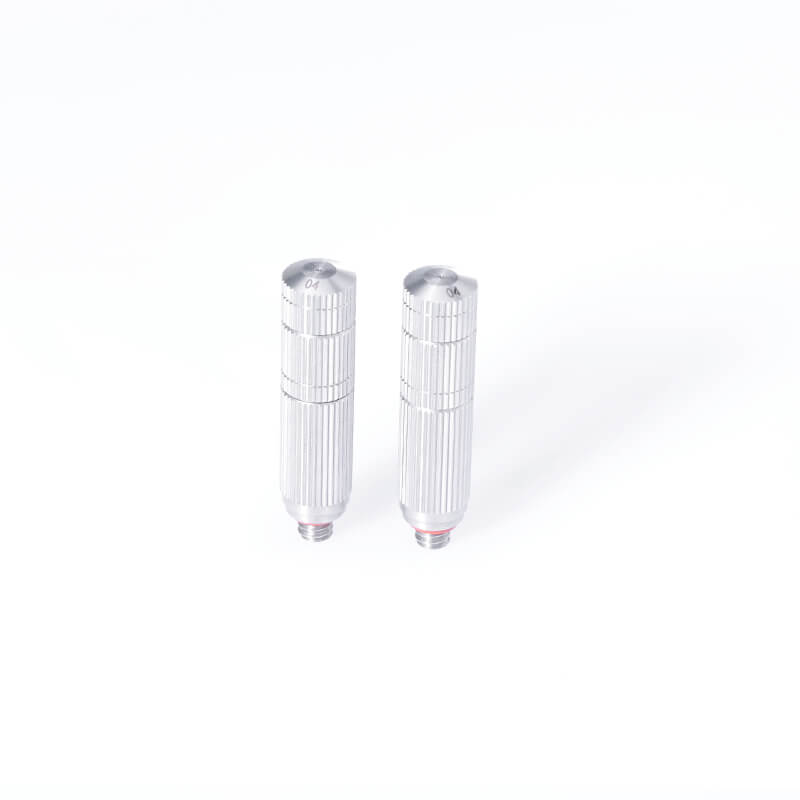

high pressure misting nozzle 0.016 (0.40mm) orifice 1/8 thread fog atomizing nozzles

Availability: In Stock

Thread range:1/8 thread
Orifice:0.016' (0.40mm）
Flow range: 170ml/min at 70 bar
Pressure range:max up to 100 bar high pressure
Material of manufacture available: Stainless steel
Other Stock thread sizes:12/24 standard, 10/24, 1/8 , 1/4 available and others
Functional applications: widely apply for landscaping, greenhouse, humidification, outdoor cooling system, deodorant air purification, Swimming pool misting fog cooling, Increasing air humidity, reducing temperature and reducing floating particles in the air, Mist mosquito system and so on

Qty:

For More quantity price, customization, or other inquiries:

high pressure misting nozzle 0.016 (0.40mm) orifice 1/8 thread fog atomizing nozzles
Orifices（mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.40	40	110.4	60	0.9	1.4
	50	133.8	70	1.3	1.7
	60	152.6	75	1.6	2.1
	70	170.0	75	1.8	2.4

High quality <a href='https://www.mistingnozzle.com/Misting_Nozzles/' target='_blank'><u>mist nozzle</u></a>

Thread sizes	orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
10-24UNC	0.10	40	19.6	39	0.7	1.1
		50	22.6	39	0.9	1.3
		60	25.0	39	1.1	1.5
		70	27.3	39	1.3	1.7
	0.15	40	31.0	35	1.1	1.4
		50	40.0	45	1.2	1.6
		60	47.8	50	1.3	1.9
		70	53.0	55	1.5	2.1
	0.20	40	45.0	45	1.0	1.3
		50	58.5	55	1.1	1.5
		60	66.8	60	1.3	1.7
		70	75.3	60	1.5	2.2
	0.30	40	87.5	55	1.0	1.6
		50	103.9	60	1.3	1.8
		60	117.3	70	1.6	2.2
		70	130.0	70	1.8	2.4
	0.40	40	110.4	60	0.9	1.4
		50	133.8	70	1.3	1.7
		60	152.6	75	1.6	2.1
		70	170.0	75	1.8	2.4
	0.50	40	127.0	75	1.1	1.6
		50	150.0	85	1.3	1.8
		60	172.5	90	1.5	2.1
		70	190.3	90	1.7	2.3
