high pressure mister spray nozzle 12/24 unc thread 0.016 (0.40mm) orifice fog nozzles

0.016 orifice mist nozzle made of Stainless steel, never Rust, best choice for outdoor use with cold water. Suitable for high-pressure spray system. and it is perfect for garden watering, greenhouse nursery, Landscaping, spray disinfection and Outdoor Cooling Mister System, etc.

Orifices（mm）	Model	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.40	FP4-3/16-24UNF-A-303SS	40	110.4	60	0.9	1.4
		50	133.8	70	1.3	1.7
		60	152.6	75	1.6	2.1
		70	170.0	75	1.8	2.4

The 0.40mm orifice high pressure mister spray nozzle hole aperture is between 0.1 ㎜ and 0.5㎜, under high pressure, the nozzle forms a very fine misting, which can be widely used in artificial fog, livestock farms, greenhouses and other occasions where humidification spray needs to be applied. The power consumption per kilogram of fog is 3W, and the use cost is extremely low.

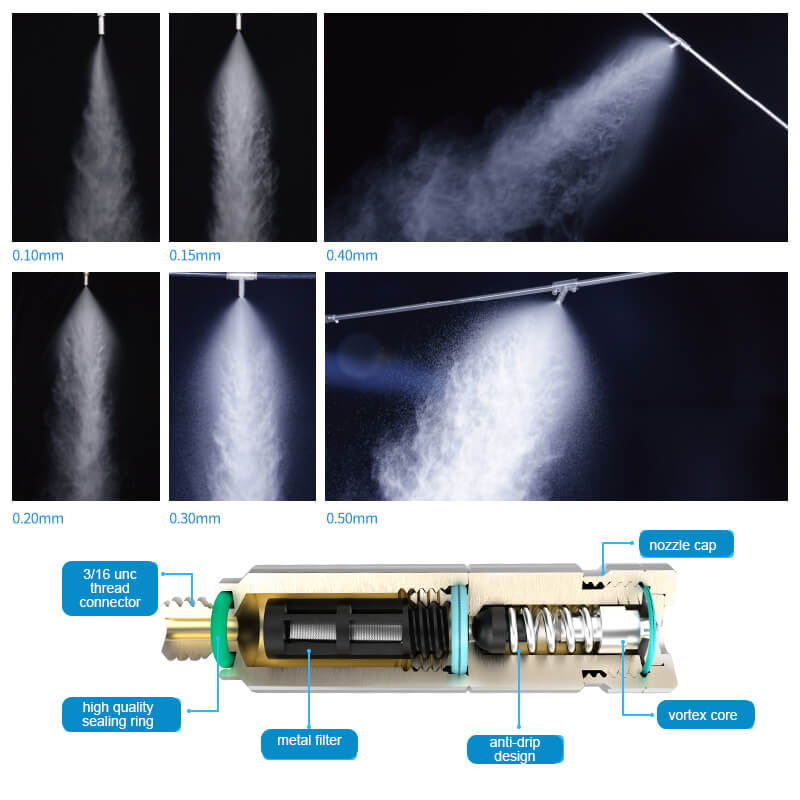

Design features:
● High energy efficiency
● high pressure/flow ratio
● No interior design, strong plugging resistance
● Strong misting ability

In addition to the 0.40mm orifice high pressure mister spray nozzle diameter with 0.40mm orifice, there are other different parameters that will affect the misting effect, such as liquid physical properties, outlet velocity, gas-liquid pressure, etc. The physical properties of the liquid have a direct impact on the misting effect, and different substances have different surface tension and viscosity, which will affect the size of misting particles. The outlet speed is determined by the two factors of the outlet aperture and the liquid outlet speed, the faster the speed, the stronger the wind cutting effect on the liquid, the smaller the atomized particles.
