high pressure mister nozzle 0.016 (0.40mm) orifice 10-24 unc thread fog humidifying head

Availability: In Stock

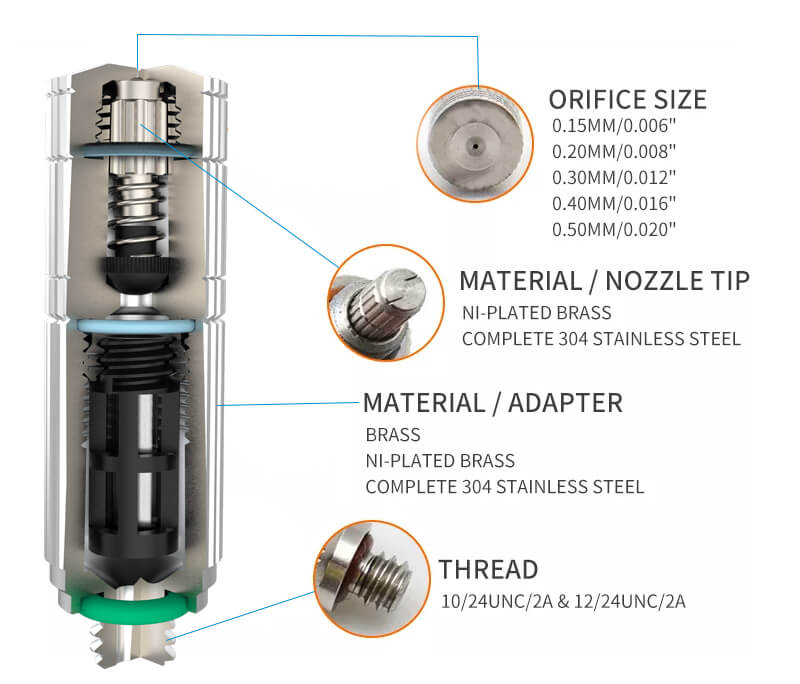

Orifice:0.016' (0.40mm）
Flow range: 170ml/min at 70 bar
Pressure range: max up to 1500 psi (max up to 104 bar) high pressure
Thread range:10/24 unc
Material of manufacture available: Stainless steel etc
Other Stock thread sizes:12/24 standard, 1/2, 10/24, 1/8 , 1/4 available and others

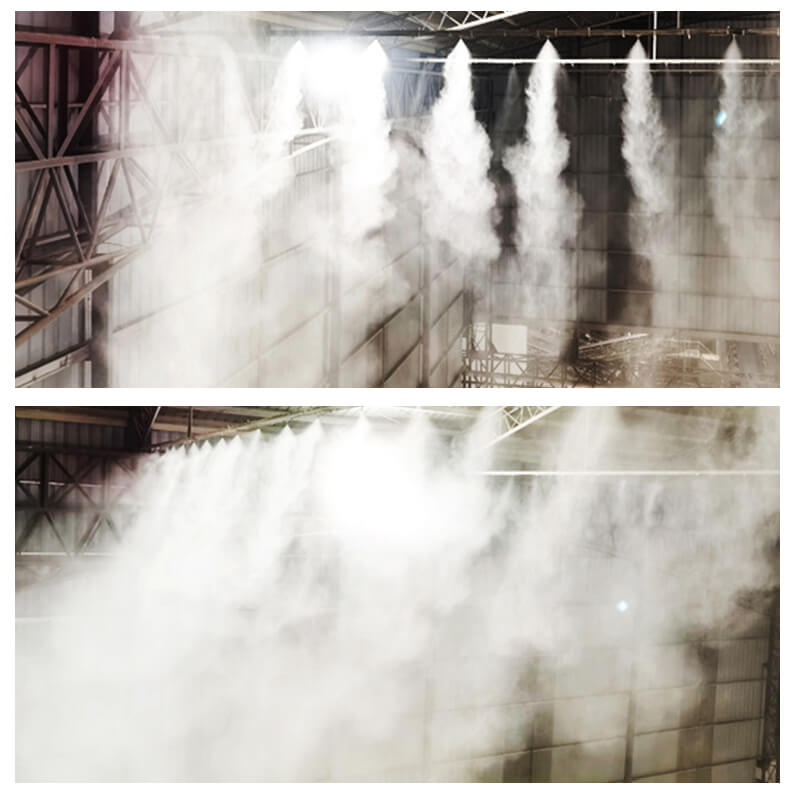

Functional applications: ✓Outdoor cooling✓Humidifying✓Repelling Mosquito✓Sanitizing✓Disinfection✓Restaurants and resorts✓Amusement park Humidifying✓Artificial fog landscape✓Landscaping, greenhouse✓Dust/ odor control✓Poultry house/ livestock house

Qty:

For More quantity price, customization, or other inquiries:

fast shipping

shipping by express,air,sea etc

quality guarantee

Advanced production technology

Online support

Engineer online consultations

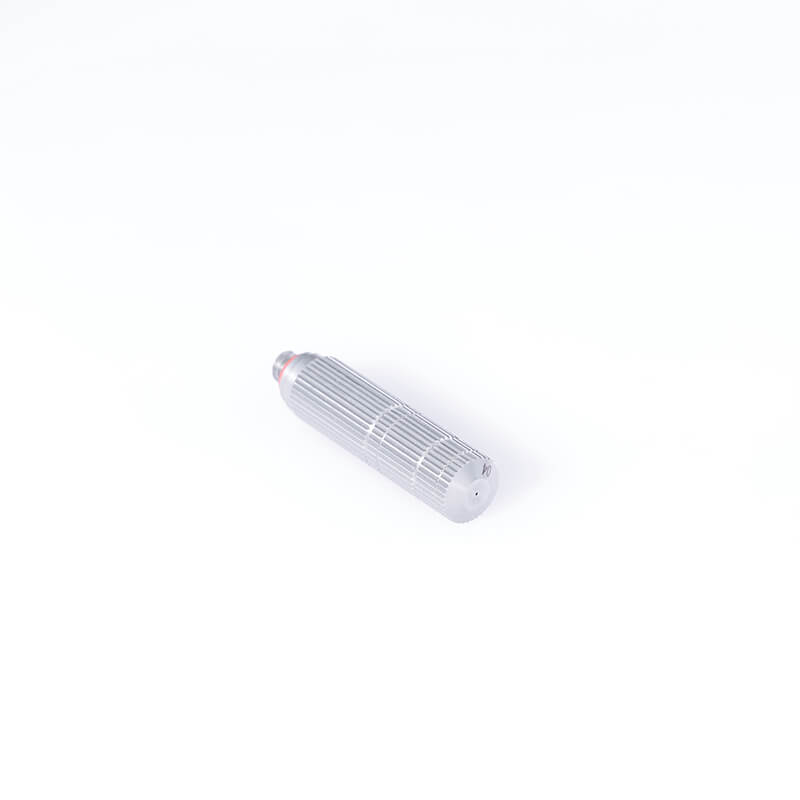

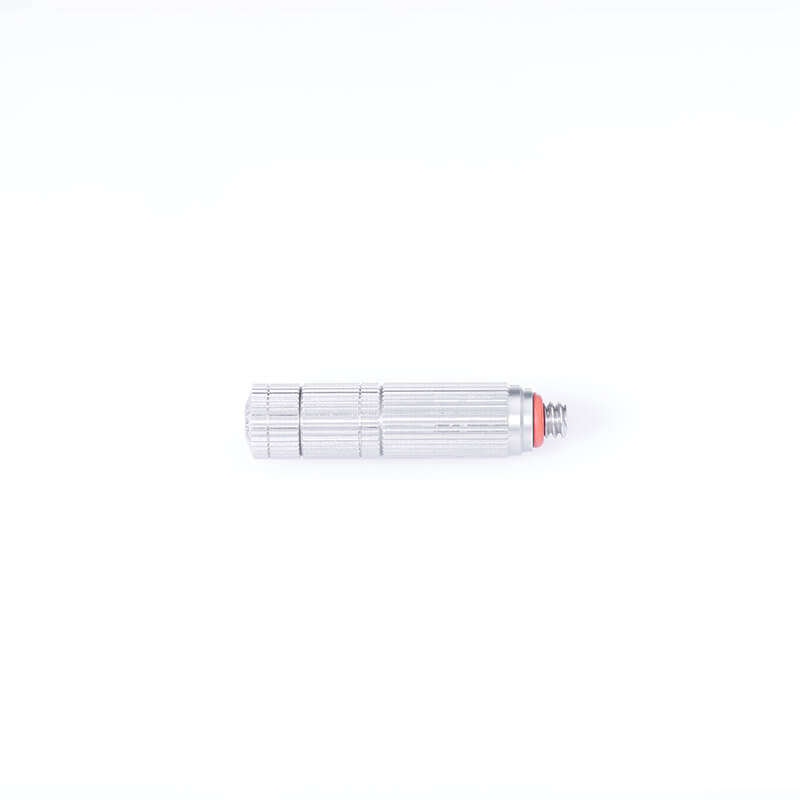

Nozzle: 0.016 inches (0.4 mm) orifice, screw into any 10/24-threaded mist nozzle opening
Stainless steel, never rust, is the best choice for outdoor cold water use. Suitable for high pressure spray system.
Suitable for garden watering, greenhouse nursery, landscaping, spray disinfection and outdoor cooling spray system, etc.

high pressure humidifying mister nozzle

high pressure mister nozzle 0.016 (0.40mm) orifice 10-24 unc thread fog humidifying head
Orifices（mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.40	40	110.4	60	0.9	1.4
	50	133.8	70	1.3	1.7
	60	152.6	75	1.6	2.1
	70	170.0	75	1.8	2.4

The high pressure humidifying mister nozzle is an important device that can turn the liquid into a mist. Its main principle is to use high-speed fluid to shear, tear and throw liquid, so that it forms small droplets, thus forming misting. The high pressure humidifying mister nozzle is widely used and has the advantages of fine droplet, wide coverage and low cost. Through the atomizing nozzle of the atomizer, the work of misting and humidification can be carried out conveniently and quickly, and it has a wide market prospect.

【Applications】

Not easy clogged,wear resistance,spray evenly, can effectively improve the quality and production efficiency. Can effectively

regulate the humidification amount and the spray effect.

The series of nozzles no air-assisted, simple system installation. Mist spot are fine, up to 3-7 microns,fully atomized, energy

saving,low cost and good effect.

Thread sizes	orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
10-24UNC	0.10	40	19.6	39	0.7	1.1
		50	22.6	39	0.9	1.3
		60	25.0	39	1.1	1.5
		70	27.3	39	1.3	1.7
	0.15	40	31.0	35	1.1	1.4
		50	40.0	45	1.2	1.6
		60	47.8	50	1.3	1.9
		70	53.0	55	1.5	2.1
	0.20	40	45.0	45	1.0	1.3
		50	58.5	55	1.1	1.5
		60	66.8	60	1.3	1.7
		70	75.3	60	1.5	2.2
	0.30	40	87.5	55	1.0	1.6
		50	103.9	60	1.3	1.8
		60	117.3	70	1.6	2.2
		70	130.0	70	1.8	2.4
	0.40	40	110.4	60	0.9	1.4
		50	133.8	70	1.3	1.7
		60	152.6	75	1.6	2.1
		70	170.0	75	1.8	2.4
	0.50	40	127.0	75	1.1	1.6
		50	150.0	85	1.3	1.8
		60	172.5	90	1.5	2.1
		70	190.3	90	1.7	2.3
