low pressure misting nozzle 0.012in (0.3mm) orifice 12/24 UNC mist head nozzle

0.3mm orifice 12/24 thread low pressure mist nozzle Factory humidification environmental protection dust sprinkler cold fog sprinkler textile factory disinfection and humidification landscape

low pressure misting nozzle 0.012in (0.3mm) orifice 12/24 thread atomization fogging nozzle

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
12/24 unc	0.3	4	31.5	50	0.3	0.6
		5	34.0	55
		6	36.5	60	0.5	1.0

This series of 12/24 unc mist head nozzle does not require air assistance with 12/24 unc thread , and the system is simple; Spray mist point is fine, the fog point can reach 3-10 microns, atomization is full, energy saving and water saving, low cost, good effect;

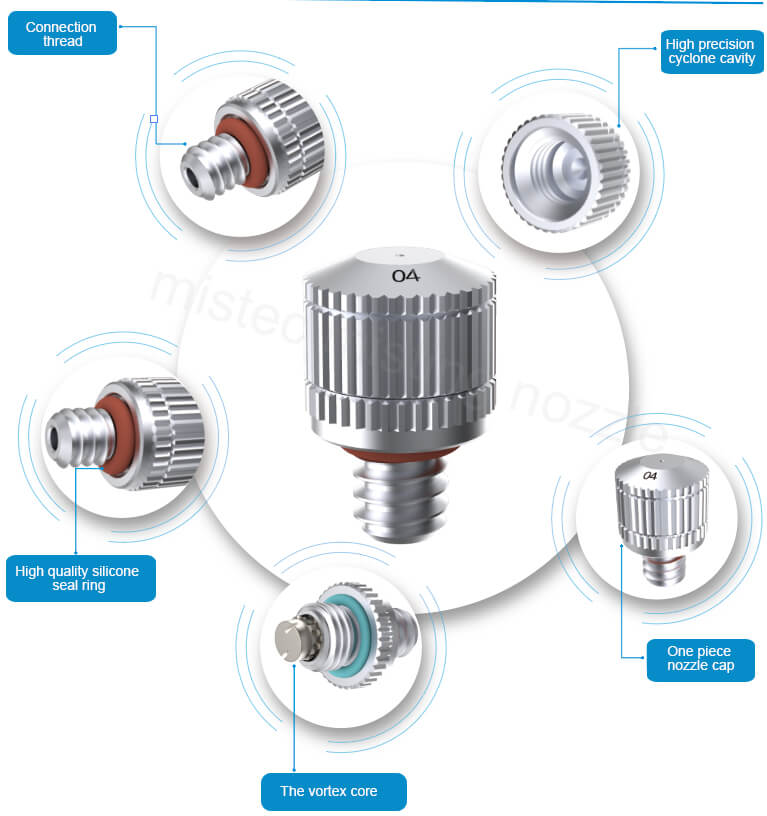

The 12/24 unc mist head nozzle is not blocked, no water leakage, internal rotary automatic cleaning, stainless steel spray sheet by advanced forging process treatment, strong durability, is 2.5 times the life of similar nozzles, ceramic spray sheet has superior wear resistance.
