high pressure misting nozzle 0.012 (0.30mm) orifice 1/4 thread fog atomizing nozzles
Menu
Sale
0.3mm orifice 1/4 thread high pressure mist nozzle
  • 0.3mm orifice 1/4 thread high pressure mist nozzle
  • 0.3mm orifice 1/4 thread high pressure mist nozzle
  • 0.3mm orifice 1/4 thread high pressure mist nozzle
  • 0.3mm orifice 1/4 thread high pressure mist nozzle
  • 0.3mm orifice 1/4 thread high pressure mist nozzle

high pressure misting nozzle 0.012 (0.30mm) orifice 1/4 thread fog atomizing nozzles

Availability: In Stock

Thread range:1/4 thread
Orifice: 0.012″(0.30mm)
Flow range: 130 ml/min at 70 bar
Pressure range: max up to 1400 psi
Material of manufacture available: Stainless steel 303ss, 304ss,316ss etc
Functional applications: make fan misting system, mist cooling system, dust control system,humidity system,plant watering system.
Other Stock thread sizes:12/24 standard, 10/24, 1/8 , 1/4 available and others


  • For More quantity price, customization, or other inquiries:

fast shipping

shipping by express,air,sea etc

quality guarantee

Advanced production technology

Online support

Engineer online consultations

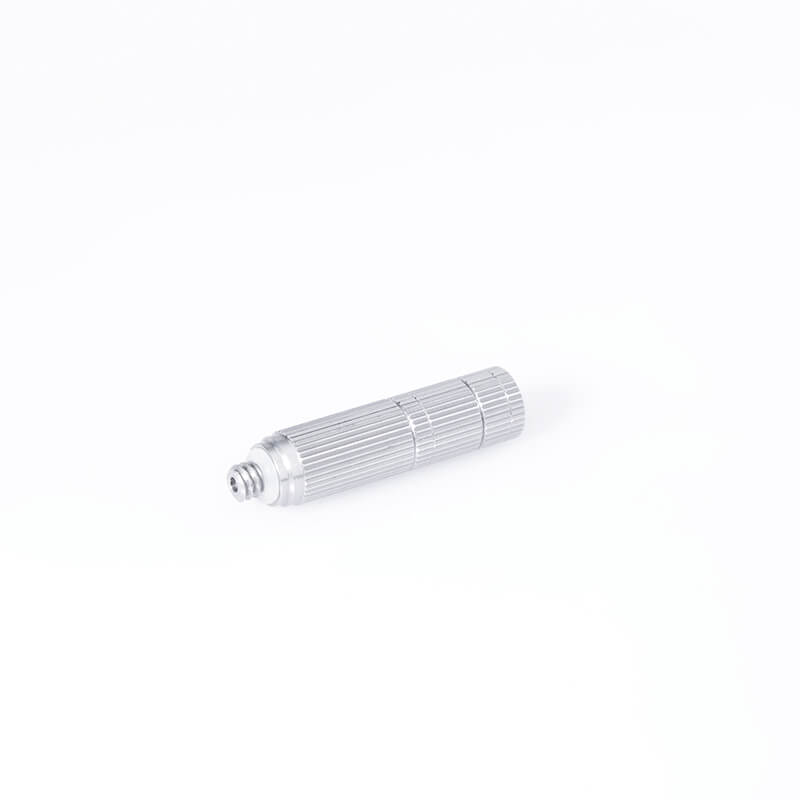

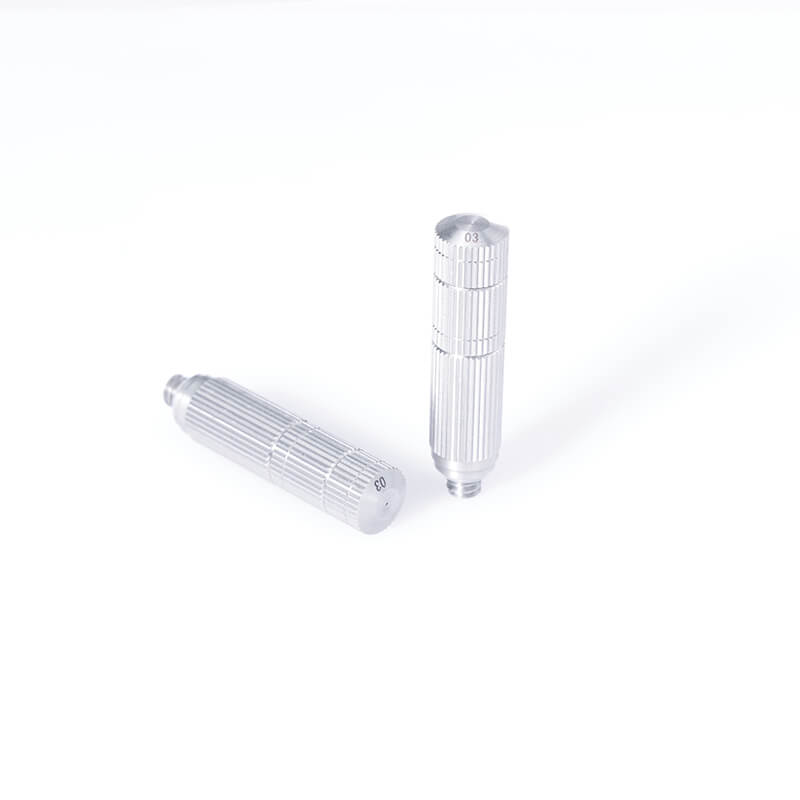

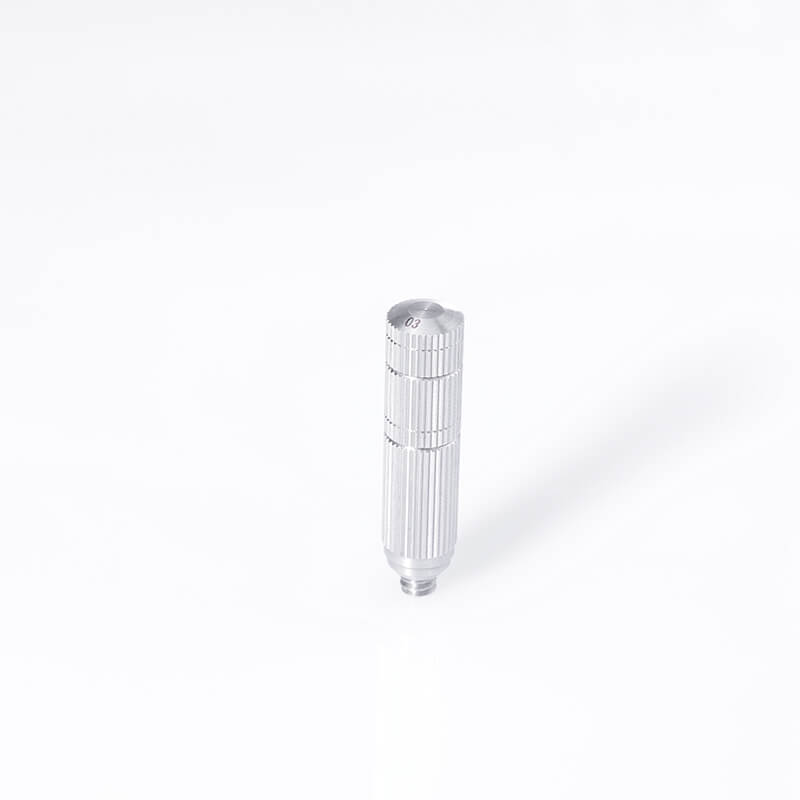

These 0.3mm orifice 1/4 thread high pressure mist nozzle is made from Stainless steel material, anti-rust and mist effectively.  good sealing, no leak, sleek and sturdy.

These 0.3mm orifice 1/4 thread misting nozzle is the necessary accessories to make fan misting system, mist cooling system, plant watering system.

【Suit for 1/4” tubing】:  standard size, can be connected by many kinds tube which is 1/4 inch.



high pressure misting nozzle 0.012 (0.30mm) orifice 1/4 thread fog atomizing nozzles
Orifices(mm) Pressure
(bar)
Flow
(mL/Min)
Spray
angle(°)
Effective spray
distance(M)
The spray
distance(M)
0.30  40 87.5  55 1.0 1.6
50 103.9  60 1.3 1.8
60 117.3  70 1.6 2.2
70 130.0  70 1.8 2.4

1/4 thread high pressure mist nozzle strictly selected material made of 304 stainless steel, durable, long service life.
Quality control The use of excellent testing equipment for strict testing of products to ensure product standards

Adequate stock manufacturers a large number of stock, special specifications can be customized according to demand

Product features To professional products and thoughtful service to win customer recognition

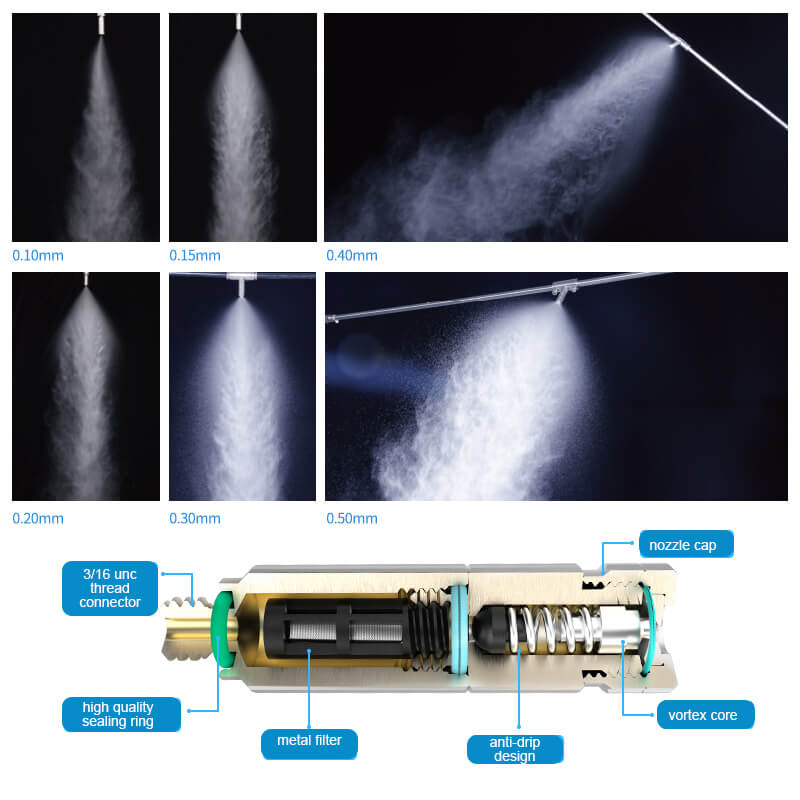

1. Without the use of compressed air, the use of hydraulic pressure can form a very fine hollow cone misting spray;
2. Uniform distribution, wide range of pressure and flow;
3. Very fine particles, forming a mist spray effect;
4. Wall-mounted nozzles can be used for external walls, containers or pipes;

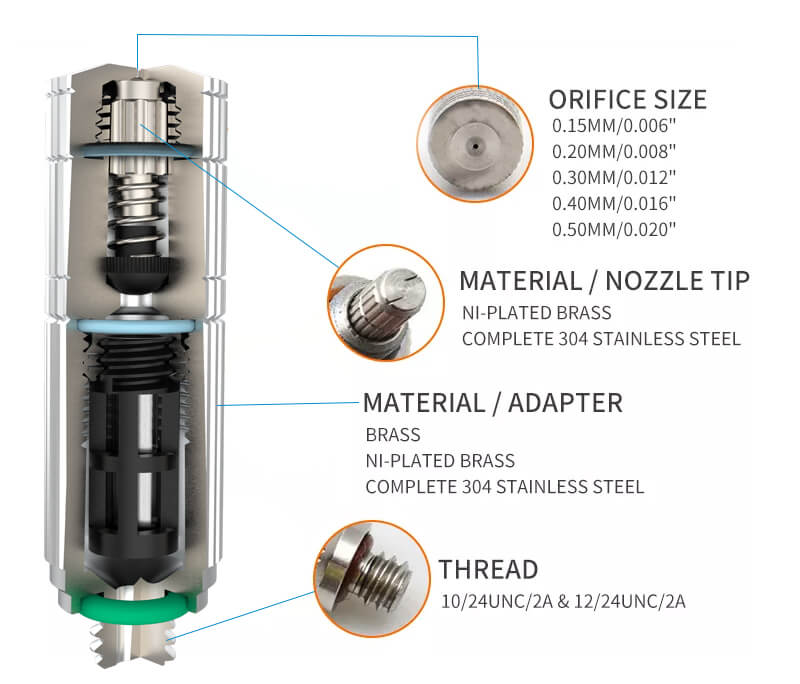

5. Jet inlay, disc core and filter are easy to disassemble for testing or cleaning;
6. Most models come with a built-in filter.
Thread sizes orifices
(mm)
pressure
(bar)
flow
(mL/Min)
spray
angle(°)
Effective spray
distance(M)
The spray
distance(M)
10-24UNC 0.10  40 19.6  39 0.7 1.1
50 22.6  39 0.9 1.3
60 25.0  39 1.1 1.5
70 27.3  39 1.3 1.7
0.15  40 31.0  35 1.1 1.4
50 40.0  45 1.2 1.6
60 47.8  50 1.3 1.9
70 53.0  55 1.5 2.1
0.20  40 45.0  45 1.0 1.3
50 58.5  55 1.1 1.5
60 66.8  60 1.3 1.7
70 75.3  60 1.5 2.2
0.30  40 87.5  55 1.0 1.6
50 103.9  60 1.3 1.8
60 117.3  70 1.6 2.2
70 130.0  70 1.8 2.4
0.40  40 110.4  60 0.9 1.4
50 133.8  70 1.3 1.7
60 152.6  75 1.6 2.1
70 170.0  75 1.8 2.4
0.50  40 127.0  75 1.1 1.6
50 150.0  85 1.3 1.8
60 172.5  90 1.5 2.1
70 190.3  90 1.7 2.3
