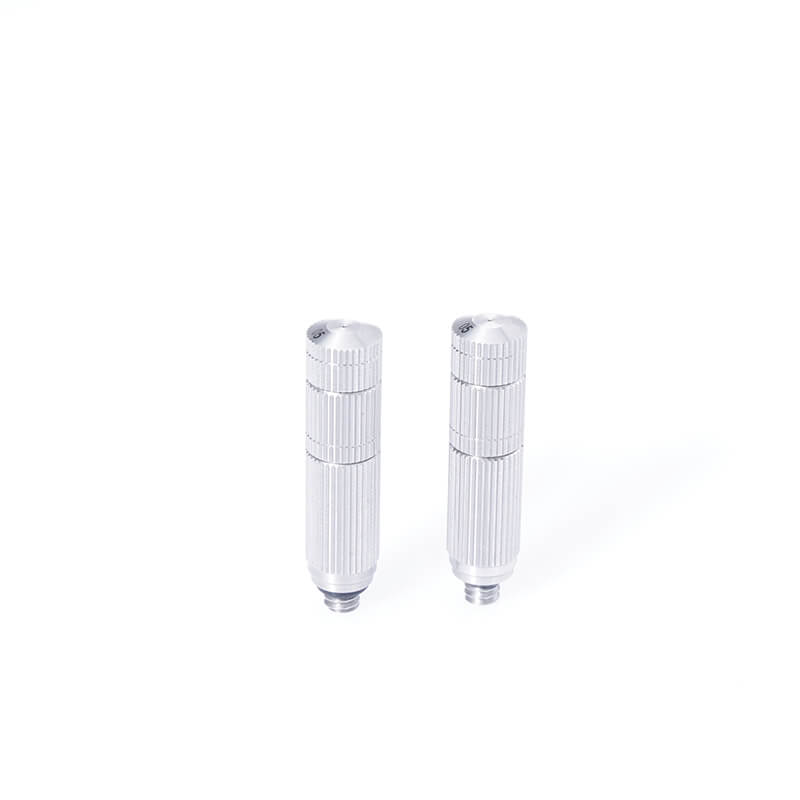

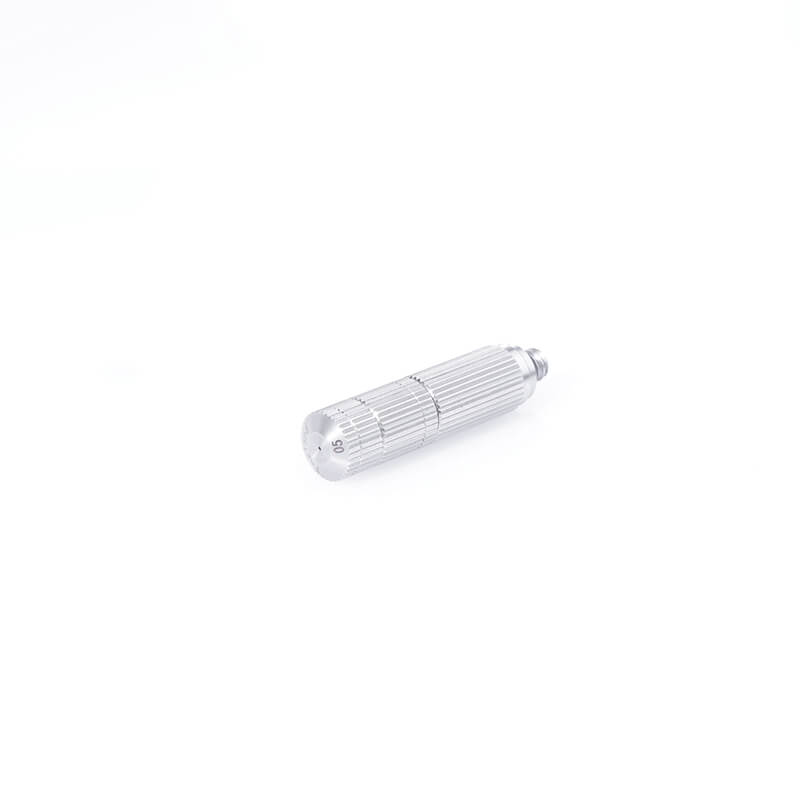

high pressure fogging sprayer misting nozzle for cooling system with 0.020 (0.50mm) orifice

With high pressure mist technology, our patio misting systems expand your usable space and bring wonderful relief from the heat outdoors.
Compatible with Professional mist cooling system and 10/24 unc 0.020" (0.50mm)Orifice . Hose spray kit
All brass construction, nickel plated, durable.
Easy to install and remove. Can be used in misting systems up to 1500 psi
End sliding connector with spray seat.

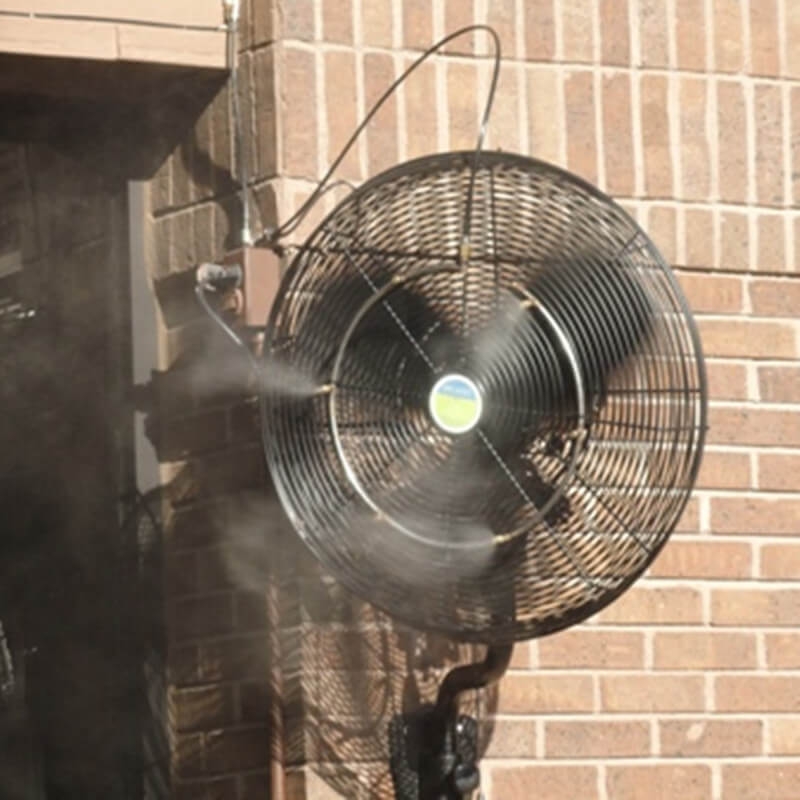

Also used for cooling fans, parks, greenhouses, cooling, outdoor, industrial.

high pressure fogging sprayer misting nozzle for cooling system with 0.020 (0.50mm) orifice

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle （°）	Effective spray distance（M）	The spray distance（M）
12/24 unc	0.50	40	127.0	75	1.1	1.6
		50	150.0	85	1.3	1.8
		60	172.5	90	1.5	2.1
		70	190.3	90	1.7	2.3

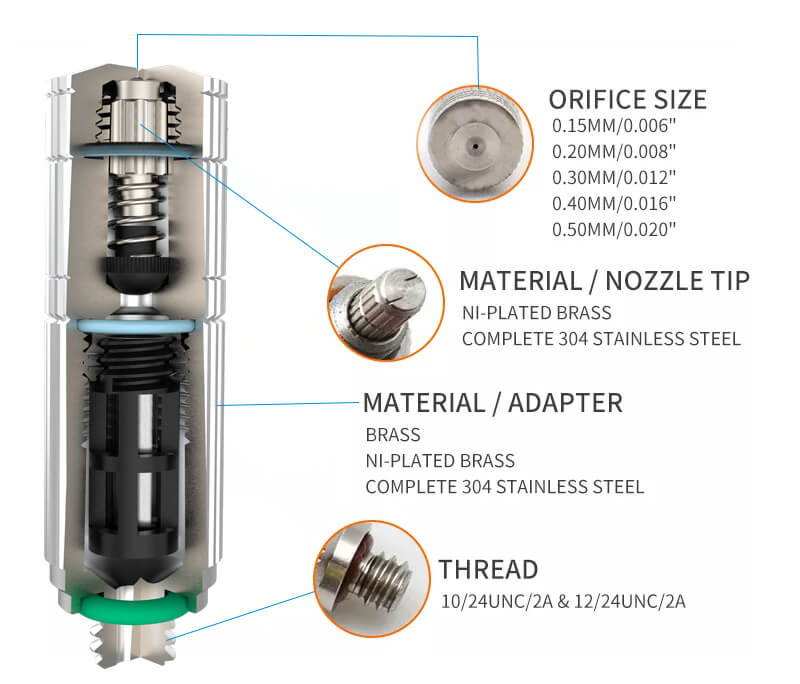

The high pressure fogging sprayer misting nozzle is usually composed of a driving mechanism, a nozzle and a liquid inlet. The liquid enters the nozzle at the inlet, rotates inside the nozzle and is subjected to strong centrifugal force, eventually dispersing into tiny droplets. The high pressure fogging sprayer misting nozzle sprays the atomized liquid at a certain Angle, and controls the flow through the flow control valve to adjust the spray effect of the nozzle.


Cooling heat dissipation:

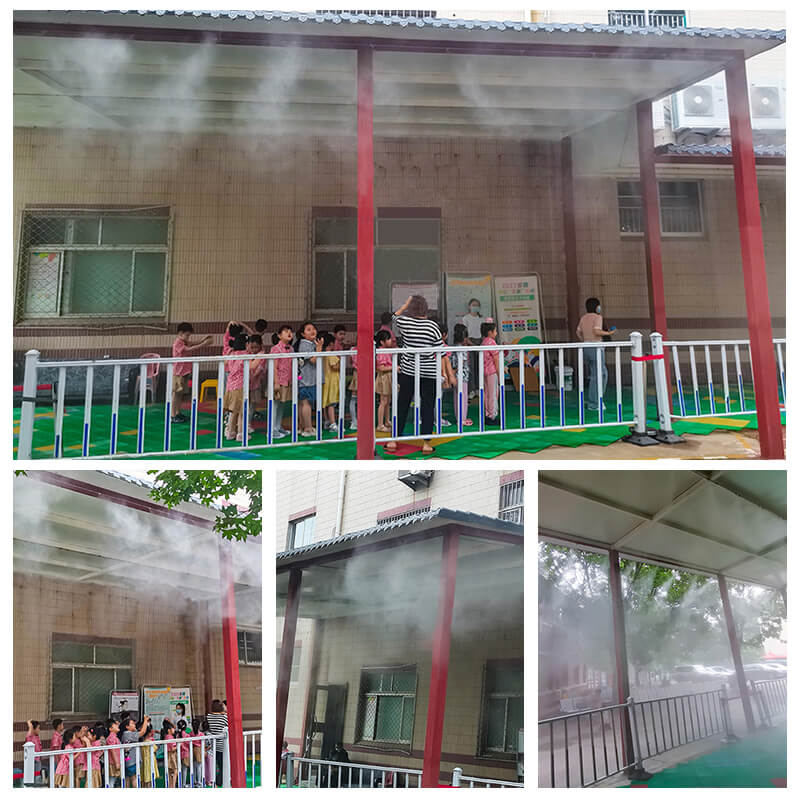

In some cases, the high pressure fogging sprayer misting nozzle can misting the liquid into tiny particles to cool or dissipate heat. Through the principle of evaporation, when the tiny droplets come into contact with the air, they absorb the heat in the air, thus playing a cooling role. In general, the role of the high pressure fogging sprayer misting nozzle is to misting the liquid into tiny particles to achieve the purpose of inhalation, humidification, cleaning and disinfection or cooling and heat dissipation.

Main Features
