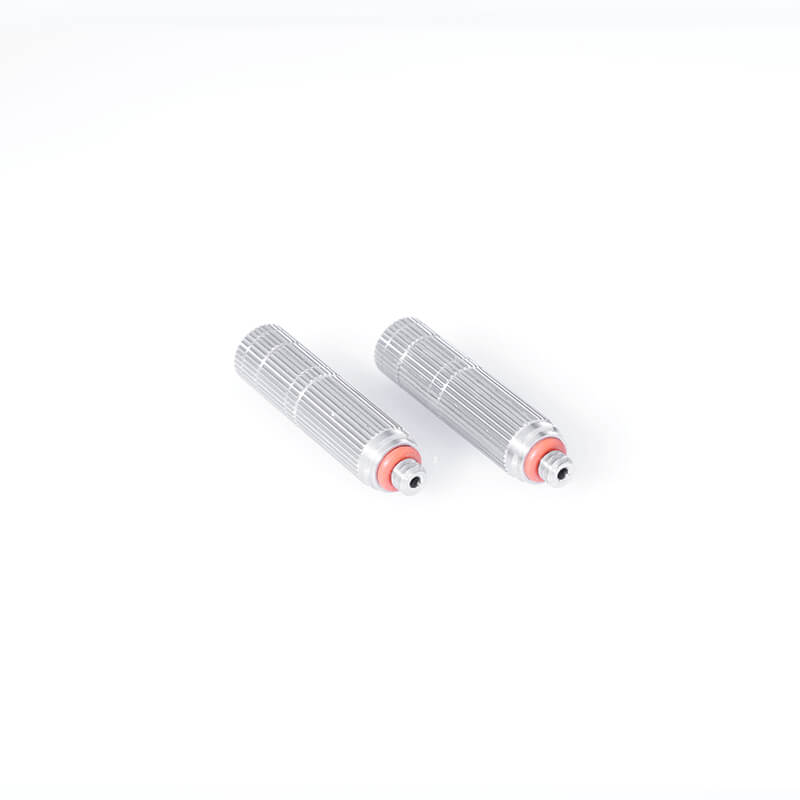

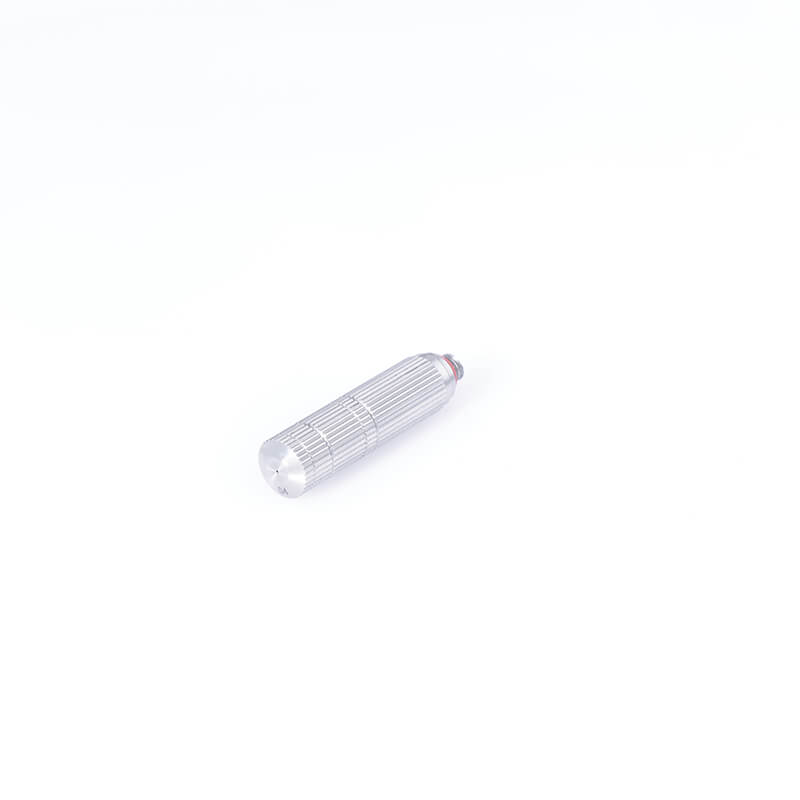

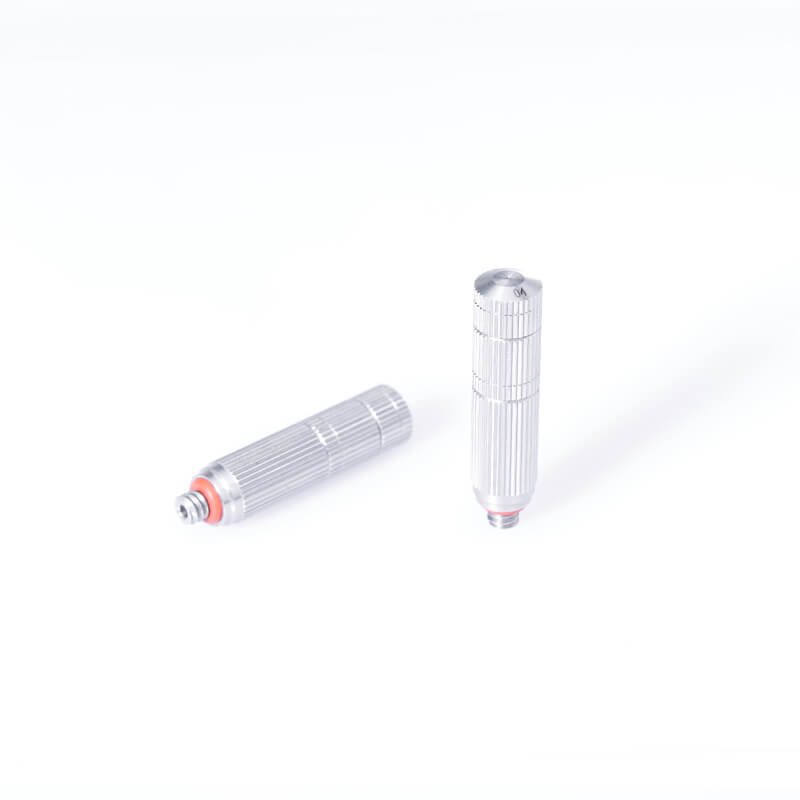

middle pressure misting nozzle 0.016in (0.40mm) orifice mister nozzle head with 1/8 thread

Product features:

0.016in orifice misting nozzle equipped with filter, no compressed air, only the use of hydraulic pressure can form a very fine conical misting spray with 0.016in orifice.

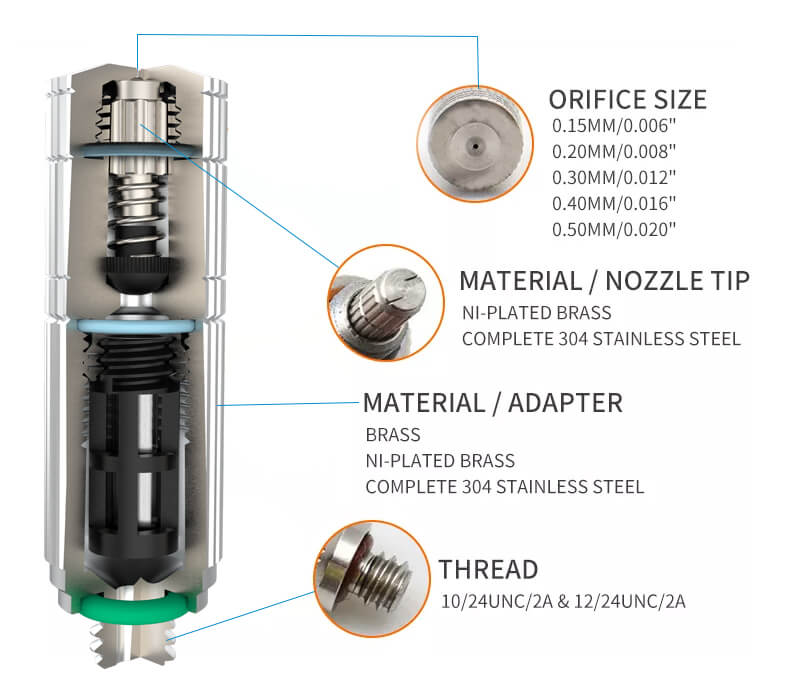

Materials: Stainless steel (SS304, 303, 316, 316L), BRASS and other materials to choose from.


① Fine 0.016in orifice misting nozzles only use liquid pressure to produce very small droplets, and the spray shape into a uniform hollow cone can usually obtain a wet fog effect.

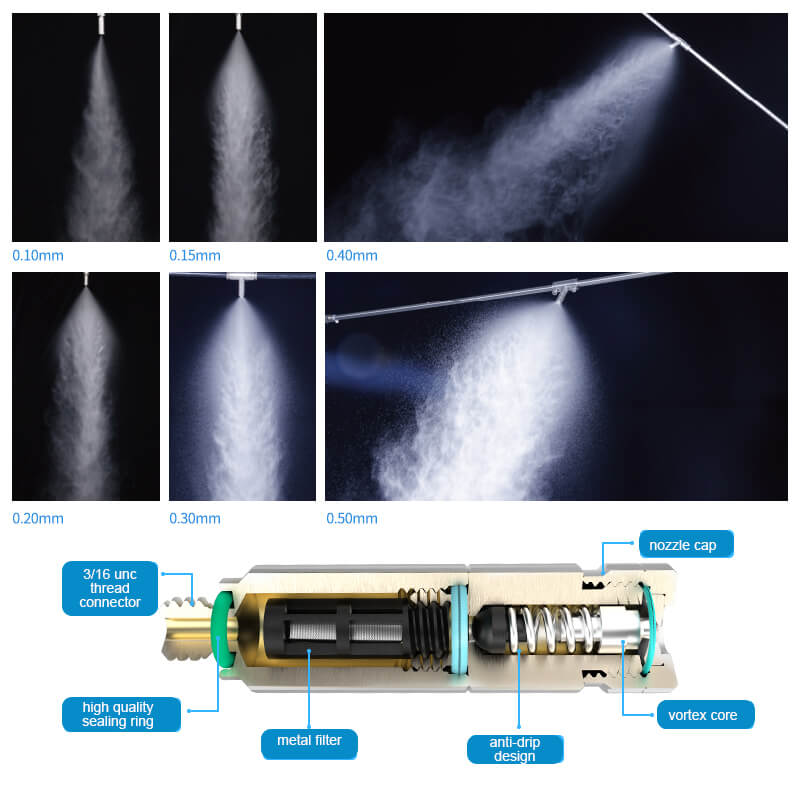

② Misting spray all parts are precision made, the injection hole inlaid, core and filter are easy to disassemble for inspection or cleaning, the above nozzle is equipped with a filter.

Product details
0.016in orifice misting nozzle is generally installed on the external wall, container or pipeline, forming a mist to achieve cooling, dust reduction effect, built-in filter, not easy to clog, long service life. The droplet size is very small, forming a mist spray effect.


0.016in orifice misting nozzle by changing the material of the nozzle and the shape of the nozzle to affect the misting effect, such as polypropylene than spray "silk" can produce finer misting particles, typical such as the use of conical nozzle, polymer misting nozzle diameter to length ratio of 1:2 or 1:3, can obtain finer droplet effect.

Compressed 0.016in orifice misting nozzle: it needs to access compressed air when working, which has higher misting efficiency and can form finer mist particles.

middle pressure misting nozzle 0.016in (0.40mm) orifice mister nozzle head with 1/8 thread

Thread sizes	orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
10-24UNC	0.4	12	48.5	75	0.4	0.6
		15	62.5	80	0.9	1.1
		18	80.7	80	1.2	1.6
