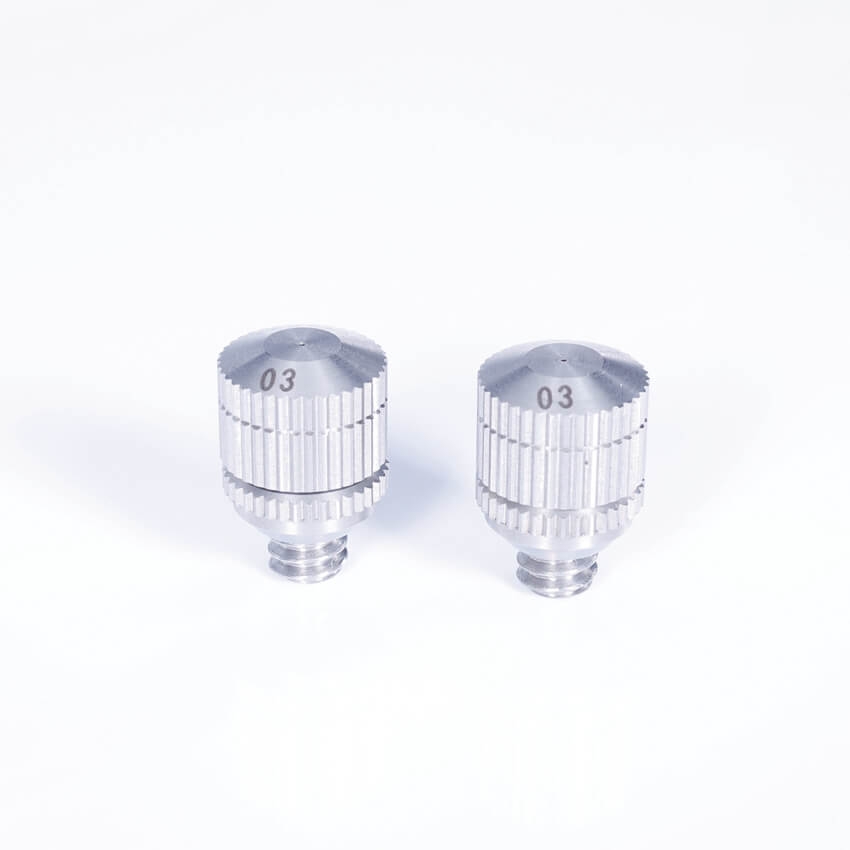

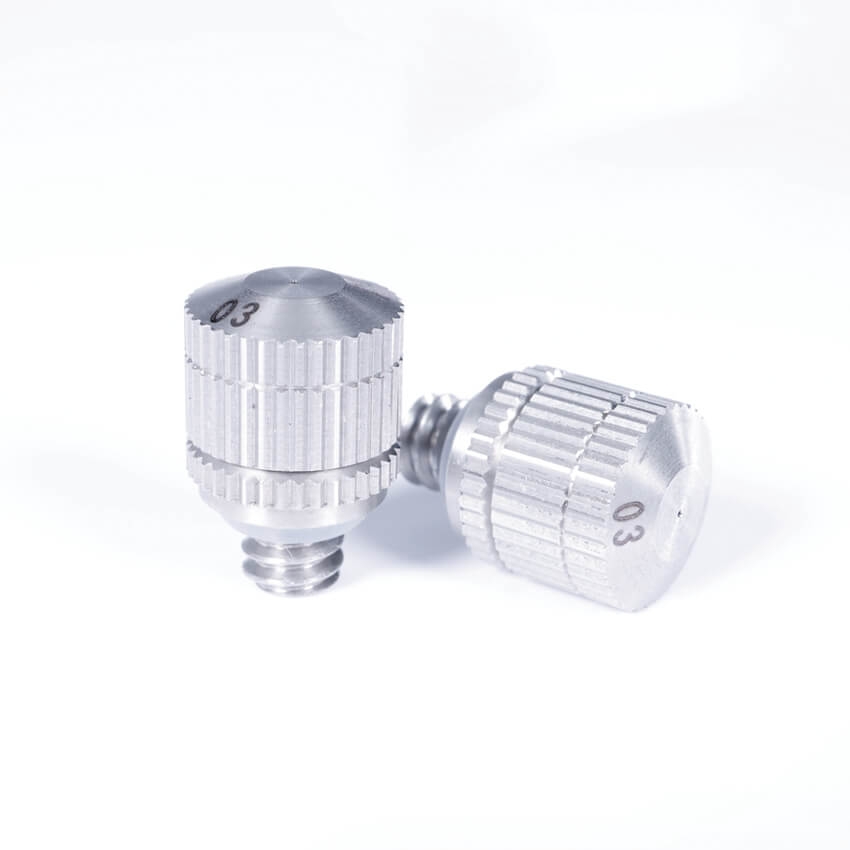

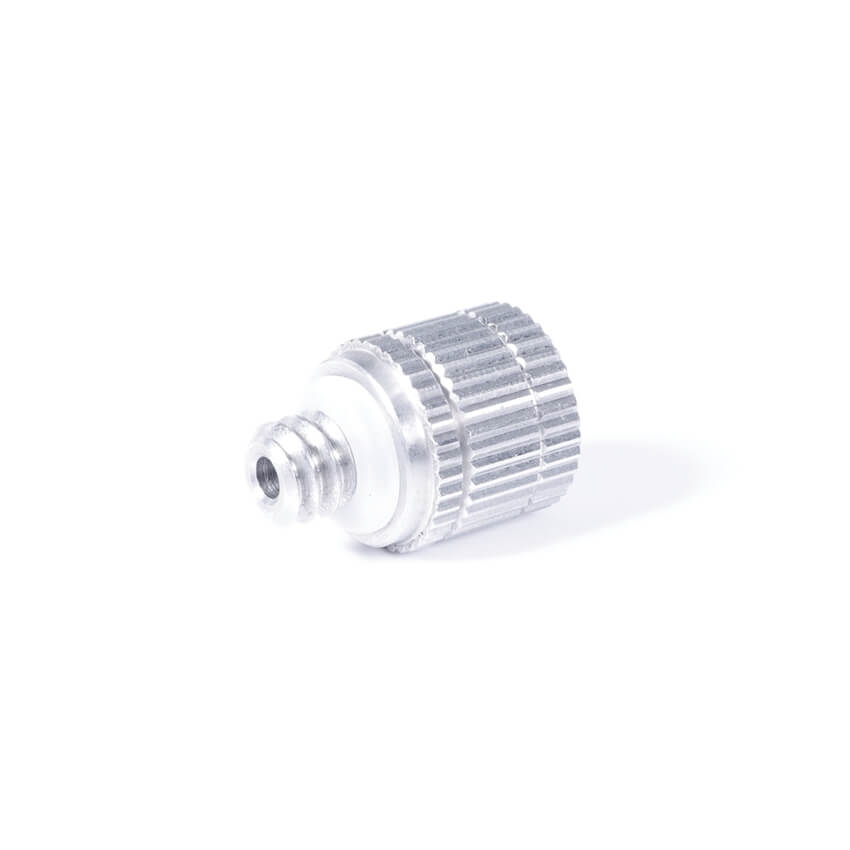

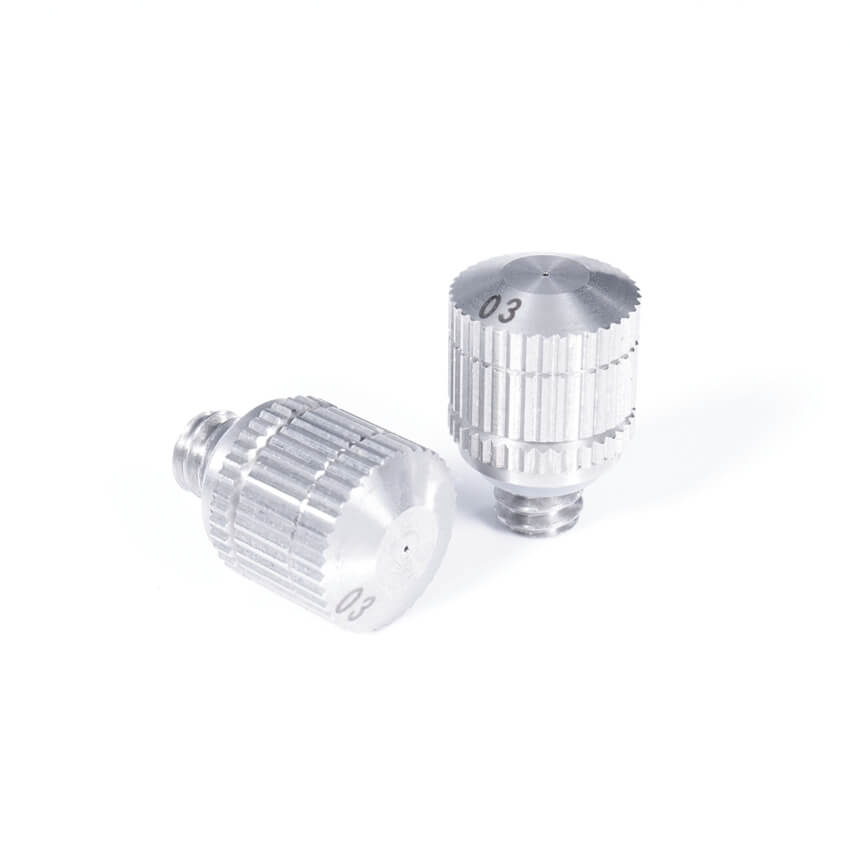

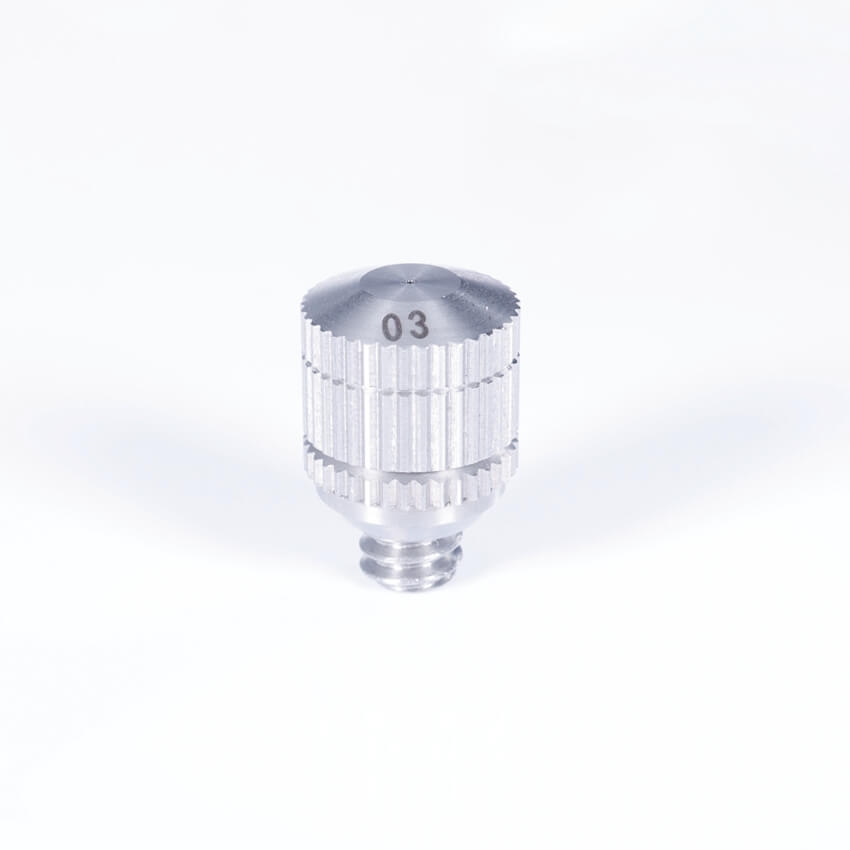

Misting cooling nozzle for reduce the temperature cooling heat head tips

Availability: In Stock

Thread:
10/24-UNC, 12/24-UNC, 1/8-NPT
Material:
Plastic，stainless steel,plastic
Feature:
Anti-Dripping，cooling heat
Spray type:
Low and high pressure misting System
Applications:
Cooling, Landscaping, Humidifying
Spray pattern:
fog
orifice diameter:
0.15,0.18,0.20,0.25,0.3 mm

Qty:

For More quantity price, customization, or other inquiries:

fast shipping

shipping by express,air,sea etc

quality guarantee

Advanced production technology

Online support

Engineer online consultations

Mist cooling nozzle is mainly used to mist water liquid into very fine droplets to make the surrounding temperature drop quickly, to achieve the effect of cooling. cooling nozzle can be used in indoor and outdoor atomized cooling systems with pvc pipe or metal fittings, cooling fans, etc.

Main function of the mist cooling nozzle

The main function of mist cooling nozzle is cooling. Vaporization of very fine droplets of water is a physical property that absorbs external heat. When the mist spray covers a large area, the water droplets vaporize, and the heat around the covered area is absorbed, thus achieving the effect of temperature reduction. Especially at high temperature, mist cooling nozzle is the main cooling component of cooling system.

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
10-24UNC	0.3	4	31.5	50	0.3	0.6
		5	34.0	55
		6	36.5	60	0.5	1.0
		7	39.5	65
		8	41.5	65
	0.4	4	39.5	60	0.5	0.8
		5	43.0	65
		6	47.5	65	0.6	0.9
		7	50.0	70
		8	53.5	75
	0.5	4	50.0	50	0.5	0.8
		5	60.9	55
		6	65.0	60	0.8	1.0
		7	73.0	60
	0.6	1	71.0	70
		2	93.0	80
		3	113.0	90
		4	128.5	90	0.7	1.1
		5	143.5	90
		6	155.0	90	0.9	1.4
