1/8 thread mister nozzle 0.02ins (0.50mm) orifice middle pressure misting tip head

1/8 thread mister nozzle spray range 2-3 meters with 1/8 thread connect, misting effect faster dust removal using stainless steel fastening nozzle, rust resistant and durable.

Product characteristics
It is not easy to clog, and the spray is uniform, which can effectively improve the quality and production efficiency of the product. Through the free combination of the nozzle, the humidification amount and the spray effect can be effectively adjusted. This series of nozzles does not require air assistance, the system setup is simple, the spray spray point is fine, up to 3-7 microns, misting is full, low cost, and strong durability.

● No compressed air is required in the process of producing fine particles;
● Using hydraulic pressure to form hollow conical misting spray;
● Liquid flows at high speed under medium and high pressure;
● The guiding blade makes the liquid form a centrifugal vortex;
● Compared with gas humidification, saving more than 10 times the cost;

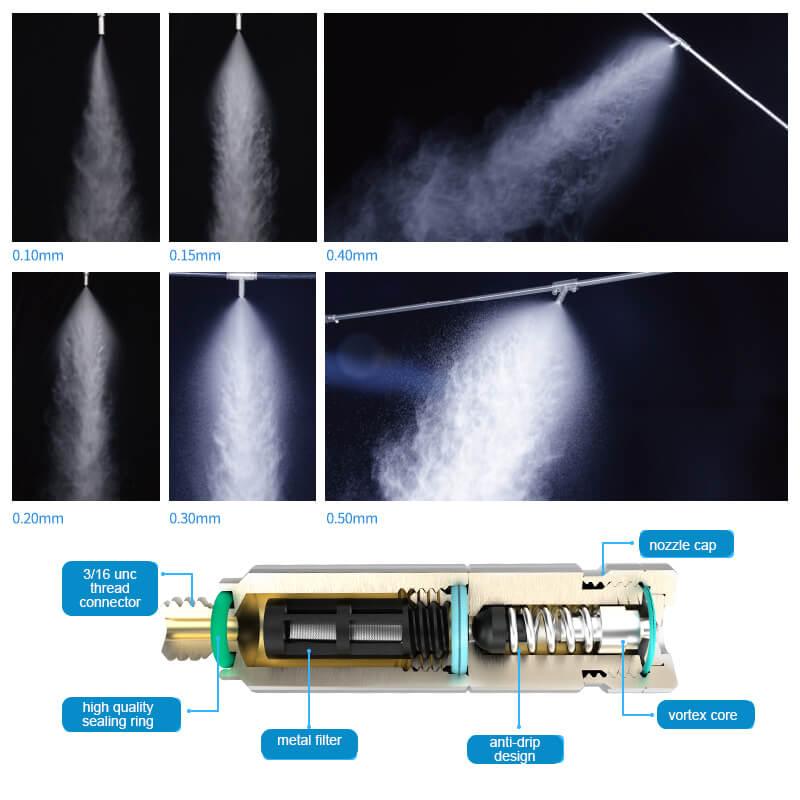

Effect of 1/8 thread mister nozzle aperture on atomizing effect
The diameter of 1/8 thread mister nozzle is one of the important factors affecting the spray effect of atomizer. When the diameter of 1/8 thread mister nozzle is smaller, the droplets can be produced, and the corresponding misting range is larger, but the misting volume is also reduced. When the aperture is larger, the droplet will also increase, the misting range will be reduced, but the misting volume will also increase accordingly.


1/8 thread mister nozzles can be applied to a variety of working environments, a wide range of applications in a variety of occasions to focus on production, strength can see a wide range of products, used in steel, chemical, electronics, aviation, automotive, textile, painting, fire protection, machinery, agriculture, environmental protection, medicine, paper, power generation, beverage, food, gardens, ships, brewing and other more than 800 industries, More than 60,000 production processes.

1/8 thread mister nozzle 0.02ins (0.50mm) orifice middle pressure misting tip head

Thread sizes	orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
10-24UNC	0.5	12	55.5	90	0.8	1.0
		15	78.0	100	1.1	1.4
		18	94.4	100	1.2	1.6
