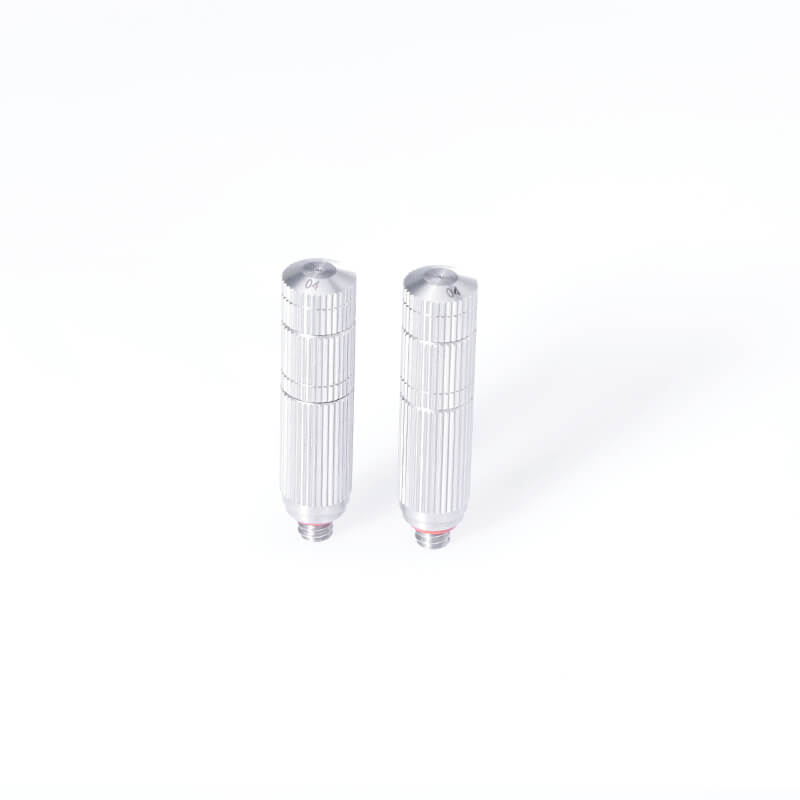

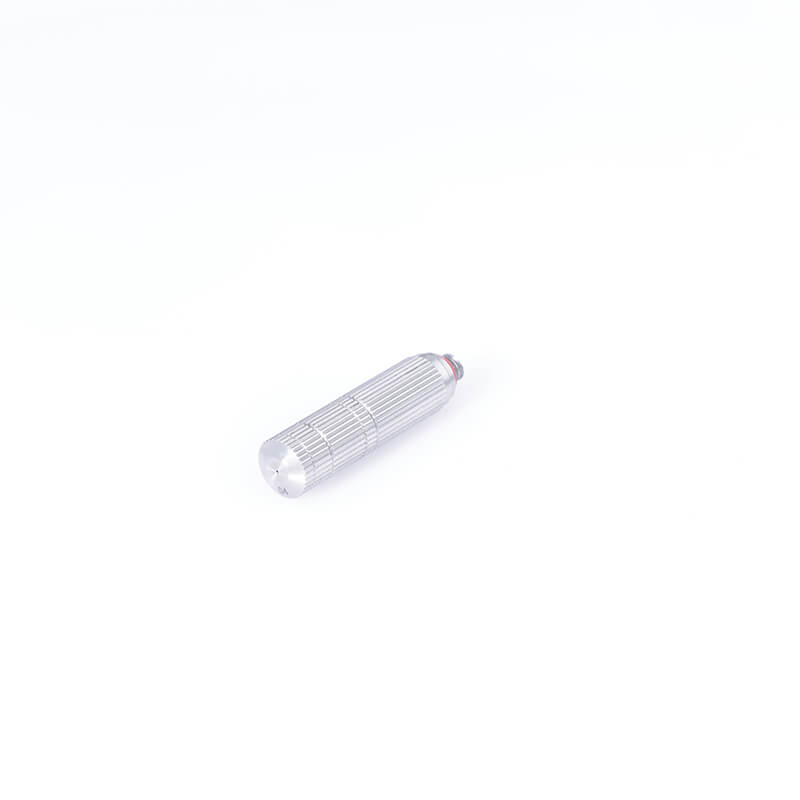

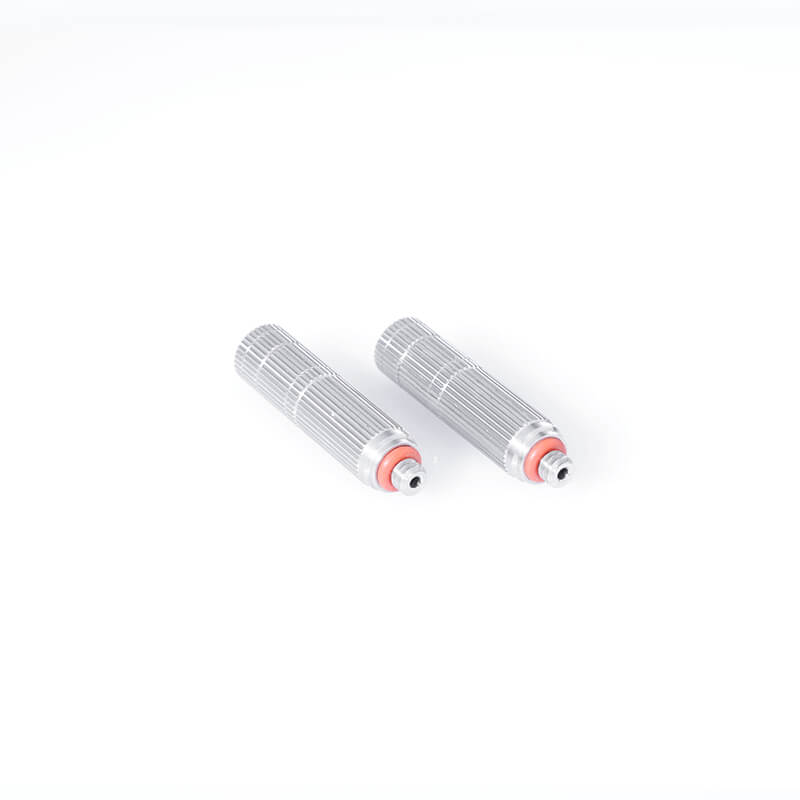

0.40mm orifice middle pressure mister nozzle 0.016inches 1/4 thread misting head nozzle

Availability: In Stock

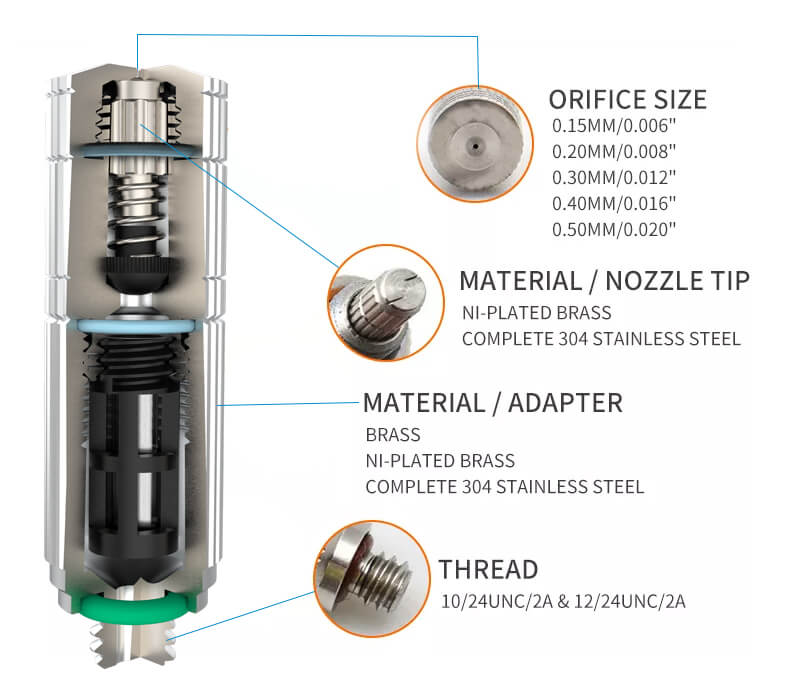

Orifice:0.016″(0.40mm)
Thread range:1/4 thread
Flow range: 94 ml/min at 18 bar
Pressure range:300 to 1000psi midle pressure range
Material of manufacture available: Stainless steel
Other Stock thread sizes:12/24 standard, 10/24, 1/8 , 1/4 available and others
Functional applications: spray cooling equipment, spray cooling engineering, landscape spray, high-pressure mist humidifier, artificial fog equipment, garden landscape fog equipment, supermarket fresh humidification and preservation
.


  • For More quantity price, customization, or other inquiries:

fast shipping

shipping by express,air,sea etc

quality guarantee

Advanced production technology

Online support

Engineer online consultations

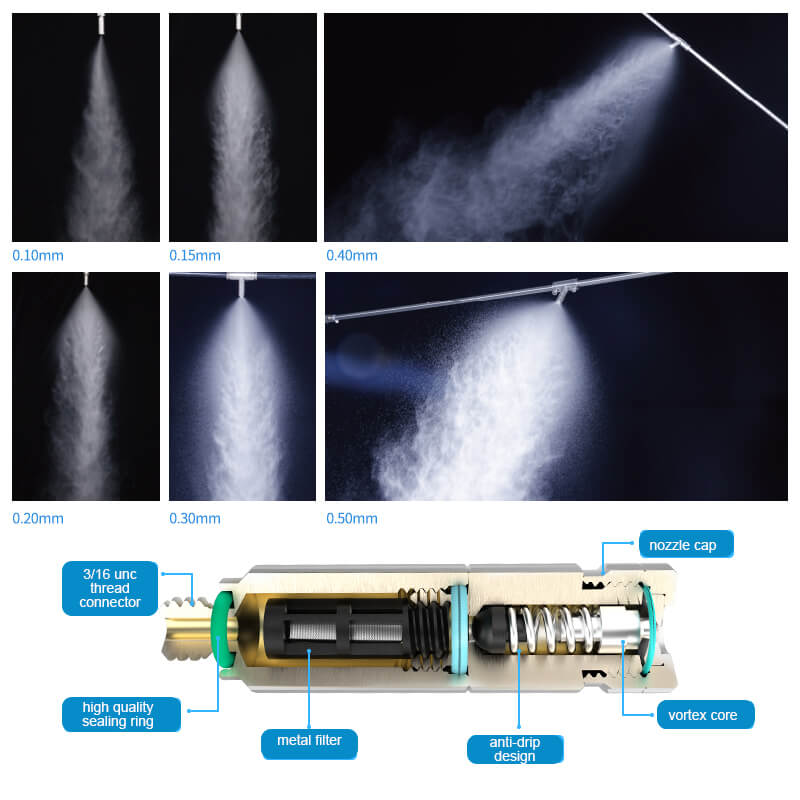

The diameter of the aperture is one of the most basic parameters of the 0.40mm orifice middle pressure mister nozzle, which determines the flow rate of the nozzle outlet and the atomizing effect. In general, the smaller the aperture diameter, the faster the nozzle exit speed, the better the misting effect. However, too small an aperture diameter can lead to an increased risk of clogging, so the balance of flow and clogging needs to be considered when selecting the aperture diameter.

The aperture shape of the 0.40mm orifice middle pressure mister nozzle usually has a variety of options such as round, square and oval. Different aperture shapes can produce different spray effects. The circular aperture is suitable for general spray applications, the square aperture is suitable for scenes where the square misting effect is required, and the oval aperture is suitable for scenes where the elliptical misting effect is required.

0.40mm orifice middle pressure mister nozzle according to hydraulic pressure, flow rate, temperature, range and other factors optimized design, mature technology, high pressure fog nozzle with hardened stainless steel, ceramic, ruby material to do the spray sheet specially, high pressure fog nozzle with corrosion resistance, high pressure (120KG/CM2) wear resistance and other characteristics, and no power vulnerable parts, to ensure the service life of the nozzle and misting effect.

0.40mm orifice middle pressure mister nozzle are mainly used in: spray cooling equipment, spray cooling engineering, landscape spray, high-pressure mist humidifier, artificial fog equipment, garden landscape fog equipment, supermarket fresh humidification and preservation

Product features: not easy to clog, good wear resistance, uniform spray, can effectively improve product quality and production efficiency, through the free combination of nozzles. Can effectively adjust the humidification amount and spray effect.

This series of 0.40mm orifice middle pressure mister nozzle does not require air assistance, and the system is simple; Spray spray point is fine, misting is full, energy saving and water saving, low cost, good effect; Nozzle is not easy to plug, not easy to leak.


0.40mm orifice middle pressure mister nozzle 0.016inches 1/4 thread misting head nozzle
orifices
(mm)
pressure
(bar)
flow
(mL/Min)
spray
angle(°)
Effective spray
distance(M)
The spray
distance(M)
0.4 12 48.5  75 0.4 0.6
15 62.5  80 0.9 1.1
18 80.7  80 1.2 1.6

Thread sizes orifices
(mm)
pressure
(bar)
flow
(mL/Min)
spray
angle(°)
Effective spray
distance(M)
The spray
distance(M)
10-24UNC 0.3 12 35.5  65 0.4 0.8
15 44.5  70 0.8 1.3
18 53.8  70 1.0 1.4
0.4 12 48.5  75 0.4 0.6
15 62.5  80 0.9 1.1
18 80.7  80 1.2 1.6
0.5 12 55.5  90 0.8 1.0
15 78.0  100 1.1 1.4
18 94.4  100 1.2 1.6
