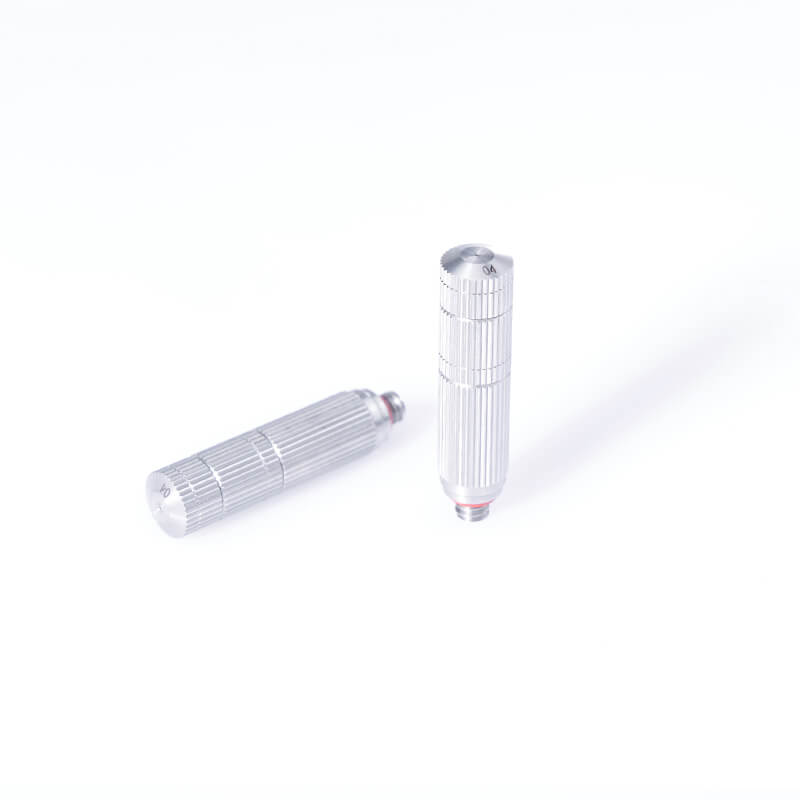

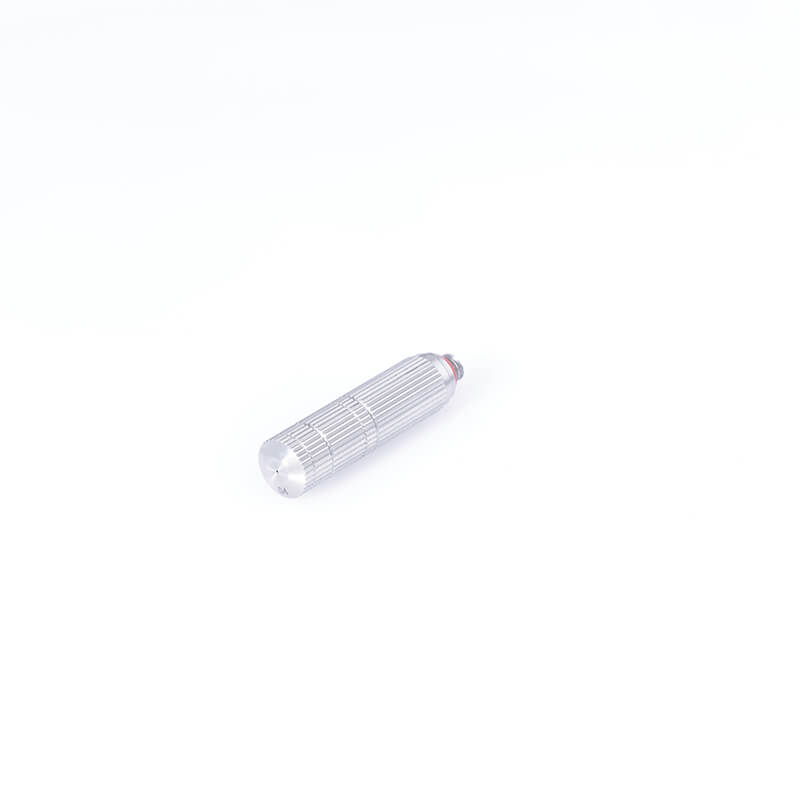

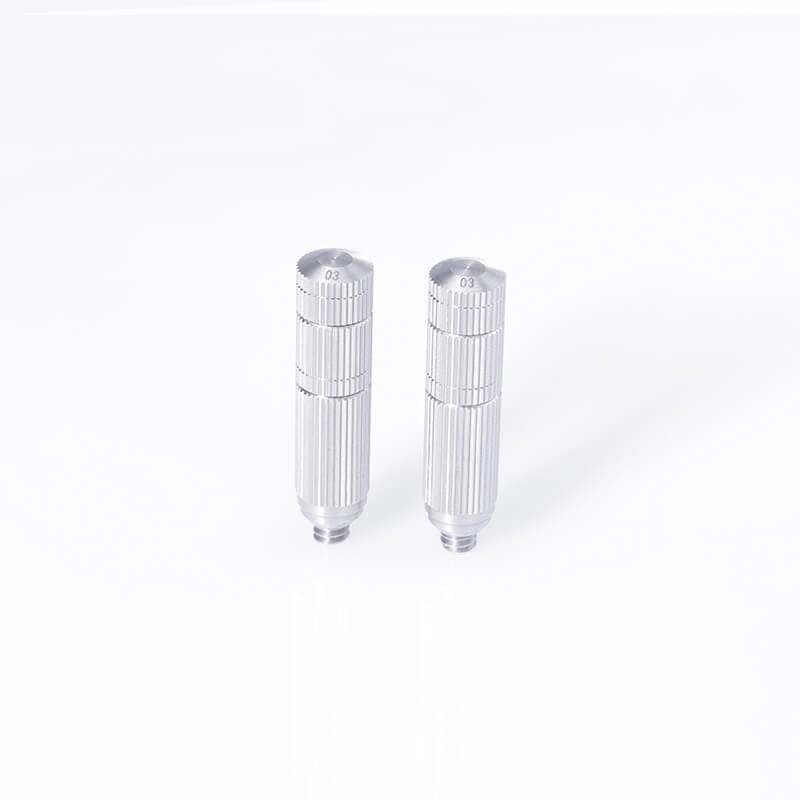

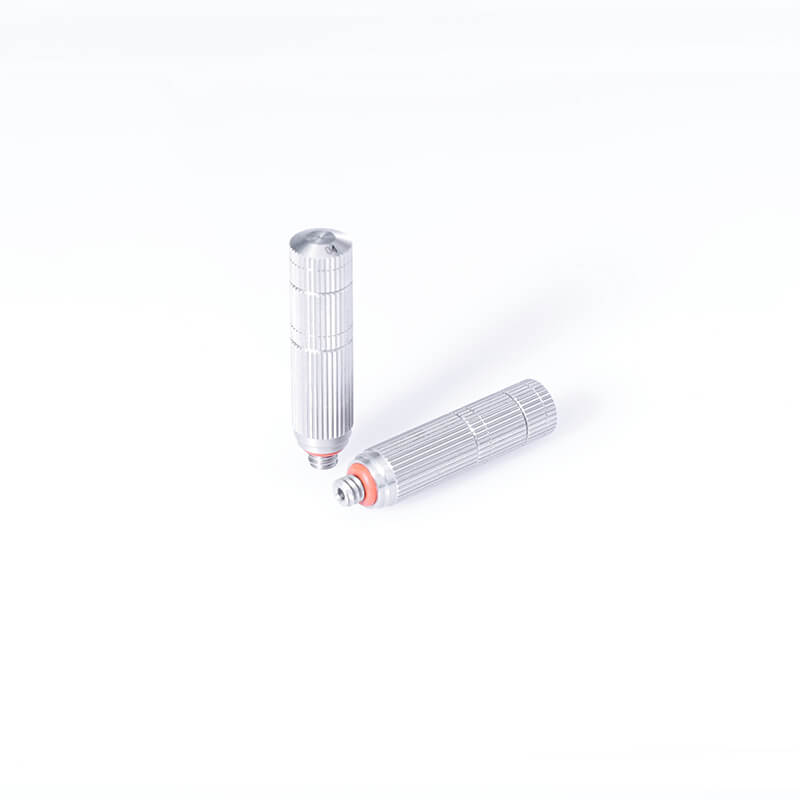

middle pressure misting nozzle 0.016in (0.40mm) orifice 12/24 UNC mister nozzles tip

The high precision 12/24 UNC mister nozzles tip adopts all imported materials, the structure is precise and the filter nozzle is not blocked, and the energy consumption is lower.

01 Compact design Compact design, can achieve a maximum of 8L/H (air pressure of 0.2MPA) humidifying capacity of high-performance humidifier 03 Spray volume large 12/24 UNC mister nozzles tip spray distance of more than 6M humidifying effect is remarkable
05 Automatic control The product can be automatically controlled by connecting the timer and controller
02 Easy maintenance Quick disassembly easy maintenance Such as water purification equipment, there is no need to clean
04 A super small water storage tank that is not easily propagated by bacteria is used in the high quality calabash
06 Not easy to clog the use of high-tech non-clogging nozzle

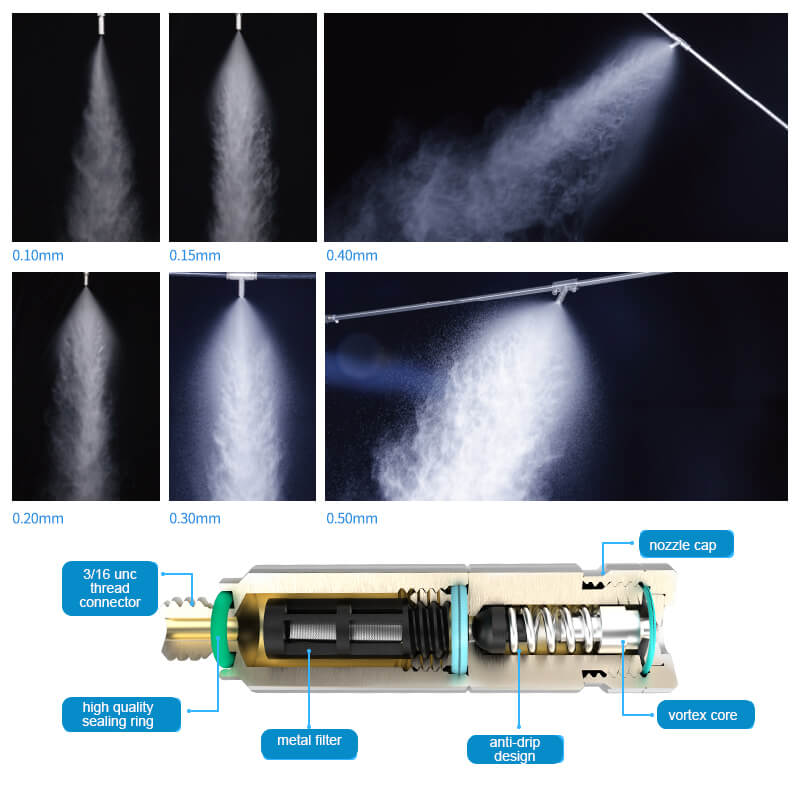

The purpose of use also needs to be selected according to the size of the aperture, and the aperture size required by the sprayer for different purposes is different. For example, household cleaning needs to pay attention to the size of the nozzle aperture, and the smaller nozzle aperture can better achieve the cleaning effect.

To sum up, there is a close relationship between the size of nozzle aperture and atomization effect. Choosing the right aperture size is very important for different spray tasks.

middle pressure misting nozzle 0.016in (0.40mm) orifice 12/24 UNC fog atomizing nozzles

Thread sizes	orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
12-24UNC	0.4	12	48.5	75	0.4	0.6
		15	62.5	80	0.9	1.1
		18	80.7	80	1.2	1.6
