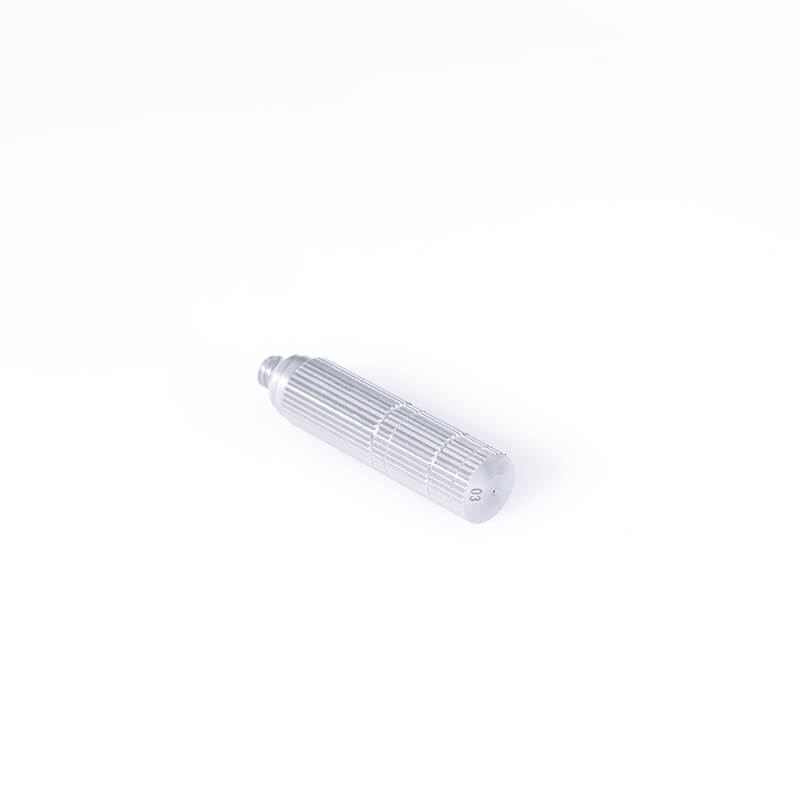

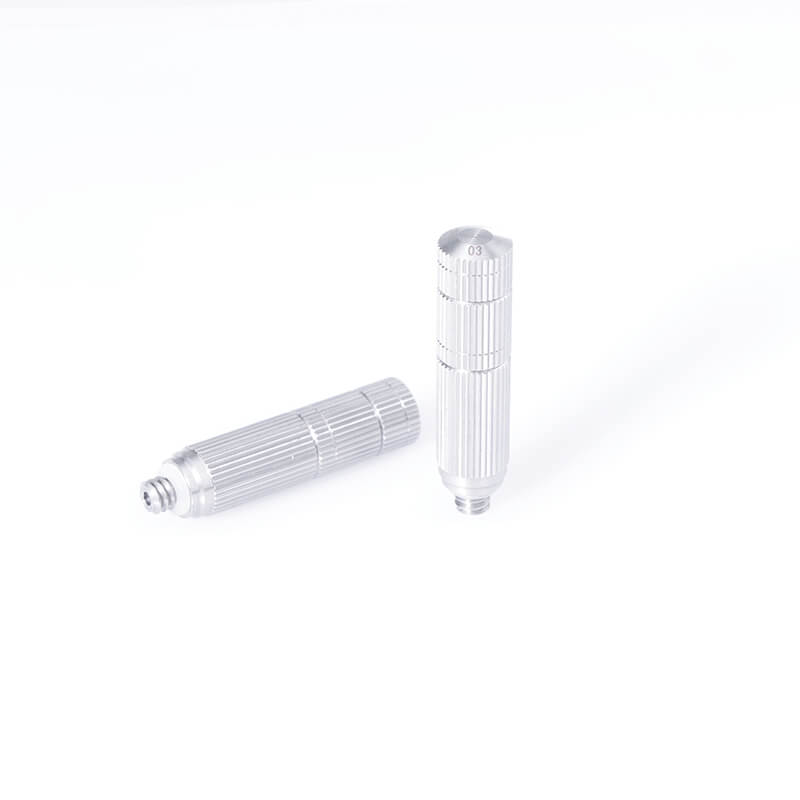

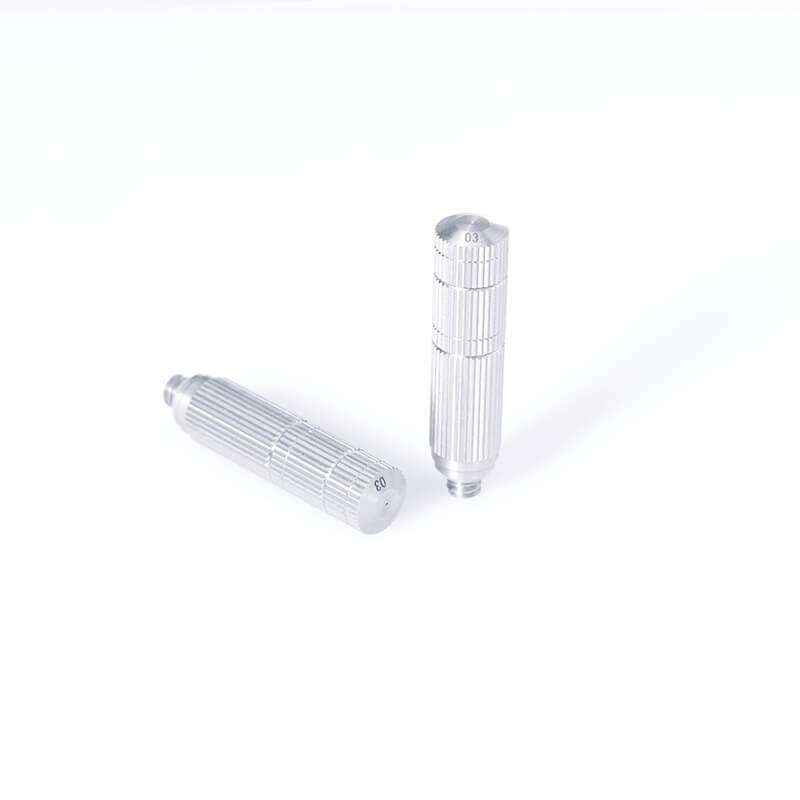

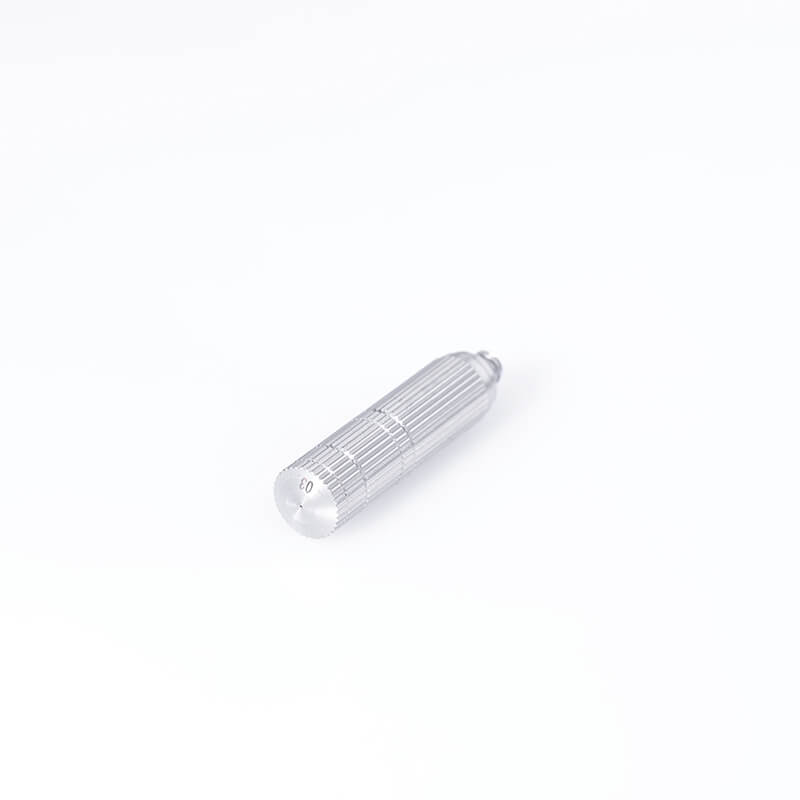

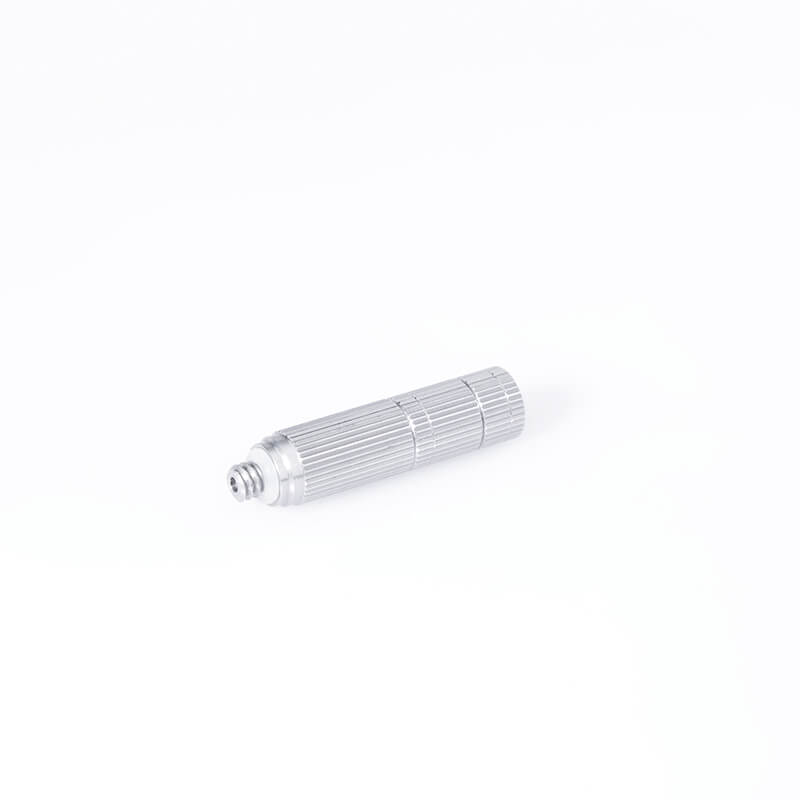

0.30mm orifice middle pressure mister tips 0.012in 1/8 thread fogging nozzles

Design feature
Material: Stainless steel
Features: All 0.30mm orifice middle pressure mister components precision manufacturing production, spray droplets fine: 20-40 microns, spray Angle: 80-90 degrees, water output: 1.6-3.4 liters/hour, system water supply pressure: 3-14 kg, each 0.30mm orifice middle pressure mister spray coverage area of 3~4 square meters, cooling capacity: 5~10℃.

Advantages: there is a filter inside the 0.30mm orifice middle pressure mister, which is not easy to block, and the service life is extended to a large extent; And with the anti-drip structure, the 0.30mm orifice middle pressure mister will not drip when the system pressure is closed.

Effect description:
In the state of no wind, the 0.10.150.20.3mm aperture 0.30mm orifice middle pressure mister can keep the fog shape unchanged within 1.5 meters. The 0.30mm orifice middle pressure mister with the aperture of 0.40.50.60.8mm can keep the fog shape unchanged within 2 meters.

General application
■ Plant cooling, greenhouse flower nursery humidification, cooling
■ Industry: textile plant, cigarette plant, electronic plant, paper plant, printing plant, automobile painting plant, wood (furniture) processing plant, fire (explosive) drug production plant and other humidification; Power plant, steel plant cooling; Humidification and cooling of high temperature humidification environmental conditions in brewing and food industry.
■ Agriculture: cold storage, greenhouse, livestock breeding, flower nursery, edible fungi cultivation, greenhouse cultivation, vegetables and fruits preservation, prevent static electricity, disinfection, haze control, dust and other humidification, cooling.
■ Landscape fog: ultrafine fog particles suspended in the air move with the wind like clouds, disappearing and emerging, creating fascinating scenery

The selection suggestion of atomizing 0.30mm orifice middle pressure mister aperture
1. Under the same spray volume conditions, the smaller the aperture of the 0.30mm orifice middle pressure mister can form smaller droplets, and get better misting effect. However, reducing the aperture to a certain extent will cause the droplet to be too small and easy to dissolve in the air, thus accelerating the evaporation of the droplet, and part of the spray volume can not achieve the predetermined purpose.
2. The size of the aperture should be determined according to the properties of the liquid, viscosity and surface tension, and the choice of the aperture is different. In general, when the aperture of the 0.30mm orifice middle pressure mister is less than 1/5 of the liquid viscosity, the degree of deformation will be significantly reduced.

0.30mm orifice middle pressure mister tips 0.012in 1/8 thread fogging nozzles

Thread sizes	orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
1/8	0.3	12	35.5	65	0.4	0.8
		15	44.5	70	0.8	1.3
		18	53.8	70	1.0	1.4
