middle pressure misting nozzle 0.012in (0.30mm) orifice 12/24 UNC fog nozzle head

I. Overview of 12/24 UNC fog nozzle head
A 12/24 UNC fog nozzle head is a device that sprays material into the air to form a mist. It is widely used in agriculture, horticulture, household cleaning, chemical industry and other fields. The spray effect of sprayer is affected by many factors, among which the size of nozzle aperture is related.

Second, the influence of nozzle aperture size on misting effect

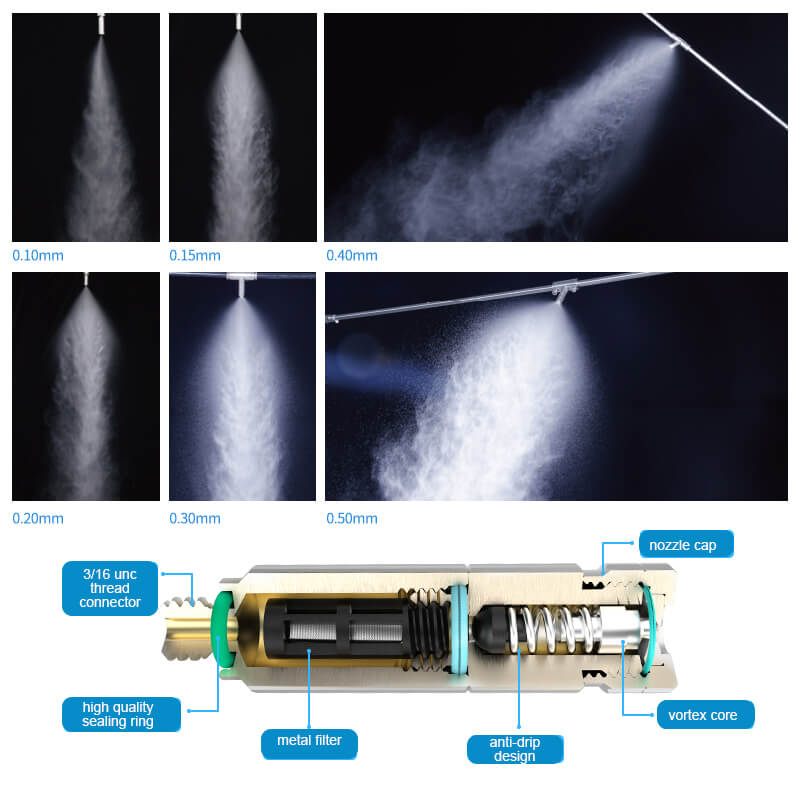

1. Pore size and misting particle size
The size of 12/24 UNC fog nozzle head aperture has an important effect on atomizing particle size. The smaller the aperture, the smaller the atomized particle size, and the aerosol liquid emitted is finer. The larger the aperture, the larger the atomizing particle size, the larger the aerosol liquid particles, and the atomizing effect is poor.
2. Aperture size and spray distance
The size of the nozzle aperture also affects the spray distance of the sprayer. If the aperture is small, the aerosol liquid emitted is easy to gather together because of friction, and can not form a uniform fog. The 12/24 UNC fog nozzle head with a larger aperture can form a longer spray distance of the liquid, and a finer mist can be formed within a certain range.

Product features High temperature resistance, corrosion resistance, wear resistance, impact resistance
1 Fine misting effect Without the use of compressed air, the use of hydraulic pressure can form a very fine misting spray.
2 Stainless steel nozzle after advanced forging process treated stainless steel nozzle, durable, is 2.5 times the life of similar nozzles.
3 Installation Easy wall mount type, can be installed on external walls, containers and pipes. Various nozzles can be removed for easy cleaning and installation.
4 Economical and efficient misting, energy saving and water saving, low cost, good effect; Nozzle is not blocked, no water leakage, internal rotation type automatic cleaning.

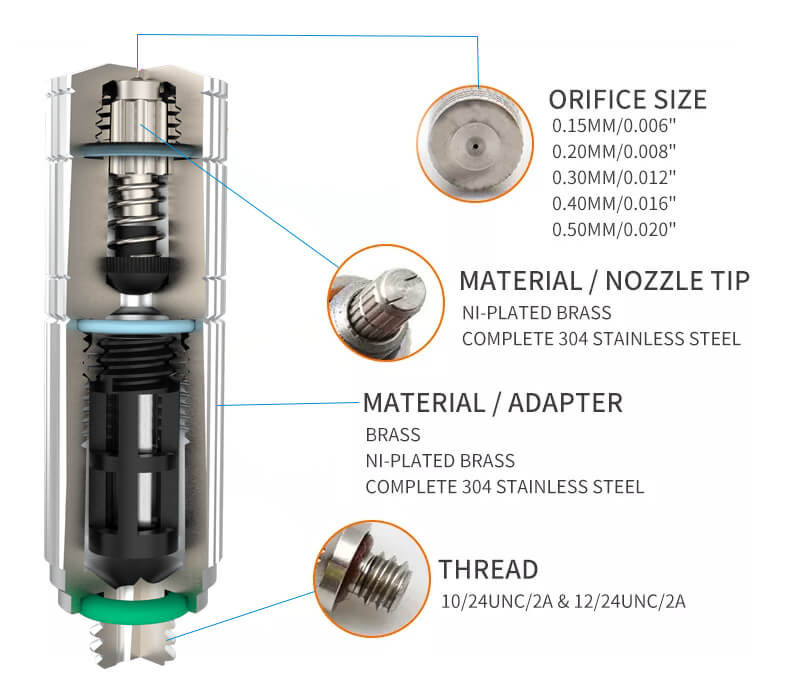

CNC machining Each nozzle is professional CNC lathe processing production to ensure the use of stability

middle pressure misting nozzle 0.012in (0.30mm) orifice 12/24 UNC fog atomizing nozzles

orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.3	12	35.5	65	0.4	0.8
	15	44.5	70	0.8	1.3
	18	53.8	70	1.0	1.4
