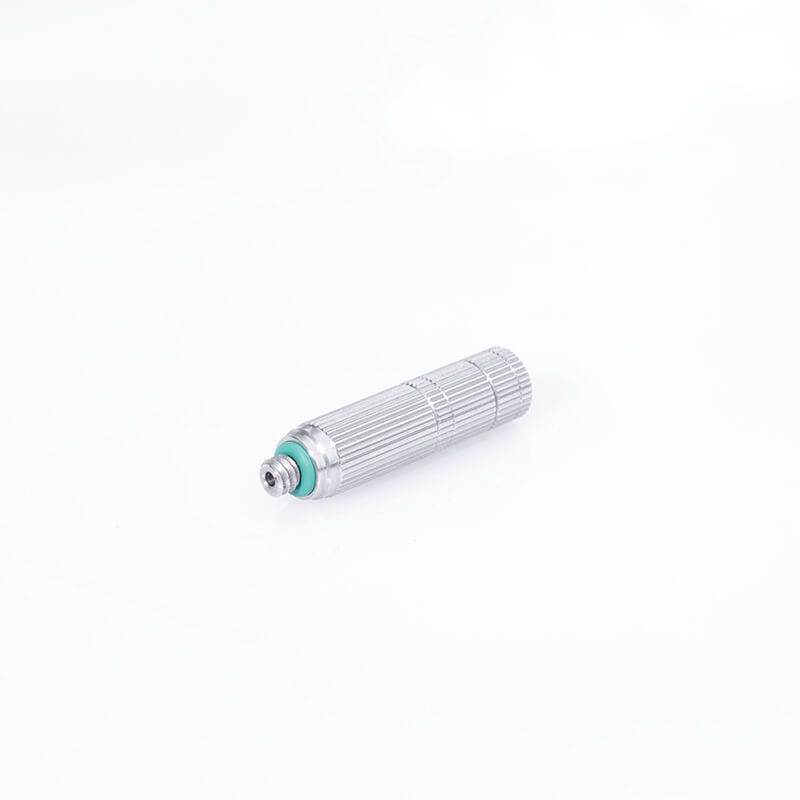

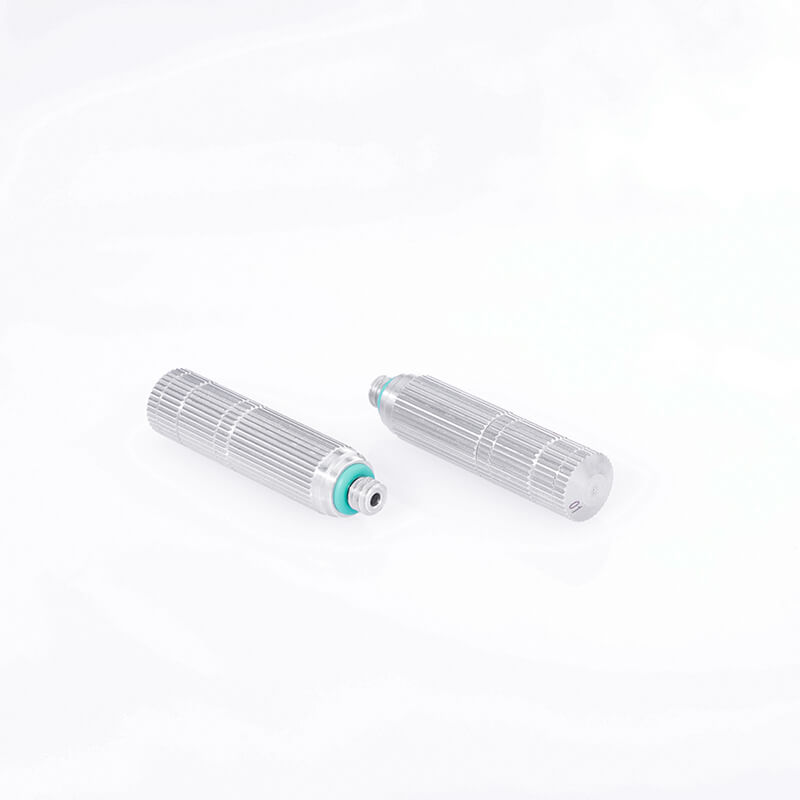

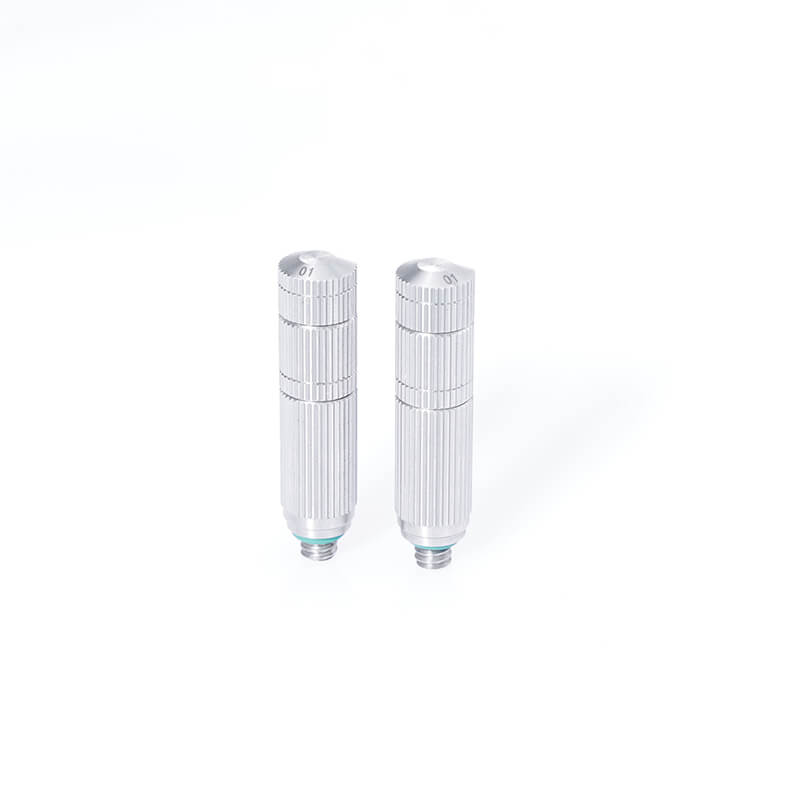

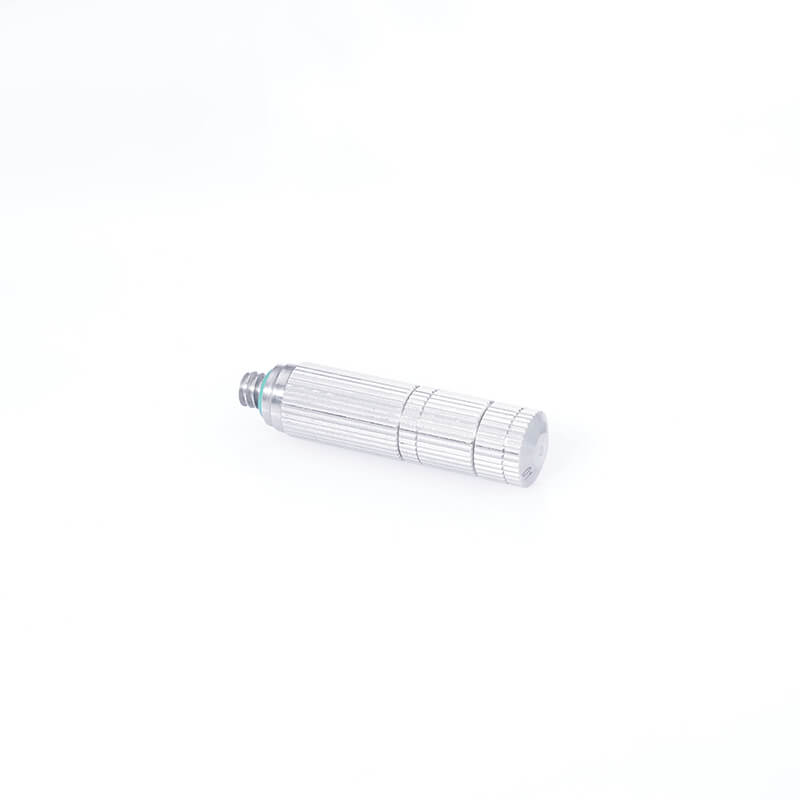

high pressure misting nozzle 12 24 thread 0.004 (0.10mm）orifice fogging nozzle tips

orifices（mm）	pressure（bar）	flow（mL/Min）	spray angle（°）	Effective spray distance （M）	The spray distance（M）
0.10	40	19.6	39	0.7	1.1
	50	22.6	39	0.9	1.3
	60	25.0	39	1.1	1.5
	70	27.3	39	1.3	1.7

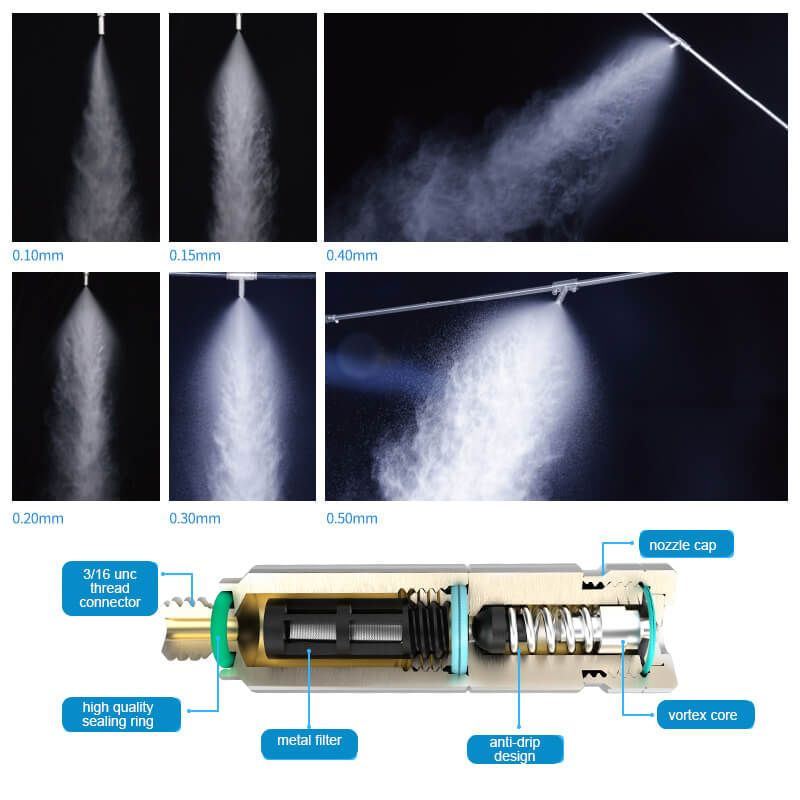

The 12/24 thread high pressure fogging nozzle uses the hydraulic fogging function to misting the liquid flowing through the 12 24 thread high pressure fogging nozzle and produce micron small droplets with 12/24unc connector . Add the appropriate pressure liquid to make the fog particles more fragmented and homogenized under the action of air flow, and guide the movement of the fog particles to the direction, increase the movement power of the misting particles, so as to achieve the purpose of precise spraying on the surface of the coated object.

Advantages: Ultrasonic fogging particles fine, high surface activity, appropriate adjustment of drainage pressure, can be well adsorbed on the surface of the sprayed object, rebound and spill loss is small, to ensure spray uniformity and material utilization (95%-99%).

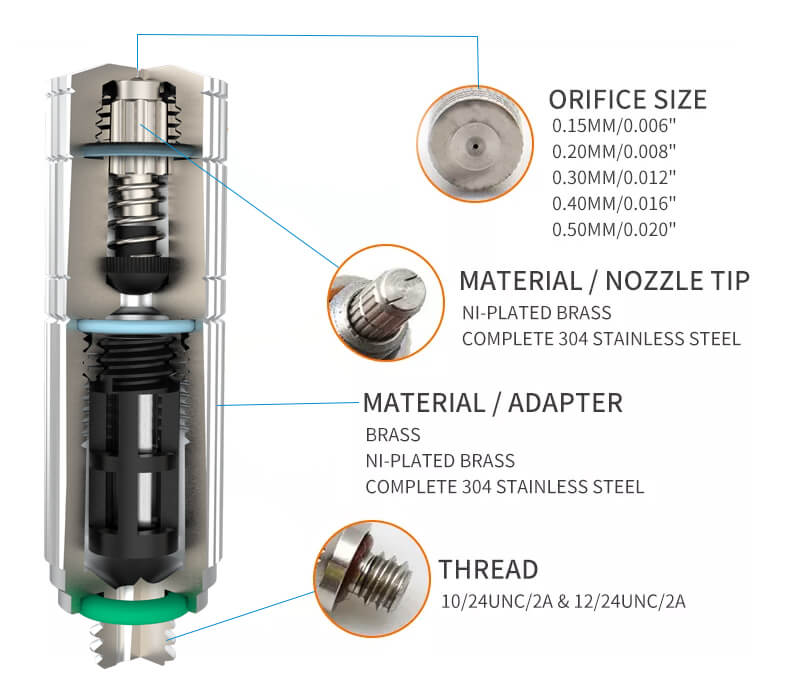

1. Nozzle material The material of the 12/24 thread high pressure fogging nozzle also has a certain impact on the aperture parameters. In general, different materials have different corrosion resistance and wear resistance. When choosing the material of the nozzle, it is necessary to select according to the specific use environment and the characteristics of the medium to ensure the service life of the nozzle.

2. Nozzle Angle refers to the spray angle of the nozzle outlet. Different nozzle angles can produce different coverage and spray effects. Generally speaking, a smaller nozzle angle can produce a more concentrated spray effect, which is suitable for scenes requiring fine spray, while a larger nozzle Angle is suitable for scenes requiring extensive coverage.
