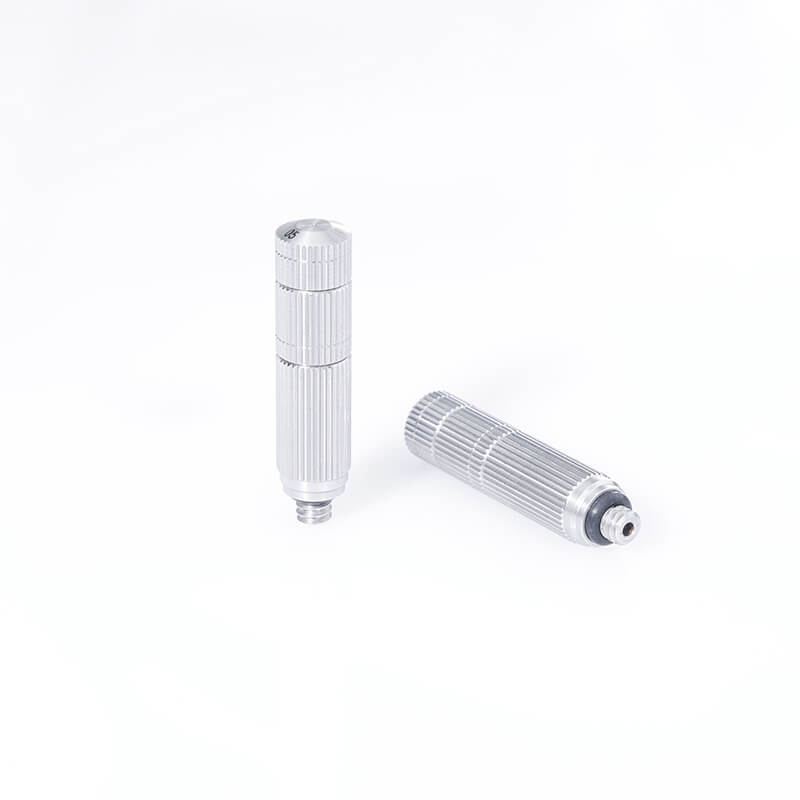

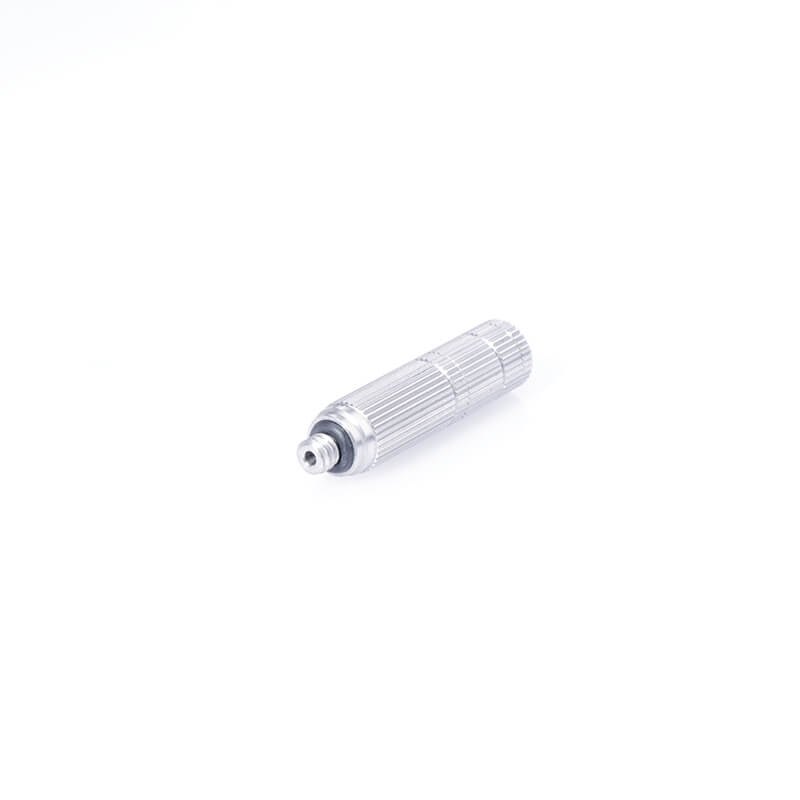

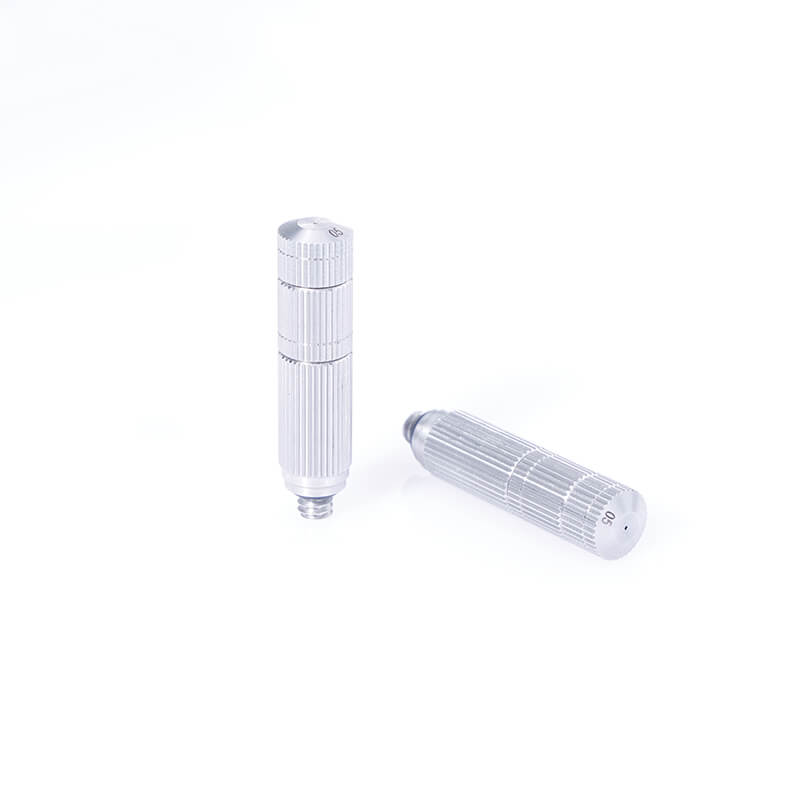

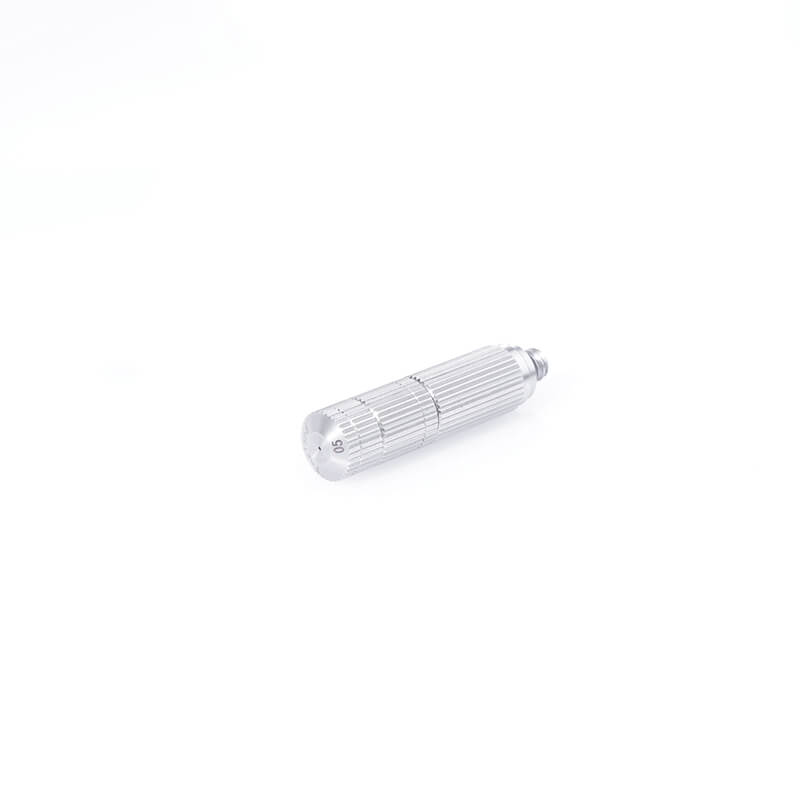

0.5mm orifice 1/4 thread high pressure mist nozzle

high pressure misting nozzle 0.02 (0.50mm) orifice 1/4 thread fog atomizing nozzle

Availability: In Stock

Thread range:1/4 thread
Orifice:0.020" (0.50mm)
Flow range: 170ml/min at 70 bar
Pressure range:max up to 100 bar high pressure
Material of manufacture available: Stainless steel
Other Stock thread sizes:12/24 standard, 10/24, 1/8 , 1/4 available and others
Functional applications: humidification,RV Mister , epidemic prevention, spraying disinfectant, deodorant air purification, swimming pool misting fog cooling, mist mosquito system ，homenote misting system replacement part and so on.

Qty:

For More quantity price, customization, or other inquiries:

fast shipping

shipping by express,air,sea etc

quality guarantee

Advanced production technology

Online support

Engineer online consultations

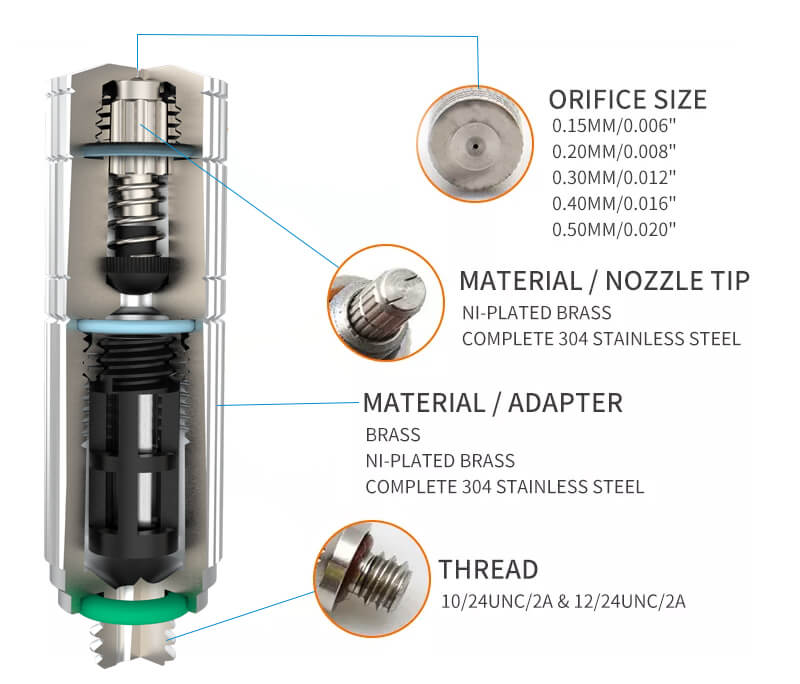

0.5mm orifice 1/4 thread high pressure mist nozzle is suit for 1/4” tubing: US standard size, can be connected by many kinds tube which is 1/4 inch.
Easy to install : quick insert sub ,Leak-proof,Self-sealing O-ring Including with each Nozzle;no Tape or Sealant is Required

Application range : Brass Misting Nozzle widely apply for garden, landscaping, greenhouse irragation, humidification,RV Mister , epidemic prevention, spraying disinfectant, deodorant air purification, swimming pool misting fog cooling, mist mosquito system ，homenote misting system replacement part and so on

high pressure misting nozzle 0.02 (0.50mm) orifice 1/4 thread fog atomizing nozzles
Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle （°）	Effective spray distance（M）	The spray distance（M）
1/4 thread	0.50	40	127.0	75	1.1	1.6
		50	150.0	85	1.3	1.8
		60	172.5	90	1.5	2.1
		70	190.3	90	1.7	2.3

Thread sizes	orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
10-24UNC	0.10	40	19.6	39	0.7	1.1
		50	22.6	39	0.9	1.3
		60	25.0	39	1.1	1.5
		70	27.3	39	1.3	1.7
	0.15	40	31.0	35	1.1	1.4
		50	40.0	45	1.2	1.6
		60	47.8	50	1.3	1.9
		70	53.0	55	1.5	2.1
	0.20	40	45.0	45	1.0	1.3
		50	58.5	55	1.1	1.5
		60	66.8	60	1.3	1.7
		70	75.3	60	1.5	2.2
	0.30	40	87.5	55	1.0	1.6
		50	103.9	60	1.3	1.8
		60	117.3	70	1.6	2.2
		70	130.0	70	1.8	2.4
	0.40	40	110.4	60	0.9	1.4
		50	133.8	70	1.3	1.7
		60	152.6	75	1.6	2.1
		70	170.0	75	1.8	2.4
	0.50	40	127.0	75	1.1	1.6
		50	150.0	85	1.3	1.8
		60	172.5	90	1.5	2.1
		70	190.3	90	1.7	2.3
