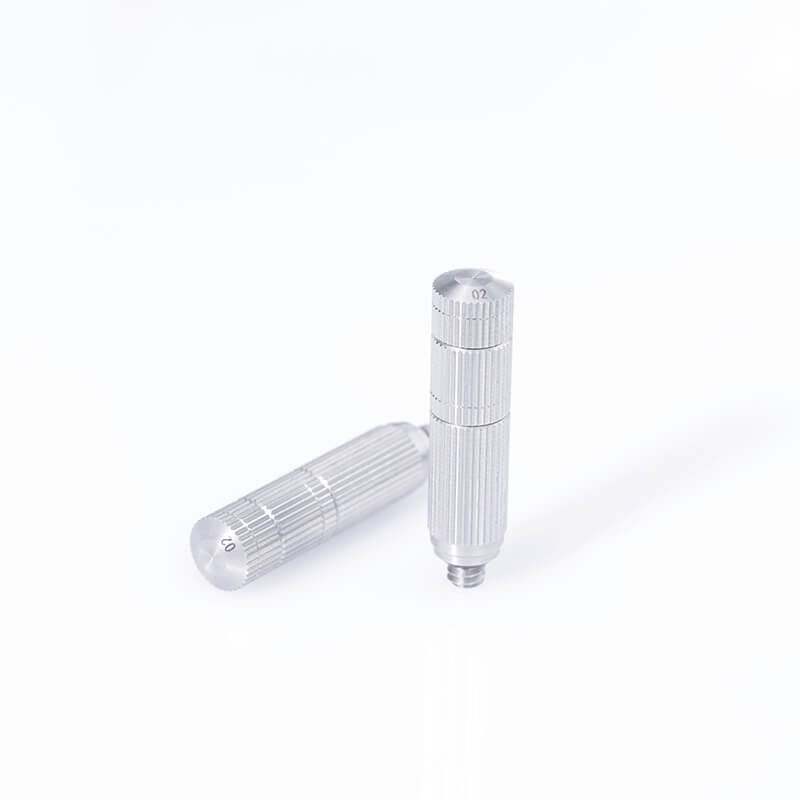

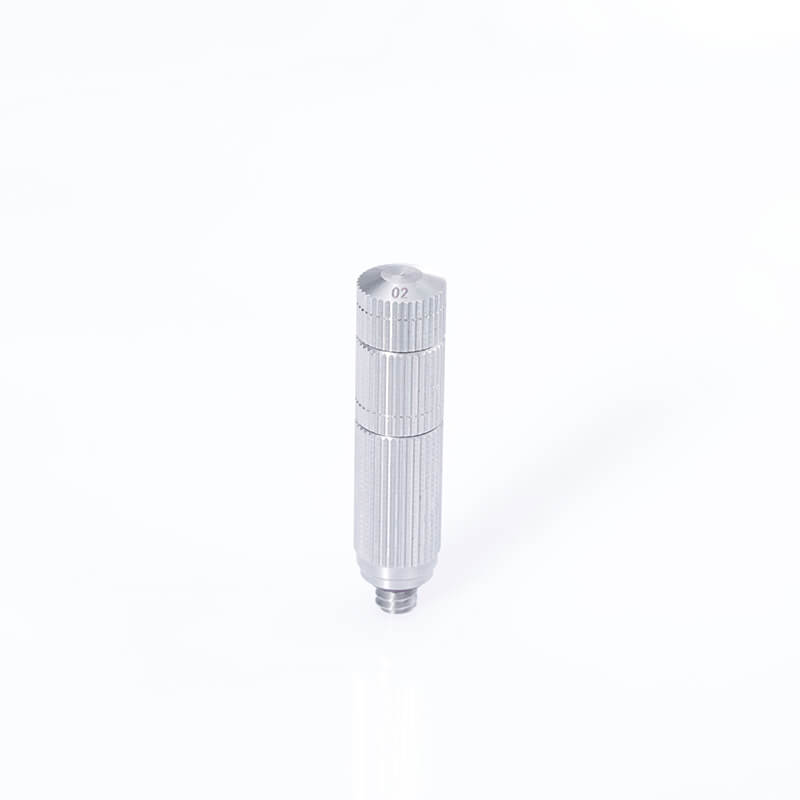

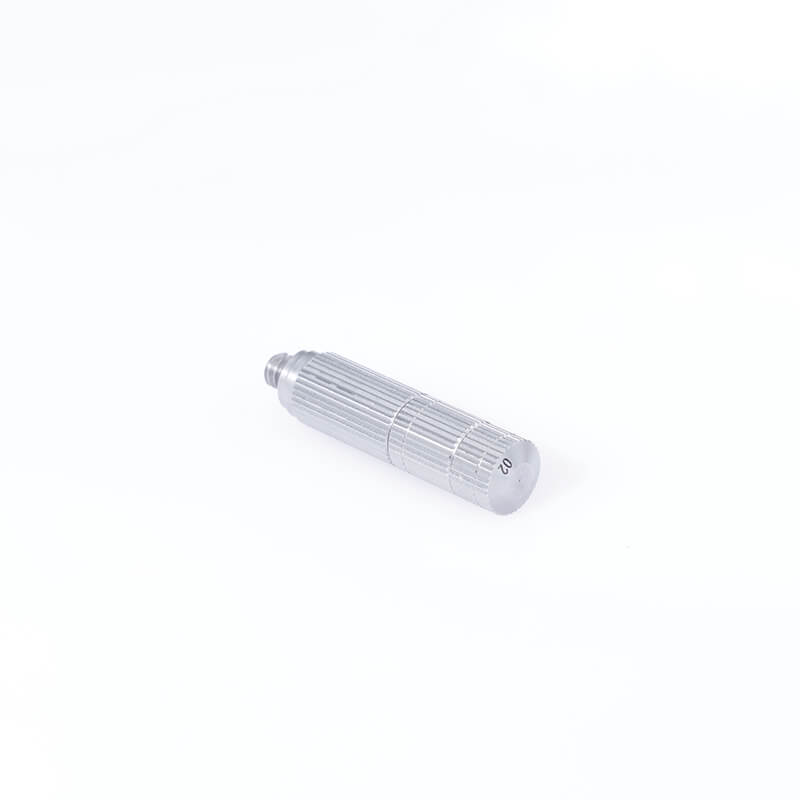

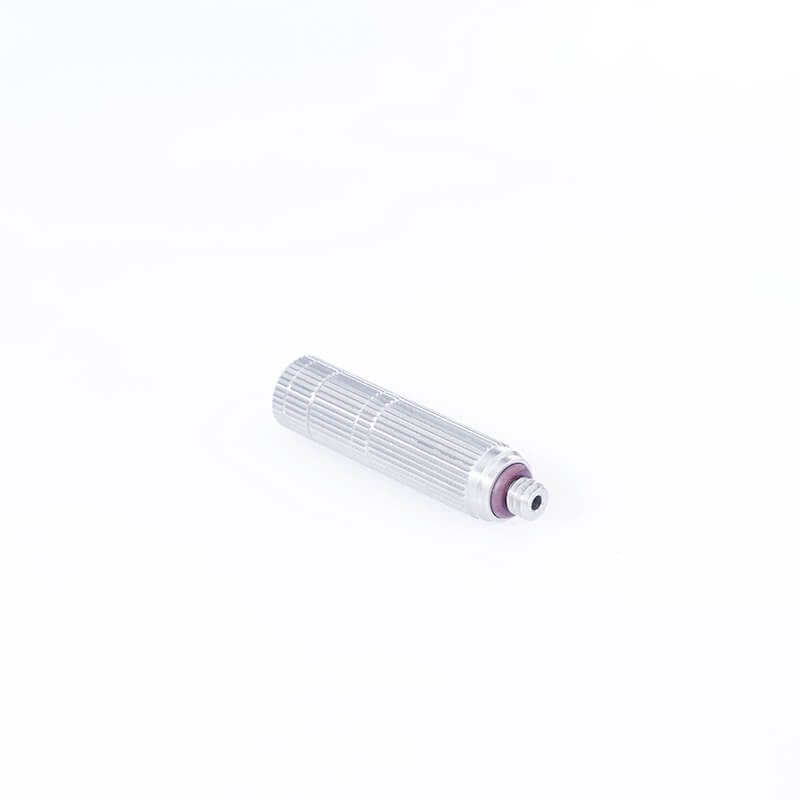

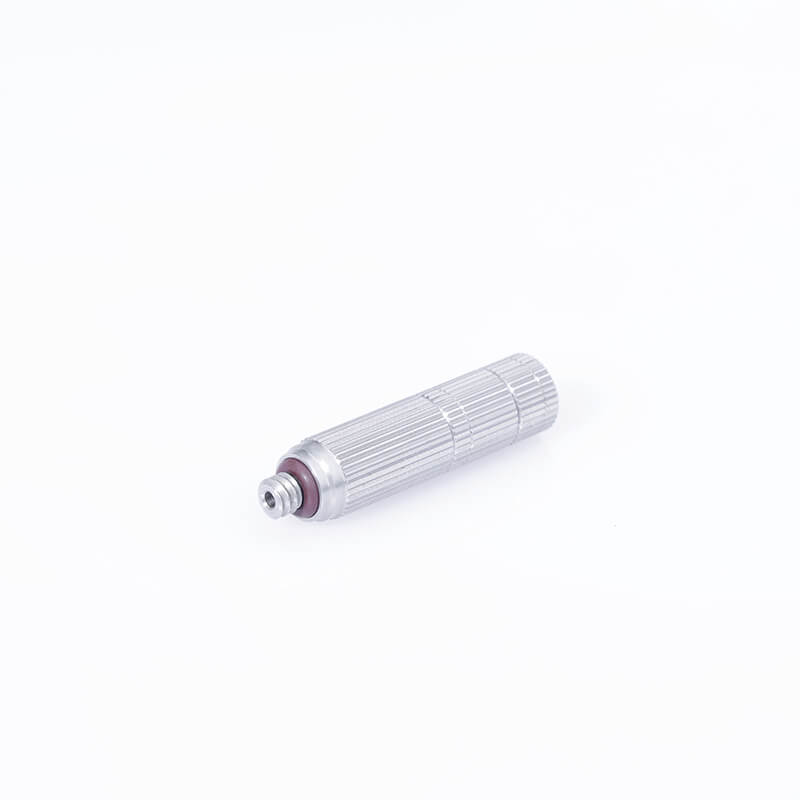

high pressure misting nozzle 0.008 (0.20mm) orifice 1/8 thread mist head nozzles

0.2mm orifice 1/8 thread high pressure mist nozzle are made of sturdy Stainless steel with stainless steel holes.
Compressed air is not required.

It can spray completely under the pressure of high pressure.
The mist nozzle can use the liquid pressure to form a very fine fog, atomizing effect is good, energy saving and water saving, low cost, good effect, no leakage.

It features a rugged Stainless steel body with stainless steel perforations and is widely used in dusting, landscaping, cooling, artificial fog, gardens, terraces, greenhouses, spray disinfectants, landscaping, lawn spray systems and other humidifiers.

high pressure misting nozzle 0.008 (0.20mm) orifice 1/8 thread mist head nozzles

orifices（mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.20	40	45.0	45	1.0	1.3
	50	58.5	55	1.1	1.5
	60	66.8	60	1.3	1.7
	70	75.3	60	1.5	2.2

Spray mode: Hollow spray
Product features: Spray shape is ring, built-in swirl blade, small jet hole can produce fine fog, spin flow chamber to nozzle are made of ceramic or hardened stainless steel or alloy insert, strong wear resistance.

Design features:
First, the misting effect is obvious, and it has a hazy feeling;
Second, the coverage area can be adjusted in a small range, the water is very fine when the nozzle reaches the misting, the misting effect is very good; At 0 degrees, it's a straight water column
Third, the water pressure requirements are relatively low, general tap water pressure can be sprayed;
Four, easy installation, good water saving performance!


Applicable to:
Plant, workshop cooling, greenhouse greenhouse flower nursery humidification, cooling, gas tower cooling, pipeline lubrication, deodorization, spray, disinfection and other fields.

Features:
Thanks to a unique internal vortex blade, very small droplets can be produced using only liquid pressure, with a conical spray shape and a 25-45 micron fog point.
