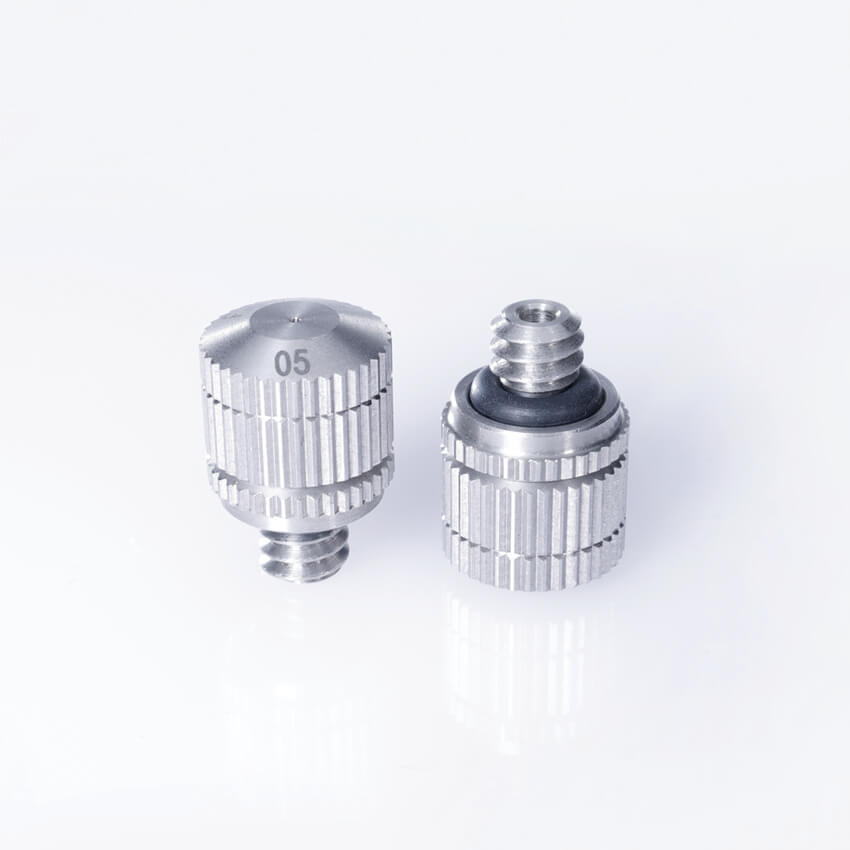

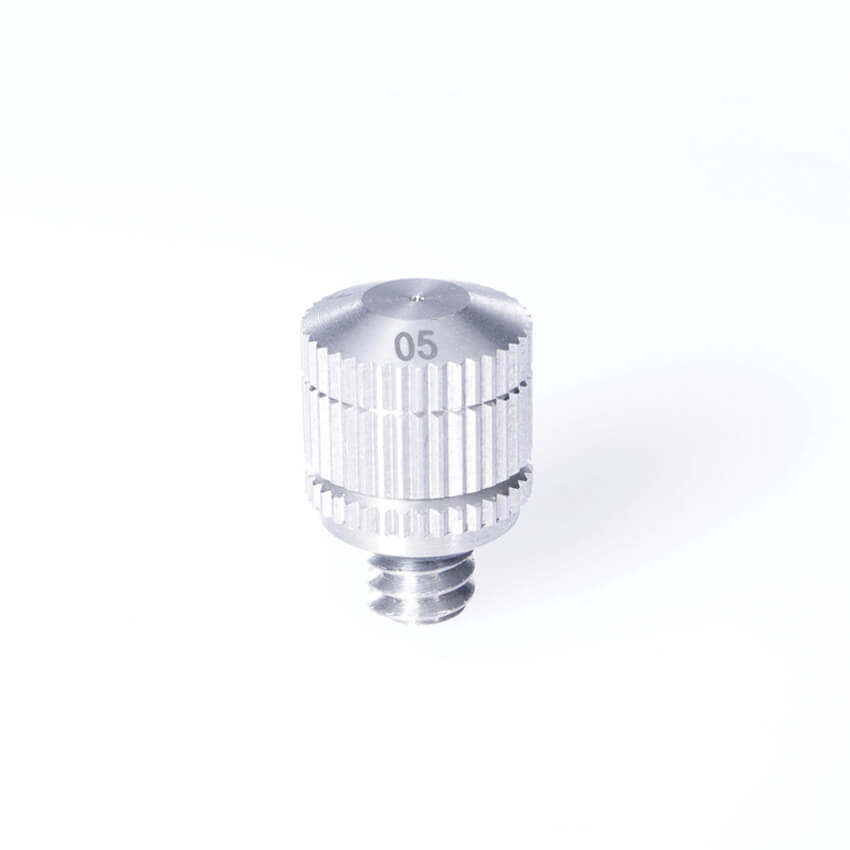

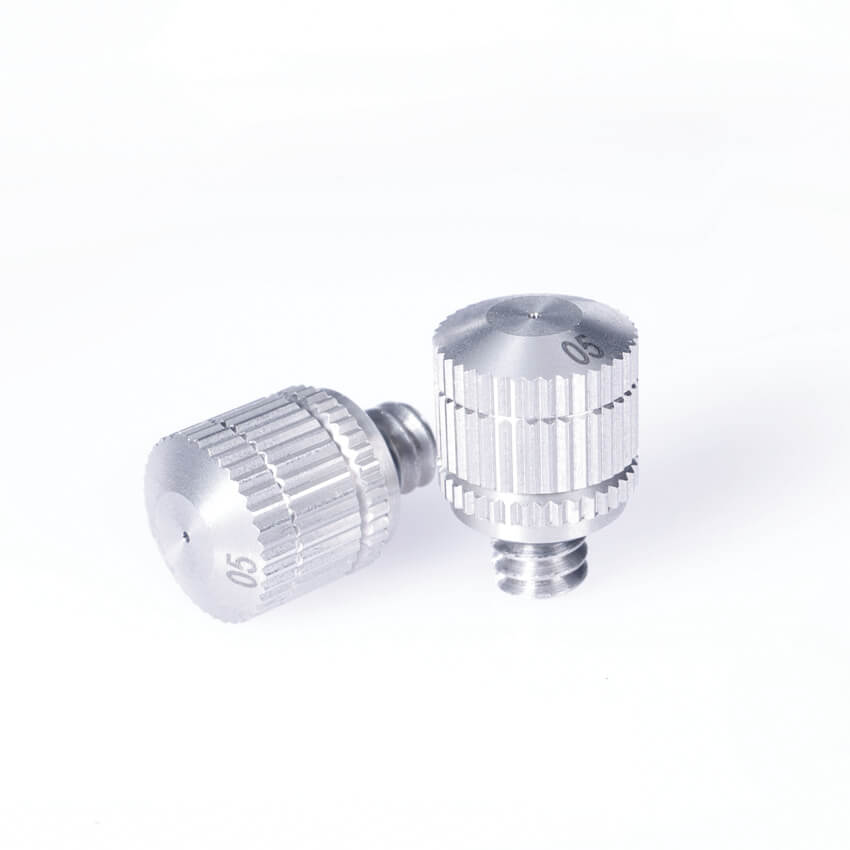

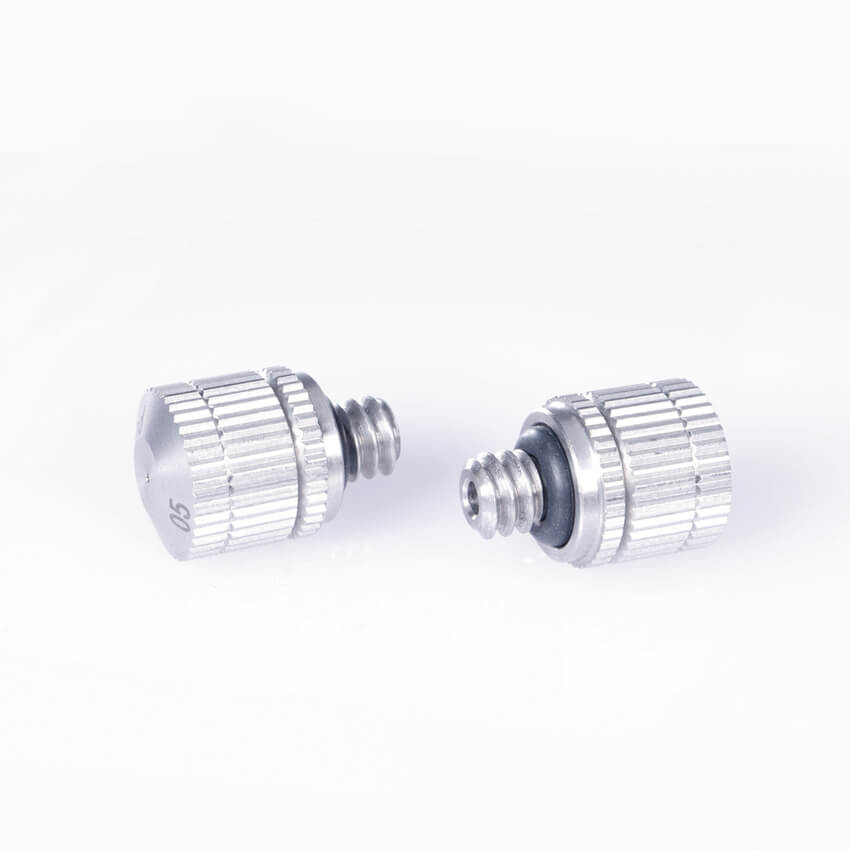

low pressure mister nozzle 0.020in (0.5mm) orifice humidification system fine misting spray nozzle

The low pressure fine misting nozzle is composed of a nozzle and a spiral. The liquid flows out of the nozzle and forms fog-like particles under the action of the airflow spiral. The spray effect of the low pressure fine misting nozzle is achieved through the cooperation of the nozzle and the spiral with low pressure.

The low pressure fine misting nozzle is where the liquid is sprayed into the nozzle to form a ribbon flow of liquid. When the nozzle is in the state of contraction, the liquid will form a high-speed flow fine misting, increase the speed of liquid flow, liquid will form a small drop after passing through the contraction area; When the nozzle is in the expanded state, the liquid emitted will form a slow flow, so that the droplet will be fine, and the desired size of the fine droplet can be formed.

low pressure mister nozzle 0.020in (0.5mm) orifice humidification system fine misting spray nozzle

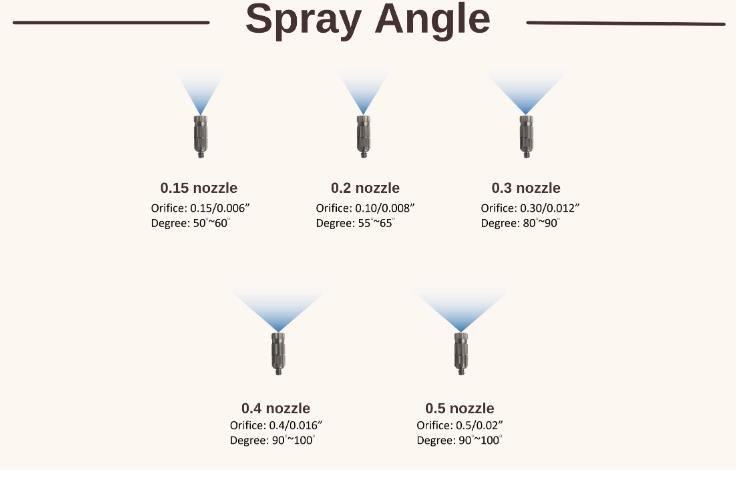

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
1/4'	0.5	4	50.0	50	0.5	0.8
		5	60.9	55
		6	65.0	60	0.8	1.0

  Application:
1. Wetting & Rust Removal
2. Chemical Treatment
3. Chemical Agent Spraying
4. Liquid Coating
5.Humidify for Tabacco Leaf
6. Pill Coating
7. Evaporative Cooling for Flue Gas
8. Disinfection & Sterilization
9. Parts Cooling
10. Fruit Wax Injection
11. Ceramic tile glazing
 12. Humidify for Factory
13. Salt Fog Test
14. Artificial Fog
15. Dust Suppression

Advantages:
1. With ceramic insert and anti-drip
2. Durable and wear resistance misting nozzles
