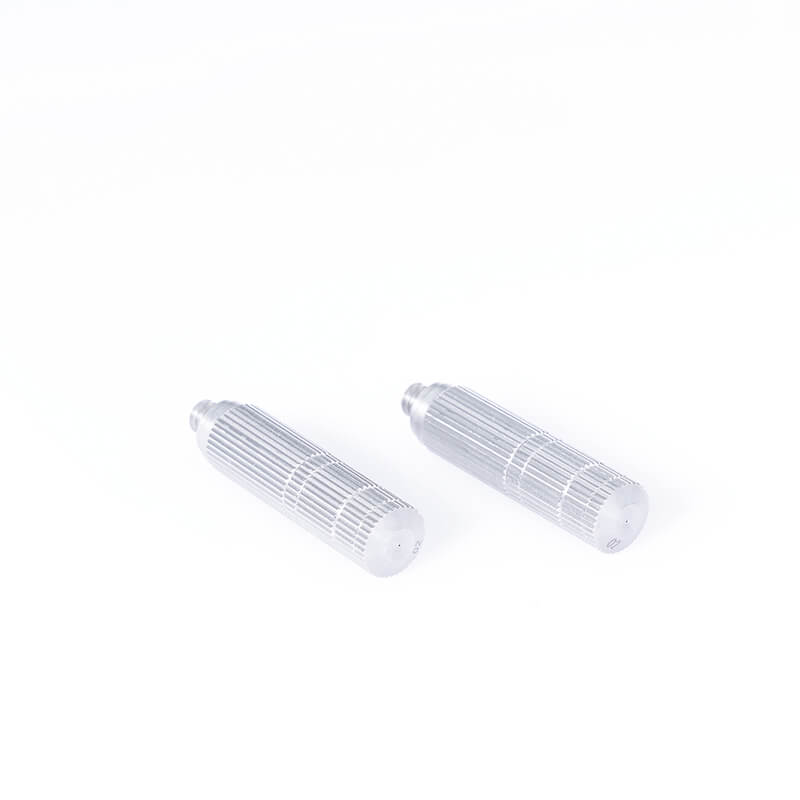

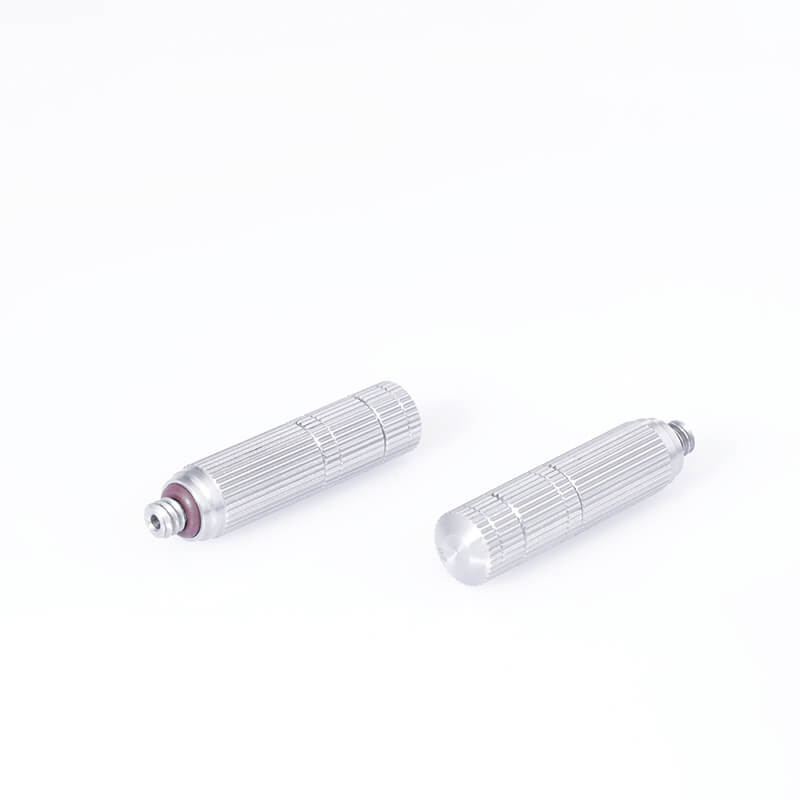

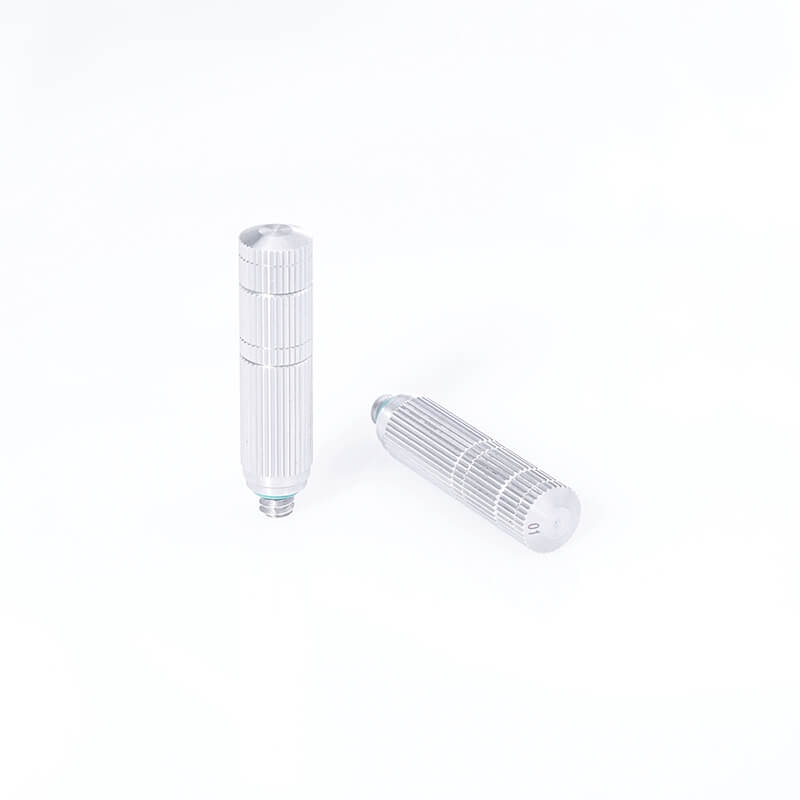

high pressure mister nozzle 12 24 thread 0.006(0.15mm）orifice atomizing nozzle head

The 0.15mm orifice high pressure mister nozzle is made of stainless steel, so it is resistant to wear, acid and alkali corrosion and other properties.
The 0.15mm orifice high pressure mister nozzle is a type of high pressure nozzle with a maximum tolerance of 1500psi.

The features

Orifice:0.006' (0.15mm）
Flow range: 53 ml/min at 70 bar
Pressure range: max 1500 psi (max up to 104 bar)
Thread range:12/24 unc
Material of manufacture available: Stainless steel 303ss, 304ss,316ss etc
Functional applications: main use for cooling, humidity, dust control, patio etc
Other Stock thread sizes:12/24 standard, 10/24, 1/8 , 1/4 available and others

high pressure mister nozzle 12 24 thread 0.006(0.15mm）orifice atomizing nozzle head

orifices（mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.15	40	31.0	35	1.1	1.4
	50	40.0	45	1.2	1.6
	60	47.8	50	1.3	1.9
	70	53.0	55	1.5	2.1

The choice of 0.15mm orifice high pressure mister nozzle density is related to the use scenario and demand of the nozzle with 0.15mm orifice. If you need to cover a larger area, you can choose a higher nozzle density to increase the spray range and coverage effect of the 0.15mm orifice high pressure mister nozzle. On the contrary, if you need a fine spray effect, you can choose a lower nozzle density. The aperture parameters of 0.15mm orifice high pressure mister nozzle have important influence on the spray effect. When selecting the aperture parameters, it is necessary to make a reasonable choice according to the specific use needs and scenarios. The suitable aperture parameters can improve the misting effect and coverage area of the nozzle, so as to improve the efficiency and effect of the spray system. At the same time, the reasonable aperture parameter selection can also reduce the clogging risk and maintenance cost, and extend the service life of the nozzle. Therefore, in the design and selection of 0.15mm orifice high pressure mister nozzle, it is very important to determine the aperture parameters reasonably.

The four typical applications of 0.15mm orifice high pressure mister nozzle are spray fogging, humidification and cooling, atomizing and dust removal, etc. In fact, the application of 0.15mm orifice high pressure mister nozzle runs through industrial production and agricultural production, not only limited to spray fogging applications, but also can be used for cooling, cleaning, sterilization, disinfection, fire prevention, salt field experiments and other functions.

From the process point of view: the nozzle of the 0.15mm orifice high pressure mister nozzle uses laser drilling to ensure the accuracy of the hole and the accuracy of the spray flow, and each nozzle will be tested for pressure spray to ensure the spray effect. In the operation process, the 0.15mm orifice high pressure mister nozzle is a high-pressure, must be configured with a high-pressure host, the use of pressure needs to reach 50-70KG or more, the nozzle can be fully misting.
