misting cooling water mister sprayer system for patio greenhouse garden plant watering irrigation sprinkler

Key Features
1) It is easy to assemble and operate;
2) It can be applied for Misting or Spraying the Plants or Flowers in the feild of Garden, Greenhouse or Patio
3) The Mist Area can reach to 0.8m~2m.
4) It is made of high quality and healthy material, no harmful to human beings.
5) The size can be selected from 6 meters to 18 meters

Product Parameters

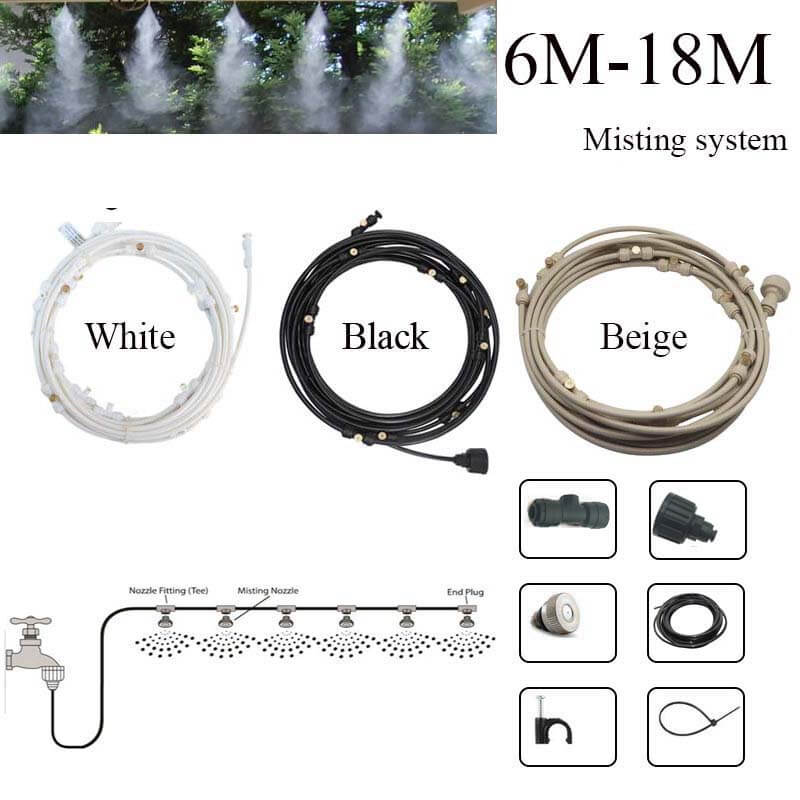

Color: White; Black; Beige
Size:6M/9M/12M/15M/18M
Tube: 1/4 inch (6.35mm) PE water tube

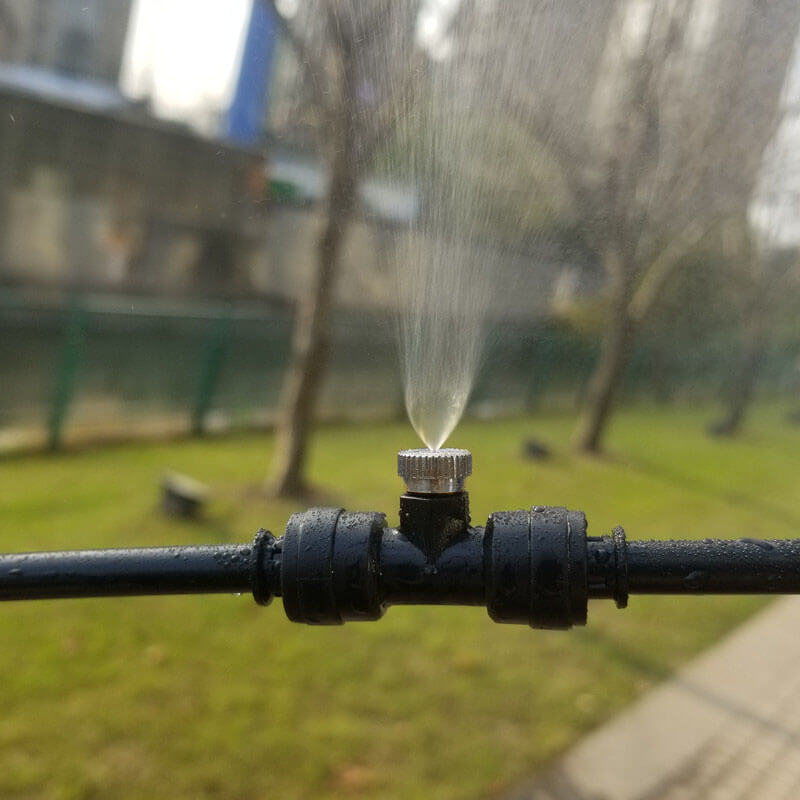

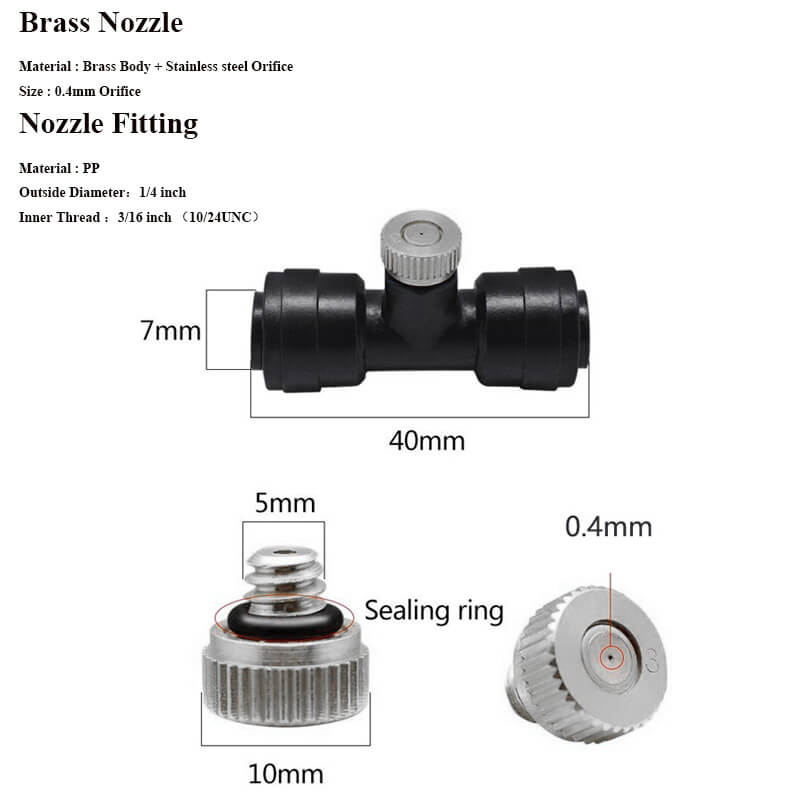

Nozzle: 0.4mm Orifice Brass Misting Nozzle

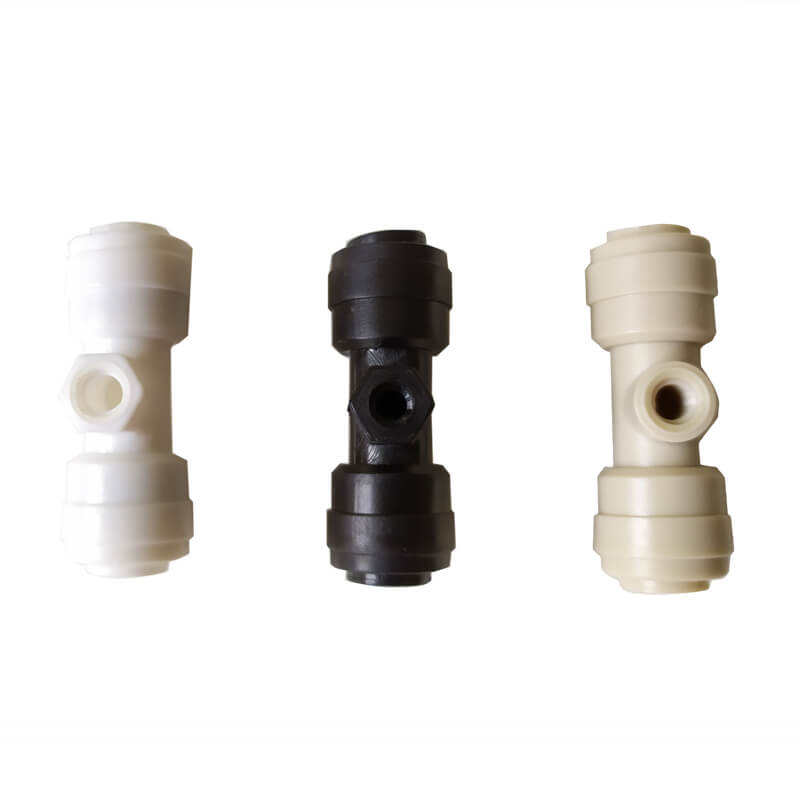

Nozzle Fitting:Thread Size is UNC10-24;

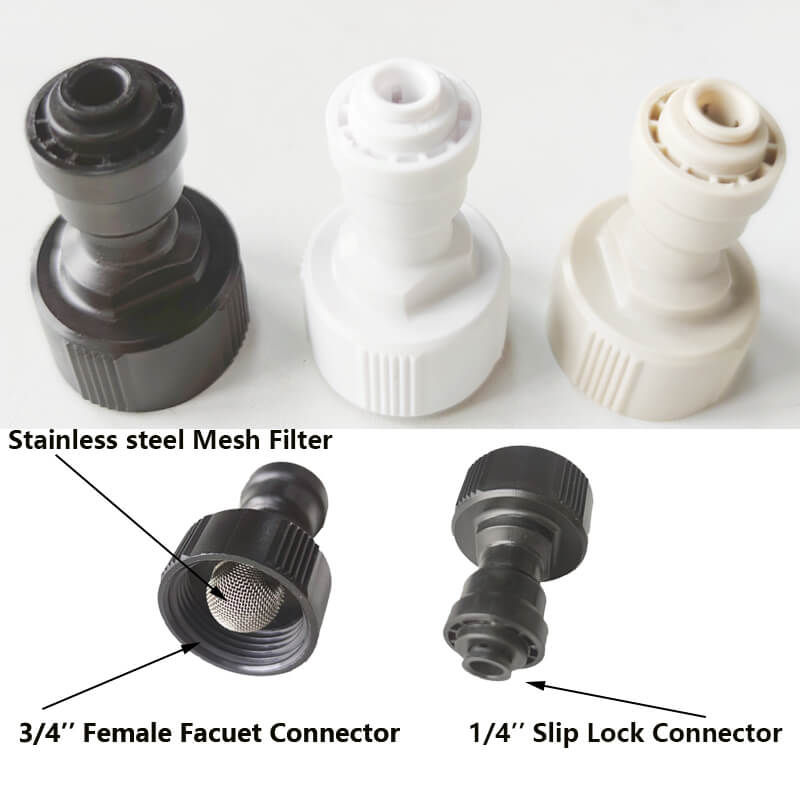

Conect with 1/4 inch water hose

The working principle of spray cooling system

The cooling water mister sprayer system is a plunger pump to pressurize the purified water to 3-7MPA and then transfer it to the nozzle through the high-pressure water pipe. After misting, the mist of about 3-10 microns is sprayed into the entire space. The water mist absorbs heat in the air, and changes from liquid to gas to increase the humidity of the space and achieve the purpose of reducing the air temperature.


1. The high pressure water outlet of the artificial fog host unit is equipped with the AR imported pressure regulator, which has a number of functions such as constant water pressure output, excess water flow return and pressure protection to ensure the efficient work of the system.
Water pretreatment system: V-type filter + combined multistage filter system, the system has micron level filtration system, high-precision filtration, more to ensure the long-term stable work of the sprinkler and the host system, but also extend the service life of the sprinkler and the host overall system.

2, automatic monitoring and control system: with water cut-off detection and response protection, overload automatic protection and other protection measures.

3, the cooling water mister sprayer system cabinet: with ventilation and heat dissipation system to accelerate the heat emission caused by the operation of the equipment, better ensure the normal operation of the equipment, and extend the overall service life of the equipment. Cabinets can be customized according to customer needs: steel powder, SUS304 stainless steel, etc.

Customers can choose additional parts:
1. Automatic balancing water tank: If the equipment is placed with insufficient water supply and water pressure, the water tank can be designed and produced. The water tank adopts multi-point liquid level balance control, which can effectively ensure the smooth operation of the equipment and eliminate the series of failures caused by frequent shutdown and violent vibration caused by insufficient water supply pressure, resulting in vibration friction of the pipeline;

2. Biofiltration: It has the characteristics of large specific surface area and strong adsorption capacity; Removal of organic pollutants, residual gases and chlorination byproducts from water after gas disinfection. The working principle and function of artificial fog in garden landscape: Fog effect engineering system through high pressure equipment, under the action of special nozzles, produces extremely small fog droplets, which are close to natural fog and can be suspended in the air. The functions of the system are multifaceted: cooling, dust removal, and air purification. Garden plant pests and diseases and local watering.
