fog mister kit outdoor misting system for patio garden restaurant cooling humidity

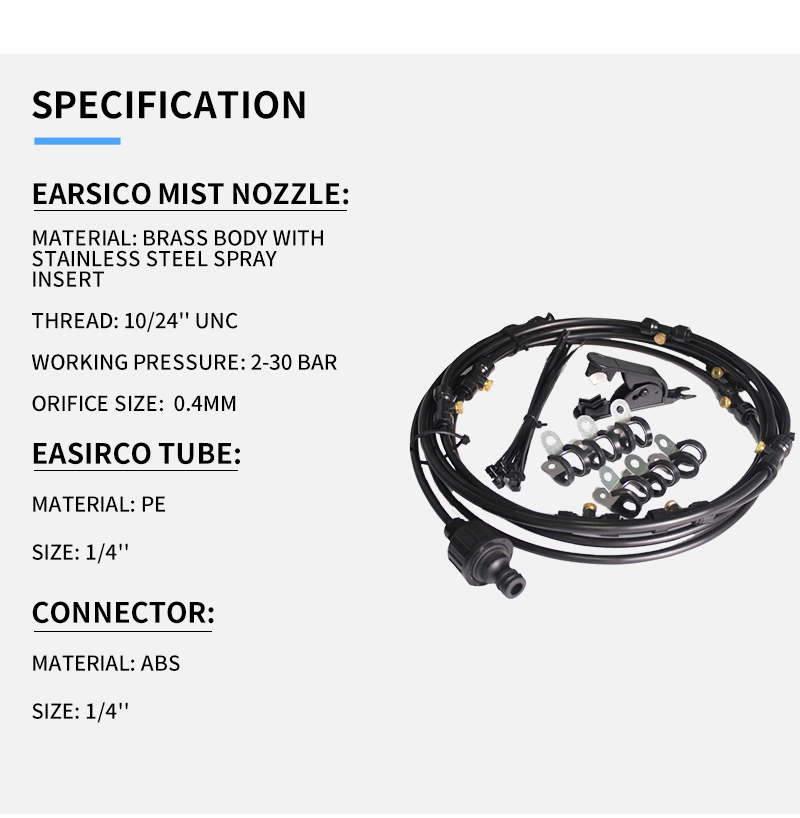

Sprayer Type:Pump
Material:Metal, 304,316, BRASS etc
Jet Angle:15°-165°
Connect size:3/16 10-24 12-24 etc
Application:Cooling,Humidifying,Washing.ect
Spray pattern:fine fog droplet
Operating Pressure:10-77kg/cm
Size:6m to 18 meters

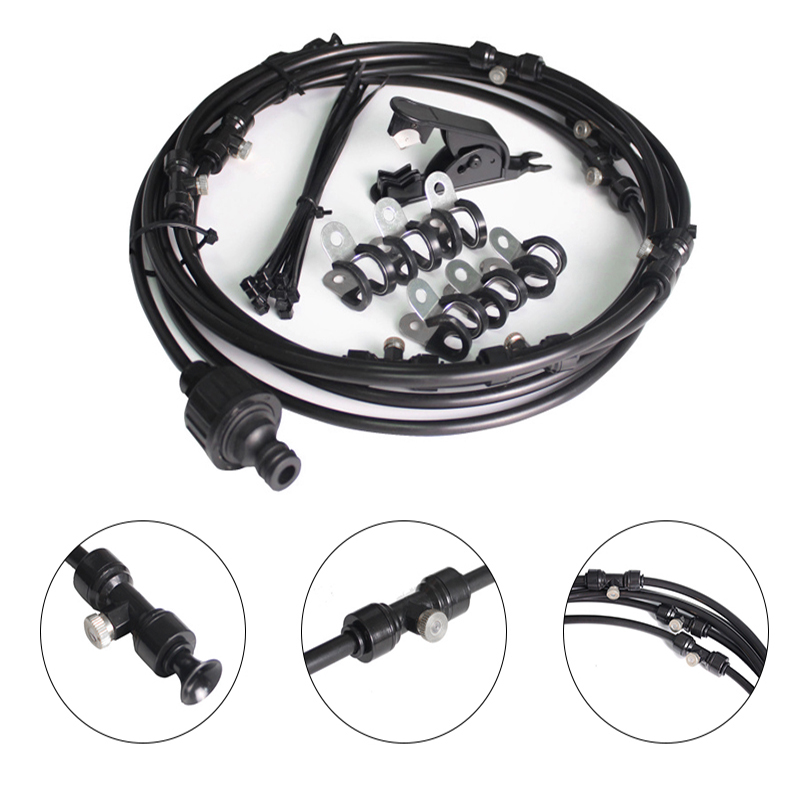

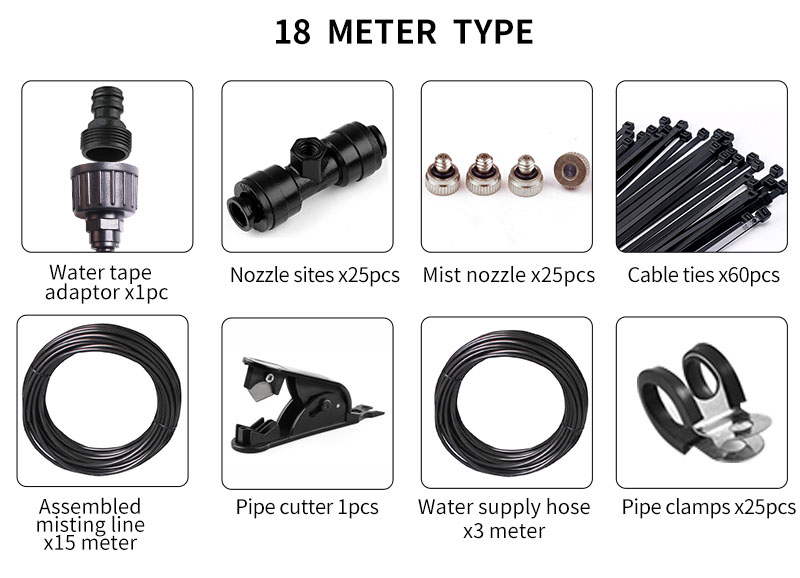

Packing List
pump
Power Adapter
Misting Nozzles
meters PE Pipe
Pipe Cutter
Filter
Tee Conector
Elbow Connector
End Plug
Pipe Ties
PipeClips


Spray cooling does more than just cool the surroundings

The outdoor cooling misting system is composed of dry fog cooler + control component + installation component + gas/water pipe + humidity detection equipment + water quality filtration equipment. The purpose of spray cooling is to artificially create fog through the outdoor cooling misting system. The particle size of this water mist is very small and can float in the air, and this fine mist floats in the air for a long time to cool the surrounding air, without wetting the materials and walls.

Spray cooling not only plays a cooling effect on the ambient air, but also can play a certain cooling effect anti-static effect (high humidity, the generation of static electricity is reduced) dust removal dust suppression and other effects.

The process by which spray cooling increases the moisture content of the air humidity The degree to which the moisture content of the air is measured. There are many charged fine particles floating in the air, we call it "air ion", it has the difference between positive and negative charge, and the negatively charged air ion we call "negative ion".

Relative humidity is usually used to indicate the level of humidity and is expressed in %RH. It reflects the ability of the air to approach saturation The greater the humidity, the closer the air is to saturation.


Outdoor cooling misting system features:
1. Fine fog: The high-pressure nozzle can produce 5 billion droplets per second, the diameter of the droplets is only 0.5 to 15μm, such as mountains of clouds, cooling cooling effect is good.
2. Energy saving: atomizing 1 kg of water consumes only 6W power.
3. Reliable: high pressure spray cooling cooling system host adopts imported industrial high pressure pump, which can operate continuously for 24 hours, nozzles and water mist dispensers have no power vulnerable parts, and will not be damaged in high dust environment.
4. Safe automatic pressure relief: When the sprayer stops working, the body will automatically release the pressure of the high-pressure nozzle to prevent the nozzle from dripping.
5. Automatic water shortage and power failure system: prevent idling of pump when there is no water and improve pump life.
6. Hygiene: The water of the high-pressure micro-fog system is sealed and non-recycled, which will not lead to the reproduction of bacteria.
7. Cooling quantity: large cooling quantity and nozzle can be freely combined. The cooling capacity is adjusted stepless from 5kg/h to 900kg/h.
8. The cooling efficiency is over 95%.
