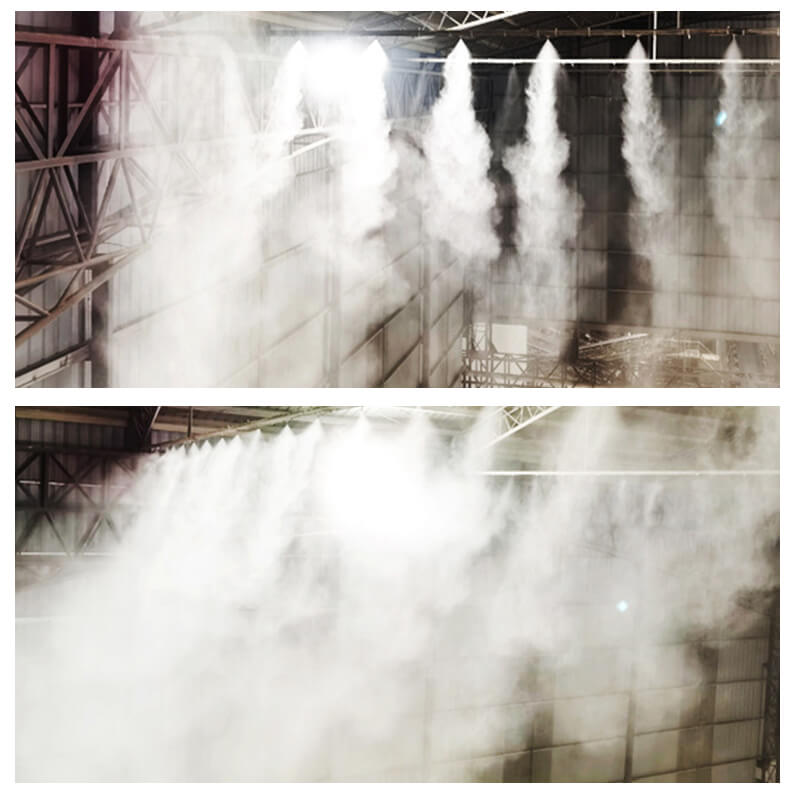

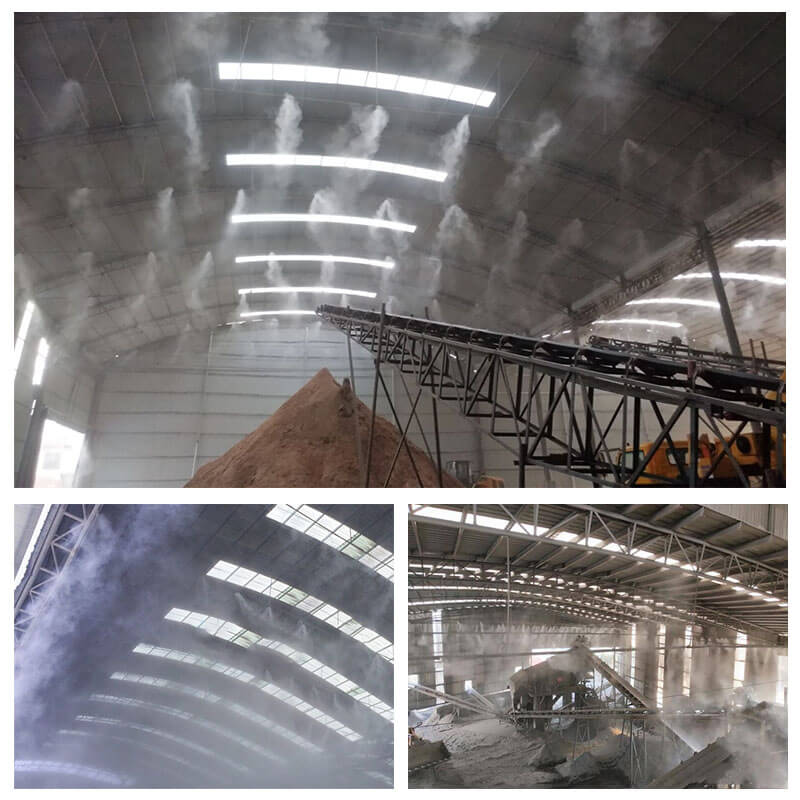

industrial fogging kit cooling humidification dust control high pressure misting system

The working principle of the high pressure cooling misting system is to use the high pressure plunger pump to increase the water pressure to a certain pressure, and then the pressurized water is misting by a professional nozzle through the high pressure transmission pipeline to produce micro fog particles, so that it can quickly absorb heat from the air to complete the gasification and diffusion, so as to complete the purpose of air cooling and humidification.

Mister nozzle of high pressure cooling misting system: The core part is made of titanium alloy material and has its own pressure limiting starting valve, and the shell is made of copper or stainless steel material, with fine spray, no wear, little pressure loss, anti-blocking, no dripping and so on. The main engine of the spray cooling system adopts industrial plunger pump, which can run continuously for 24 hours. The nozzle and water mist distributor have no power vulnerable parts, and will not be damaged in high dust environment. The humidification capacity is large and the nozzle can be freely combined. The humidification rate is stepless from 5kg/h to 900kg/h. The water in the spray cooling system is sealed and non-recycled, which does not lead to the growth of bacteria.

1, high pressure cooling misting system is composed of water filtration, water temperature control (optional), water level control, constant pressure water supply, multi-pipeline water transmission, intelligent instrument humidity control and other mechanical and electrical products. The tap water is fed into the water tank through the filter, and the water tank is provided with an upper and lower water level control system; The purified water enters the high-pressure pump, high-pressure pipeline and nozzle to form a high-pressure spray system. The high-pressure pump is driven by a motor, and the humidity control system is composed of intelligent meters, humidity sensors and high-pressure solenoid valves.

2, the number of high pressure cooling misting system nozzles 40 ~ 300, humidification capacity 140 ~ 1050kg/h, humidification space 1500 ~ 60000m3 variety of specifications for you to choose.

3, the nozzle adopts the backsplash principle, long service life, not easy to plug, no water.

4, according to the humidity requirements and the specific situation of the space, one or more ways can be realized in different areas of automatic control humidification.

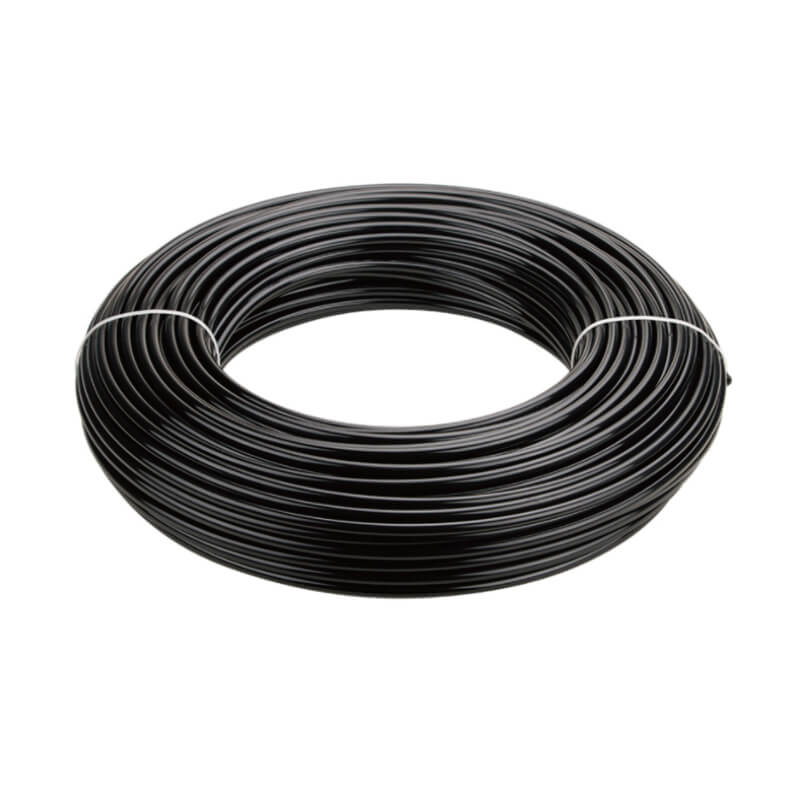

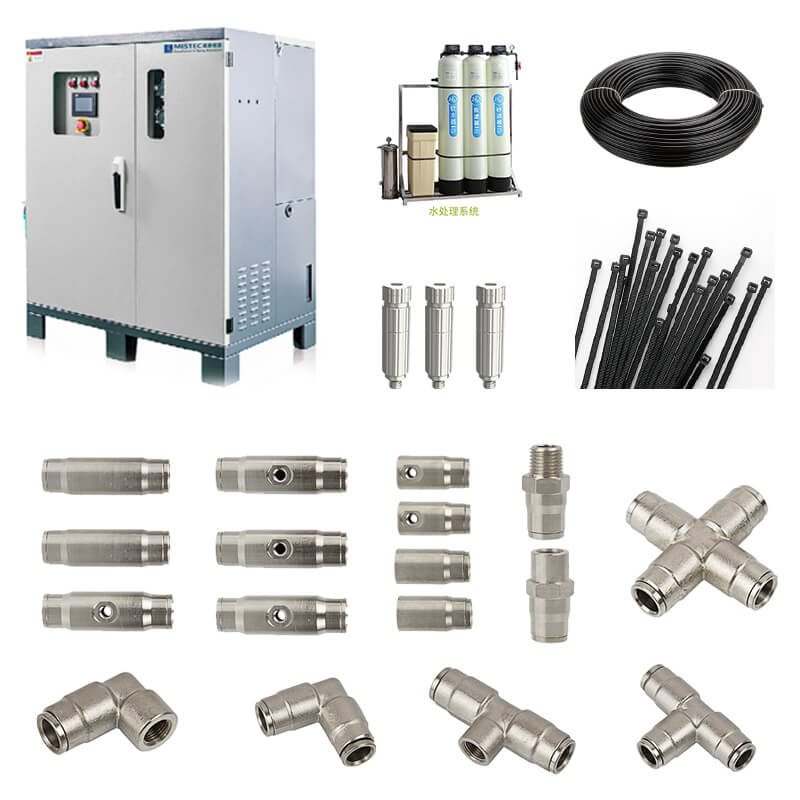

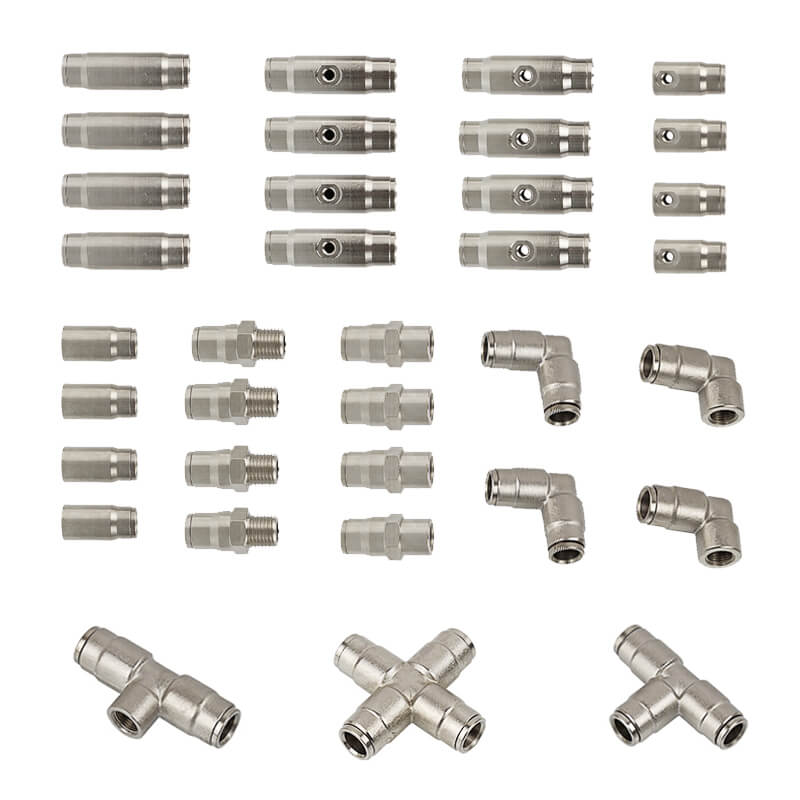

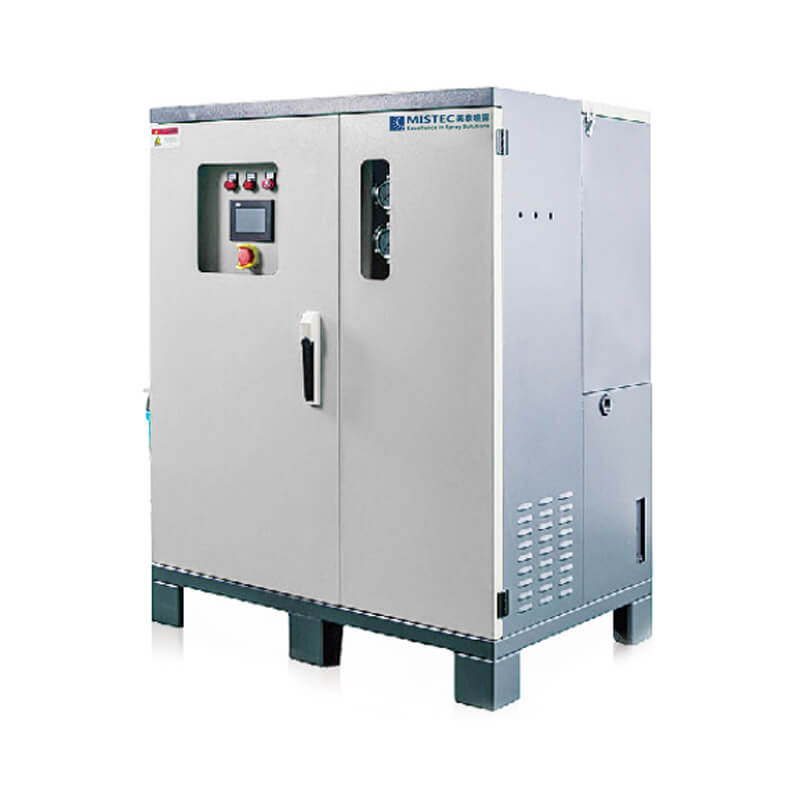

(1) Inlet valve (2) Water filter (3) Humidifier host (4) Computer multi-channel moisture controller (5) High-pressure control valve (electric or manual) (6) Nozzle (7) High-pressure three-way, four-way (8) High-pressure pipe (9) Plastic-coated wire rope (10) Temperature and humidity sensor (11) Chiller (optional) (12) ion water softener (13) High pressure check valve (14) High pressure electric valve blowdown system


Flow:4.0 L/min
Rpm:1450
Frequency:50 Hz &60 Hz are compatible
Nozzle carry qty:20-35
Pressure:580-1450 psi
Type:High pressure sprayers
Power:0.75 KW
Material:Stainless Steel
