Fog spraying set kit multifunctional cooling humidity misting systems

The artificial fog humidity misting systems is by far the most fine humidity misting systems for impact misting particles. It takes water as raw material, and uses the micro-hole high-pressure impact misting principle to effectively remove the harmful substances containing active ingredients, and then automatically control and detect by the humidity misting systems, so that the water under high pressure is ejected from the ruby microholes. And at a speed of 92.9 meters per second and the misting needle impact, the water is split into billions of 1-10 micron natural fog molecules in an instant, 70% of which is less than 4 microns, the misting effect is more real and natural compared with the original flow of water mist.

1, fine fog: high-pressure spray nozzle can produce 5 billion droplets per second, the diameter of the droplets is only 3 to 15μm
2, energy saving: atomizing 1 liter of water only needs to consume 6W power, which is 1% of the traditional electric humidifier
3, reliable: the main engine adopts imported industrial piston pump, which can operate continuously for 24 hours.
4, health: the water of the high-pressure micro-fog system is sealed and non-recycled, which will not lead to the reproduction of bacteria.

● The pump station unit uses high pressure ceramic piston pump to produce 7MPa high pressure water, and uses pressure sensor and inverter to automatically adjust the pressure of the pump station, which can adapt to the pressure regulation adjustment between 100Kg/h and 1600Kg/h flow rate, and has a variety of protection functions.
● The control unit humidity misting systems can use time control humidity control according to the needs of the project, the time control can be segmented according to the time or the cycle control spray period can be in accordance with the hour, minute, or second as the unit, and can also realize the automatic start or automatic stop of the unmanned street lamp management system. When the control unit is connected to the external humidity sensor or temperature sensor and the servo mechanism of the external controller, a fully automatic system can be formed.
● High pressure shunt valve unit High pressure shunt valve can achieve high pressure water control predetermined program to the predetermined spray unit multiple water supply or discharge.

Specification

LPM	Power	Working pressure	Voltage	The number of nozzles used	Frequency
0.3L	120W	60bar	220V/110V	8 nozzles	50/60HZ
1L	300W	60bar	220V/110V	20 nozzles	50/60HZ
2L	550W	60bar	220V/110V	40 nozzles	50/60HZ
3L	750W	60bar	220V/110V	60 nozzles	50/60HZ
7L	1800W	60bar	220V/110V	120 nozzles	50/60HZ
11L	2200W	60bar	220V/110V	200 nozzles	50/60HZ
15.4L	3000W	60bar	220V/110V	260 nozzles	50/60HZ

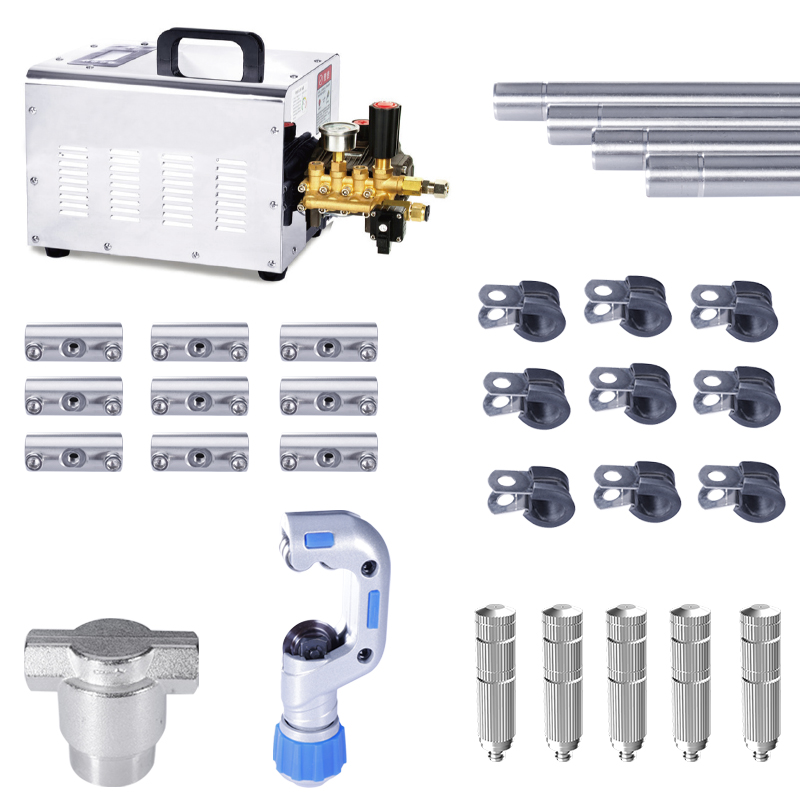

The whole set of the equipment includes

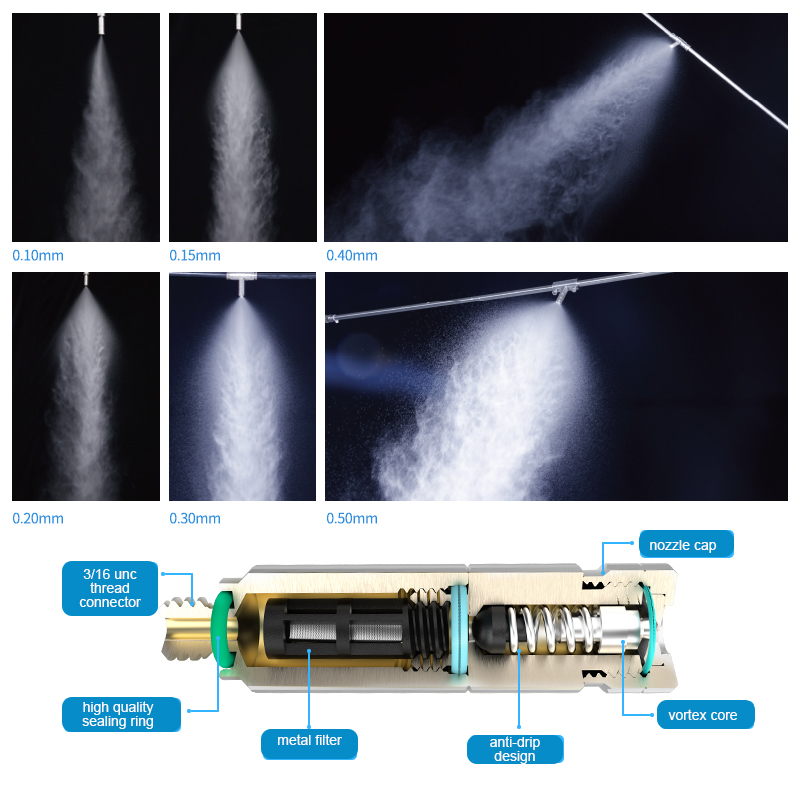

misting nozzle :   0.1mm,0.15mm,0.20mm,0.30mm,0.40mm,0.50mm

                             high pressure

                             Thread:10/24unc

                              washable filter

                              brasss with nickel plated

                              stainless steel orifice

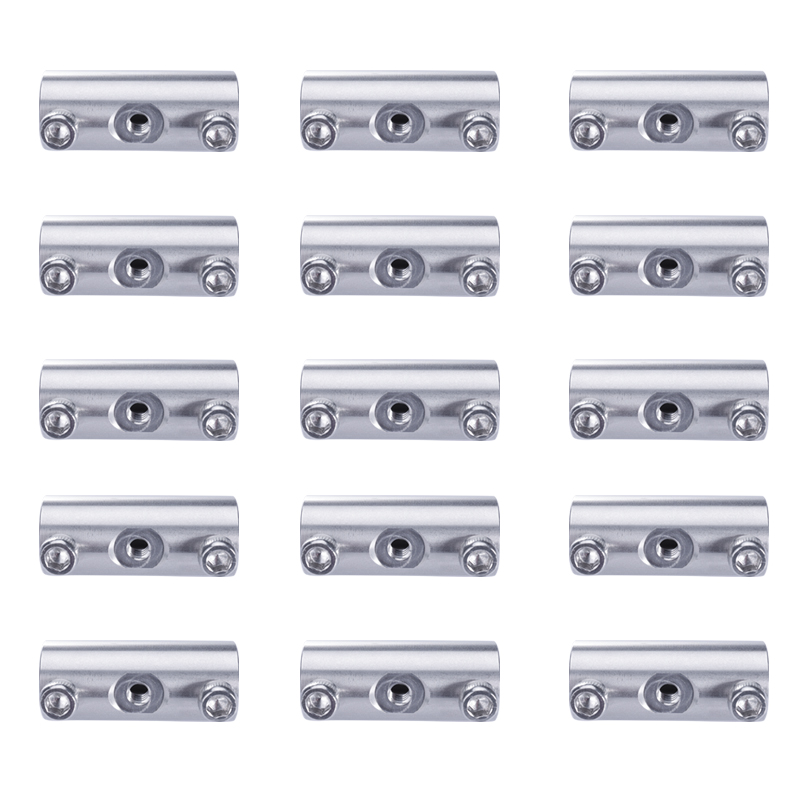

misting fitting:

cross connector,slip-lock union,slip-lock male connector,slip-lock Tee connector,elbow connector,etc( 1/4",3/8",10/24unc)





tubing: nylon tubing

tubing cutter,tubing clamp, filter
