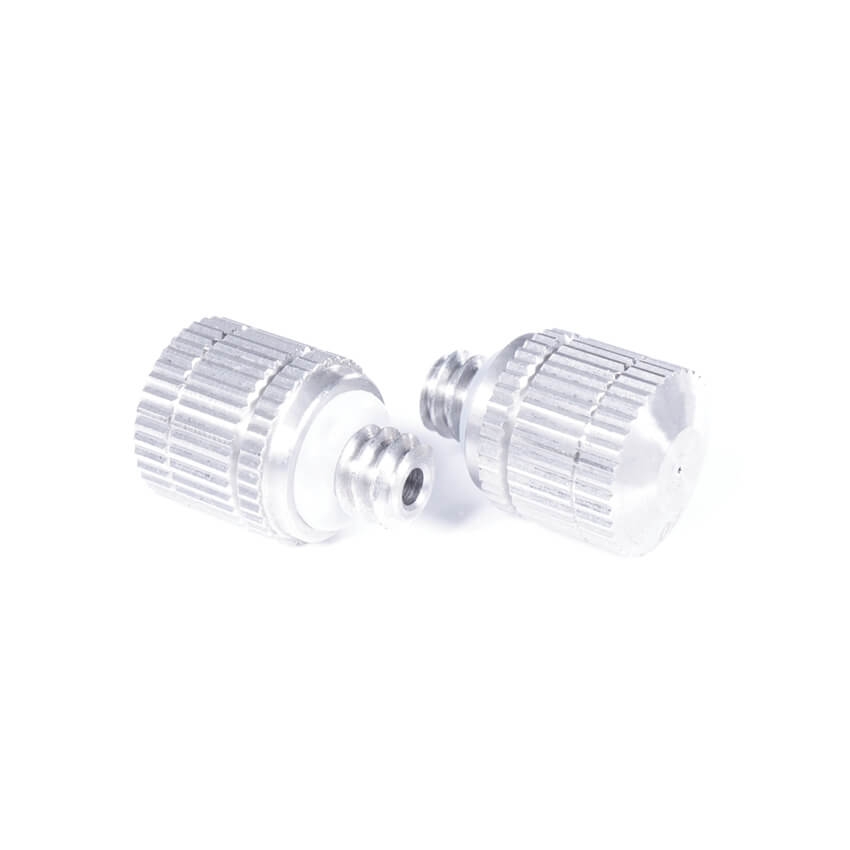

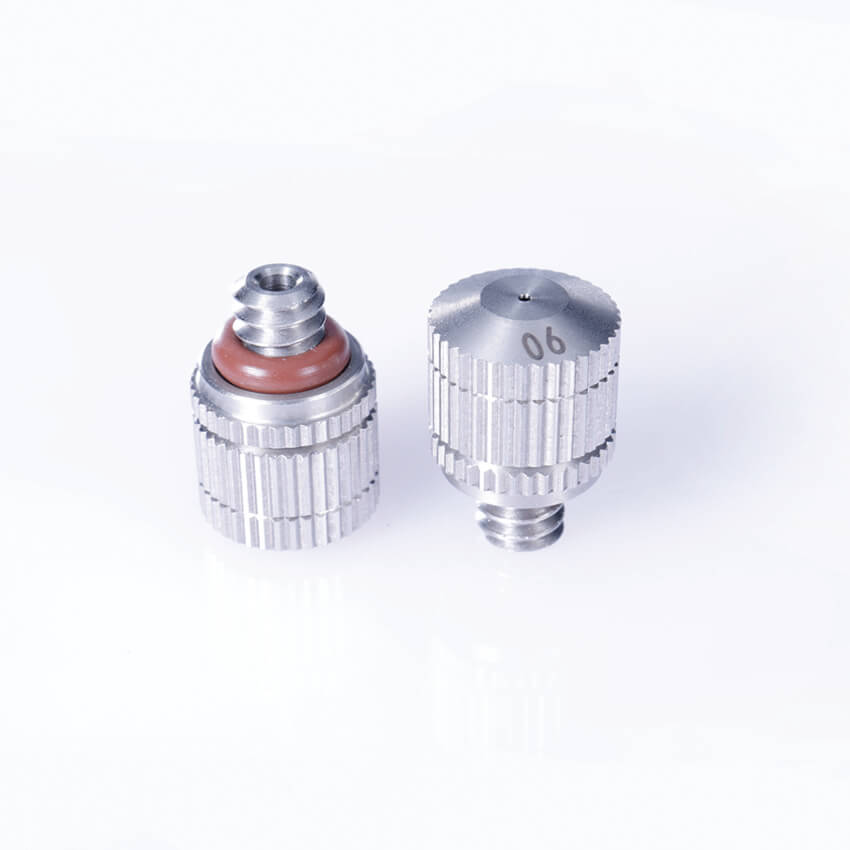

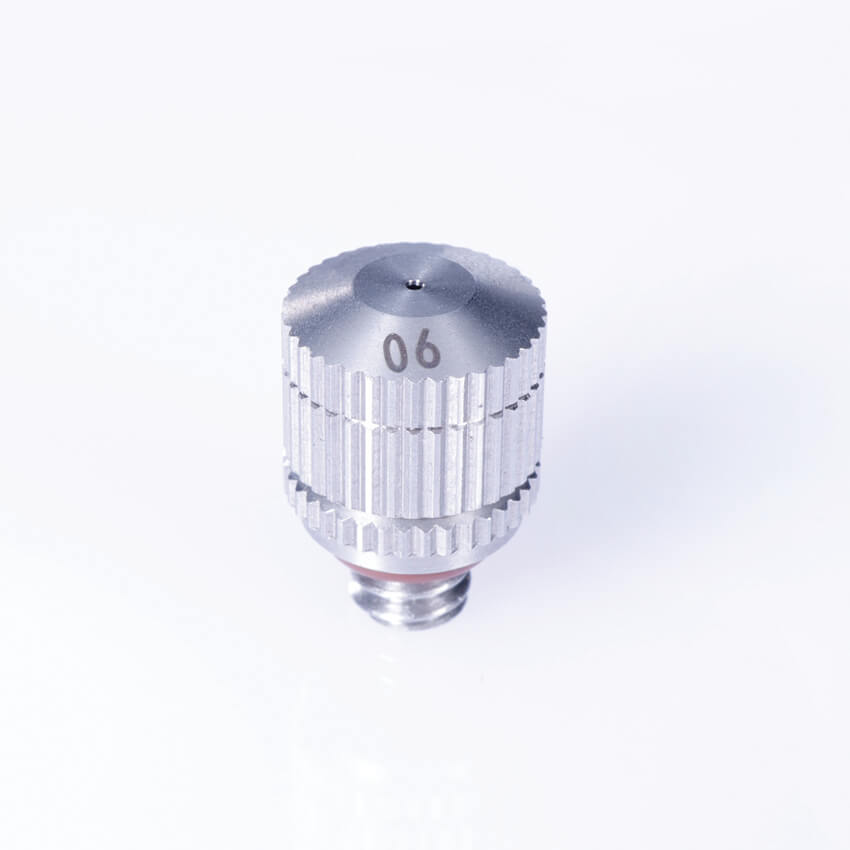

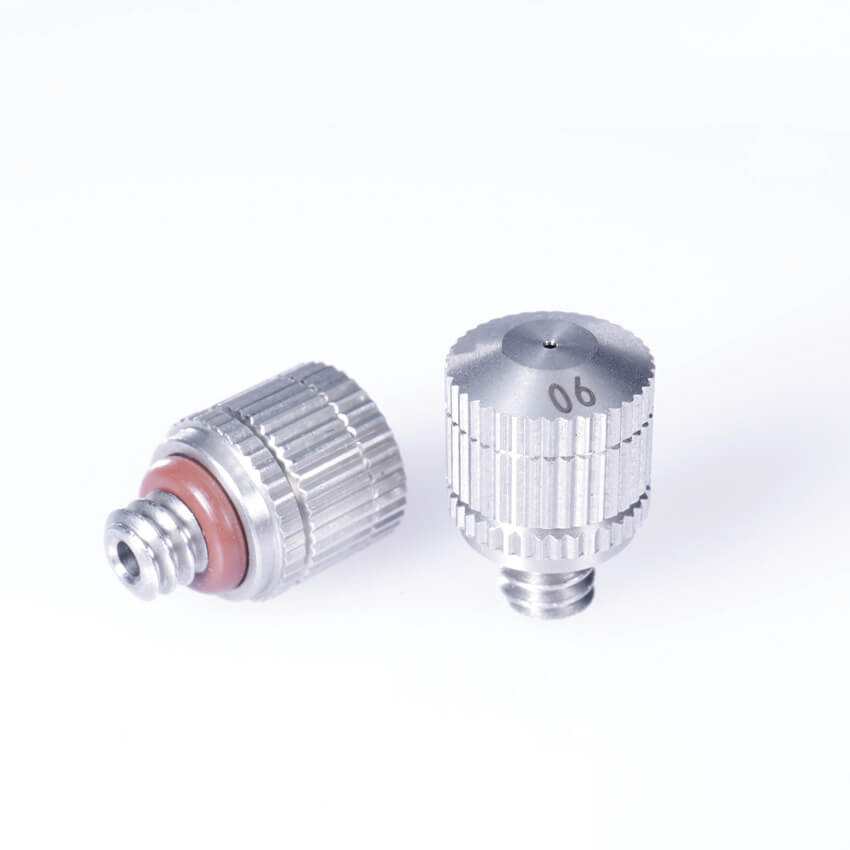

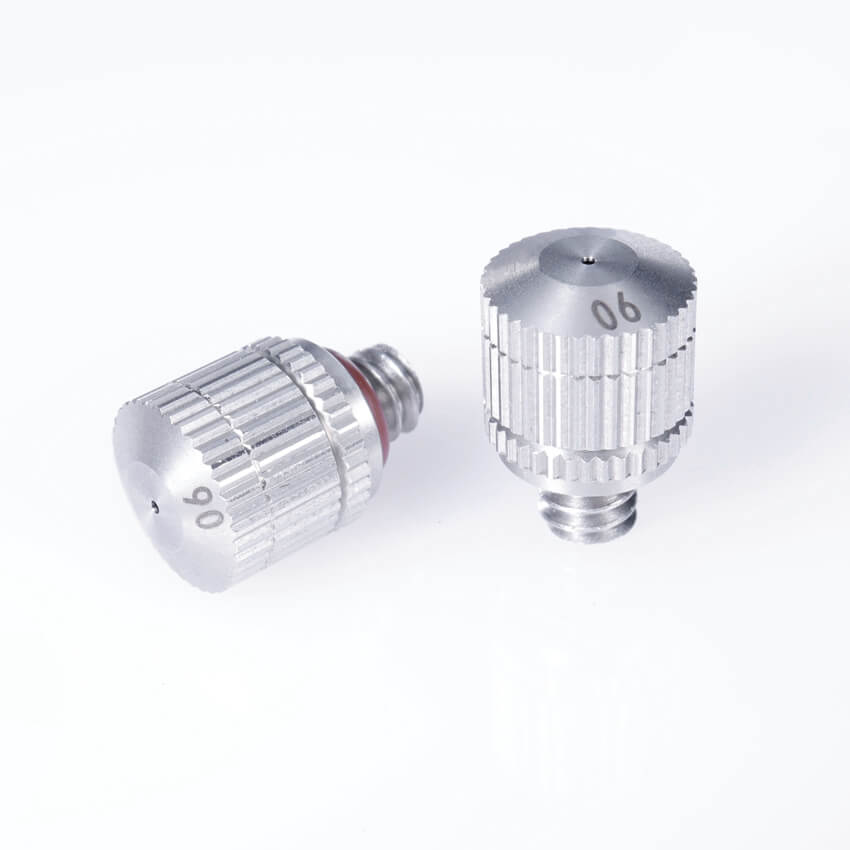

low pressure fog mist spray nozzle 0.024in (0.6mm) orifice 1/4 thread cooling system nozzle

The working principle of the low pressure fog mist spray nozzle can be divided into three parts: first, the liquid is discharged into the low pressure at the fog mist spray nozzle; Secondly, the liquid is driven by the air flow to form a spray; Finally, the droplets will be driven by air flow through the role of air flow, so as to achieve rapid dissipation.


low pressure fog mist spray nozzle 0.024in (0.6mm) orifice 1/4 thread cooling system nozzle

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
1/4'	0.6	1	71.0	70
		2	93.0	80
		3	113.0	90
		4	128.5	90	0.7	1.1
		5	143.5	90
		6	155.0	90	0.9	1.4

Design Feature
1. Fine low pressure fog mist spray nozzle utilizes the fluid pressure to produce the extremely fine particle,and the pray pattern is a uniform hollow cone,which can make the spray like fogs.

2. All the parts are precisely composed.The inlay of orifice,the taper core and the strainer are easy to dismantled for examing and washing.

3. All the above nozzles have strainers.



Application
1. Moistening in air control chamber

2. Cooling for gas and metal

3. Liguid medicine spraying

4. humidity conditioning

5. evaporative cooling
