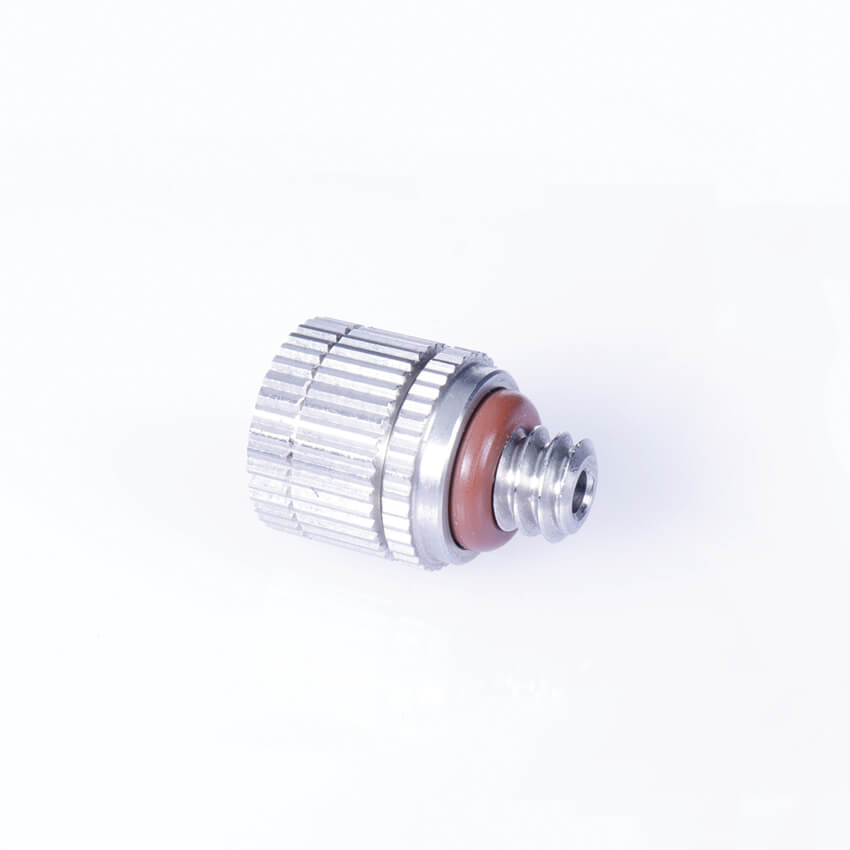

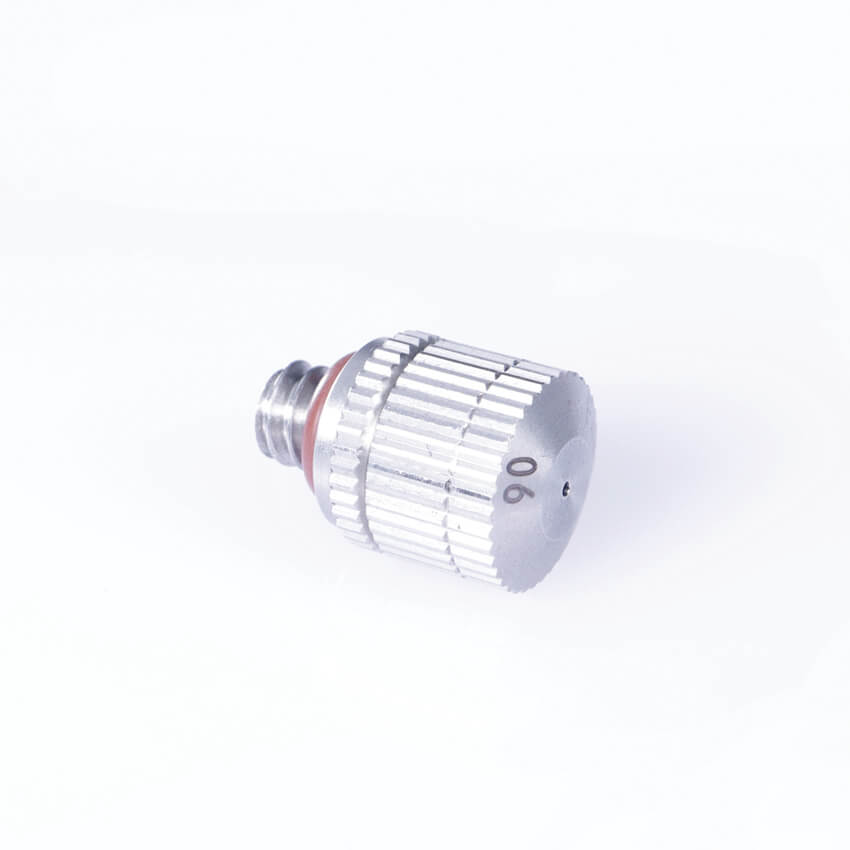

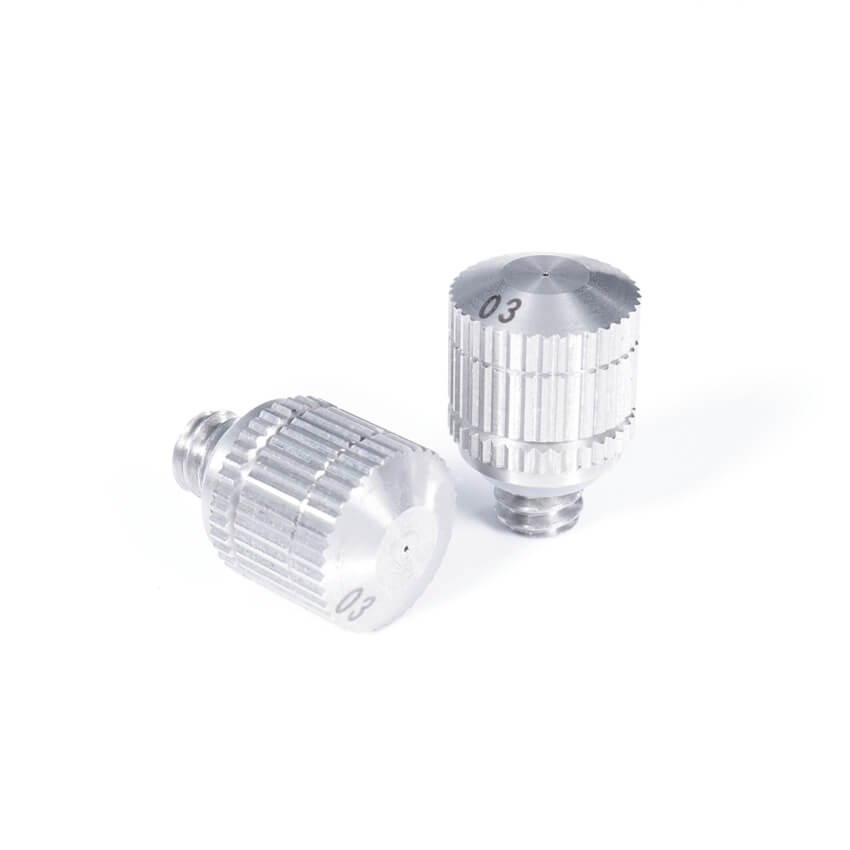

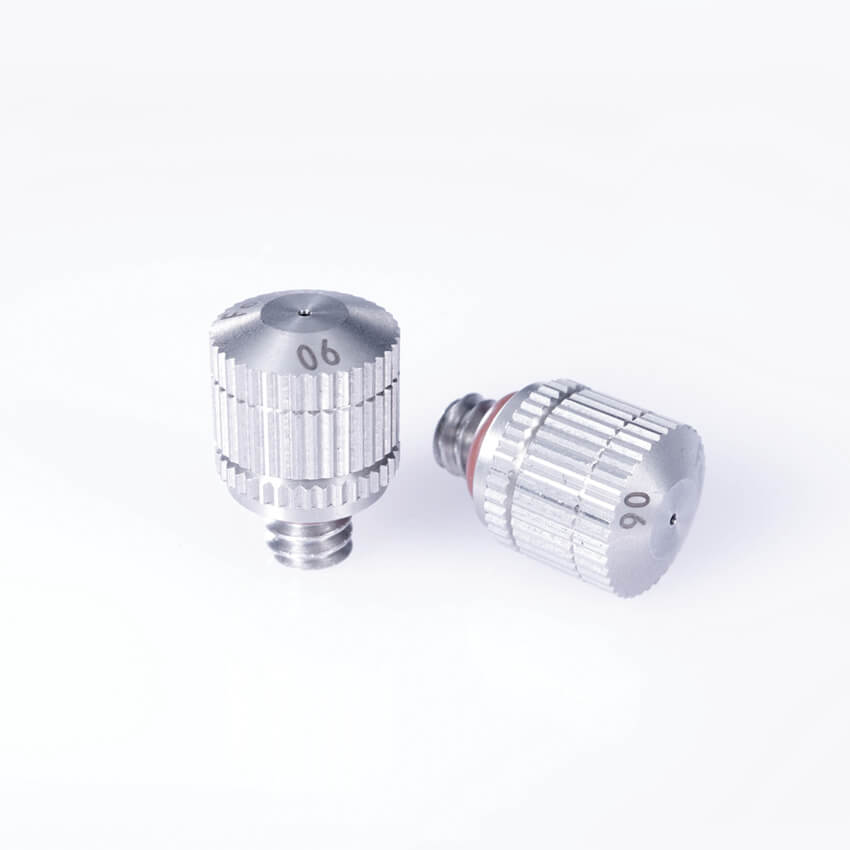

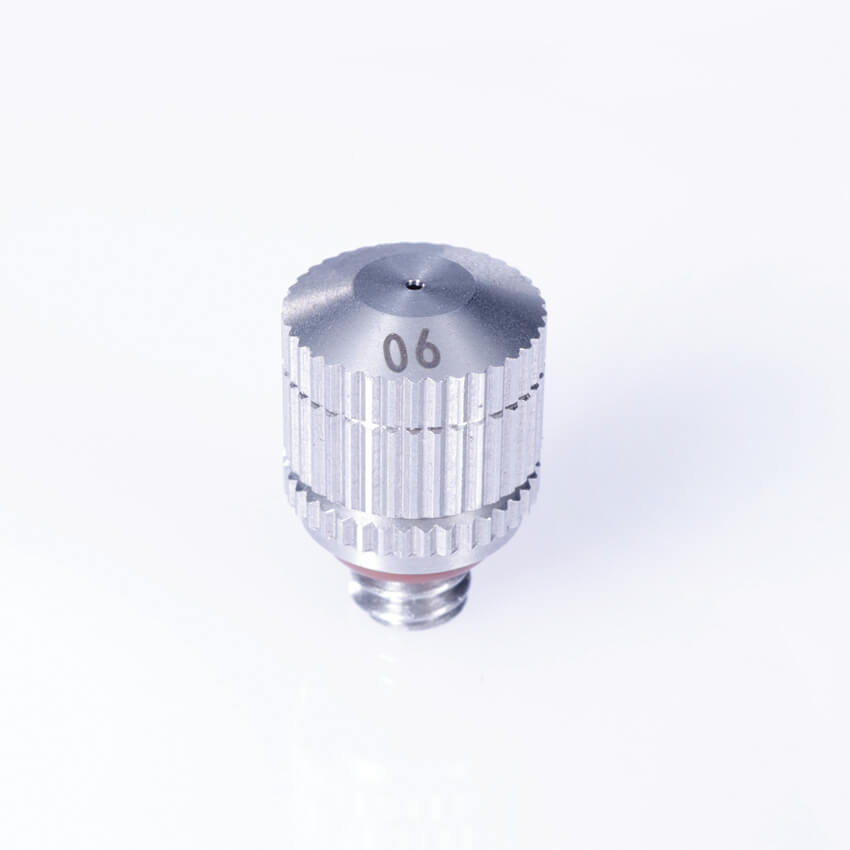

low pressure mist nozzle for outdoor cooling system with 0.024in (0.6mm) orifice 12/24 thread mister tip

What factors affect low pressure mist nozzle for outdoor cooling system misting diameter?
1. Nozzle structure: Different models or specifications of the low pressure mist nozzle for outdoor cooling system, its misting diameter may be different.
2. Liquid properties: The physical and chemical properties of different liquids are different, which will affect the nozzle misting diameter.
3. Pressure and flow: When the liquid is accelerated and dispersed, the diameter of the atomized particles will also change.
4. Nozzle distance from the object: the closer to the object, the smaller the nozzle misting diameter.
5. Nozzle height and Angle: different heights and angles, low pressure mist nozzle for outdoor cooling system misting effect and misting particle size will also change.
Nozzle misting diameter refers to the diameter of the liquid or gas emitted by the nozzle to form fog particles in the air. In the cooling system, the atomizing diameter of the nozzle has a significant influence on the spray range and misting effect.

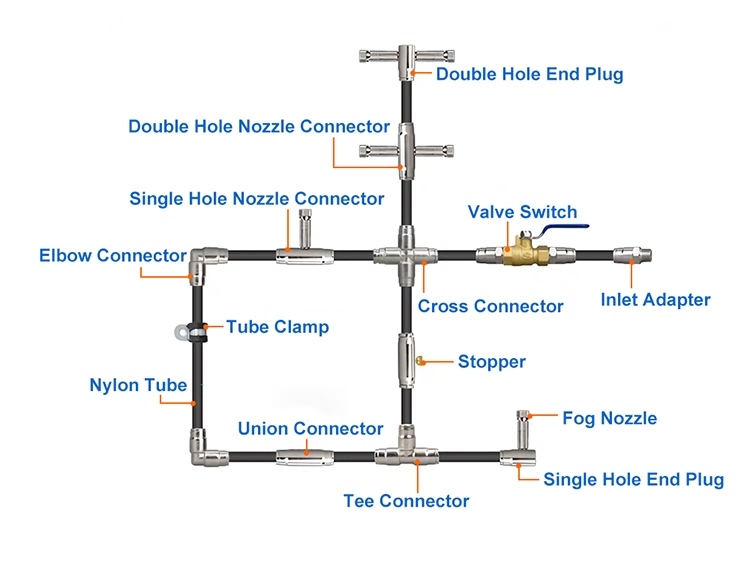

How to use: 1. Fix the misting system in the right position. The mist head is directed towards the direction you want to mist. 2. Connect the misting system connector to the garden hose. 3. Open the garden water pipe valve and start enjoying your misting system to cool down. 4. Shut down your garden pipe valve when you don't need it.

0.6mm orifice 12/24 thread low pressure mist nozzle Textile machine humidifier low pressure atomizing nozzle sprinkler cooling fog irrigation greenhouse

low pressure mist nozzle for outdoor cooling system with 0.024in (0.6mm) orifice 12/24 thread mister tip

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
12/24 unc	0.6	1	71.0	70
		2	93.0	80
		3	113.0	90
		4	128.5	90	0.7	1.1
		5	143.5	90
		6	155.0	90	0.9	1.4
