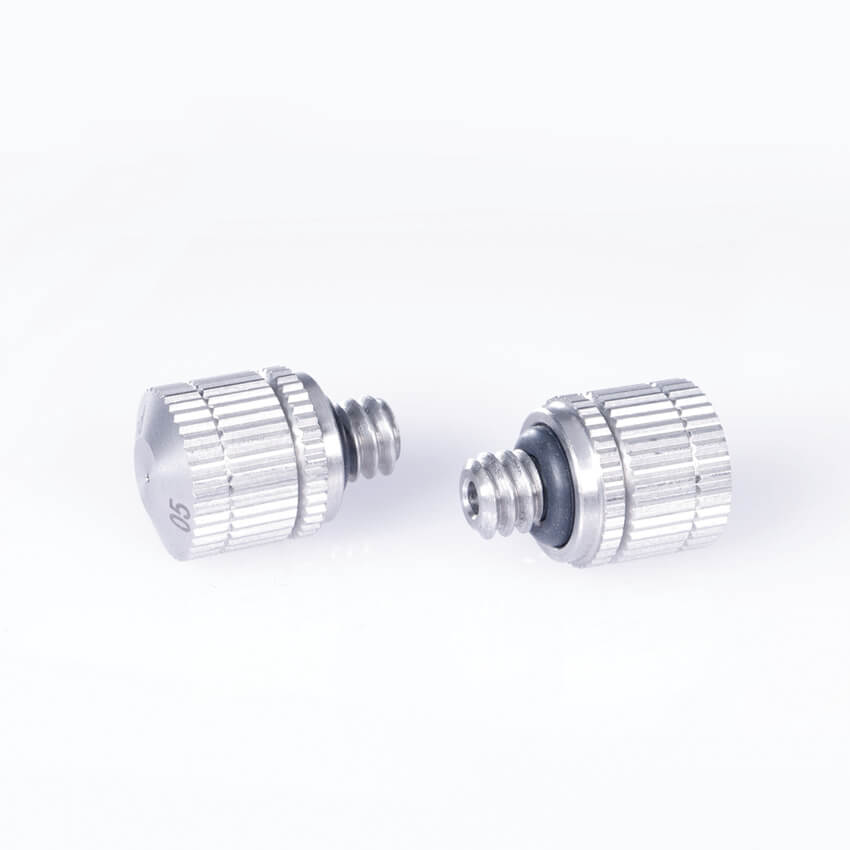

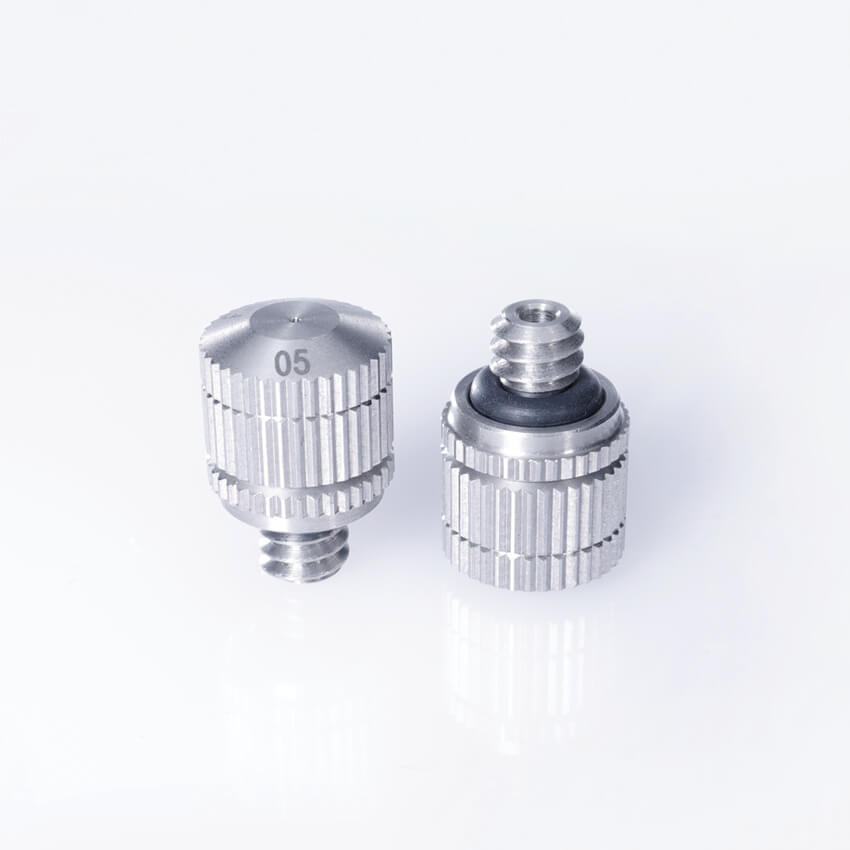

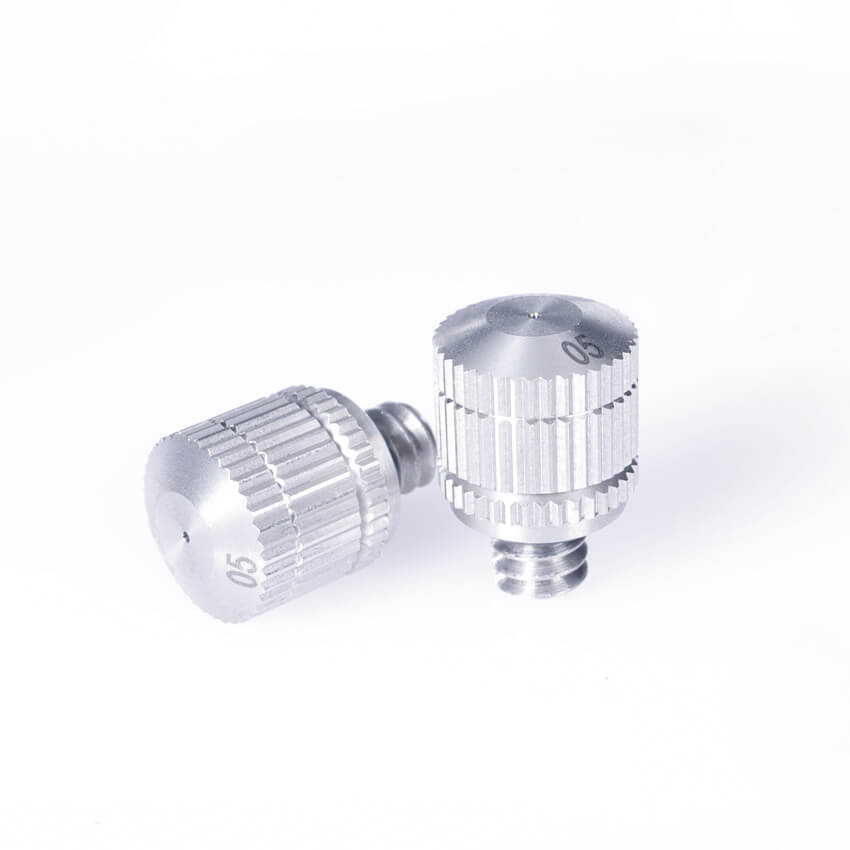

low pressure misting nozzle 0.020in (0.5mm) orifice 1/8 thread mister fogging nozzle

Misting nozzle Low-pressure nozzle cooling dust humidifier spray antidrip fine nozzle

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
1/8'	0.5	4	50.0	50	0.5	0.8
		5	60.9	55
		6	65.0	60	0.8	1.0
		7	73.0	60

Reliable quality, a variety of specifications, sizes to customize
Bright color and solid material
Flow adjustable and durable
Complete customized production
Seiko thread is strong and durable

As a part of the internal system, the 0.5mm orifice low pressure mist nozzle plays a role in the entire high-pressure fog system. High pressure 0.5mm orifice low pressure mist nozzles need to choose the appropriate aperture size according to different use scenarios and effect requirements. The correct selection of the aperture size is conducive to matching the entire pipeline, making the fog effect system play a role, and reducing the loss of the machine to a low level.


Design features:

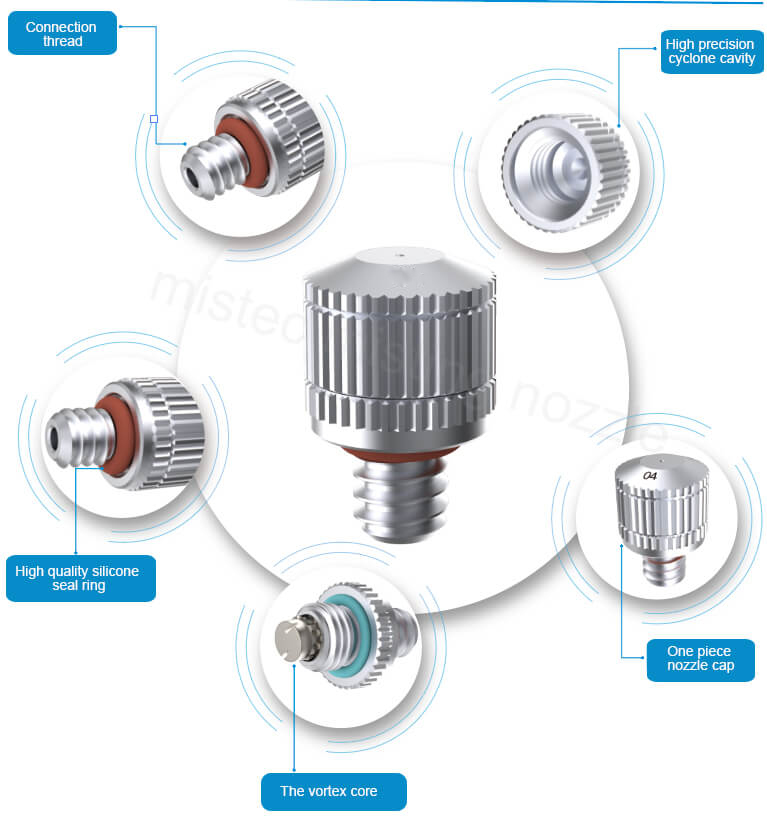

1. The anti-drip fine 0.5mm orifice low pressure mist nozzle uses brass body, coated with stainless steel nozzle core and stainless steel guide blade, which contains an anti-drip device. The liquid flows at high speed under the water pressure , forming a centrifugal vortex in the guide blade, spraying extremely delicate hollow fog particles from the spray hole, using Teflon filter. The particle size is about 50 mm, widely used in plant humidification, salt spray experiment, artificial fog and other humidification places, this nozzle hole is the use of the United States precision punching machine to punch holes, the aperture is between 0.08mm-0.8mm, well-made, the cost of use compared with gas humidification, saving more than 10 times.

2. No air assistance is required, and the system is simple
3. Fine fog particles up to 3-70um, fully atomized
4. Energy saving, low cost, good effect
5. Mister fogging nozzle is not blocked, no water leakage
6. The 0.5mm orifice low pressure mist nozzle is made of wear-resistant material, with long service life, 2.5 times that of similar nozzles
