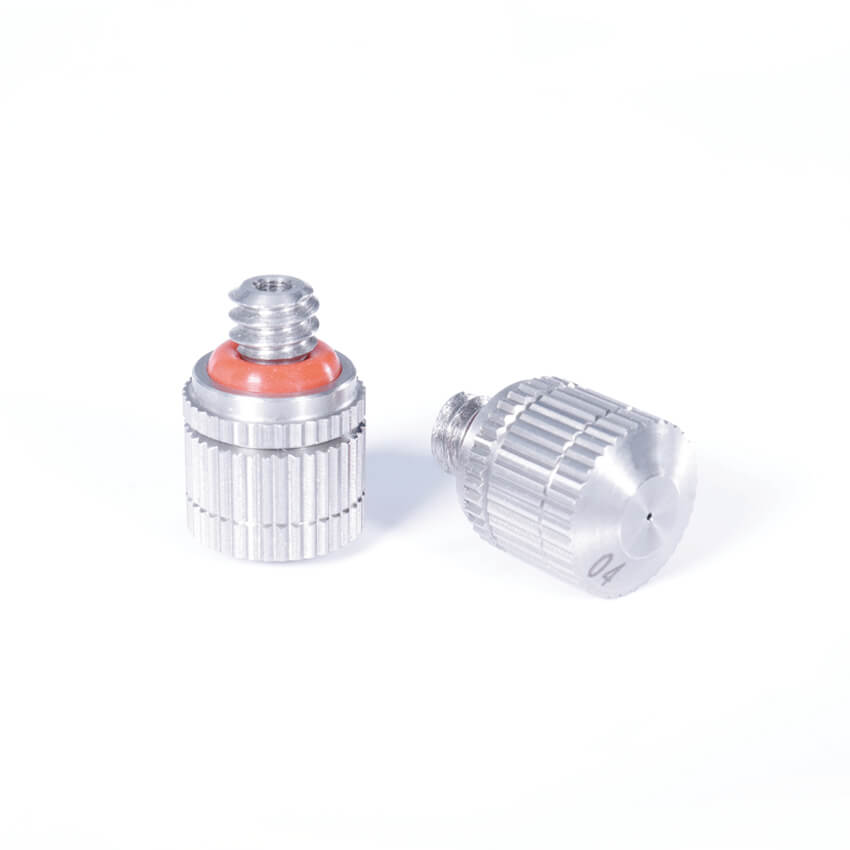

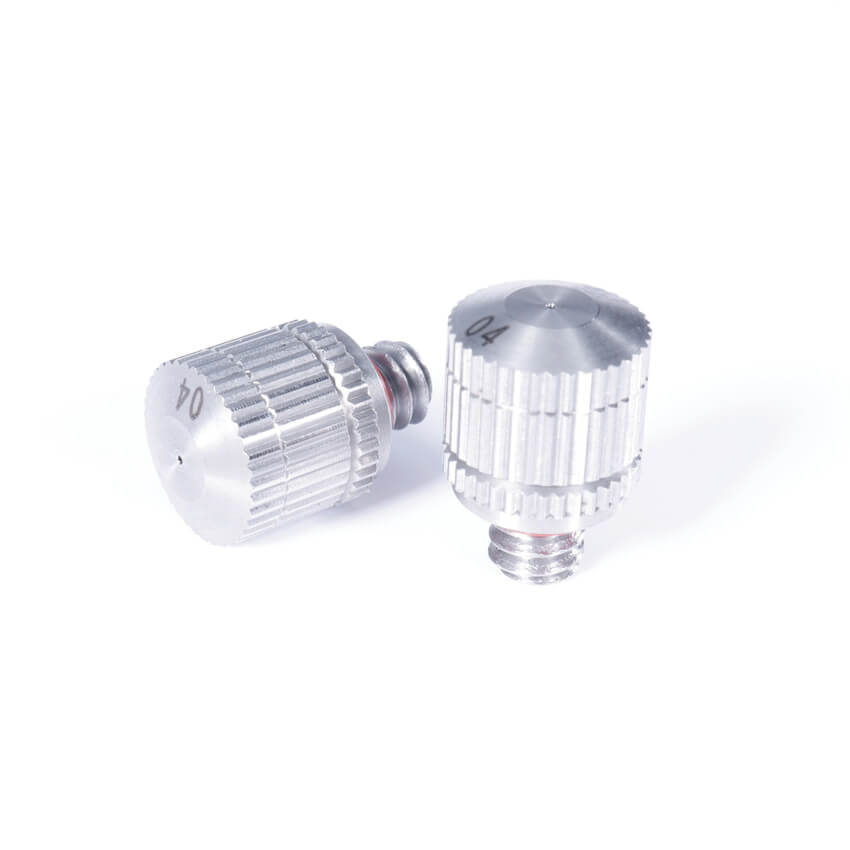

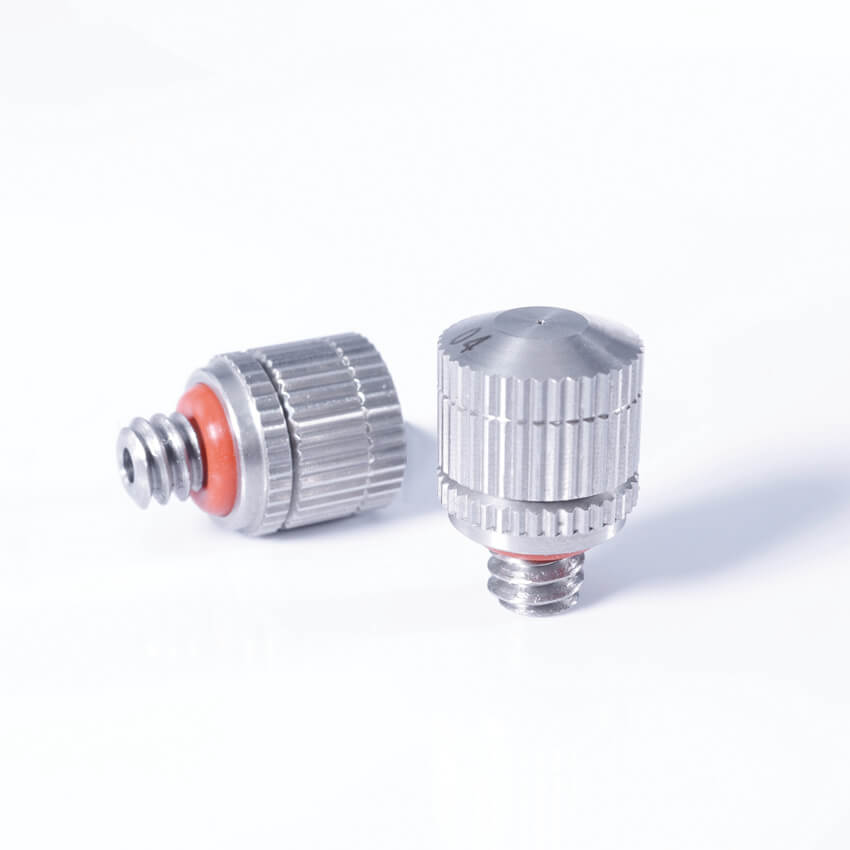

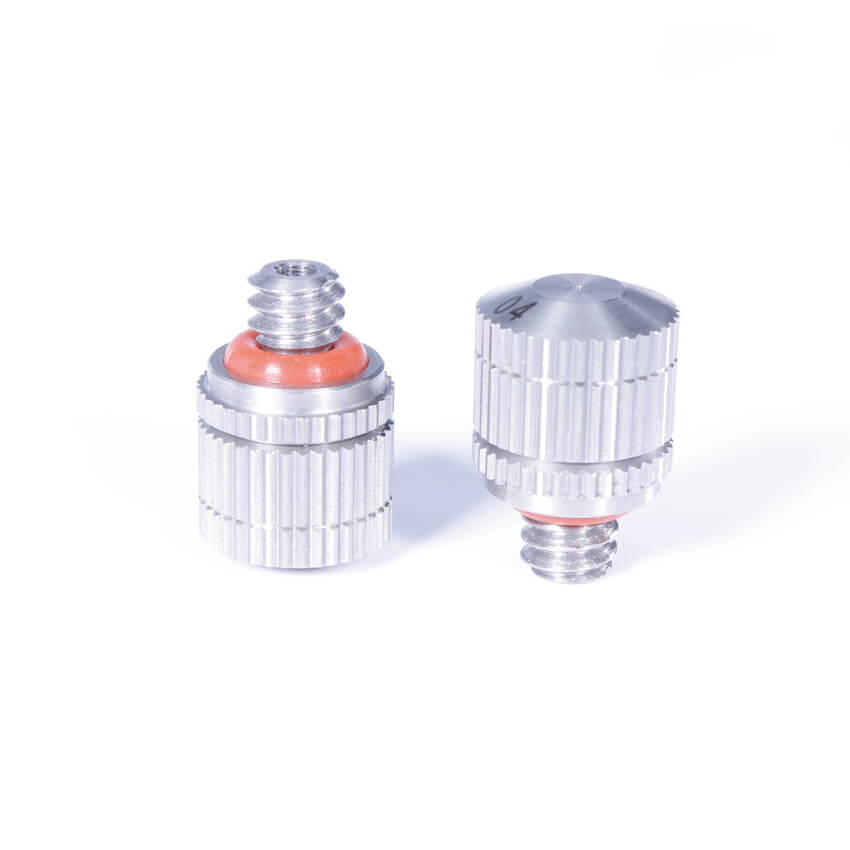

low pressure misting nozzle 0.016in (0.4mm) orifice 1/8 thread fog head nozzle

Low pressure nozzle cooling dust humidifier spray anti-drip fine nozzle impact misting nozzle

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
1/8'	0.4	4	39.5	60	0.5	0.8
		5	43.0	65
		6	47.5	65	0.6	0.9
		7	50.0	70
		8	53.5	75

The design principle of the 0.4mm orifice low pressure mist nozzle is that the liquid flows at a high speed under the water pressure of 7kg-120kg with 0.4mm orifice , forming a centrifugal vortex in the guide blade, ejecting from the nozzle hole, very fine hollow fog particles, the particle size is about 50um. using teflon filter net, the spray hole is made of high precision drilling in the united states, the aperture is between 0.1-0.6, excellent production, low cost!

0.4mm orifice low pressure mist nozzle are air flow and liquid flow interact with each other to produce a mist device, the special internal structure design of this device can make liquid and gas evenly mixed, resulting in micro-droplet size spray or coarse droplet spray. usually, a finer liquid spray (about 30 microns) can be obtained by increasing the gas pressure or decreasing the liquid pressure, resulting in a higher gas flow rate liquid flow rate ratio.

0.4mm orifice low pressure mist nozzle can adjust the liquid flow, without changing the air pressure and liquid pressure environment, can also produce the required spray, so it has a strong adaptability.

Each spray unit consists of an air cap and a liquid cap, offering both fan and circular spray modes and a wide flow range. inlet joints for nozzle bodies are available in a variety of sizes to fit most commonly used pipes. these nozzle components are interchangeable, which provides flexibility to obtain different spray performance.
