low pressure water misting nozzle 0.016in (0.4mm) orifice 1/4 thread atomizer nozzles

Misting process:
Misting is the process of converting a liquid into tiny droplets. Atomizers usually use pressure or rotary nozzles to achieve misting. The following are two common misting methods: Pressure misting: In a pressure atomizer, the liquid enters a low pressure area through a small hole in front of the nozzle. The low pressure causes the liquid to accelerate rapidly and form a liquid jet through a small hole in the nozzle. When a liquid jet encounters a gas flow, the liquid jet is torn apart into tiny droplets. Rotary low pressure water misting nozzle: A rotary low pressure water misting nozzle discharges liquid through a rotating disc. The liquid is thrown away at the edges of the platter, forming tiny droplets.




Filter mesh fine misting nozzle high pressure cold mist humidification dust removal cooling nozzle

low pressure water misting nozzle 0.016in (0.4mm) orifice 1/4 thread atomizer nozzles

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
1/4'	0.4	4	39.5	60	0.5	0.8
		5	43.0	65
		6	47.5	65	0.6	0.9
		7	50.0	70
		8	53.5	75

Low pressure water misting nozzle For Outdoor Cooling System.
MATERIAL:

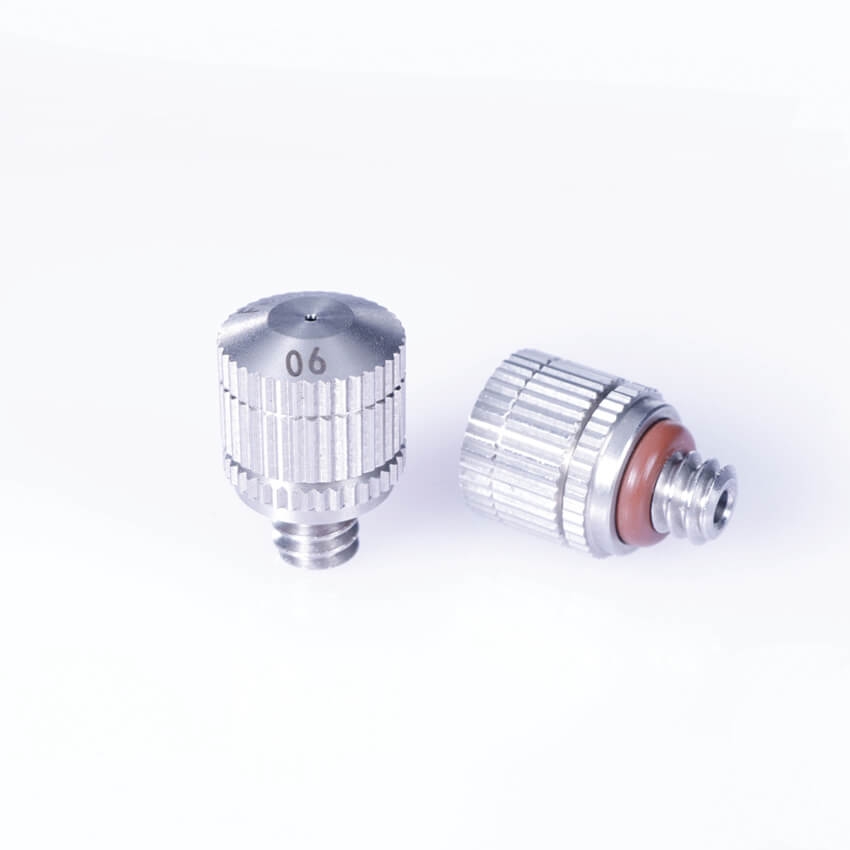

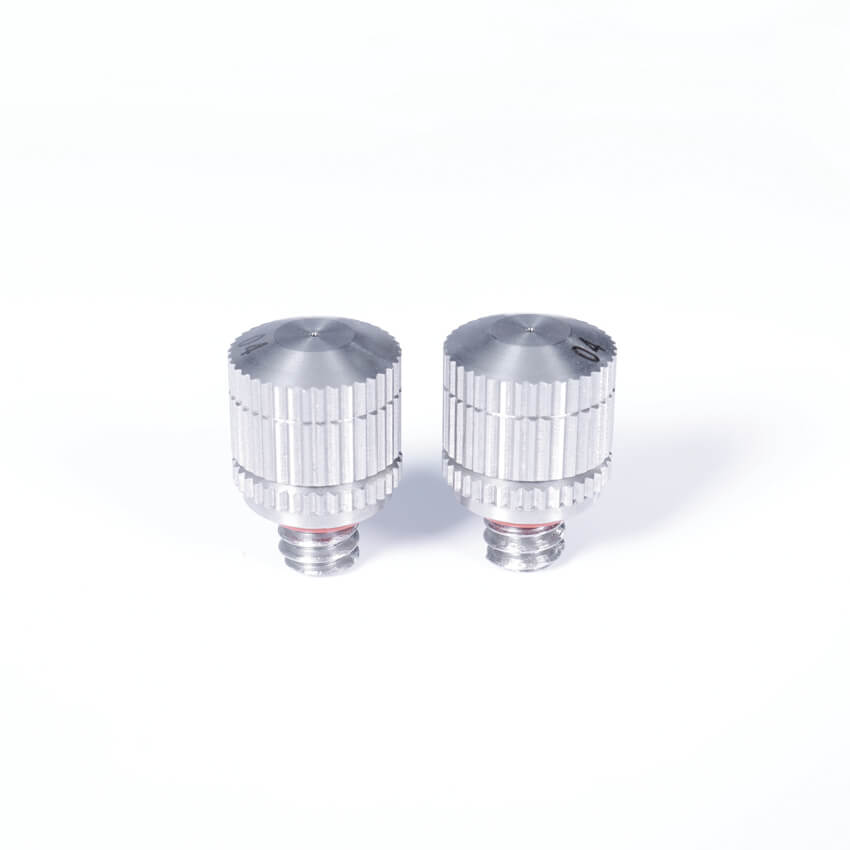

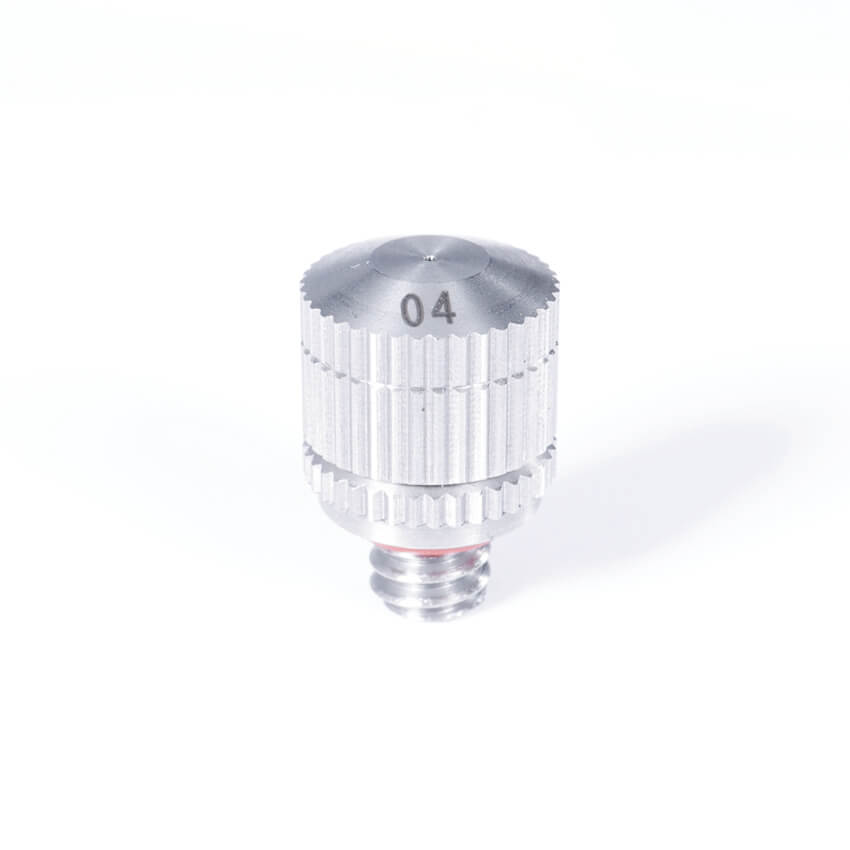

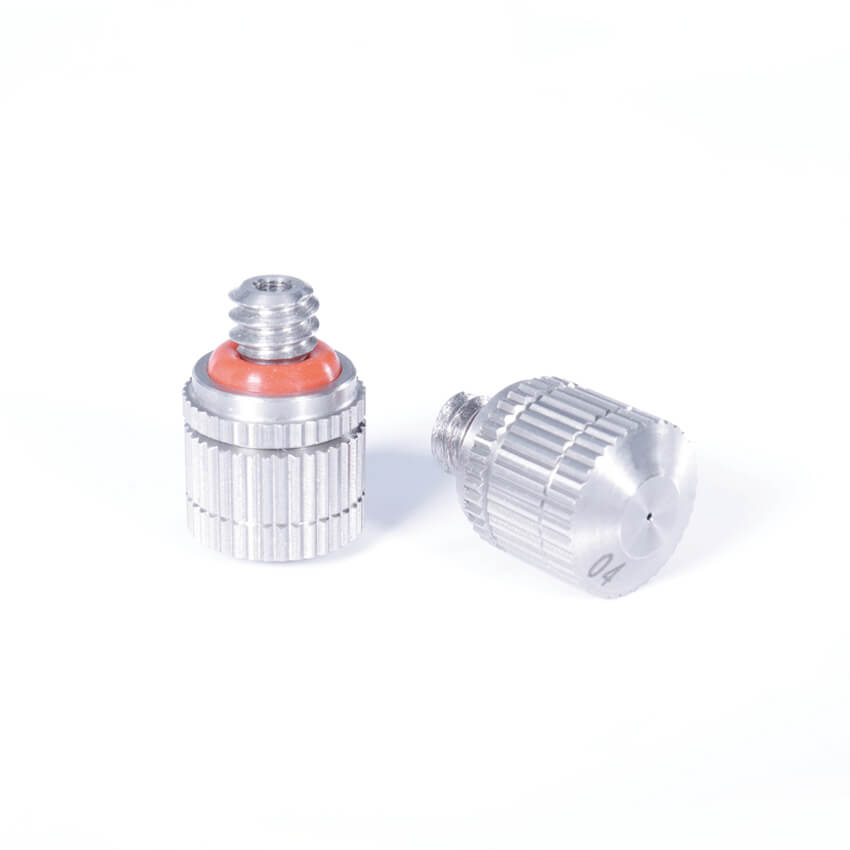

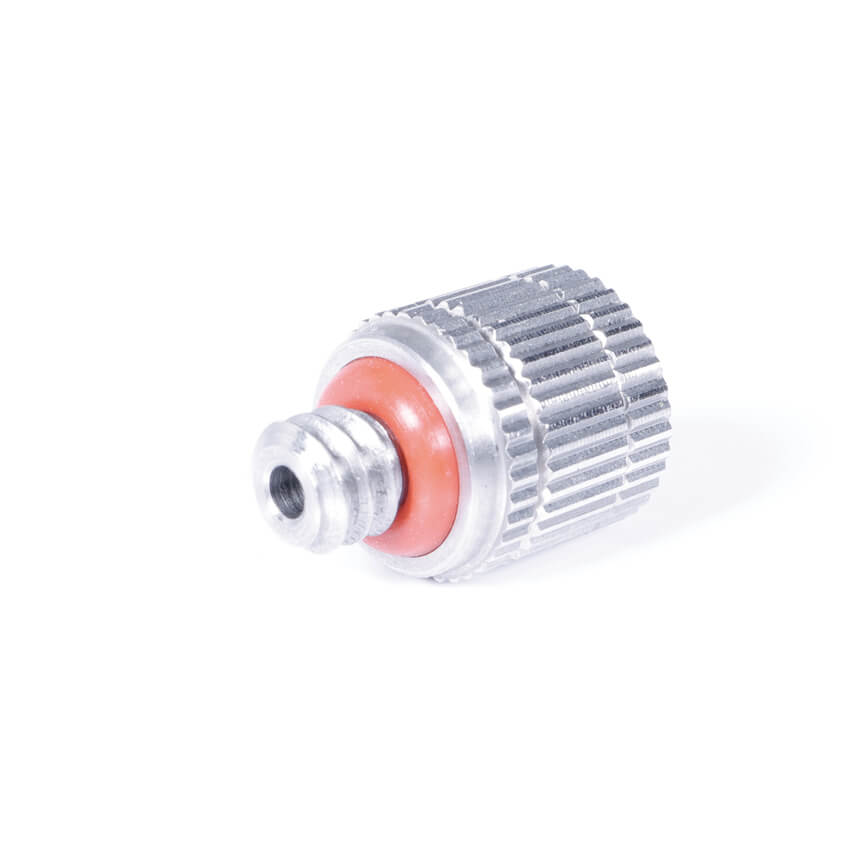

The misting nozzles are made of brass with stainless steel orifice, anti-rust, durable, leak-proof, the mister nozzle is best choice for outdoor use with cold water.

TECHNICAL PARAMETERS:
low pressure water misting nozzle 0.016in (0.4mm) orifice diameter, low working pressure, 60-110ml/min flow rate.It is recommended to increase the use of pumps to achieve a better spray effect.

EASY TO INSTALL
The brass misting nozzles are easy to install, which can be easily screw into any 1/4 threaded mist nozzle opening.

WIDE USAGE
The misting nozzles is widely applied to outdoor cooling system, agriculture irrigation system, green house, spray disinfection, epidemic prevention, deodorizing air purification, landscaping, small fountain, etc.
