Cooling spray misting nozzle Garden low-pressure misting nozzle site enclosure dust removal micro fog system

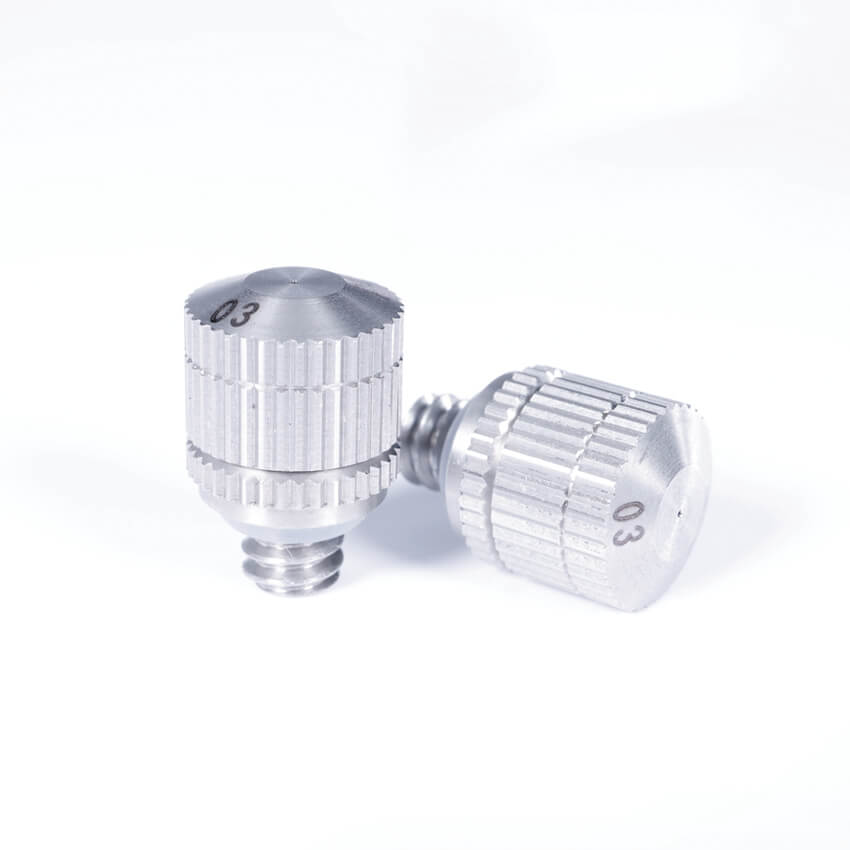

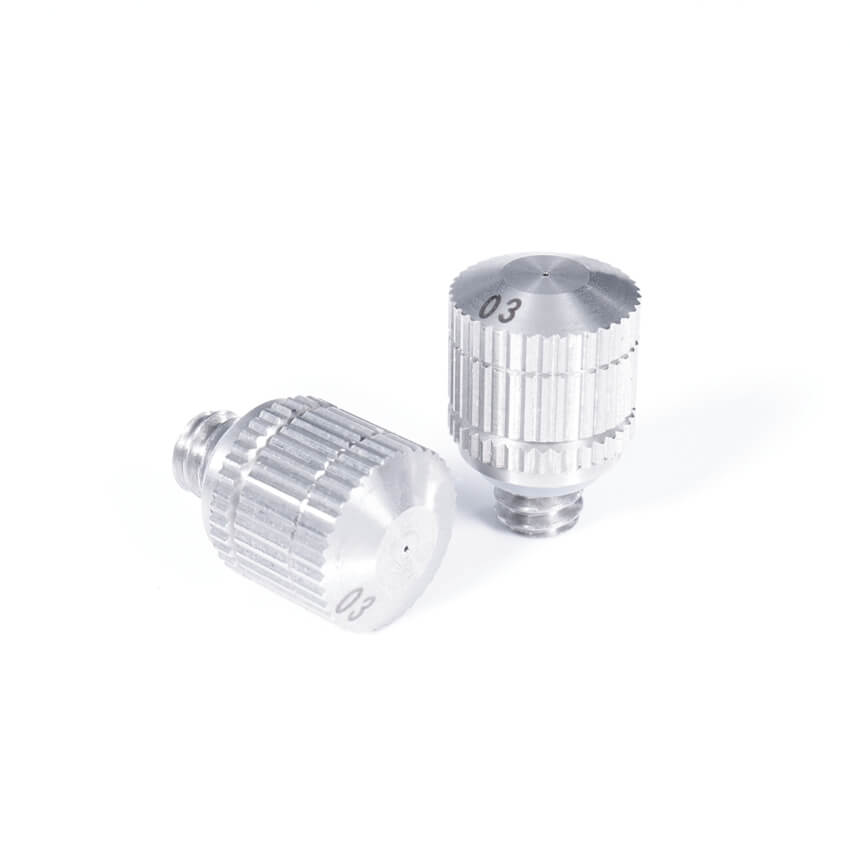

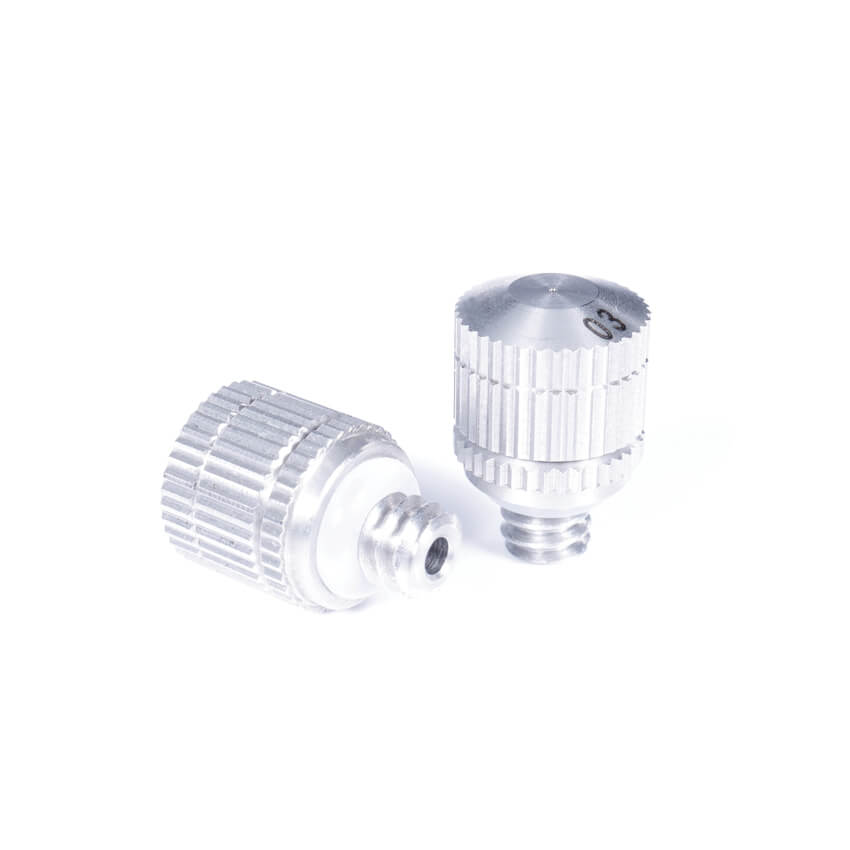

low pressure misting nozzle 0.012in (0.3mm) orifice 1/8 thread atomization fogging nozzle

Thread sizes	Orifices （mm）	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
1/8'	0.3	4	31.5	50	0.3	0.6
		5	34.0	55
		6	36.5	60	0.5	1.0
		7	39.5	65
		8	41.5	65

Metal 0.3mm orifice 1/8 thread low pressure mist nozzle adopts brass body, inset with stainless steel nozzle core and stainless steel vane, the nozzle contains an anti-drip device, liquid under 70kg-120kg water pressure, produce low speed flow, form a centrifugal vortex in the vane, and then spray out of the nozzle hole very fine hollow misting particles, using Teflon filter. The diameter of atomized particles sprayed out is about 20μm.

0.3mm orifice 1/8 thread low pressure mist nozzle design features

1. When the liquid spray particles in the water pressure of 2 ~ 10bar is medium, the pressure reaches 10 ~ 20bar atomized particles about 50um, more than 20bar can achieve the spray effect of suspended fog;
2. When 2-10kg//cm2 is also applicable under general civil water pressure, the greater the pressure, the more obvious the atomization effect, the maximum pressure can withstand 50 ~ 70bar, and the flow rate is calculated in L/min;
3. 0.3mm orifice 1/8 thread low pressure mist nozzle with low cost, compared with double fluid atomization, cost saving more than 10 times, threaded connection, simple disassembly device;

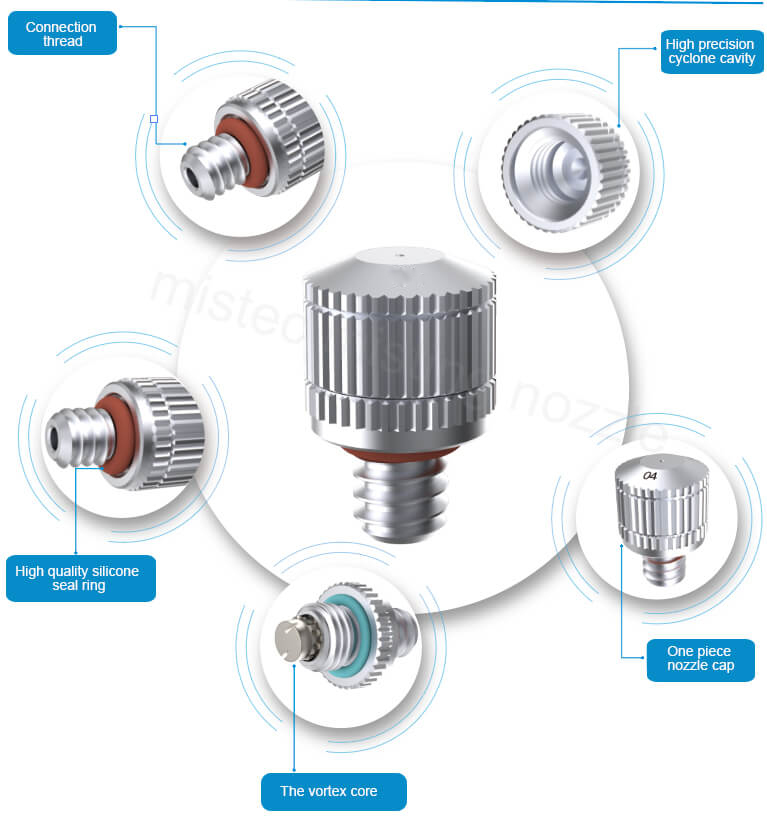

4. The metal 0.3mm orifice 1/8 thread low pressure mist nozzle has a built-in stainless steel nozzle core and a flow guide groove, and the medium forms a centrifugal vortex in the flow guide groove, and the spray shape is a ring mist.
5. Metal 0.3mm orifice 1/8 thread low pressure mist nozzle hole is slim, the introduction of the United States precision punching machine drilling, the aperture is between 0.1mm ~ 2mm, metal low pressure misting nozzle body is made of stainless steel finishing;
6. The common spray Angle of metal low pressure misting nozzle is 45 ~ 80 degrees. Spray coverage is proportional to distance;
