high pressure cooling mister nozzle 0.008 (0.20mm) orifice 10/24 unc thread fogging head

There is a stainless steel  0.008 (0.20mm) orifice 10 24 unc thread misting nozzles mesh in the nozzle with good filter efficiency, the water will be There is a stainless steel mesh in the nozzle with good filter efficiency, the water will be sprayed in network, good for filtering systems

high pressure cooling mister nozzle 0.008 (0.20mm) orifice 10/24 unc thread fogging head

orifices（mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.20	40	45.0	45	1.0	1.3
	50	58.5	55	1.1	1.5
	60	66.8	60	1.3	1.7
	70	75.3	60	1.5	2.2

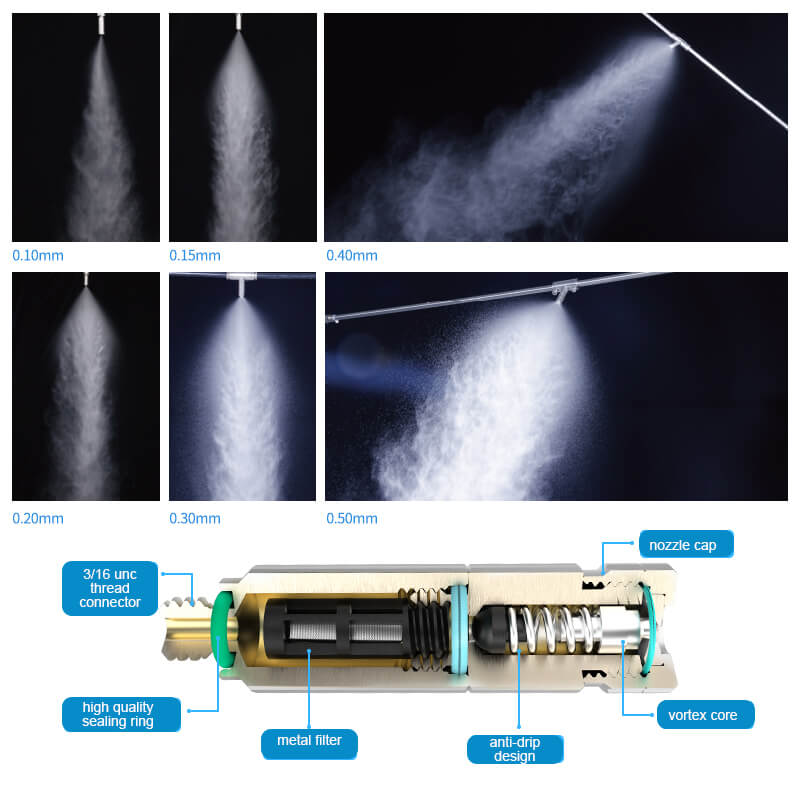

High pressure cooling mister nozzle is a device that can misting liquid and suspend it uniformly in the air. Its working principle is through the internal pressure, the internal liquid is squeezed into the nozzle, the high pressure cooling mister nozzle is placed inside a piece of iron, the high-speed flow of liquid impact on the iron sheet, after the rebound to form a diameter of 15-60 microns or so misting particles, and through the nozzle outlet.

High pressure cooling mister nozzle is a device that uses high pressure to spray liquid substances into tiny droplets. The basic principle is to push a liquid substance into a high-pressure environment and then spray it out through a tiny jet hole, thus forming tiny droplets. These tiny droplets, typically in the range of 5 to 100 microns, have a very high surface area and uniform distribution, so they can perform well in a variety of application scenarios.

The advantages of high pressure cooling mister nozzle：
1. Fine droplets, wide coverage
2. The spraying amount is easy to control and the spraying cost is low
3. Good application effect and uniform coating
4. Reduce the dispersion of droplets and reduce the pollution to the environment
