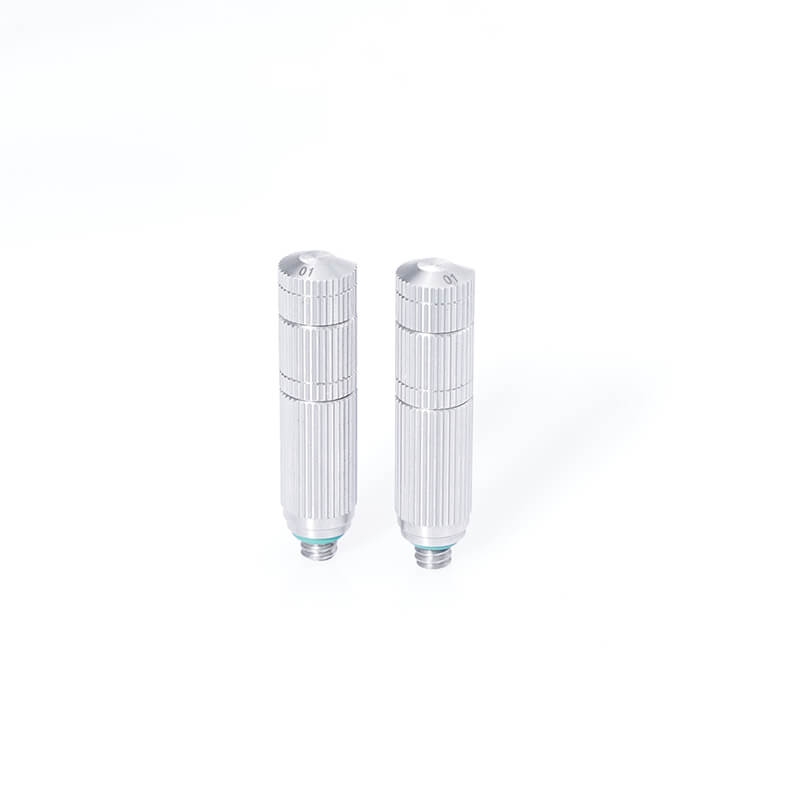

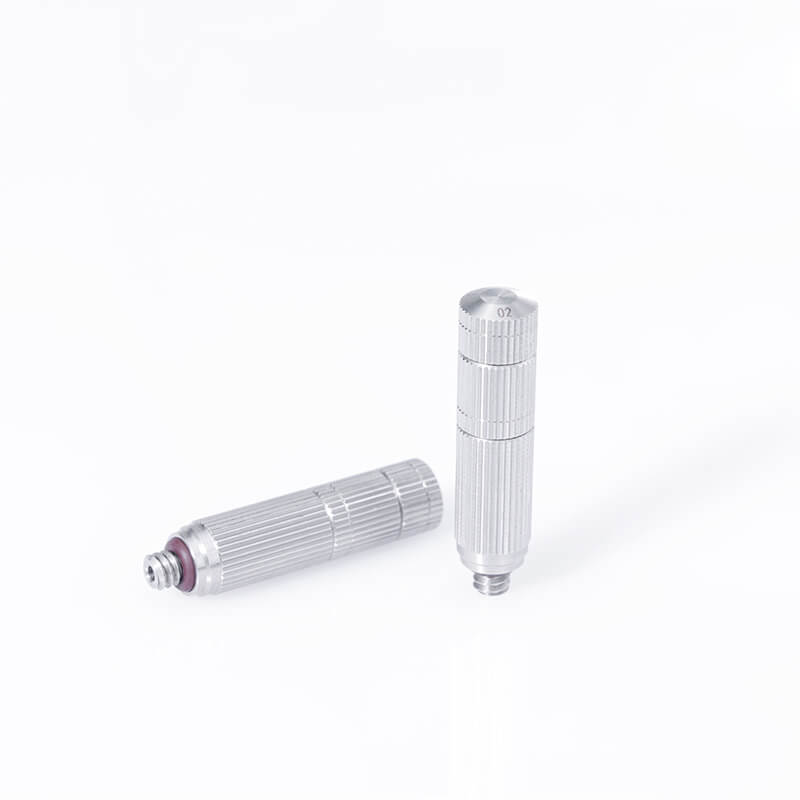

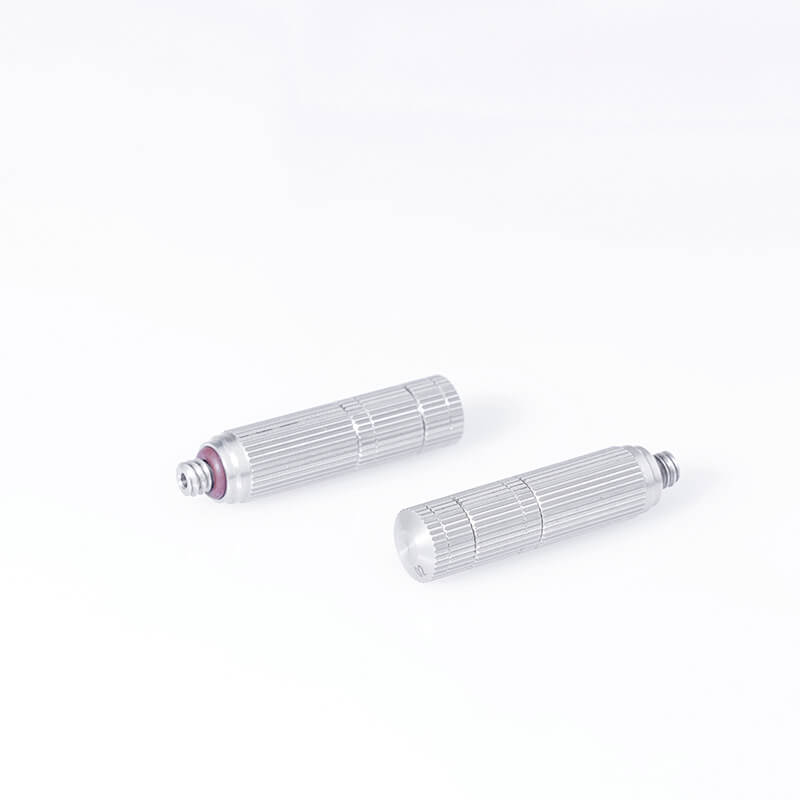

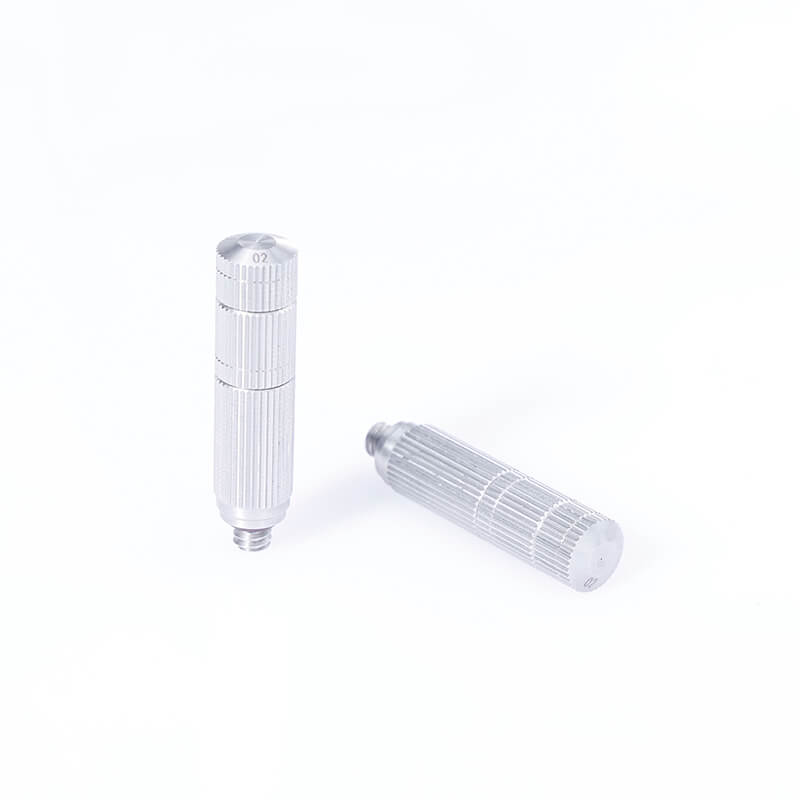

high pressure misting nozzle 0.008 (0.20mm) orifice 12/24 thread fog nozzle tip

The nozzle has high pressure resistance, 0.008 '(0.20mm) orifice for fine spray, spray distance. the 12/24 thread connector is fitt for most adapter in the market.

high pressure misting nozzle 0.008 (0.20mm) orifice 12/24 thread fog nozzle tip

orifices（mm）	model	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.20	FP2-3/16-24UNF-A-303SS	40	45.0	45	1.0	1.3
		50	58.5	55	1.1	1.5
		60	66.8	60	1.3	1.7
		70	75.3	60	1.5	2.2

The factors of 0.20mm orifice high pressure fog nozzle selection include spray Angle, spray volume, pressure, spray flow distribution, impact force, temperature, material, application, etc. These factors are related to each other and restrict each other. Spray volume and pressure, spray Angle and spray flow distribution are proportional. The purpose of spraying any nozzle is to maintain continuous contact between the liquid and the workpiece, and the spray amount is the most important factor. The temperature of the liquid does not affect the spray performance of the 0.20mm orifice high pressure fog nozzle , but it affects the viscosity and specific gravity of the liquid, and also affects the choice of the nozzle material. The choice of the material of the nozzle is an important factor affecting the application of the nozzle. The material should be selected according to the chemical characteristics of the spray liquid. The basic requirements for selecting 0.20mm orifice high pressure fog nozzle are: good misting quality, large spray range, small water consumption, small shape size, not easy to plug, wear and damage, 0.20mm orifice, convenient installation and disassembly.

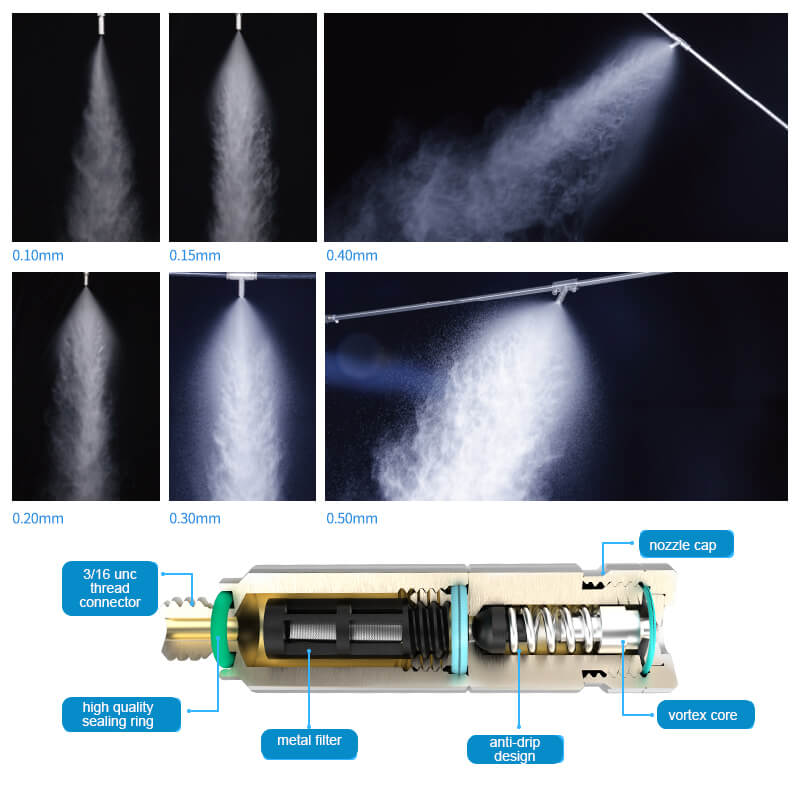

The 0.20mm orifice high pressure fog nozzle is made of brass body, inset with stainless steel nozzle core and stainless steel guide blade, containing anti-drip device, liquid under high pressure water pressure, high-speed flow, forming a centrifugal vortex in the guide blade, ejecting very fine hollow fog particles from the nozzle hole. This nozzle is the use of imported precision punching machine to punch holes, the aperture is between 0.1mm-0.5mm, through the free combination of nozzles, can effectively adjust the humidification amount and spray effect. The nozzle is not easy to plug, good wear resistance, uniform spray, can effectively improve product quality and production efficiency, sophisticated production, low cost.


The 0.20mm orifice high pressure fog nozzle diameter is one of the important parameters that affect the misting effect with 0.20mm orifice. The smaller the nozzle diameter, the smaller the atomized particles produced. This is because the outlet speed of the small-caliber nozzle is faster, so when spraying the liquid, there will be a strong wind cutting effect, and the liquid will be dispersed into smaller particles. At the same time, the liquid outlet of the small-diameter nozzle is relatively small, and the liquid flow rate is slow, which can produce small atomized particles.
