0.1mm orifice 1/4 thread high pressure mist nozzle

high pressure misting nozzle 0.004 (0.10mm) orifice 1/4 thread fog atomizing nozzles

Availability: In Stock

Thread range:1/4 thread
Orifice:0.004" (0.1mm)
Flow range: 28 ml/min at 70 bar
Pressure range:max up to 1500 bar high pressure
Material of manufacture available: Stainless steel 303ss, 304ss,316ss etc
Other in stock thread sizes:12/24 standard, 10/24, 1/8 , 1/4, 3/16 available and others
Functional applications: Widely used in humidification, landscaping, cooling, humidification, disinfection, deodorant air purification, etc.

Qty:

For More quantity price, customization, or other inquiries:

fast shipping

shipping by express,air,sea etc

quality guarantee

Advanced production technology

Online support

Engineer online consultations

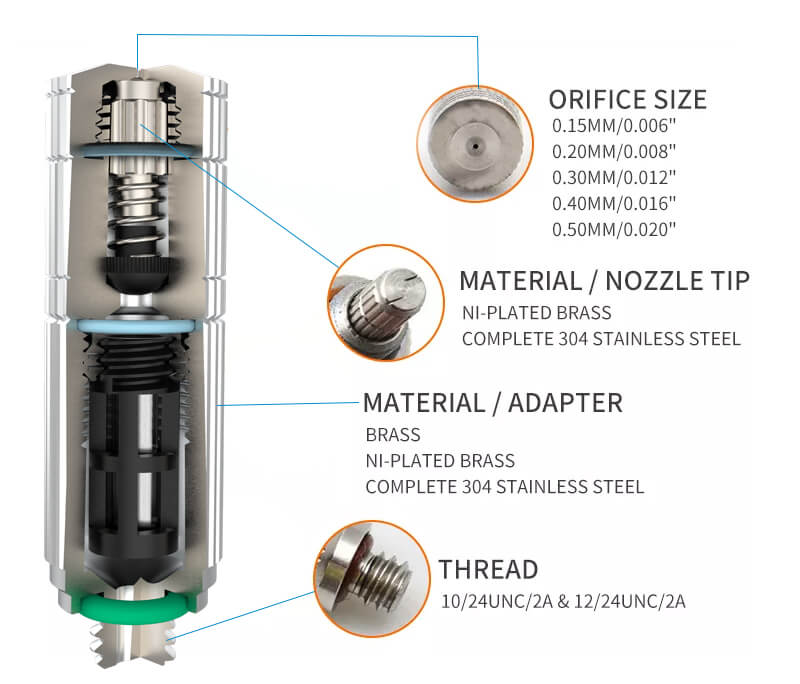

The misting performance is excellent. This type of Stainless steel nozzle is applied in the high pressure for-making Leak-proof, durable; Excellent mist effectively strengthen humidification effect, perfect for misting application Create fine mist droplets that flash evaporate and cool the air almost instantly The nozzle heads can be easily screwed into any 1/4 threaded mist nozzle opening, Orifice diameter is 0.004″(0.10mm）.

high pressure misting nozzle 0.004 (0.10mm) orifice 1/4 thread fog atomizing nozzles
orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.10	40	19.6	39	0.7	1.1
	50	22.6	39	0.9	1.3
	60	25.0	39	1.1	1.5
	70	27.3	39	1.3	1.7

Thread sizes	orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
10-24UNC	0.10	40	19.6	39	0.7	1.1
		50	22.6	39	0.9	1.3
		60	25.0	39	1.1	1.5
		70	27.3	39	1.3	1.7
	0.15	40	31.0	35	1.1	1.4
		50	40.0	45	1.2	1.6
		60	47.8	50	1.3	1.9
		70	53.0	55	1.5	2.1
	0.20	40	45.0	45	1.0	1.3
		50	58.5	55	1.1	1.5
		60	66.8	60	1.3	1.7
		70	75.3	60	1.5	2.2
	0.30	40	87.5	55	1.0	1.6
		50	103.9	60	1.3	1.8
		60	117.3	70	1.6	2.2
		70	130.0	70	1.8	2.4
	0.40	40	110.4	60	0.9	1.4
		50	133.8	70	1.3	1.7
		60	152.6	75	1.6	2.1
		70	170.0	75	1.8	2.4
	0.50	40	127.0	75	1.1	1.6
		50	150.0	85	1.3	1.8
		60	172.5	90	1.5	2.1
		70	190.3	90	1.7	2.3
