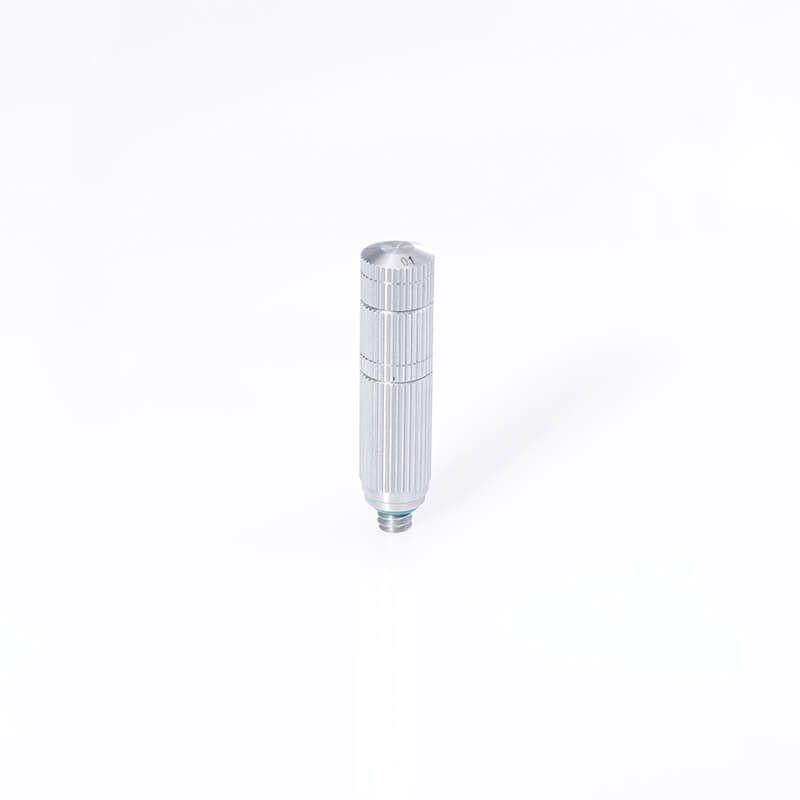

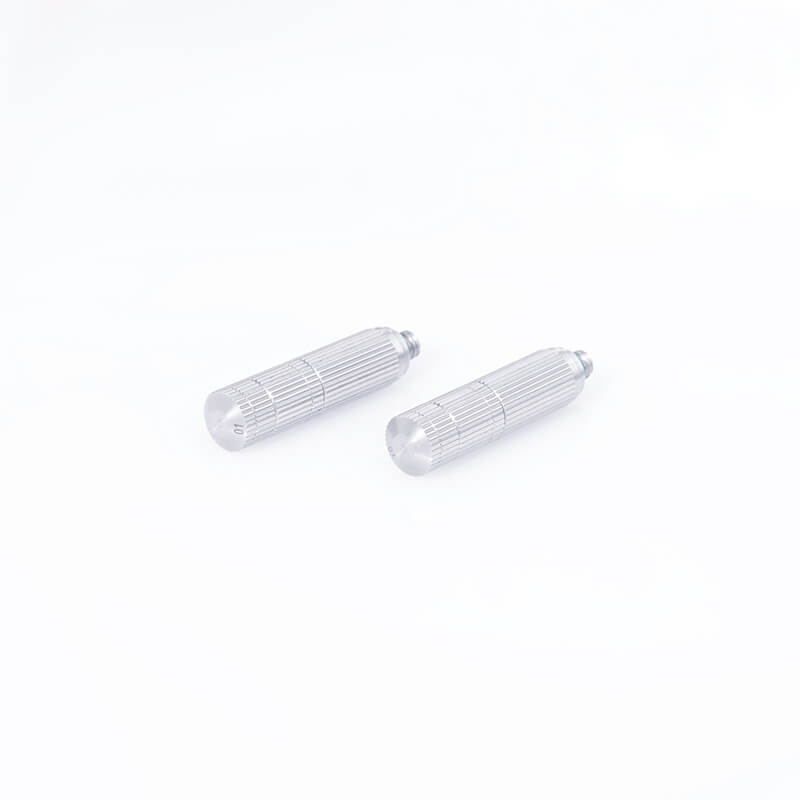

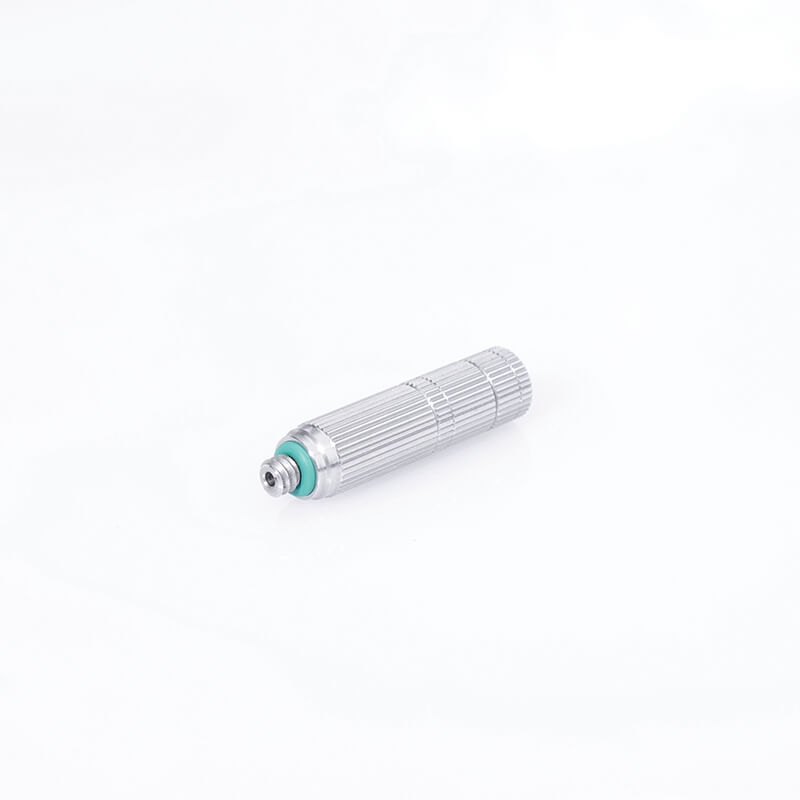

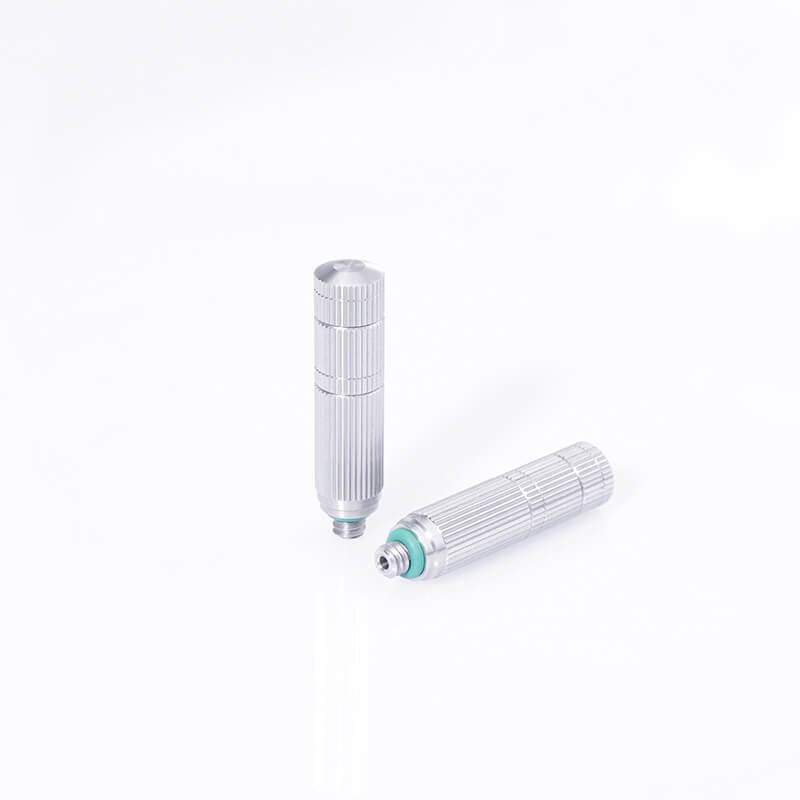

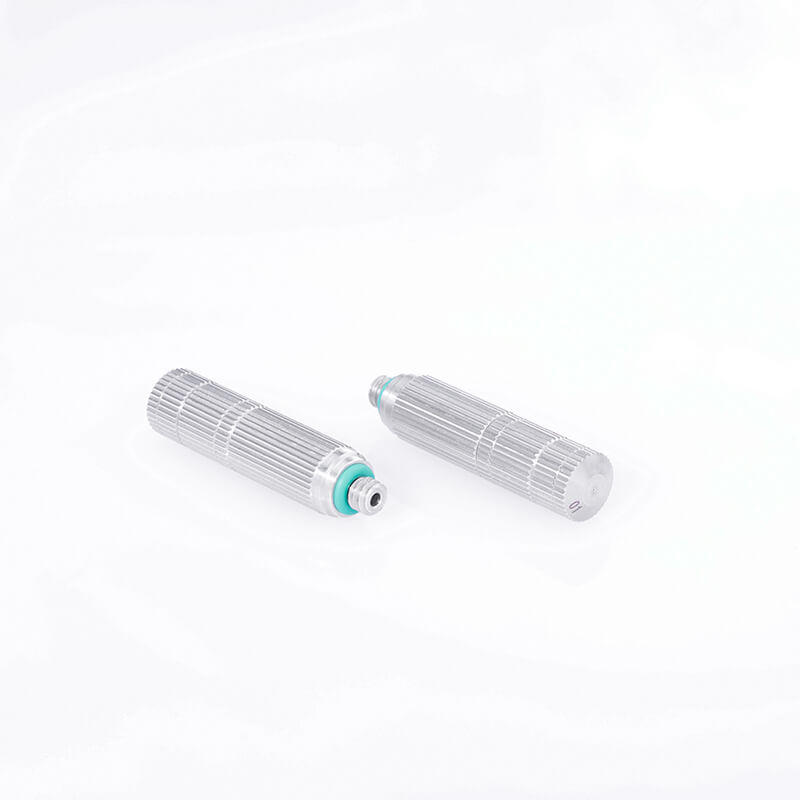

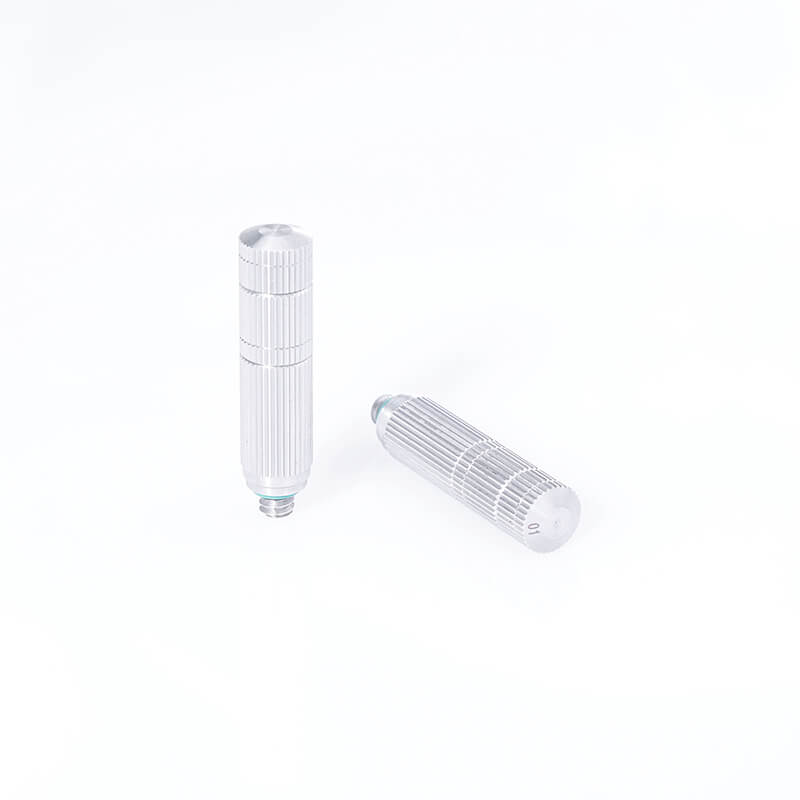

high pressure mister nozzle head 10 24 unc thread 0.004 (0.10mm) orifice fog nozzle tips

0.10mm orifice high pressure misting head with10/24 unc thread 0.004“ (0.10mm) orificeis suitable for high pressure spray system. Perfect for garden watering, greenhouse nursery, Landscaping, spray disinfection and Outdoor Cooling Mister System, etc.

high pressure mister nozzle head 10 24 unc thread 0.004 (0.10mm) orifice fog nozzle tips

orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.10	40	19.6	39	0.7	1.1
	50	22.6	39	0.9	1.3
	60	25.0	39	1.1	1.5
	70	27.3	39	1.3	1.7

Other Stock thread sizes:12/24 standard, 10/24, 1/8 , 1/4, 3/16 available and others



0.10mm orifice high pressure misting head diameter
The diameter of the 0.10mm orifice high pressure misting head is generally between 0.1mm-1.0mm, and the commonly used diameters are 0.2mm, 0.3mm, 0.4mm, 0.5mm and so on. The smaller the diameter of the small nozzle, the finer the particles emitted, the better the misting effect.

Different use scenarios require different sizes of 0.10mm orifice high pressure misting head calibers. For example, the caliber of the home garden sprayer is generally about 1.5mm, and the sprinkler of large area spray such as parks and squares generally uses a caliber above 2.0mm, because a larger spraying range is required.

Liquid viscosity
The higher the viscosity of the liquid, the larger the calibre of the 0.10mm orifice high pressure misting head is required to misting the liquid more finely. For example, when using a paint sprayer for painting work, you need to use a larger caliber.

Misting purpose
Different spraying purposes also require different 0.10mm orifice high pressure misting head calibers. For example, fertilizer spray generally uses a smaller diameter (about 0.1mm) to better cover the sprayed liquid evenly on the surface of the plant; The cleaning spray requires a larger caliber (1.5mm or more) in order to better clean the surface
