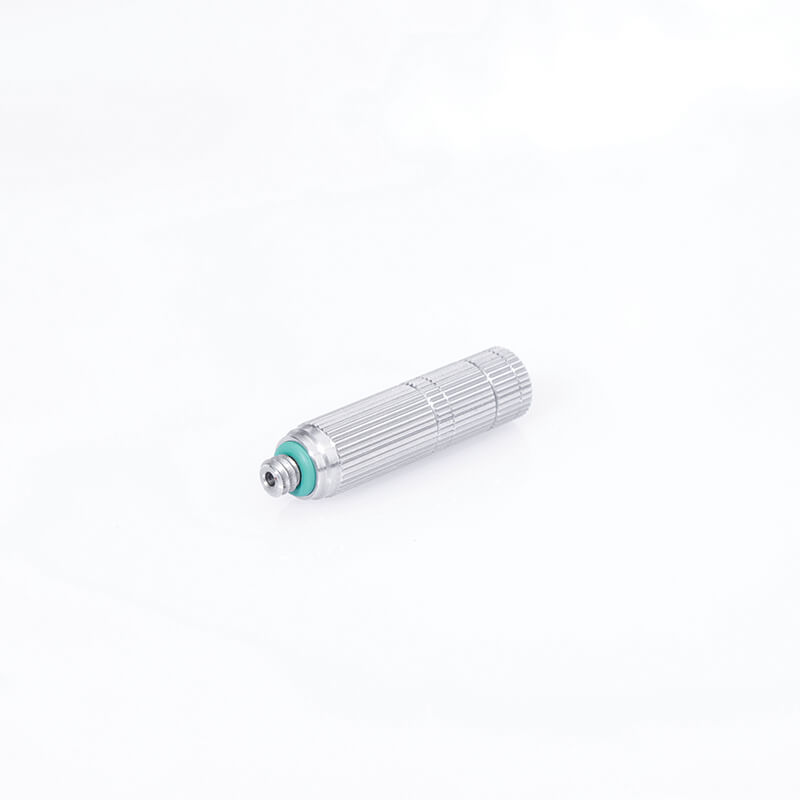

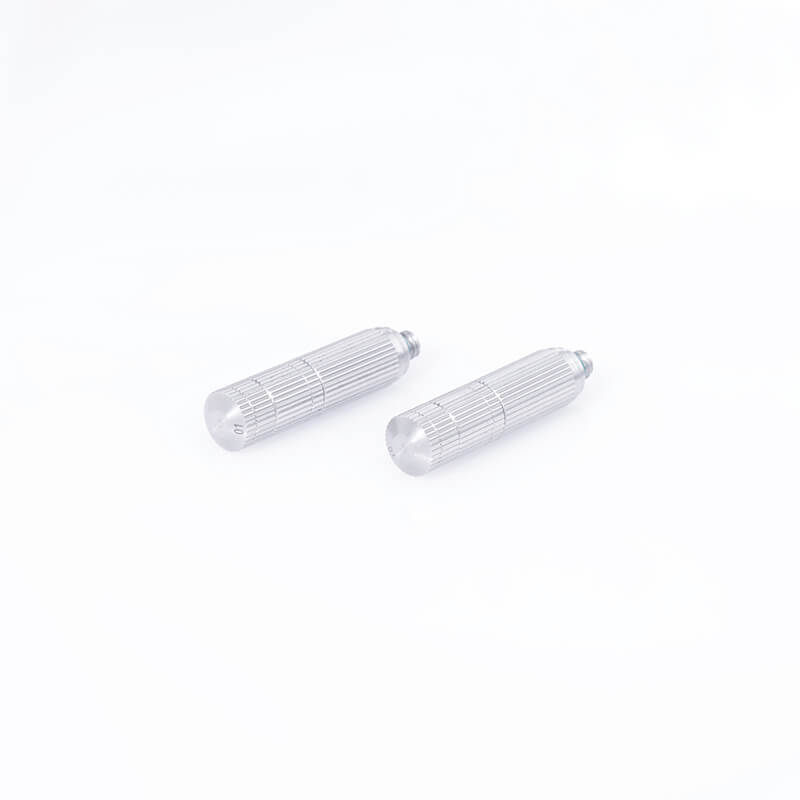

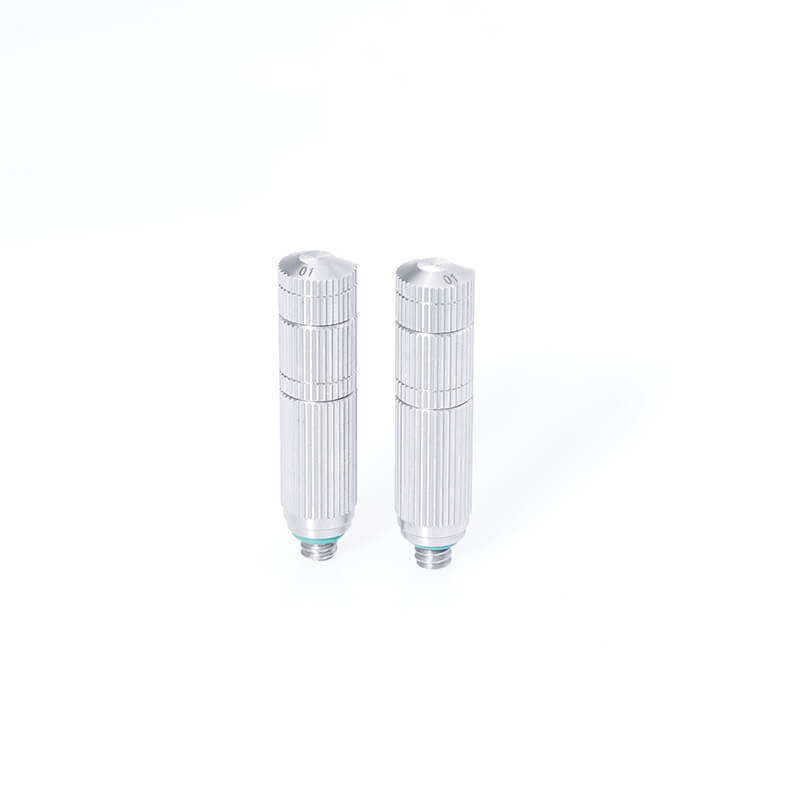

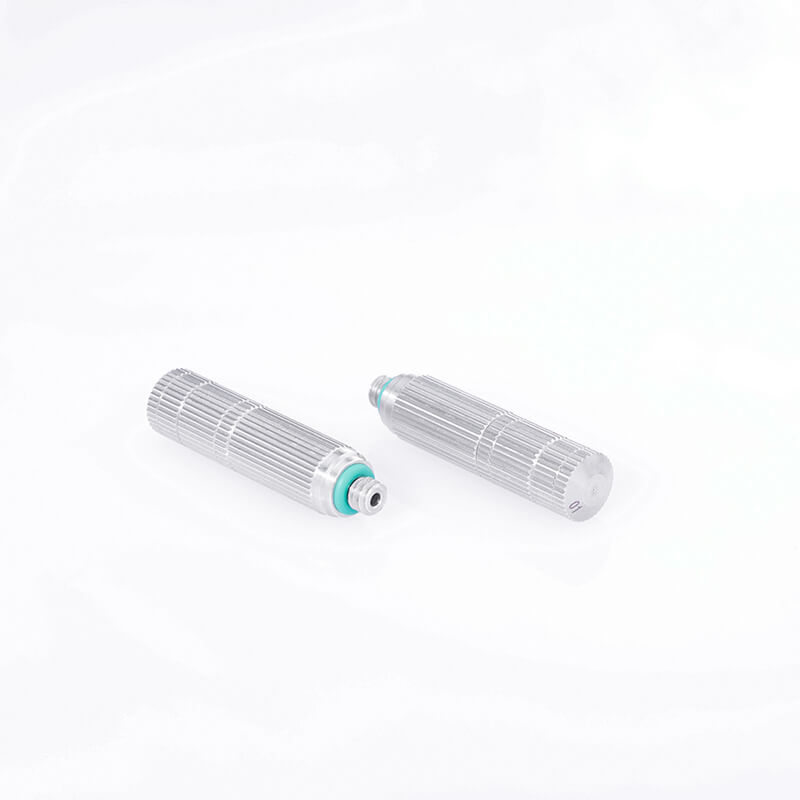

high pressure misting nozzle 0.006 (0.15mm) orifice 1/4 thread fog mister head

The 0.15mm orifice 1/4 thread high pressure mist nozzle are made of stainless steel body and orifice, anti-rust,durable, leak-proof, the mister nozzle is best choice for outdoor cooling system, agriculture irrigation system, green house, spray disinfection, epidemic prevention, deodorizing air purification, landscaping, small fountain. Dimension: Thread size is 1/4; Orifice diameter is 0.006" (0.15mm).

high pressure misting nozzle 0.006 (0.15mm) orifice 1/4 thread fog atomizing nozzles

orifices（mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.15	40	31.0	35	1.1	1.4
	50	40.0	45	1.2	1.6
	60	47.8	50	1.3	1.9
	70	53.0	55	1.5	2.1

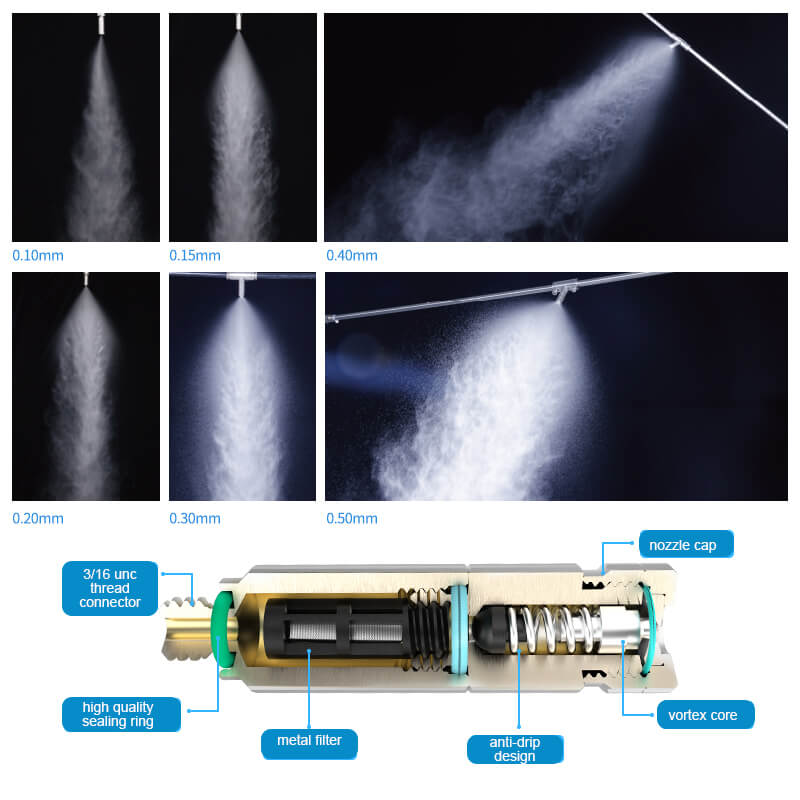

High pressure misting nozzle adopts stainless steel nozzle core and stainless steel vane, containing anti-drip device, liquid under the water pressure of 10Kg-70kg, high-speed flow, forming a centrifugal vortex in the vane, ejecting very fine hollow fog particles from the nozzle hole. The use of special Longtan net, the particle size is only 3-5 microns, this nozzle spray hole is the use of the United States precision punching machine, drilling, the aperture is between 0.1mm-0.5mm, misting heating nozzle free combination, can effectively adjust the humidification and spray effect. The high-pressure humidifier nozzle is characterized by easy plugging, good wear resistance, uniform spray, can effectively improve product quality and production efficiency, sophisticated production, low cost. Widely used in textile factory humidification, salt spray test, landscape artificial fog, animal husbandry cooling disinfection and other humidification places.

Other misting nozzles are available for you to choose, as follows:
The diameter of high-pressure air misting nozzle is between 0.1mm-0.5mm, and the free combination of misting heating nozzle can effectively adjust the humidification amount and spray effect.
The low pressure misting nozzle is made of glass fiber reinforced polypropylene plastic, all components are precision manufactured, and the spray droplets are in 20~40 microns. Spray Angle: 80~90 degrees, water output: 1.5~3.5 liters/hour, system water supply pressure: 3~15 kg, a single nozzle spray coverage area of 3~4 square meters, cooling capacity: 5~10℃.

misting nozzle is a device that produces mist due to the mutual influence of liquid flow. The special internal structure design of this device can make the liquid and gas evenly mixed to produce a spray of fine droplet size or a coarse droplet spray.

The automatic fine misting nozzles can be used with any of seven different spray units and provide flow rates ranging from 2.8 L/h to 179 L/h, allowing multiple adjustments to the nozzle liquid pressure in a very short time. The Settings can therefore be changed to suit a variety of different spray applications.
