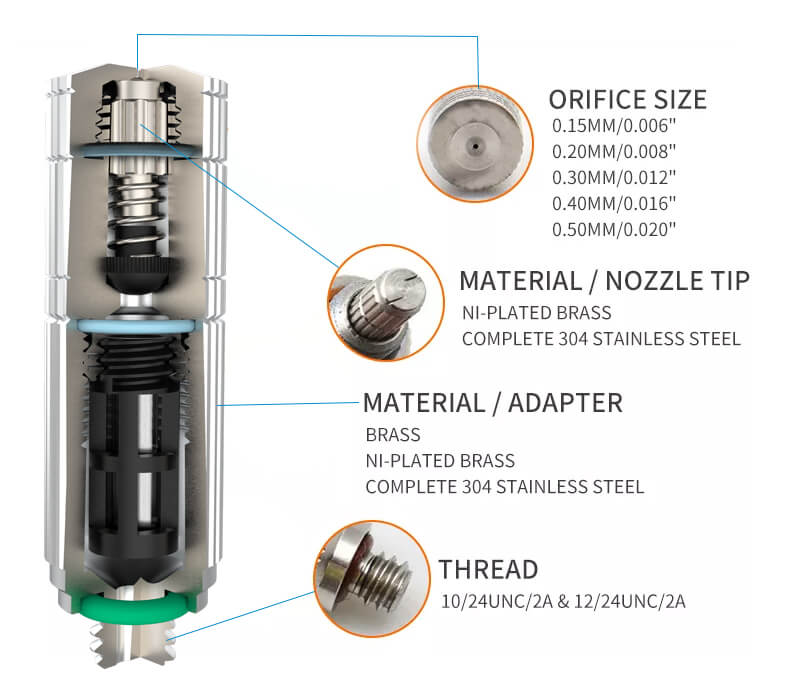

high pressure misting nozzle tips 0.006 (0.15mm) orifice 10/24 unc thread fog sprayer head

0.006 (0.15mm) orifice, screwed into any standard 10/24 threaded spray nozzle opening.
This brass atomizing nozzle is a high pressure misting nozzle, working pressure max up to 1300psi, the best working pressure. It is used more for industrial purposes, but if the water pressure is sufficient, it can also be used for domestic use. Before purchasing, make sure these spray heads are suitable for your atomization system.

orifices（mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.15	40	31.0	35	1.1	1.4
	50	40.0	45	1.2	1.6
	60	47.8	50	1.3	1.9
	70	53.0	55	1.5	2.1

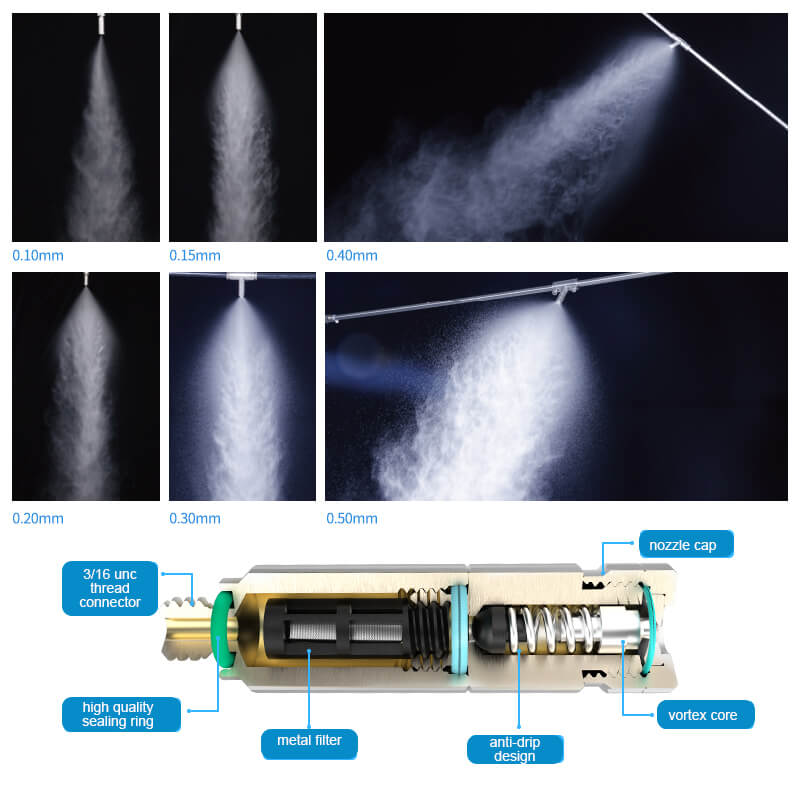

Principle of nozzle misting

0.15mm orifice high pressure nozzle tips is the formation of an extremely thin liquid film on the surface of the liquid when the liquid is sprayed by the nozzle because of the action of high-speed air flow. Due to the very thin thickness of the liquid film, the surface of the liquid film will bulge under the action of surface tension, and then form small droplets under the cutting action of the air flow.

Nozzle Angle
The common nozzle Angle of the small nozzle is 30 degrees, 45 degrees, 60 degrees, 90 degrees, etc. The larger the Angle, the wider the sprayed wet area, 0.15mm orifice high pressure nozzle tips suitable for large area spraying; The smaller the Angle, the smaller the sprayed wet area, suitable for local meticulous spraying.

Misting effect
The misting effect of the 0.15mm orifice high pressure nozzle tips determines its scope of application with 0.15mm orifice. It is generally divided into four grades: very fine misting, fine misting, medium misting and coarse misting. Very fine misting is relatively more delicate misting effect is better, but the associated costs will be relatively high.

The use of small nozzle precautions
1, before use, to thoroughly clean, to avoid contamination of the product.
2, avoid using too thick liquid, should choose the appropriate caliber and Angle.
3, during use, to avoid exceeding the highest spray pressure.
4, if long-term use, to regularly clean and replace the small nozzle, to maintain the spraying effect.
