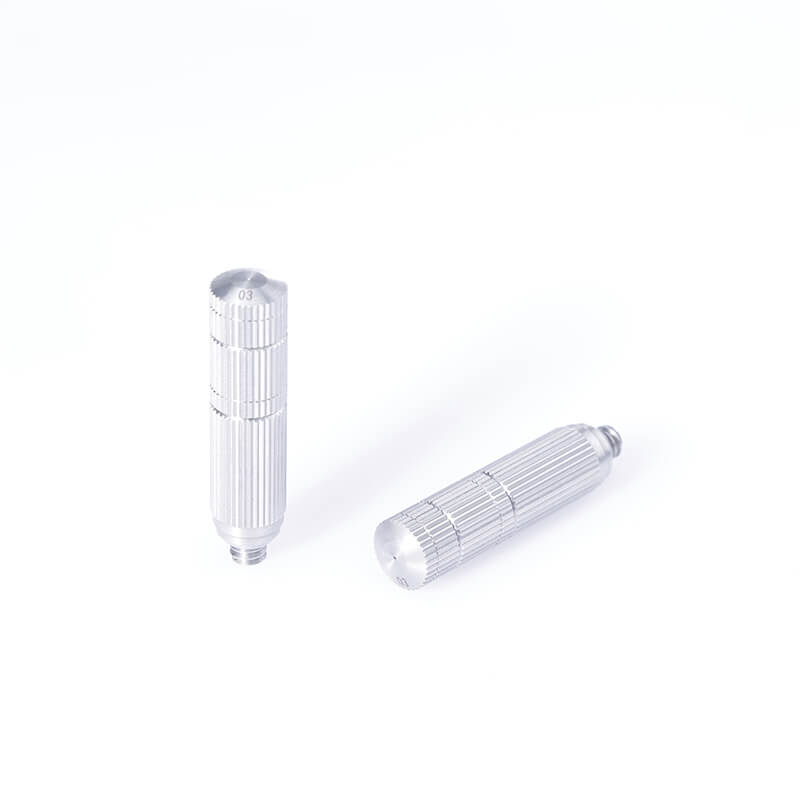

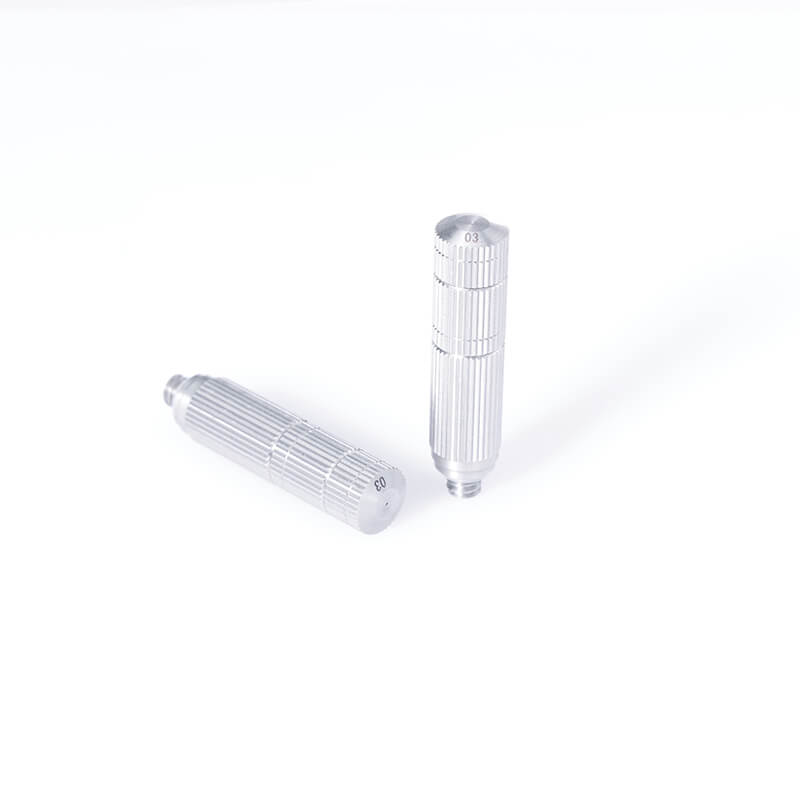

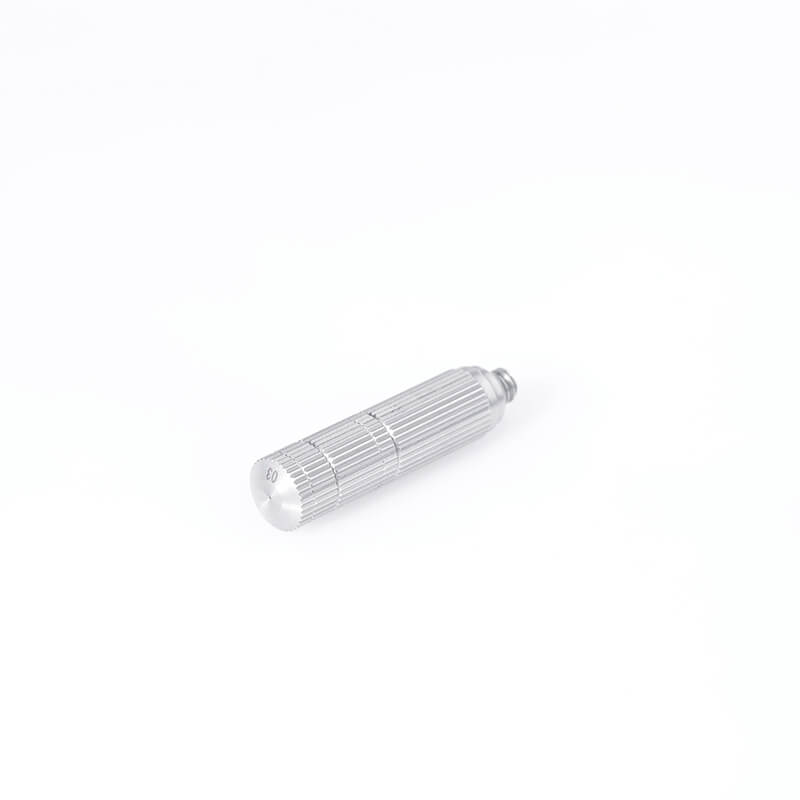

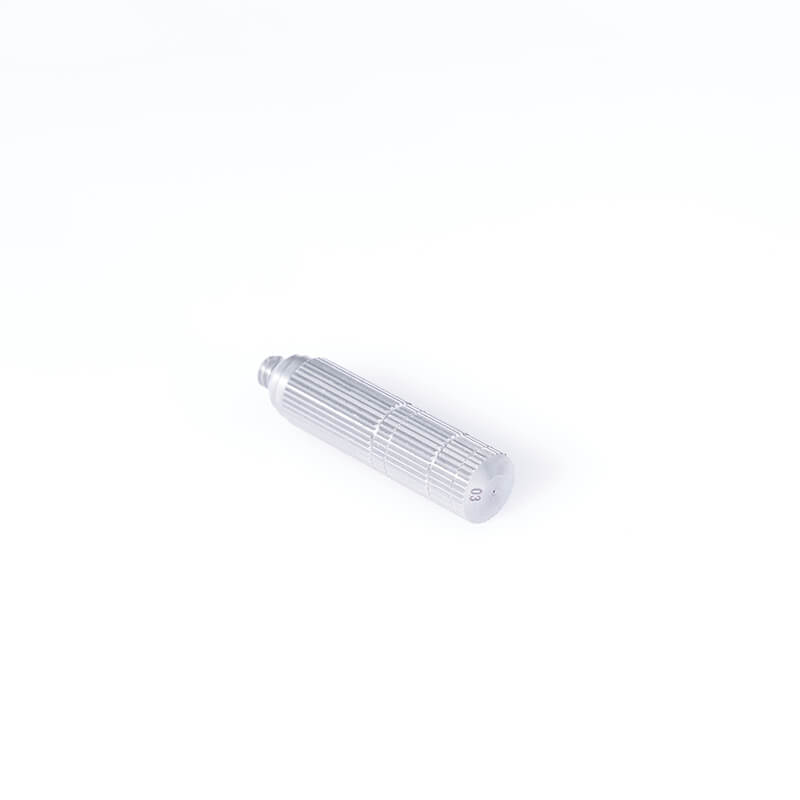

high pressure fog misting nozzle 0.012(0.3mm) orifice 12 24 unc thread nozzle tips

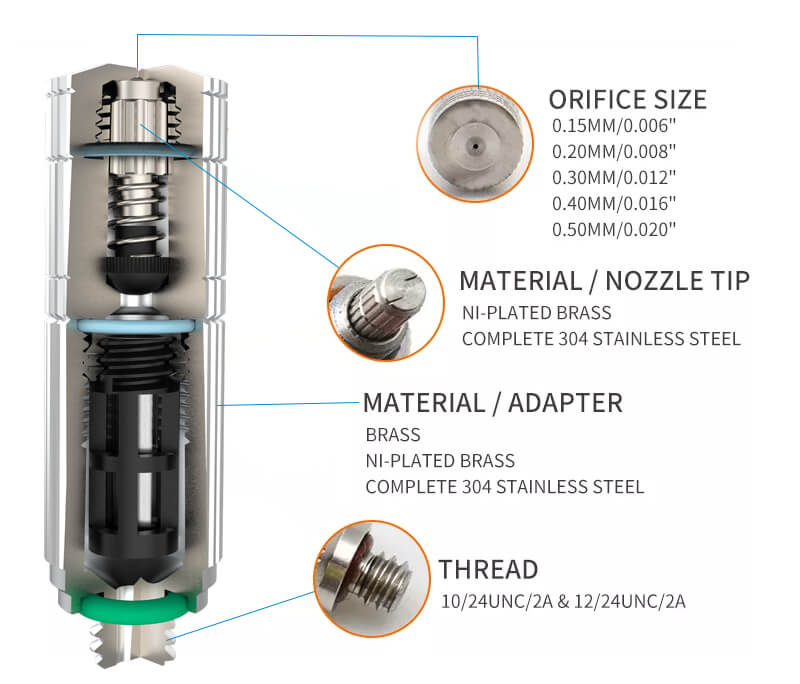

0.3mm orifice high pressure fog misting nozzle features:

1. With waterproof design, the sprinkler does not drip;
2. With 316 stainless steel filter, internal rotary automatic cleaning is not easy to plug;
3. Stainless steel spray sheet by advanced forging process, good wear resistance, uniform spray, is similar nozzle 2-5 times life.
4. The sprinkler does not need air assistance, the system is simple, the spray is fine to 3-7μm, the fog misting is uniform and full, water saving and energy saving.

high pressure fog misting nozzle models are 0, 1, 2, 3, 4, 5 six specifications, can meet different occasions humidification and cooling, disinfection and dust removal; It is also equipped with 0.3mm orifice high pressure fog misting nozzle accessories three-way, four-way, elbow, end plug, end plug, valve connection, outer wire connector, single spray base, double spray base, low pressure pipe, high pressure PE pipe and other accessories for customers to choose.


The 0.3mm orifice high pressure fog misting aperture refers to the size of the atomized particles produced by the nozzle, usually between 15 and 80 microns with 0.3mm orifice. The smaller the aperture, the finer the atomized particles produced, but it will also affect the speed and efficiency of fog misting. This is because the fog misting aperture is inversely proportional to the number of atomized droplets, and the smaller the aperture, the fewer atomized droplets. The atomizing aperture has a double influence on the spraying effect. On the one hand, the smaller the aperture, the finer the atomizing droplet, the better the spraying uniformity, the stronger the adhesion of the coating and the lower the roughness of the coating. On the other hand, the smaller the aperture, the fewer atomized droplets, the lower the efficiency of spraying, the worse the quality of spraying. Therefore, it is necessary to choose the appropriate fog misting aperture according to different spraying requirements.

high pressure fog misting nozzle 0.012(0.3mm) orifice 12 24 unc thread nozzle tips

Orifices（mm）	Model	Pressure （bar）	Flow （mL/Min）	Spray angle（°）	Effective spray distance（M）	The spray distance（M）
0.30	FP3-3/16-24UNF-A-303SS	40	87.5	55	1.0	1.6
		50	103.9	60	1.3	1.8
		60	117.3	70	1.6	2.2
		70	130.0	70	1.8	2.4

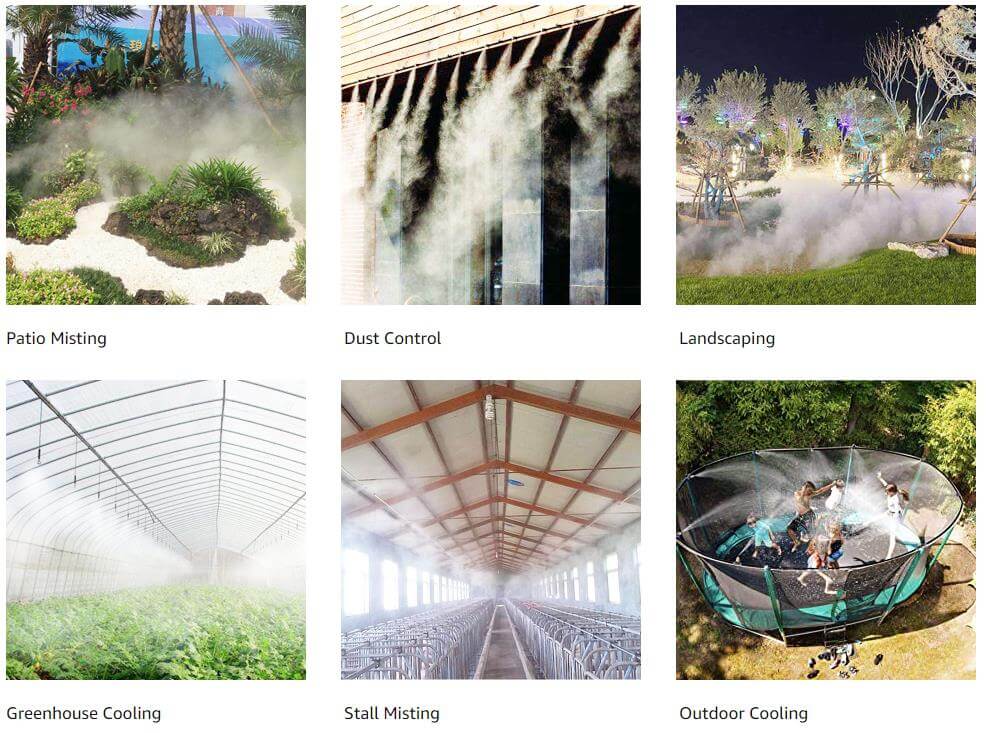

The most used place
