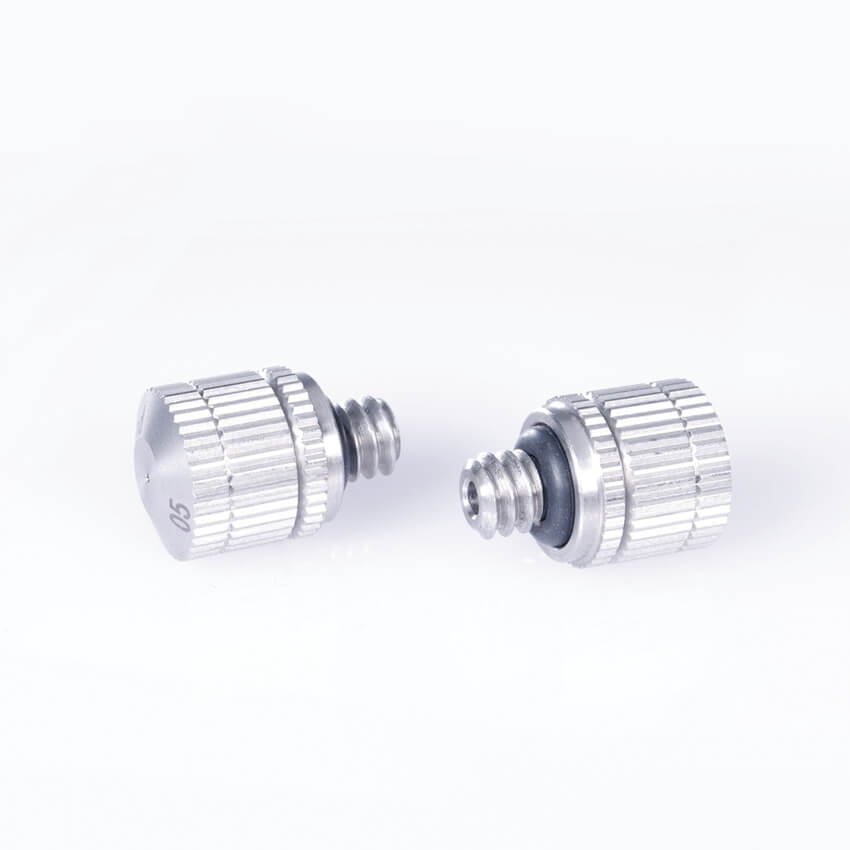

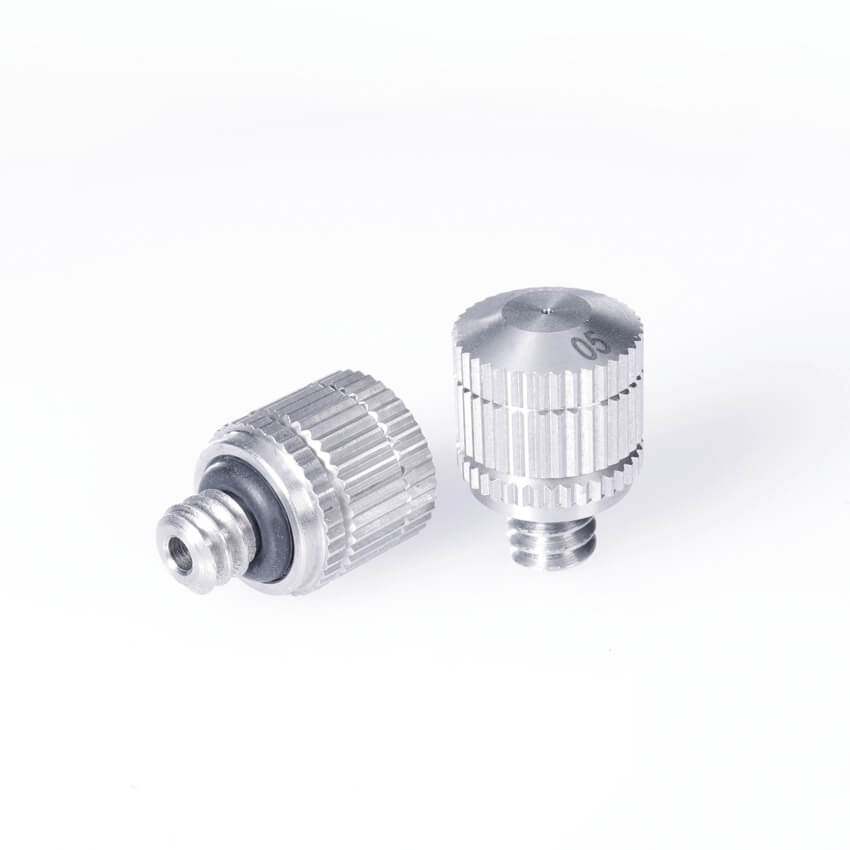

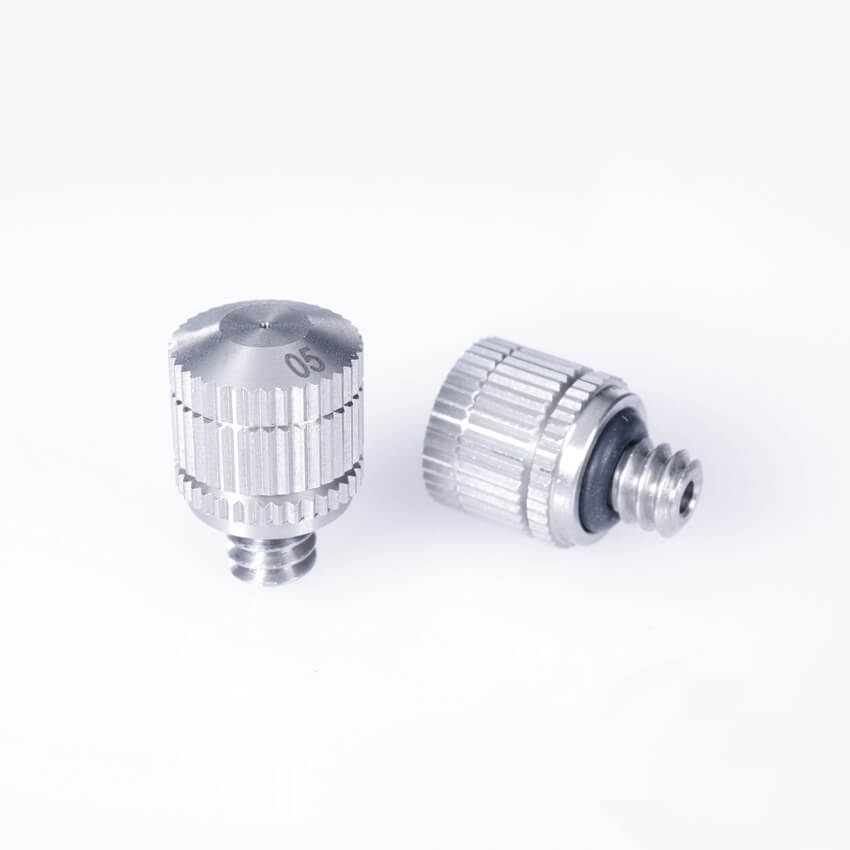

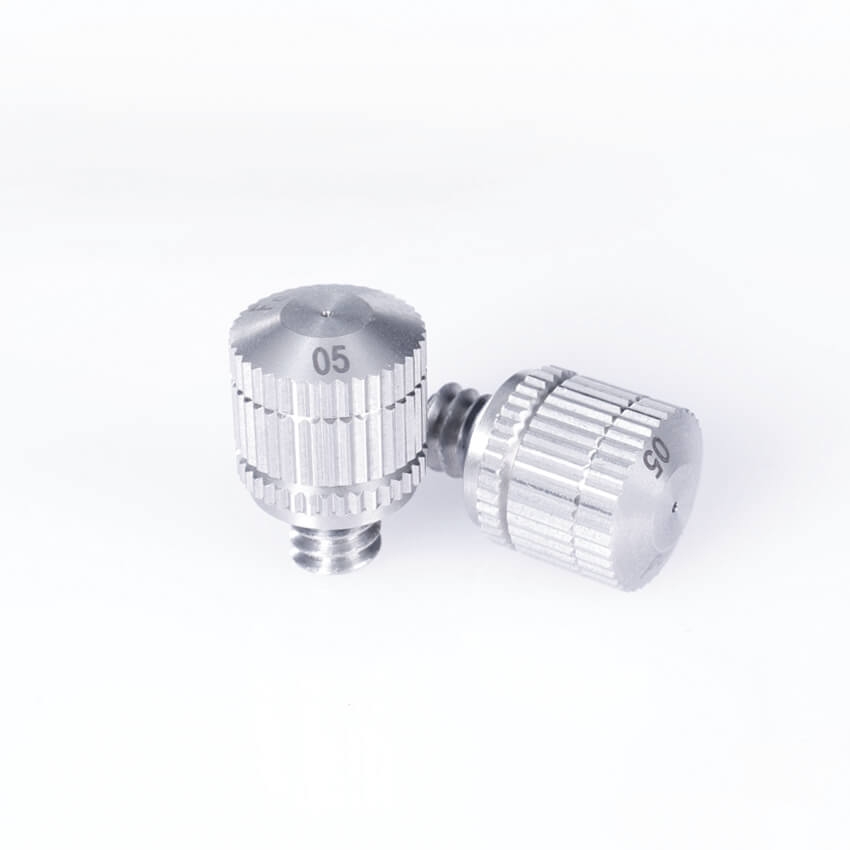

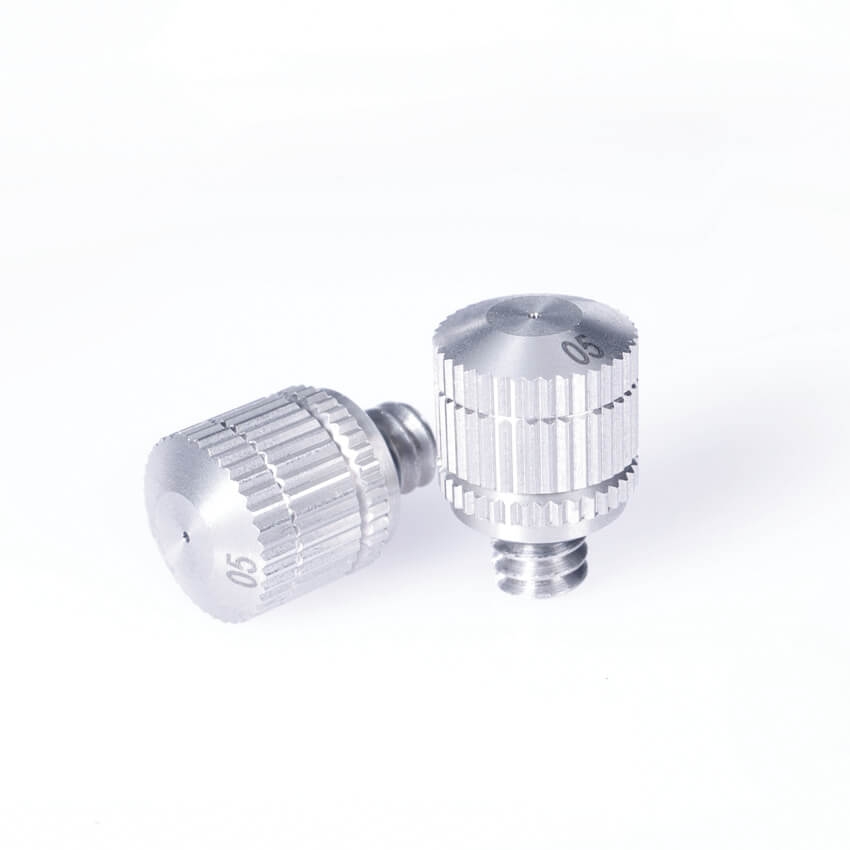

Water misting nozzle greenhouse plant humidifier tips

Availability: In Stock

1. Thread Size: 3/16unc,10/24unc,12/24unc, 10/32unf, 6mm, 8mm.
2. SS orifice Size: 0.1mm ,0.2m,0.3mm ,0.4mm ,0.5mm and larger.
Ceramic Orifice size: 0.08mm ,0.1mm,0.2mm,0.3mm ,0.4mm ,0.5mm and larger.
3. Water Drop Size: 15 micron---70 micron.
4. With Anti-drop Device inside Nozzle.
5. High working pressure: up to 1500psi (100bar)
6. Without airs supplementary, system device is simple.
7. Energy and water saving, low cost and good effects.
8. Nozzle tip uses wear-resistant materials, and service life is 2.5 times of similar nozzle.

Qty:

For More quantity price, customization, or other inquiries:

fast shipping

shipping by express,air,sea etc

quality guarantee

Advanced production technology

Online support

Engineer online consultations

hread sizes	orifices （mm）	pressure （bar）	flow （mL/Min）	spray angle（°）	Effective spray distance（M）	The spray distance（M）
10-24UNC	0.10	40	19.6	39	0.7	1.1
		50	22.6	39	0.9	1.3
		60	25.0	39	1.1	1.5
		70	27.3	39	1.3	1.7
	0.15	40	31.0	35	1.1	1.4
		50	40.0	45	1.2	1.6
		60	47.8	50	1.3	1.9
		70	53.0	55	1.5	2.1
	0.20	40	45.0	45	1.0	1.3
		50	58.5	55	1.1	1.5
		60	66.8	60	1.3	1.7
		70	75.3	60	1.5	2.2
	0.30	40	87.5	55	1.0	1.6
		50	103.9	60	1.3	1.8
		60	117.3	70	1.6	2.2
		70	130.0	70	1.8	2.4
	0.40	40	110.4	60	0.9	1.4
		50	133.8	70	1.3	1.7
		60	152.6	75	1.6	2.1
		70	170.0	75	1.8	2.4
	0.50	40	127.0	75	1.1	1.6
		50	150.0	85	1.3	1.8
		60	172.5	90	1.5	2.1
		70	190.3	90	1.7	2.3

About us misting nozzle

High quality mist nozzle

Nozzles are made of high quality stainless steel.available: Stainless steel 303ss, 304ss,316ss etc. Long service cycle, wear resistance, corrosion resistance, no blockage, no rust, etc.

Standard orifice

Standard orifice. Our fog misting nozzle orifices are up to standard and available in 0.004″/0.10mm to 0.024″/0.60mm in stocks. Atomization is stable and continuous, covering a wide area.

Standard threaded siezs

In order to meet the requirements of customers, the interface of our misting nozzle thread conforms to UNC, BSPT, NPT and other standards. such as 12/24,10/24,1/8,23/36,1/4 etc.

Optional orifice, multi sizes

The design principle of anti-drip misting nozzle is that liquid flows at high speed under high water pressure, forms a centrifugal vortex in the guide blade, and spits out and fine hollow fog particles from the nozzle hole. The use of filter screen, jet hole is the use of high precision drilling mechanism, aperture between 01.MM-0.8MM, excellent production.

Fog misting nozzles are widely used

Wetting and rust removal, air humidification, chemical treatment, chemical agent spraying, liquid spraying, tobacco humidification, tablet coating, flue gas steam cooling, sterilization and disinfection, component cooling, fruit wax spraying, textile plant humidification and cooling, plant humidification, salt spray test, artificial fog, other places humidification, etc

Professional misting knowledge

As a nozzle factory. We manufacture and sell different types of misting nozzles. High quality nozzle service. Engineers communicate directly. Engineers directly answer misting nozzle problems such as.
1. How to choose misting nozzle
2. How to control the flow rate of liquid
3. How to choose the size of misting nozzle pressure
4. How to choose the misting nozzle connection size
5. How to install the misting nozzle so that it will not leak, dripping
6. How to install the misting spray nozzle stability
7. How to install the fitting of the mouth
8. How to choose the right pressure pump
9. How to check the leakage problem of misting nozzle system

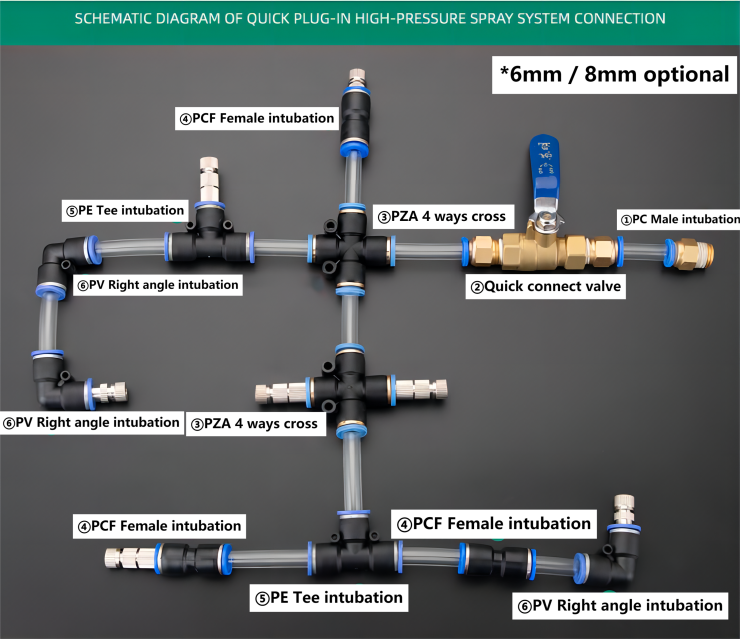

10. How to control misting system layout. Pipe fittings layout. To achieve to achieve cooling. Humidification effect.
11. How to solve the problem that the size of the misting system is inconsistent with the interface of the accessories
12. The misting system does not spray. Or spray attenuation and so on
13. misting system How to detect problems in misting system pipe fittings. Installation, maintenance and other problems

Whether you are the daily use of misting system, misting nozzle, or industrial needs of the misting system. We'll give you what we know about misting.
Anyway, our engineers will solve the problem of misting. Please contact us in time
