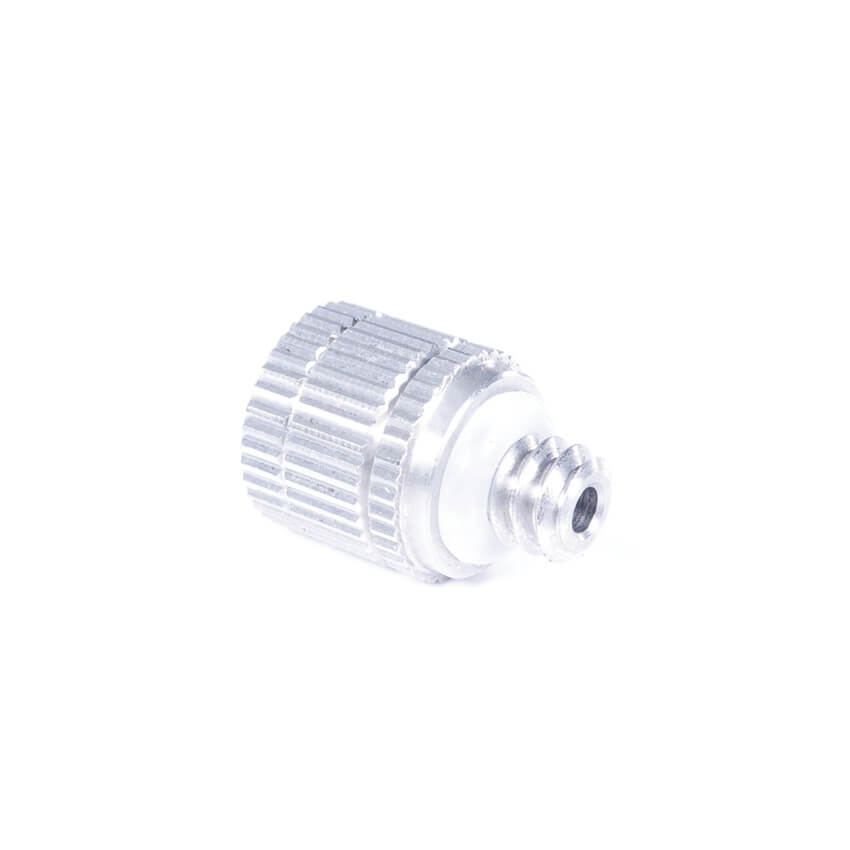

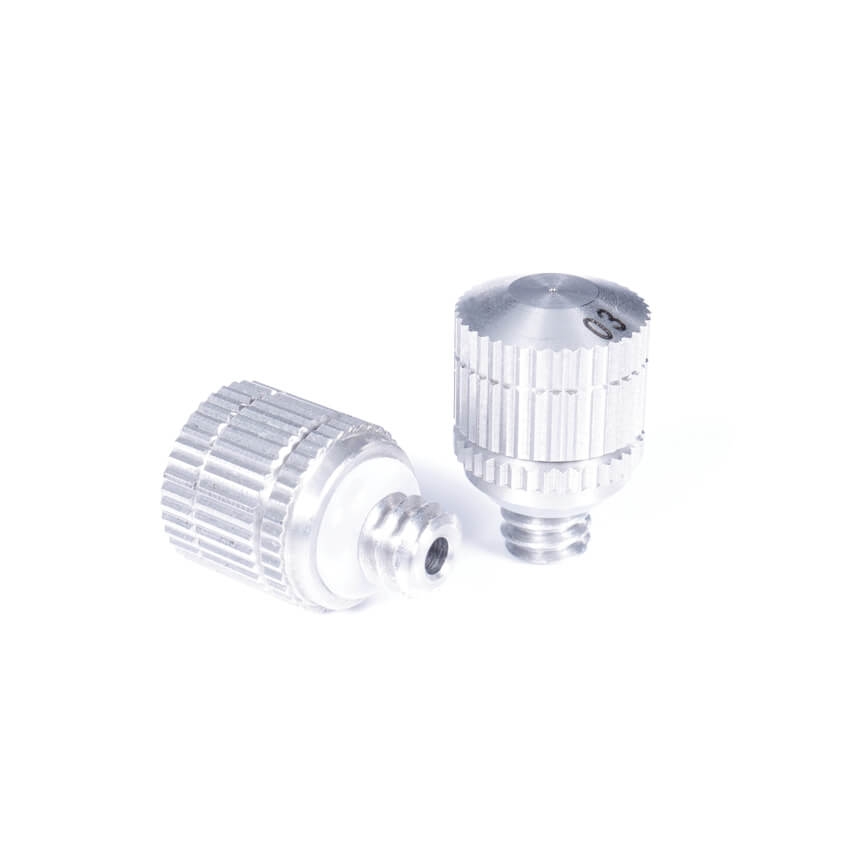

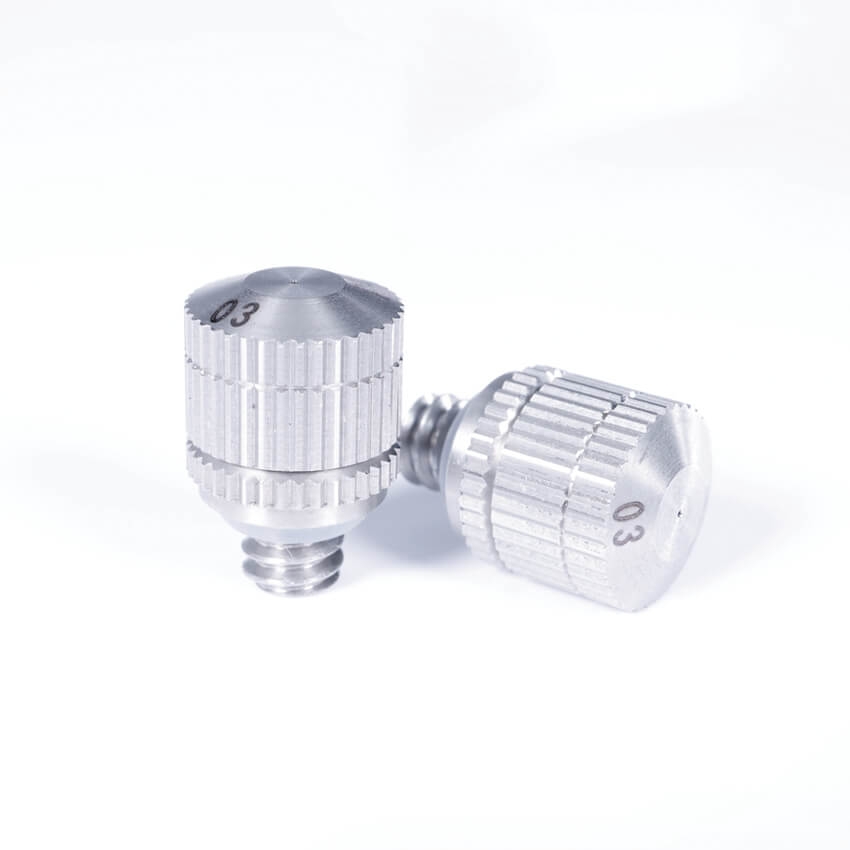

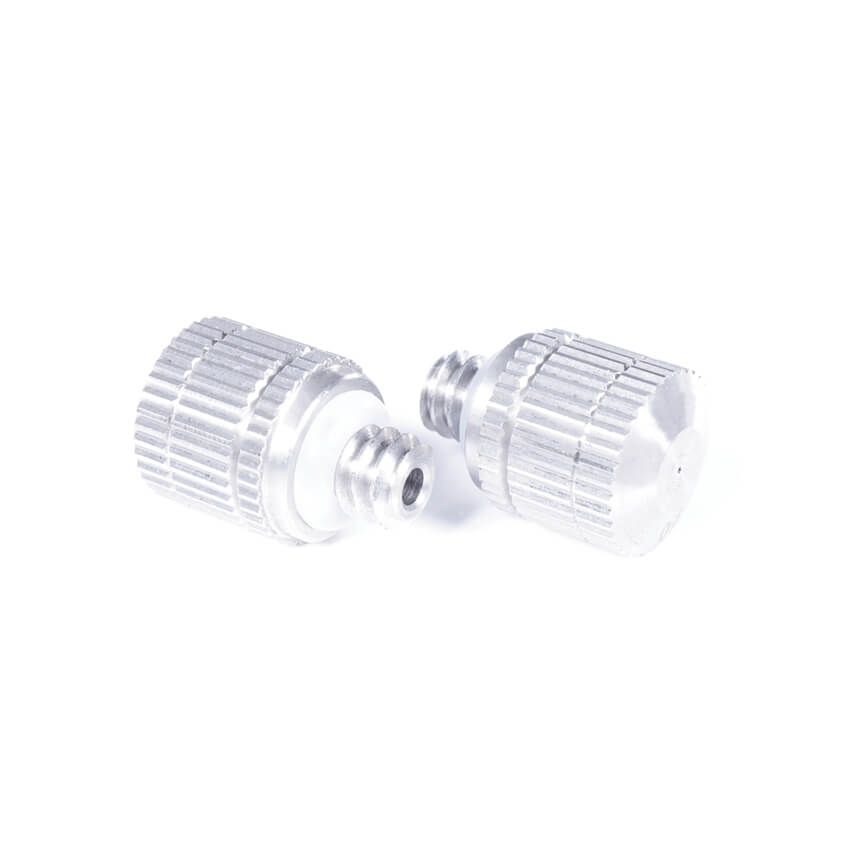

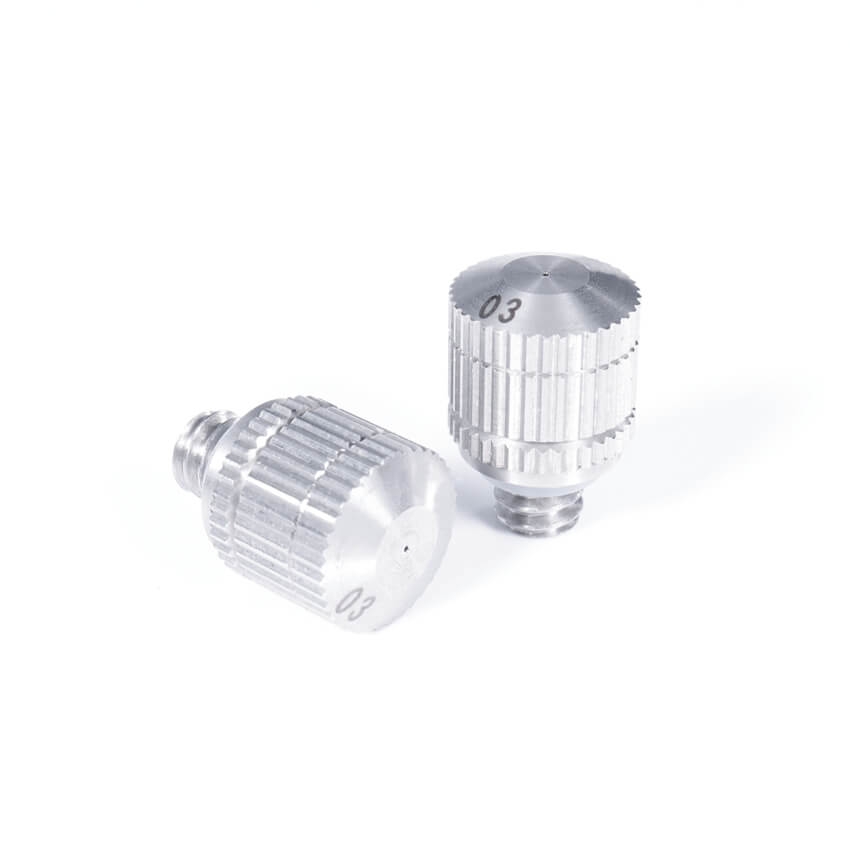

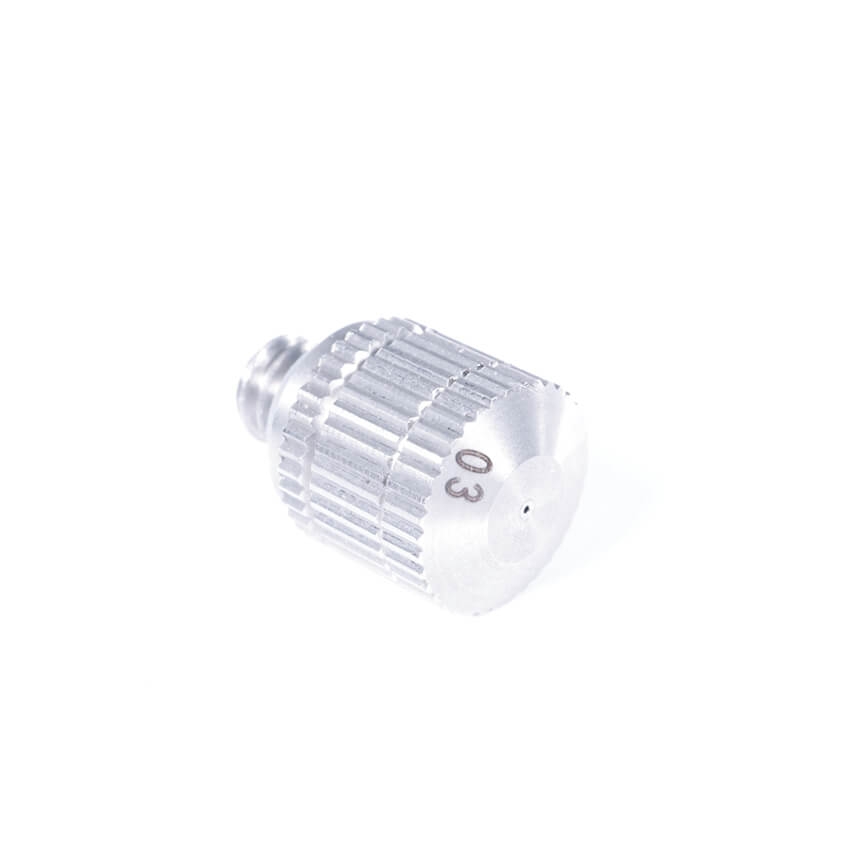

Mister nozzle tip for greenhouse with humidification

1.Fine Ceramic Fog Nozzles:
Fog Cooling System,Humidifying,Misting, Mist Maker,Dust Control

2.Accessory with:
Filter and anti-drip,Ceramic orifice

3.Thread Size:
10/24,12/24 UNC,1/4'',1/8''

4.Orifice Diameter:
0.1mm-0.5mm

5.Nozzles Design Features:
*Ceramic insert
*Outstanding atomization
*Drip-free performance
*50 micron polypropylene filter
*Safety wire hole available
*Minimum operating pressure 100 psi (7 bar)

6.mist nozzle's spray Characteristics:
Mist at low pressure; fog nozzles work at high pressure

7.Spray pattern:
Cone-shaped Fog


The greenhouse misting nozzle can be used to spray flowers and vegetables in greenhouses. For orchards. Micro spray for nurseries, home gardens, strip greening and other places.

The atomization effect is very good. Large range, can also be sprayed from the air to become a drizzle effect, suitable for family flower, garden cooling and so on.

This greenhouse misting is suitable for orchards, greenhouses, rice. Landscaping and other places. Good effect, wide range, fine fog.

When used with the anti-drip device, the anti-drip greenhouse misting can effectively eliminate the drip injury phenomenon after stopping the spray to ensure that the micro-nozzle does not drip, so as to effectively protect the crop can open the irrigation effect at the same time.


Installation height and method

1, the greenhouse misting nozzle position height is 2 meters by default;
2. The length of the branch pipe can be selected according to different crops, cultivation/cultivation modes and the height of the fixed point of the greenhouse;
3, the length of the branch pipe is 20cm, 40cm, 50cm, 60cm for choice, the length can be customized; The branch pipe length is 40cm by default. For every 10cm increase or decrease, the price will increase or decrease by 0.1 yuan;
4, the default is 20mm, there are 16mm, 25mm, 32mm for choice.

greenhouse misting nozzle installation spacing with the same row of greenhouse misting nozzle spacing 1.5-2 meters, spray evenly; The greater the spacing, the greater the dead Angle; Different greenhouse misting nozzle spray range is different, installation spacing is also different.
