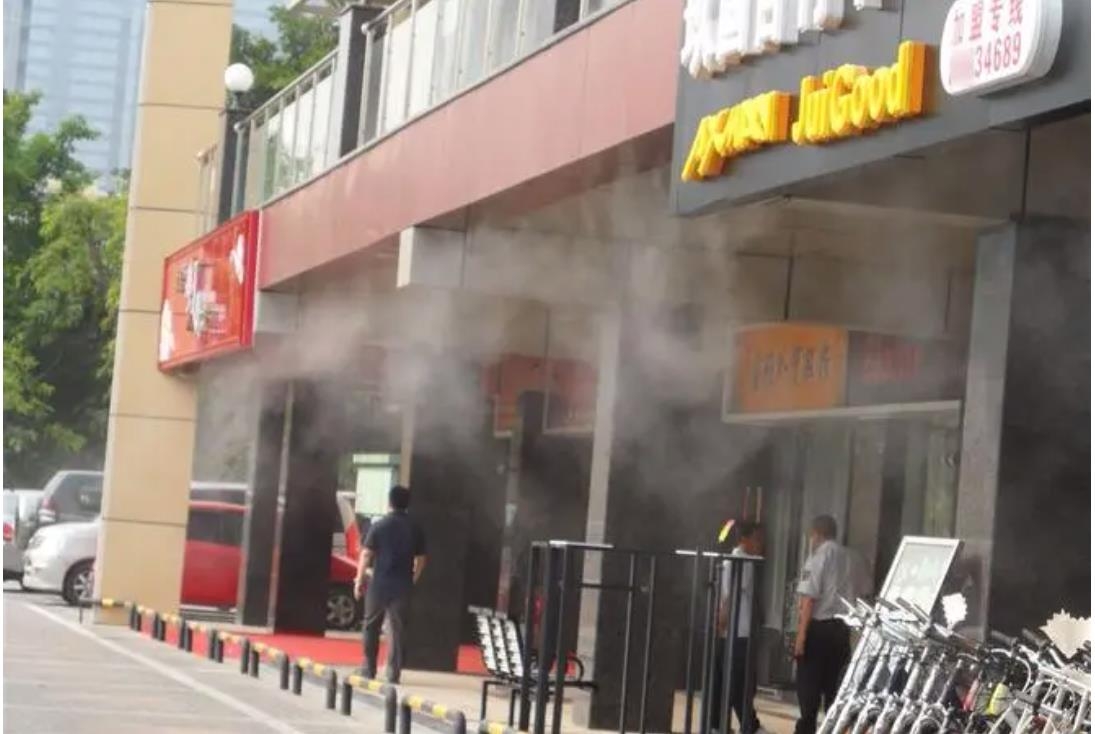

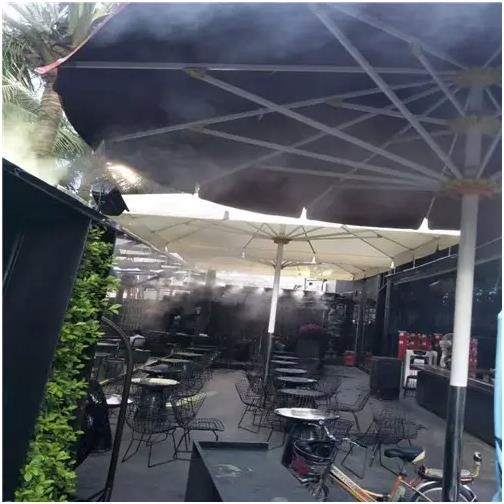

Restaurant spray cooling requirements fog particles are relatively small. To 5-10 micron is appropriate. The spray of misting nozzle can produce negative ions. Its formula is H2O -- H++OH-. Namely: water - light ion + hydroxide ion. Water is a very weak electrolyte, it can be weakly ionized, water and water after separation is changed into hydroxide ions, namely negative ions.



There are two main types of misting nozzles used for restaurant spray cooling


Conventional misting nozzle, with a laser in a piece of super hard special alloy drilling, and in the hole behind the stainless steel precision small piston, driven by high pressure water flow, the small piston high-speed movement, the water will be torn into very fine water droplets, spray into fog through the hole. Such mister nozzles are widely used.


The other is the stainless steel ruby impact misting nozzle, high-speed water through the ruby hit the tip of the very fine needle breaks into fog. Because of the amount of fog, this kind of misting nozzle is the most suitable for the construction of artificial fog landscape.

Application effect of misting nozzle spray system


1. Automatic spray, humidification, cooling and disinfection: It can realize the automatic periodic cycle spray in each field, section and workshop, and simultaneously have the function of manual control spray operation.

2, automatic induction temperature control, the machine can sense the indoor temperature change, if set at 28 degrees Celsius to start spraying, when the indoor temperature reaches 28 degrees, the machine starts to work automatically, humidification and cooling; When the temperature is below 28 degrees, the machine will automatically stop working and the temperature can be set manually.

3, atomized particles 10-30 micron: high pressure tube, nozzle, easy installation; Equipped with two water impurities filter, multiple filtration protection, effectively avoid the hole blockage, nozzle for laser drilling anti-drip stainless steel nozzle, ceramic spray piece, atomized particles 10-30 microns, no rain.
4, automatic water adding, there is no water in the tank, can automatically add water, when the water level reaches a certain limit, automatically stop water.

5, save labor, high work efficiency.

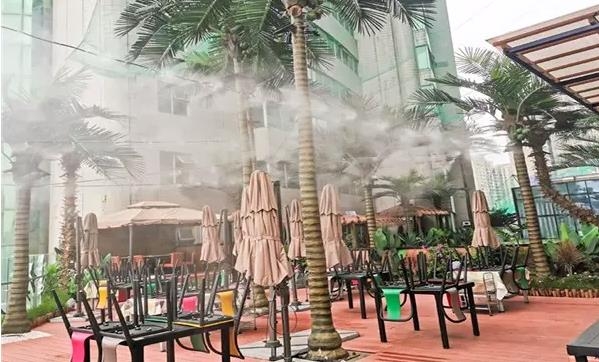

Many restaurants, resorts and hotels like to use spray cooling systems in outdoor swimming pools. By placing spray cooling systems around the pool, the water mist not only lowers the temperature, but also creates a mist-filled feeling over the water.
