Misting nozzle sizes

The size of the misting nozzle includes the size of the screw thread of the misting nozzle, the size of the flow and the size of the particle size of the misting liquid.


APPLICATIONS：Outdoor cooling, humidification, dust control, high evaporation, spray applications, visual effects, and others
ORIFICE SIZE: .006″/.15mm, .008″/.20mm, .012″/.30mm, .016″/.40mm, .020″/.50mm

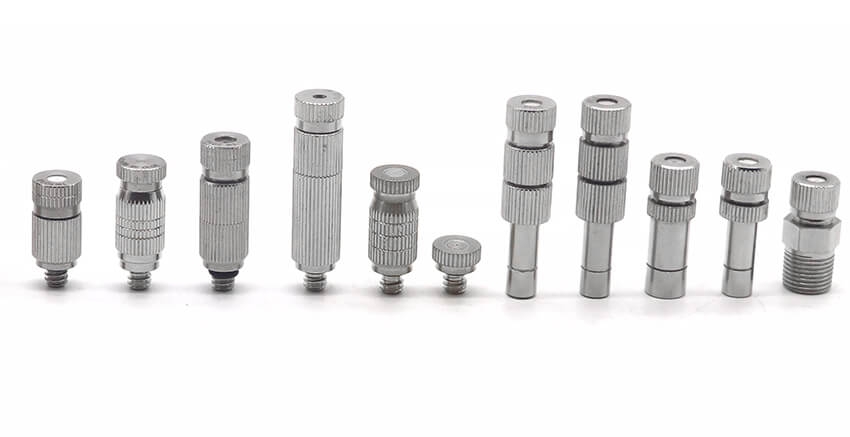

THREAD SIZE: 12/24 unc, 10/24unc, 1/8',1/4' etc bsp or npt available

Nozzle flow: 0L/min--1000L/min (common flow: 0.5L/min, 1L/min, 5L/min, 10L/min, 20L/min, 30L/min)
Injection Angle: Common degrees 30°, 45°, 60°, 90°120°, 360° (can be customized according to the requirements of the Angle 0°-360°)
Nozzle material: stainless steel (SS304, 303, 316, 316L), BRASS, plastic (PVC, ABS, FUD)
The above sizes are commonly used. In addition, there are 1.2 "nozzle , 1.5" nozzle , 2 "nozzle nozzle, 2.5" nozzle, 4 "nozzle and other specifications.

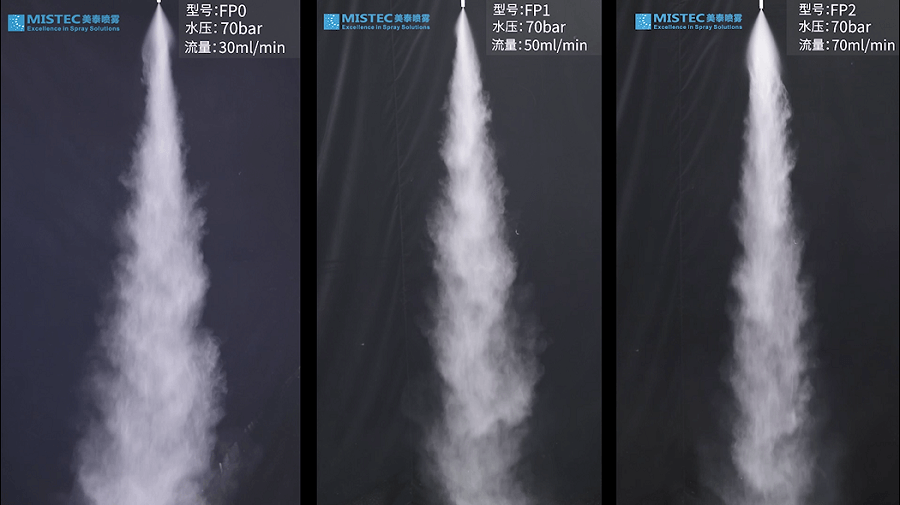

No. 0 nozzle aperture 0.10mm operating pressure 20~70kg/cm spray volume 10~25cc/min
No.1 nozzle aperture 0.15mm operating pressure 20~70kg/cm spray volume 20~46cc/min
No.2 nozzle aperture 0.20mm operating pressure 20~70kg/cm spray volume 49~89 cc/min

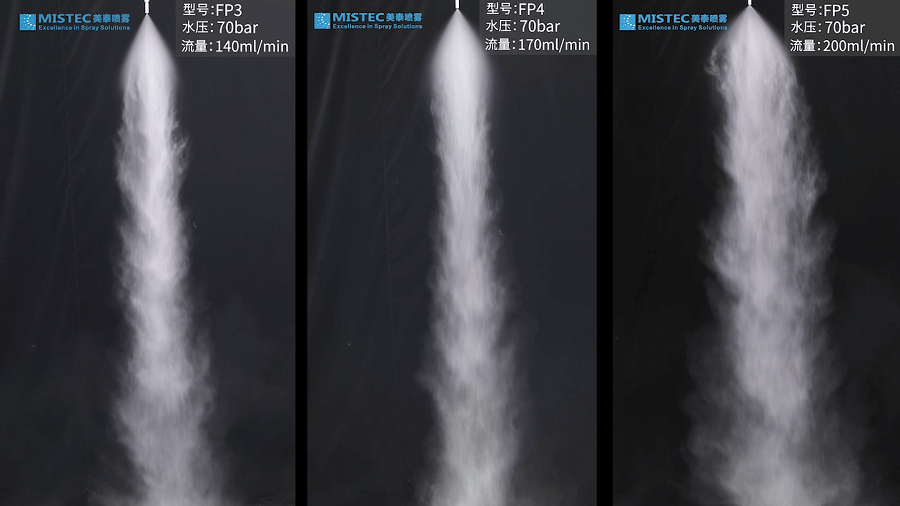

No.3 nozzle aperture 0.30mm operating pressure 20~70kg/cm spray volume 80~145 cc/min
No.4 nozzle aperture 0.40mm operating pressure 20~70kg/cm spray volume 95~178 cc/min
No.5 nozzle aperture 0.50mm operating pressure 20~70kg/cm spray volume 130~243cc/min


nozzle	0 type	1 type	2 type	3 type
aperture	0.10mm	0.15mm	0.20mm	0.30mm
Working pressure	35-70kg	18-70kg	15-70kg	10-70kg
Nozzle flow	0.01-0.03L/min	0.02-0.05L/min	0.05-0.09L/min	0.06-0.11L/min
Atomized particle	about 4-10μm	about 5-15μm	about  10-25μm	about  15-35μm
Spray Angle	>20 degree	>30degree	>45degree	>60degree
Spray material	Ceramic/Stainless Steel	Ceramic/Stainless Steel	Ceramic/Stainless Steel	Ceramic/Stainless Steel
Main material	316 ss	316 ss	316 ss	316 ss
