How far apart should misting nozzles be installed?

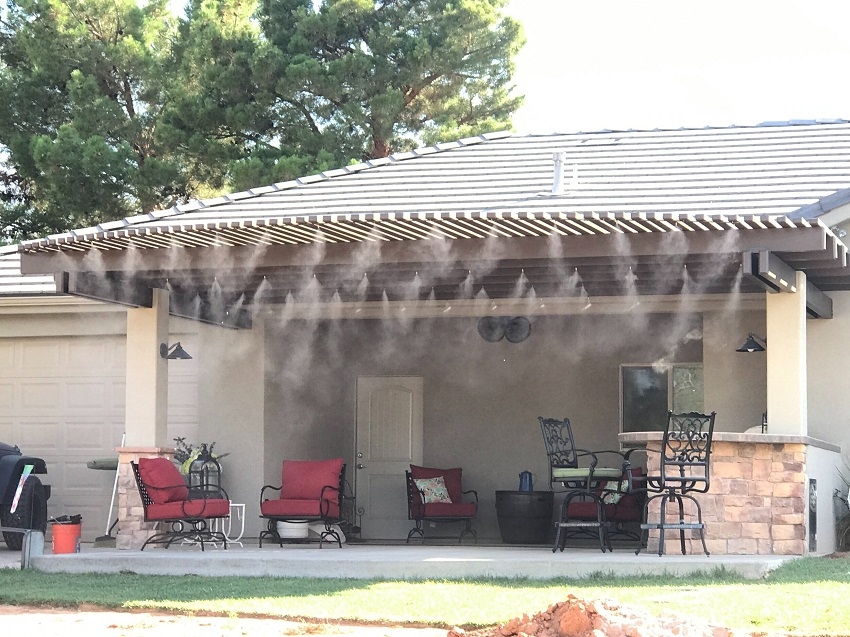

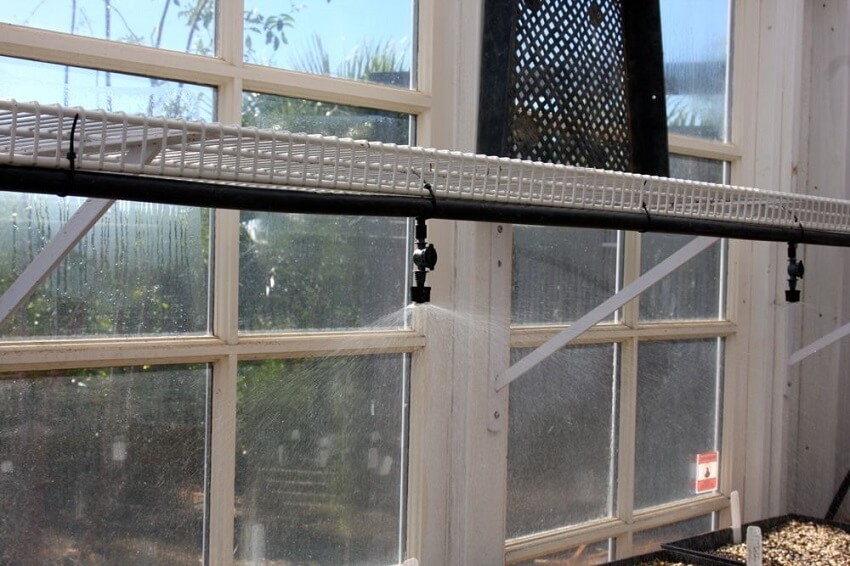

Our design nozzle is generally about 40 cm apart, more than 80 cm misting effect drops straight, within 30 cm misting nozzle misting effect is too exaggerated, can not see people. Our previous case is that the nozzle uses a 0.12mm aperture interval of 30cm misting effect. Later, I feel that the fog is too thick to see people in the pool, and the machine is closed with an interval of 60-90cm misting effect in general, to achieve the scenery effect and does not affect the pedestrian field of vision.
Secondly, the diameter of atomized spray particles is determined by the requirements of use.
Therefore, first of all, we must confirm the requirements of misting nozzle spray effect, and then according to the characteristics of the medium, choose the right nozzle, choose the right pump, can achieve your required effect (including spray distance, spray impact force, misting particle size).
Generally, the fine misting nozzle is better within 50CM. The air misting nozzle can generally set the pressure, and the distance is far if the pressure is large.
Standard distance between fire sprinkler heads: generally, the distance between the top spray or the bottom spray is not more than 3.6 meters, not less than 2.4 meters. The distance from the nozzle to the wall is no more than 1.8 meters. The sprinkler head should be set up according to the Design Code for Automatic Sprinkler System. Fire sprinkler head is used for fire sprinkler system. When a fire occurs, water is poured out through the sprinkler head splash pan to extinguish the fire. Currently, it is divided into drooping sprinkler head, upright sprinkler head, ordinary sprinkler head, sidewall sprinkler head, etc. In case of fire, the fire water is evenly sprinkled through the sprinkler head to control the fire in a certain area. The common sprinkler head types are: droop type, upright type, ordinary type and side wall type.
The minimum spacing between two sprinkler heads on the same pipe or adjacent pipes is 2.4 meters. Maximum spacing: 1. Spray intensity 4L/min.m2, square arrangement 4.4 meters, rectangle or parallelogram arrangement 4.5 meters.2. Spray intensity is 6L/min.m2, square layout is 3.6 meters, rectangle or parallelogram layout is 4.0 meters.3. Spray intensity 8L/min.m2, square arrangement 3.4 meters, rectangle or parallelogram arrangement 3.6 meters. Spray intensity 12L/min.m2, square layout 3.0 meters, rectangular or parallelogram layout 3.6 meters. The maximum spacing of nozzle on the water distribution branch pipe of edge strong sprinkler head is 3.6m for light danger level and 3.0m for medium danger level.
About nozzle spacing, nozzle and the distance of metope should be generally greater than 7.5 cm, not more than 15 cm, otherwise can not reach the corresponding effect, the spray system is mainly composed of PPR pipe, direct, tee, elbow and so on water circulation pipeline, supply of spray water tank, multi-stage pump for conveying power, intelligent controller to control the entire system, As for the distance between the spray head, should be adjusted according to the situation! The standard distance between the spray head: generally, the distance between the top spray or the bottom spray nozzle is not up to 3.6 meters, not more than 2.4 meters. The distance from the nozzle to the wall is no more than 1.8 meters.
The spray distance of misting nozzle is a broad concept.
Firstly, the spray distance is related to the nozzle structure, the input medium pressure and the physical characteristics of the medium.Secondly, the diameter of atomized spray particles is determined by the requirements of use.
Therefore, first of all, we must confirm the requirements of misting nozzle spray effect, and then according to the characteristics of the medium, choose the right nozzle, choose the right pump, can achieve your required effect (including spray distance, spray impact force, misting particle size).
Generally, the fine misting nozzle is better within 50CM. The air misting nozzle can generally set the pressure, and the distance is far if the pressure is large.
What is the standard spacing of fire sprinkler heads?
Standard distance between fire sprinkler heads: generally, the distance between the top spray or the bottom spray is not more than 3.6 meters, not less than 2.4 meters. The distance from the nozzle to the wall is no more than 1.8 meters. The sprinkler head should be set up according to the Design Code for Automatic Sprinkler System. Fire sprinkler head is used for fire sprinkler system. When a fire occurs, water is poured out through the sprinkler head splash pan to extinguish the fire. Currently, it is divided into drooping sprinkler head, upright sprinkler head, ordinary sprinkler head, sidewall sprinkler head, etc. In case of fire, the fire water is evenly sprinkled through the sprinkler head to control the fire in a certain area. The common sprinkler head types are: droop type, upright type, ordinary type and side wall type.
The minimum spacing between two sprinkler heads on the same pipe or adjacent pipes is 2.4 meters. Maximum spacing: 1. Spray intensity 4L/min.m2, square arrangement 4.4 meters, rectangle or parallelogram arrangement 4.5 meters.2. Spray intensity is 6L/min.m2, square layout is 3.6 meters, rectangle or parallelogram layout is 4.0 meters.3. Spray intensity 8L/min.m2, square arrangement 3.4 meters, rectangle or parallelogram arrangement 3.6 meters. Spray intensity 12L/min.m2, square layout 3.0 meters, rectangular or parallelogram layout 3.6 meters. The maximum spacing of nozzle on the water distribution branch pipe of edge strong sprinkler head is 3.6m for light danger level and 3.0m for medium danger level.

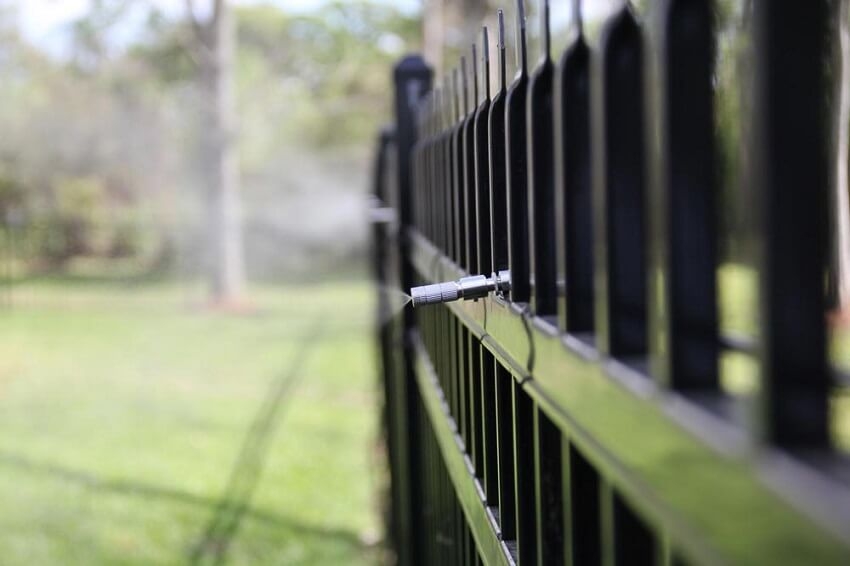

How much is the installation spacing of the site enclosure sprinkler head?
About nozzle spacing, nozzle and the distance of metope should be generally greater than 7.5 cm, not more than 15 cm, otherwise can not reach the corresponding effect, the spray system is mainly composed of PPR pipe, direct, tee, elbow and so on water circulation pipeline, supply of spray water tank, multi-stage pump for conveying power, intelligent controller to control the entire system, As for the distance between the spray head, should be adjusted according to the situation! The standard distance between the spray head: generally, the distance between the top spray or the bottom spray nozzle is not up to 3.6 meters, not more than 2.4 meters. The distance from the nozzle to the wall is no more than 1.8 meters.
