high pressure misting spray humidifier Specifications textile workshop humidifier industrial humidifier




Conditions of use of high pressure misting spray humidifier:


1, ambient temperature humidifier host 5℃-40℃ humidifier nozzle 5℃-50℃;

2, ambient humidity humidifier host ≤90%RH;

3, water supply quality tap water, purified water or similar water;

4, feed water pressure 0.04-0.4mpa;

5, feed water temperature 4℃-55℃;

6, humidification section length ≥0.6m;

7, inlet air temperature ≥15℃;

8. Inlet wind speed is 0.5-3.0m /s.


Precautions for installation of high pressure misting spray humidifier:


1, positioning marking, determine the location of the host and the location of the branch control box, marking and drilling, neat and beautiful, easy to use and maintenance of equipment;

2, the host is fixed on a stable foundation, do shockproof, anti-loosening treatment, the host should be installed horizontally, tilt rate is less than 2%;

3. When installing the high-pressure pipeline, the accessories must be tightened, otherwise the host will leak during operation;

4, the nozzle installation position is best to choose in the neutral position and the nozzle misting spray can not have objects (to prevent misting spray misting spray on the object to produce condensed water), the height (generally higher than 3 meters) the higher the use effect is better;

5. After pipeline installation, first check whether there is air in the inlet pipe. If there is air, the host will not run and the water should have a certain water pressure (the water pressure of general tap water is enough), otherwise the pressure switch can not be opened, and the host will not work. In the test machine, we must open a nozzle of the pipeline terminal at the same time for drainage and washing, because there are impurities in the pipeline or installation will block the nozzle;

6, the host pressure should not be adjusted often as far as possible, the use range is generally within 50-70 kg;

7, the filter is installed on the water inlet pipe, the water inlet pressure is generally 0.5-4kg/cm2, no pressure host will not operate;

8, there are many types of humidifier nozzle parameters are different;

9. The humidifier host is used to change the oil according to different situations. Most customers use it in the daytime, so change it once every 2-3 months. Select replacement according to the length of use, in order to more effectively ensure the service life of the host.


Eight advantages of high pressure misting spray humidifier:

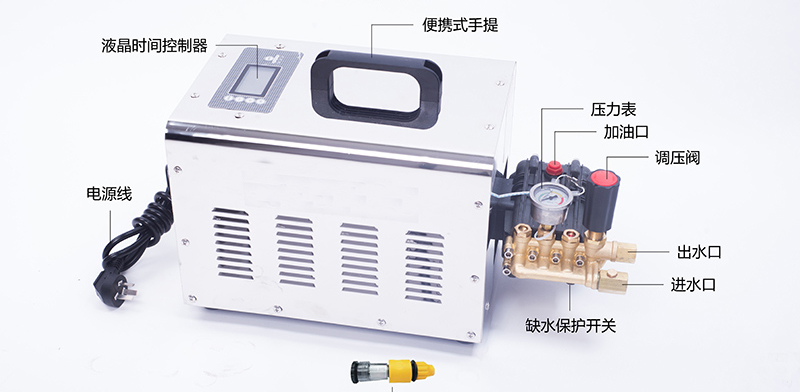

1, the host configuration is high: the use of Italy imported high pressure water pump, Swiss imported motor, Swiss imported constant pressure water supply device, to ensure that the service cycle and life of the equipment is much higher than the equipment produced by other manufacturers; And the water tank are made of stainless steel production materials, can ensure perennial use without rust, reduce the maintenance cost of manufacturers; Its internal also set off the water protection system, can prevent the water tank in the case of water shortage, stop working in time, so as to achieve the purpose of protecting the pump;

2. In addition, this device is also equipped with a 7-inch PLC touch screen controller, which can display the operating status of the device in an all-round way. In case of water shortage and other situations, it can be realistic on the screen in time and enter the alarm mode; The main box also adopts plastic misting spraying treatment, to ensure that the equipment is still as new after perennial use;

3, the filtration system adopts soft water or pure water system, strictly control the purity of the water, to ensure that the nozzle is not blocked, not dripping, and a long time of normal work;

4. In terms of cooling and dust removal, this equipment will vaporize the pressurized water through the nozzle to produce extremely fine misting spray particles and achieve large area of humidification, cooling and dust removal;

5, energy saving: a host can cover 4000 square area, and the power consumption of the host only needs 2.2KW;

6, high degree of automation, the whole system automatic control, time control and humidity control and other control methods. In addition, can also use PLC remote control, all data transmission to the computer or mobile phone end, so that customers more complete understanding of the temperature and humidity of the workshop;

7, long service life, the host machine has no special wearing parts, only need to ensure that the pump body oil replacement within the specified time. The strainer of the filter should be replaced within a specified time. The main parts of the pump and motor are imported, stable performance, can run for a long time, the service life of the host is more than 8 years;

8, diversified nozzles, high pressure misting spray humidifier nozzle from 0# to 9# variety of models, to meet all kinds of environment and various uses of size particles.

The principle of high pressure misting spray humidifier is to misting spray water through a special nozzle after the humidifier host is pressurized. The misting spray water is exchanged with the air for heat and humidity, so that the misting spray water vaporizes to humidify the air. This kind of humidification belongs to the same enthalpy humidification mode, which can also play a certain cooling role in humidification.
